One-Level Coastal Mediterranean House Plan over 5,200 Square Feet with 4-Car Garage
Heated S.F.
5,289
Beds
4
Baths
4.5+
Stories
1
Cars
4
Plan Details
  • A double garage extends from both sides of the front elevation creating a courtyard entry to this one-level Mediterranean house plan.
  • Designed with entertaining in mind, the open great room, kitchen, and dining area seamlessly connect with the generous lanai through retractable glass walls. A glass-encased wine room completes the look.
  • The homeowner's wing offers a secluded location, along with two closets, oversized shower, and bidet in the ensuite. A quiet study with coffered ceiling sits next door.
  • Three bedroom suites line the left side of the home ending with a generous bonus room.
  • Loads of cabinetry in the laundry room increases storage space, complete with a built-in desk for household organization.
What's Included

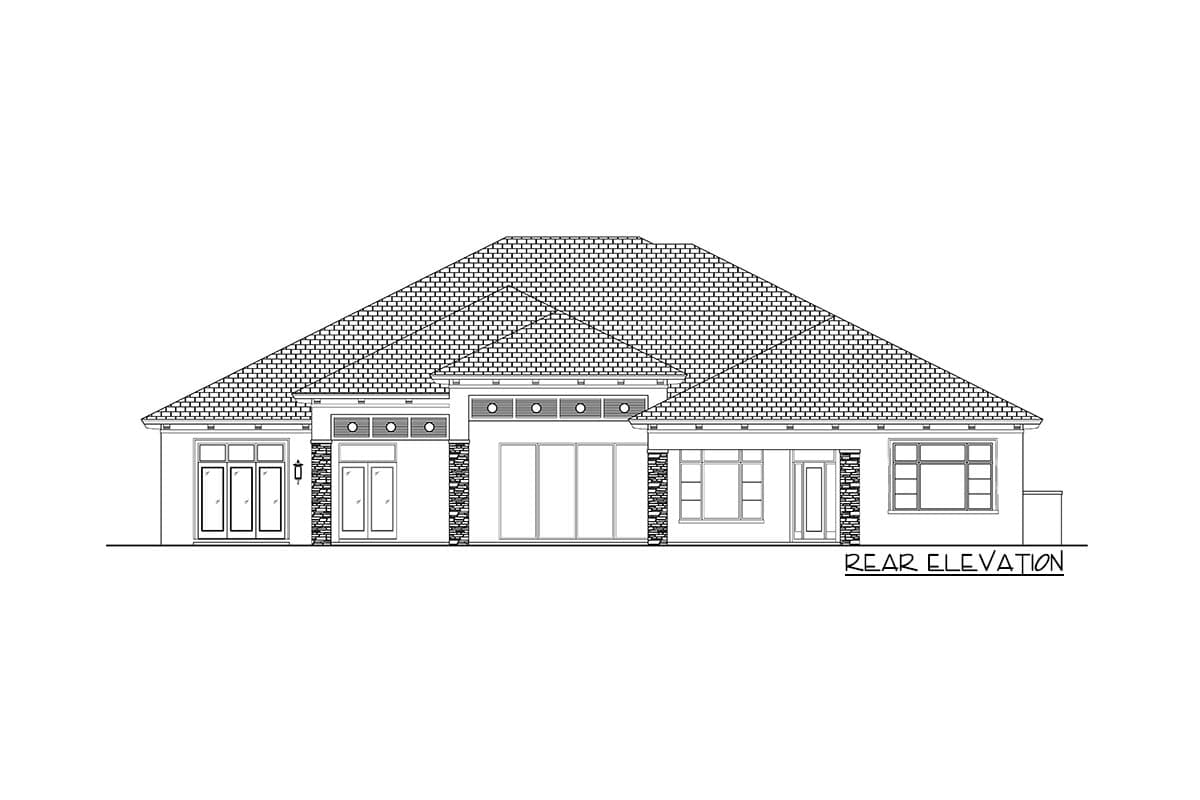

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Size

Electrical Layouts

  • Building Section Markers
  • Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor Joist Size and Spacing
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness

Miscellaneous Notes and Details

  • Miscellaneous General Notes
  • Stairway Details (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Level Coastal Mediterranean House Plan over 5,200 Square Feet with 4-Car Garage

  • 5,289

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 1

    Floors

  • 4

    Car garage

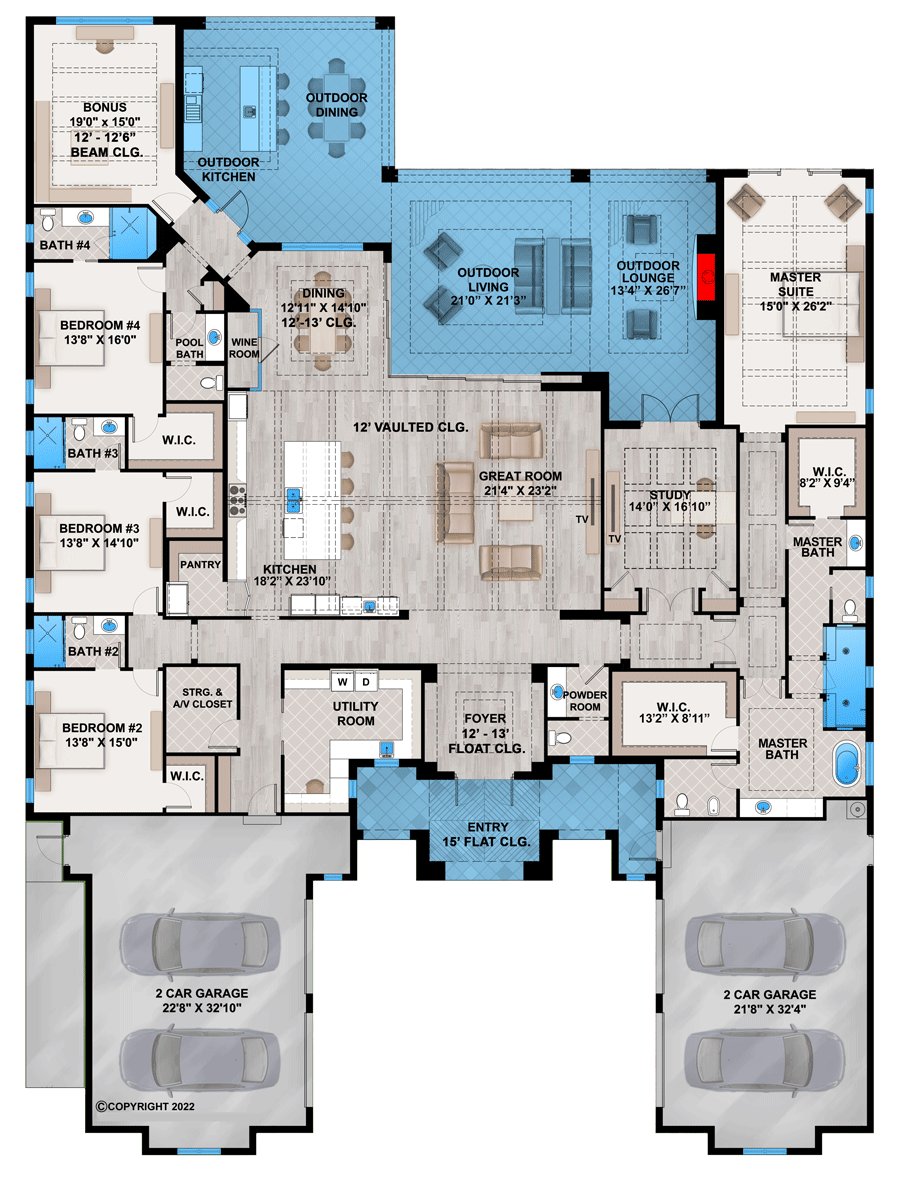

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 5,289 sq. ft.
  • 1st Floor: 5,289 sq. ft.

Dimensions

  • Width: 89' 8"
  • Depth: 120' 4"
  • Max ridge height: 31' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1678 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
