Plan 666176RAF One-level Contemporary House Plan with RV Bay and Large Covered Patio

4,084 4 4.5 1 5
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

One-level Contemporary House Plan with RV Bay and Large Covered Patio

Plan 666176RAF

  • 4,084

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 5

    Cars

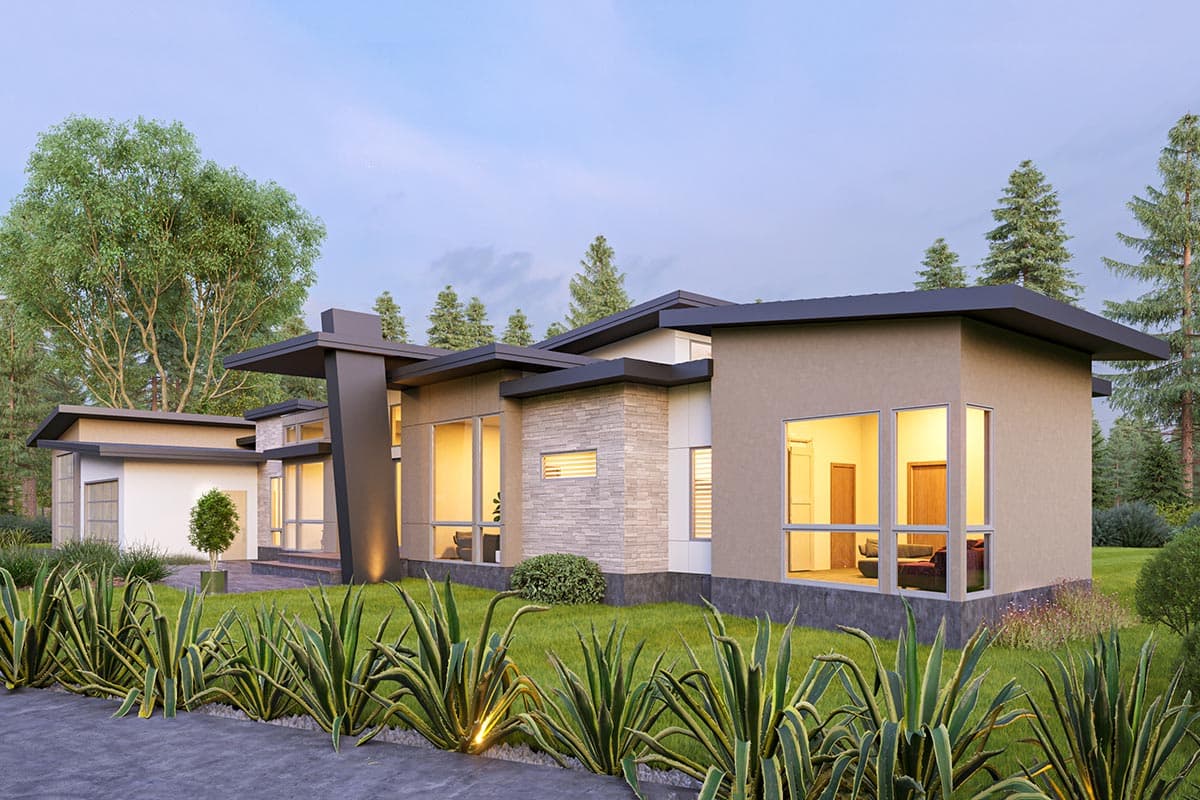

  • Tall vaulted ceilings and large windows allow natural light to consume the interior of this one-level Contemporary house plan, while an accordion-style door retracts to allow the great room to flow onto the generous covered patio.
  • Two islands define this gourmet kitchen; one for prep work and one for casual meals. The adjacent dining nook grants access to a large spice kitchen with a range, sink, and cold storage.
  • The car enthusiast will appreciate the sizable garage with space for 5 cars and/or an oversized recreational vehicle. A sizable mudroom stands by to store your bags, shoes, and outerwear.
  • Enjoy the private location of the master suite which is accompanied by a deluxe ensuite with an oversized shower, freestanding tub, and roomy closet.
  • Three additional bedroom suites occupy the right side of the design, each with their own full bath and walk-in closet.

Plans include:

  • Cover Sheet
  • General notes
  • Foundation Plan
  • Fully dimensioned floor plans

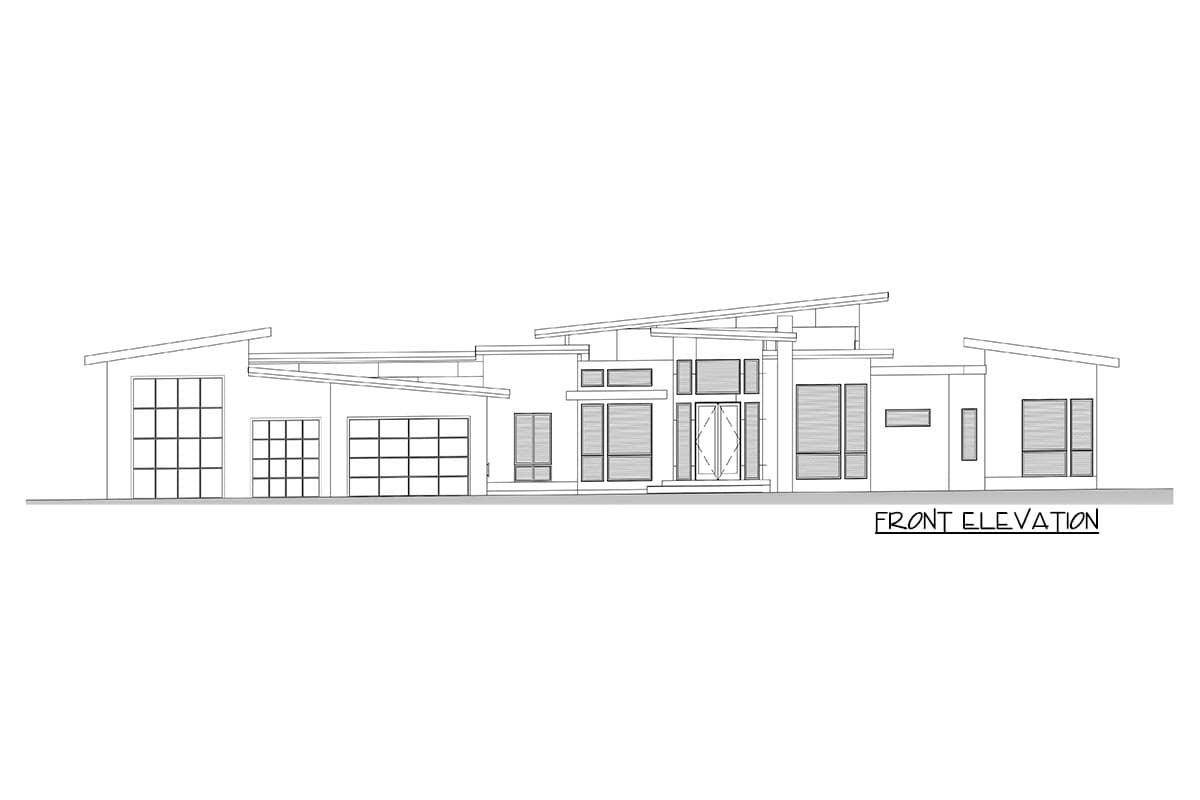

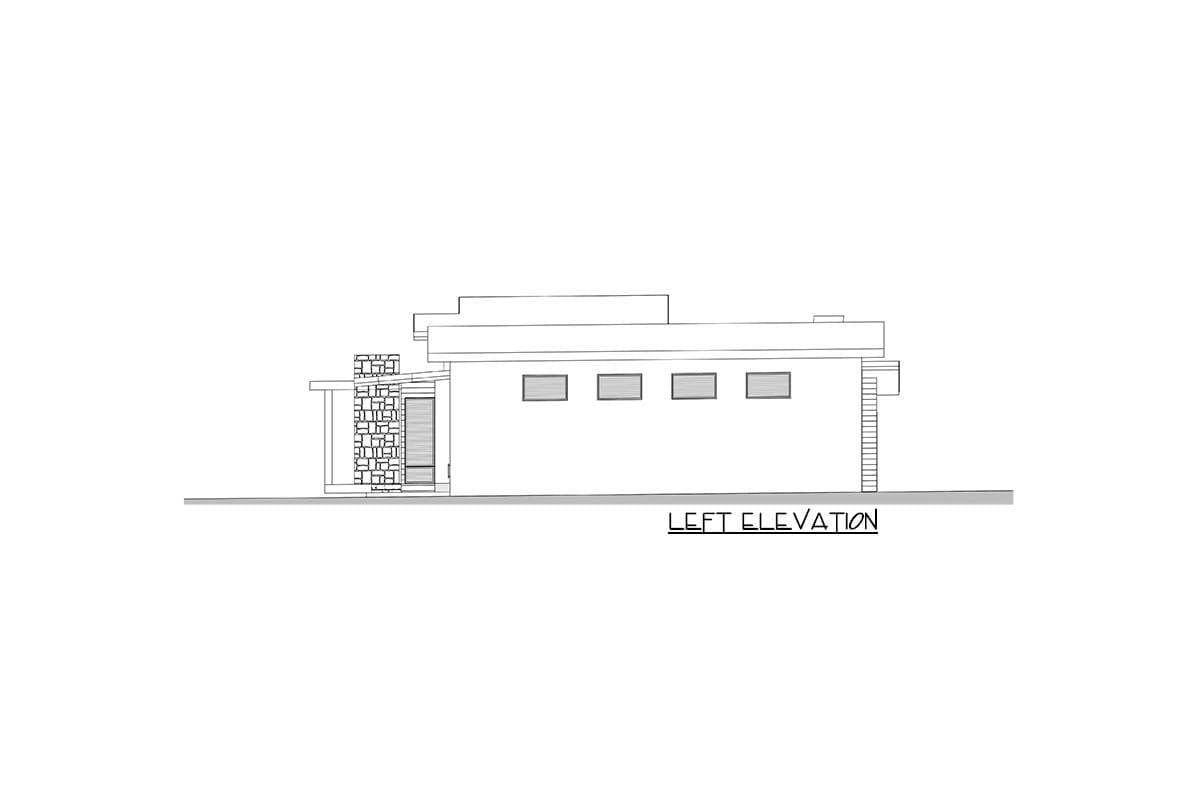

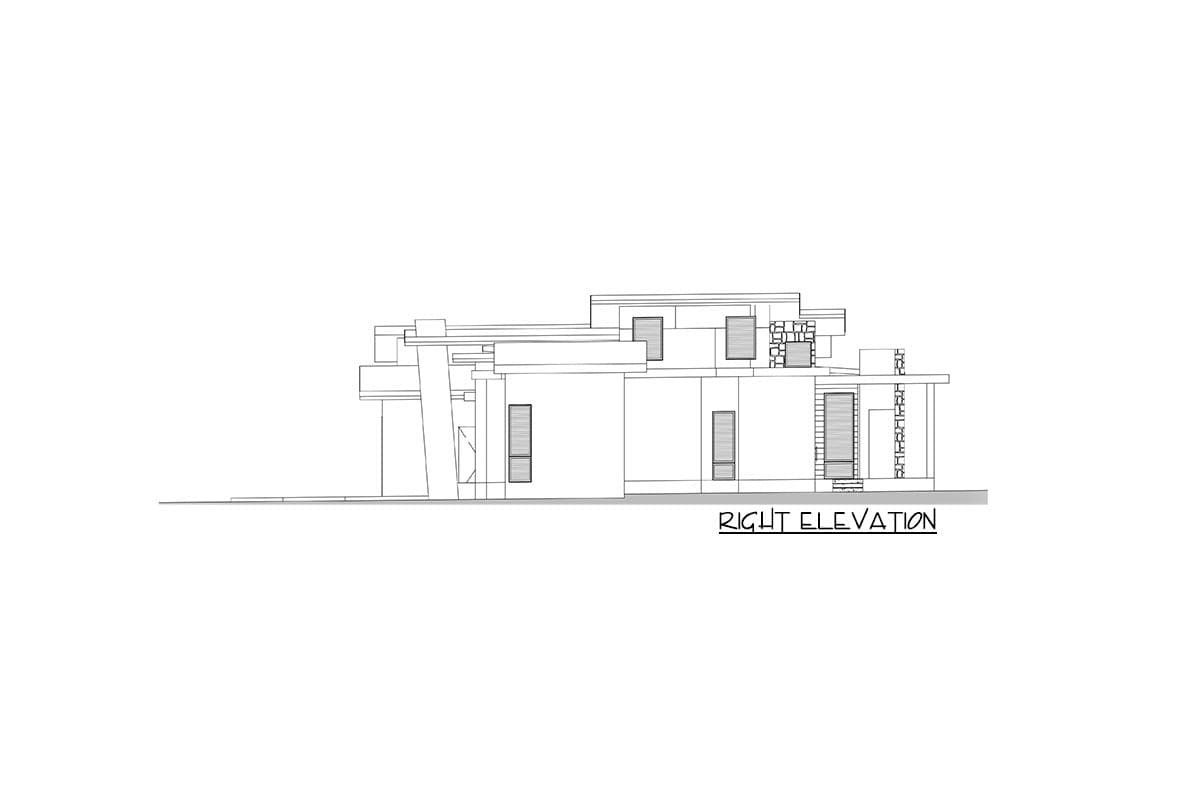

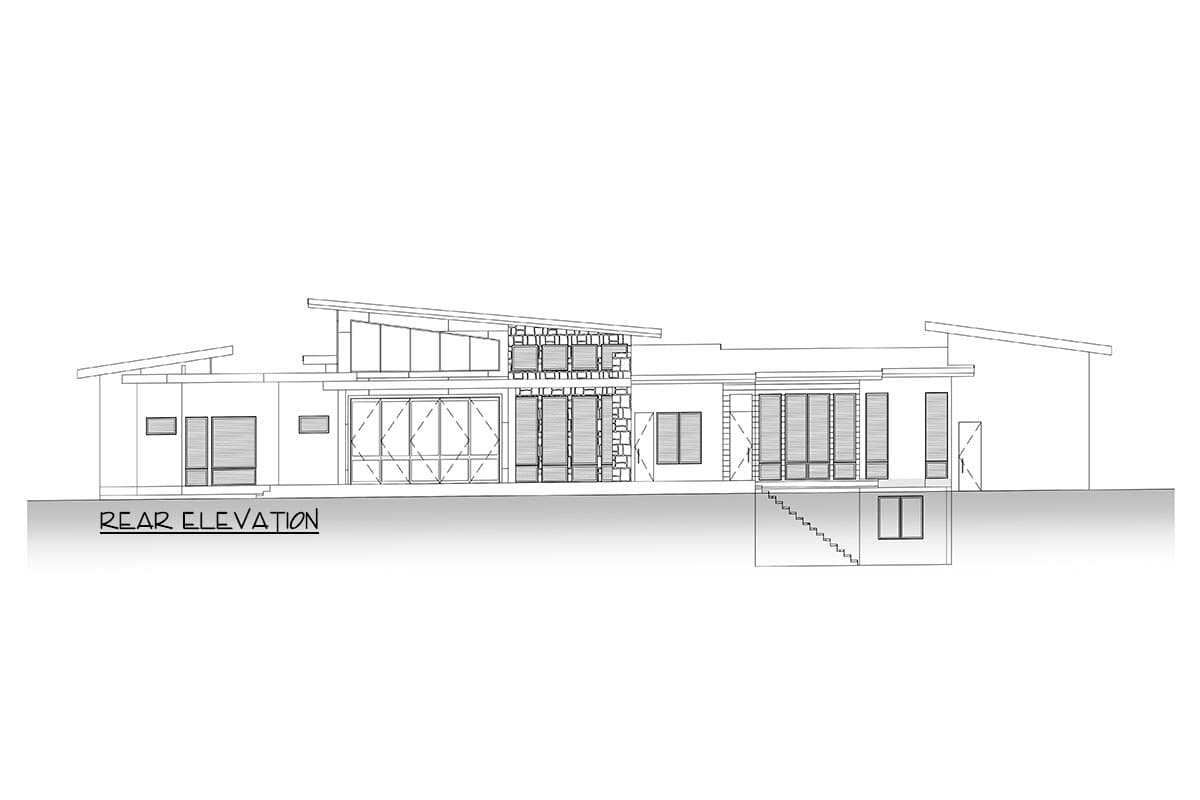

  • Elevations
  • Building cross sections
  • Roof Plan

What is NOT included in the plans:
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

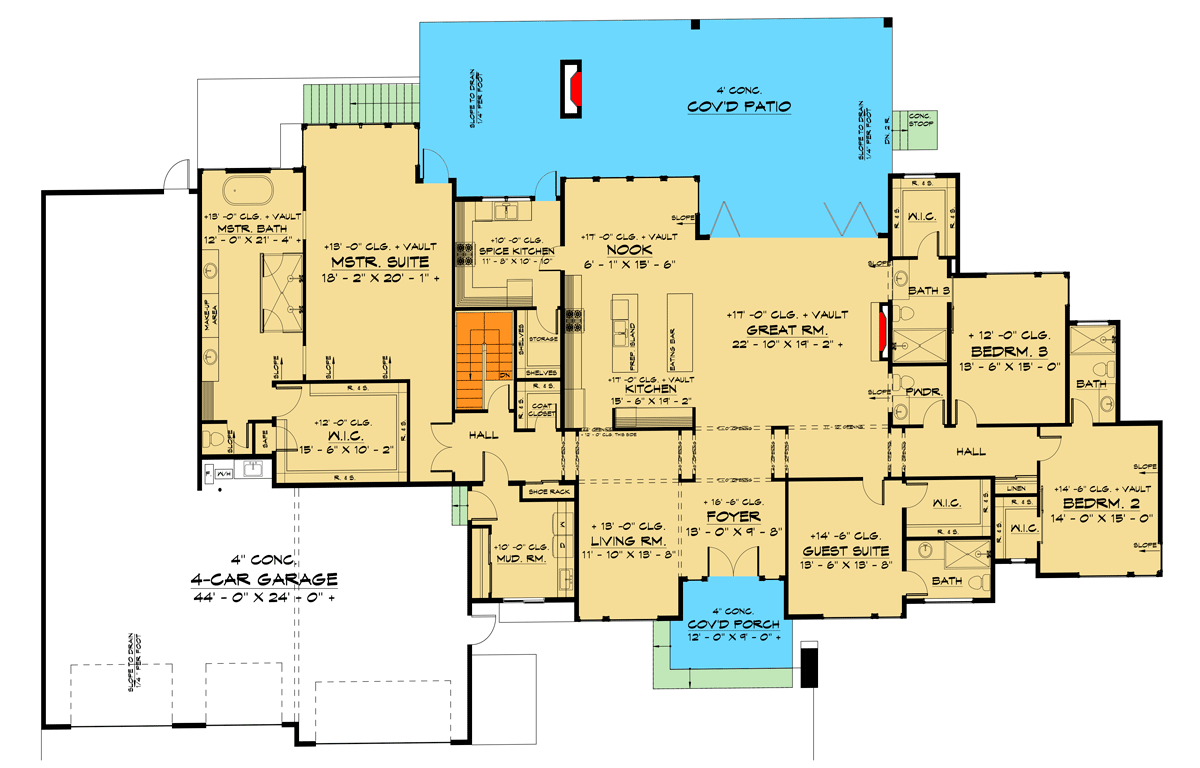

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
One-level Contemporary House Plan with RV Bay and Large Covered Patio - 666176RAF floor plan - Main Level

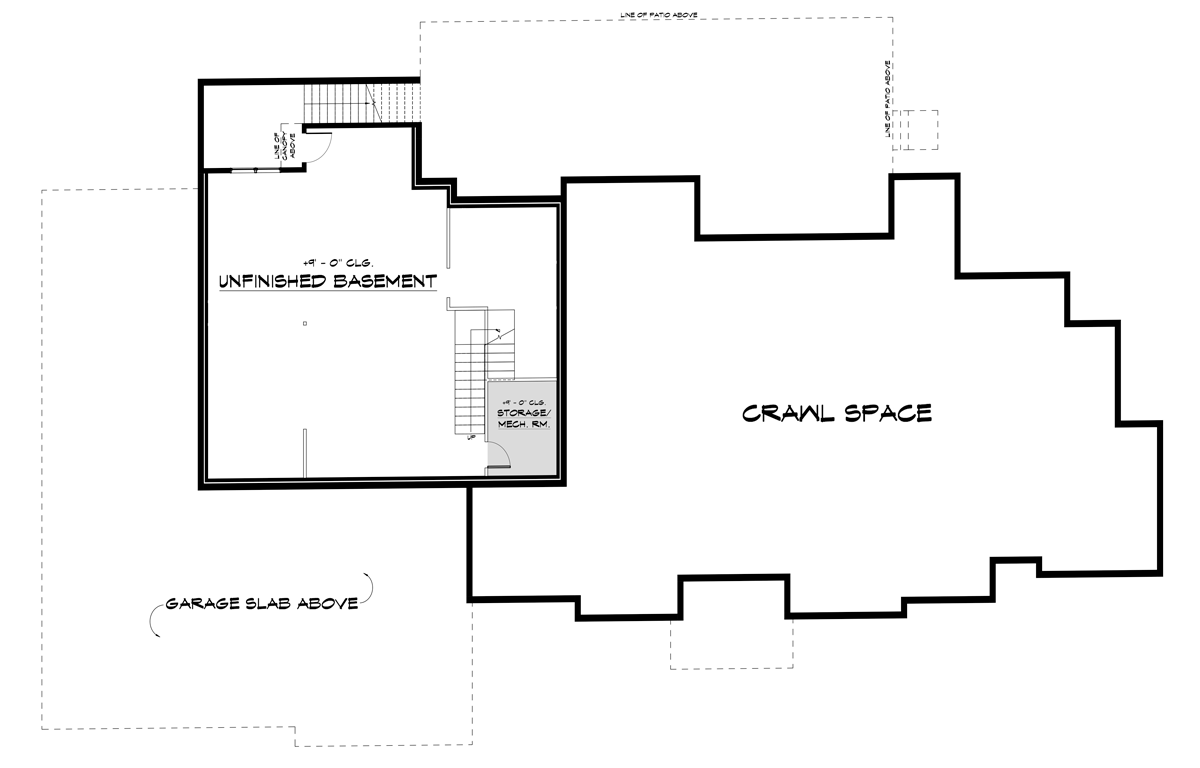

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
One-level Contemporary House Plan with RV Bay and Large Covered Patio - 666176RAF floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,084 sq. ft.
  • 1st Floor: 4,084 sq. ft.
  • Covered Patio: 1,056 sq. ft.
  • Porch, Front: 123 sq. ft.
  • Basement Unfinished: 1,350 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 132' 10"
  • Depth: 63' 10"
  • Max ridge height: 18' 6"

Garage

  • Type: Attached
  • Area: 1881 sq. ft.
  • Count: 5 Cars

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 1 on 12
  • Secondary Pitch: 1 1/2 on 12
  • Framing Type: Truss

Architectural Style

Special features

One-level Contemporary House Plan with RV Bay and Large Covered Patio

  • 4,084

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 5

    Car garage

Buy This Plan
  • PDF - Single-Build $2,042
  • 5 Sets $2,342
  • 8 Sets $2,492
  • CAD - Single-Build $3,880
  • View all purchase option online

About This Plan

  • Tall vaulted ceilings and large windows allow natural light to consume the interior of this one-level Contemporary house plan, while an accordion-style door retracts to allow the great room to flow onto the generous covered patio.
  • Two islands define this gourmet kitchen; one for prep work and one for casual meals. The adjacent dining nook grants access to a large spice kitchen with a range, sink, and cold storage.
  • The car enthusiast will appreciate the sizable garage with space for 5 cars and/or an oversized recreational vehicle. A sizable mudroom stands by to store your bags, shoes, and outerwear.
  • Enjoy the private location of the master suite which is accompanied by a deluxe ensuite with an oversized shower, freestanding tub, and roomy closet.
  • Three additional bedroom suites occupy the right side of the design, each with their own full bath and walk-in closet.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,084 sq. ft.
  • 1st Floor: 4,084 sq. ft.
  • Covered Patio: 1,056 sq. ft.
  • Porch, Front: 123 sq. ft.
  • Basement Unfinished: 1,350 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 132' 10"
  • Depth: 63' 10"
  • Max ridge height: 18' 6"

Garage

  • Type: Attached
  • Area: 1881 sq. ft.
  • Count: 5 Cars

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 1 on 12
  • Secondary Pitch: 1 1/2 on 12
  • Framing Type: Truss
Plan 666176RAF
View this and more for this plan by visiting www.architechtecturaldesigns.com/666176RAF
|
