Plan 83604CRW

One-Level Craftsman House Plan with Split Bedrooms

Pageloader

One-Level Craftsman House Plan with Split Bedrooms

Plan 83604CRW

  • 3,470

    Heated s.f.

  • 4-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

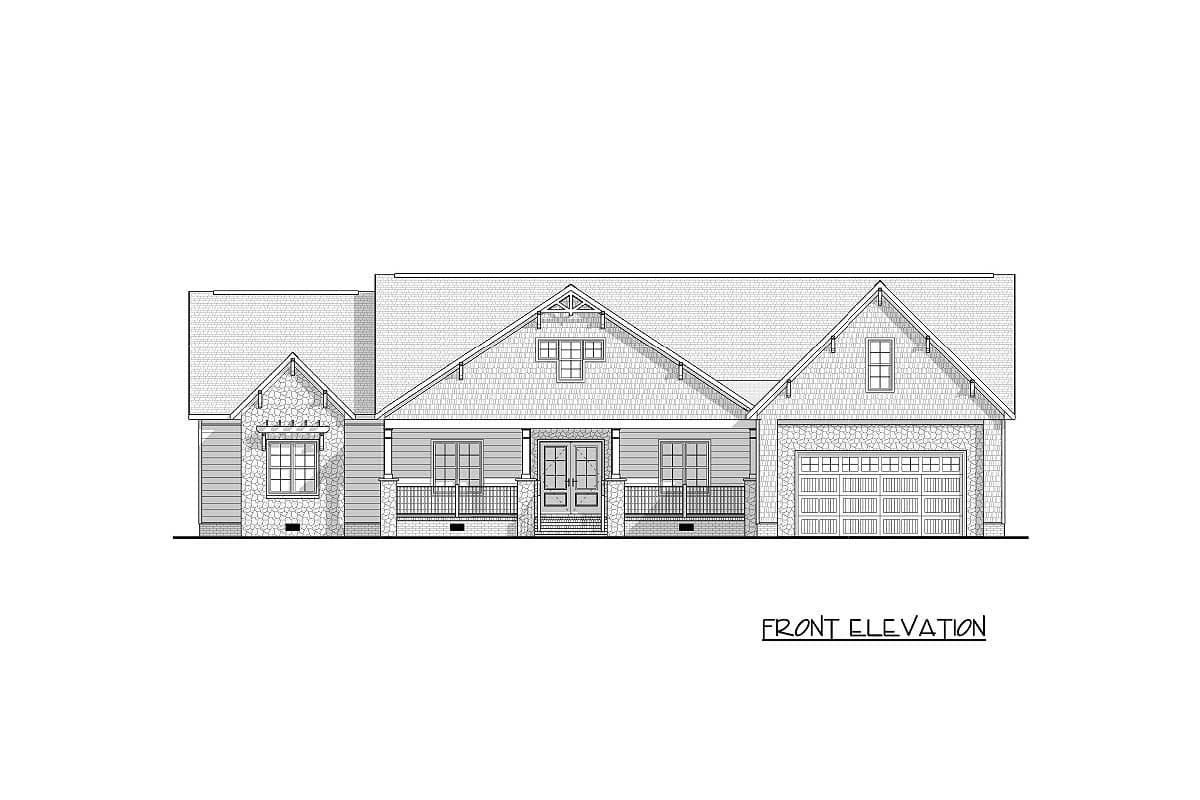

  • Horizontal siding and stone accents lie beneath a cross-gable roof, where deep overhangs are supported by large brackets. The 2-car garage juts out past the borders of the primarily rectangular design.
  • A long, front porch welcomes you home, and french doors open to a roomy foyer, with the formal dining to the right and a study to the left.
  • The great room's equally steep sloping sides meet in the middle to form a beautiful cathedral ceiling with a warm fireplace centered beneath. The open layout connects the great room with the kitchen, which features a large island with bar top seating and an attached dining area for casual meals.
  • Enjoy outdoor grilling or dining on the covered lanai, or slip through the butler's pantry to access the formal dining room.
  • The luxurious owner's bedroom is privately situated on the left side of the home, and boasts an elegant tray ceiling, sitting nook, and a pocket door which gives way to the ensuite. The bathroom includes a large walk-in closet, freestanding tub, shower enclosure, toilet room, and two vanities.
  • Three secondary bedrooms can be found on the opposite side of the home: two of which share a Jack-and-Jill bathroom, and the other with its own full bath.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

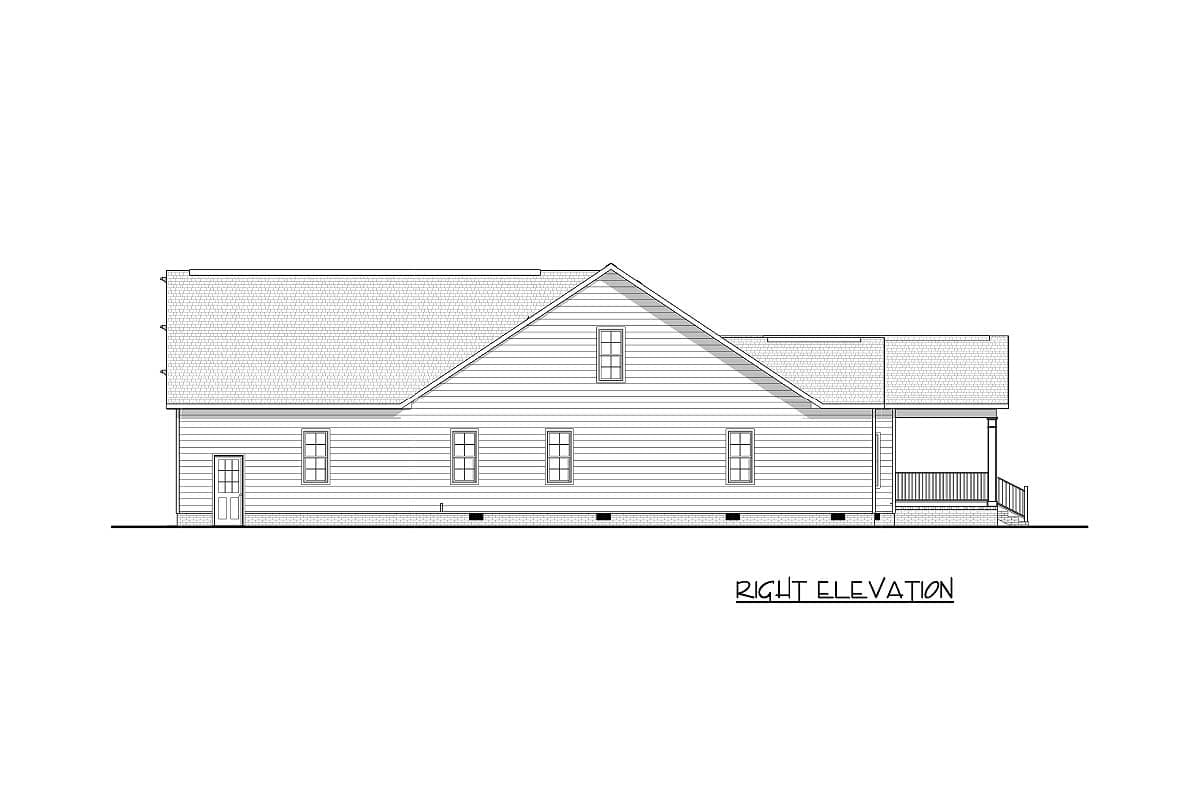

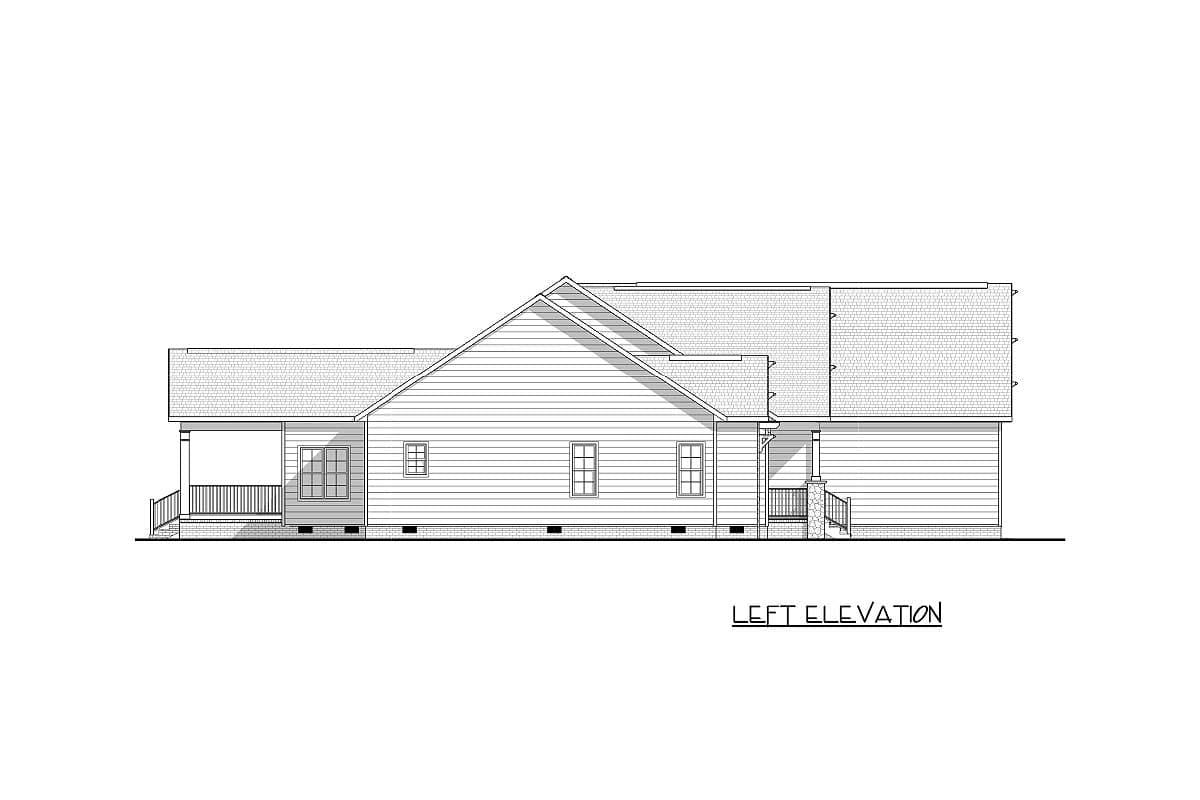

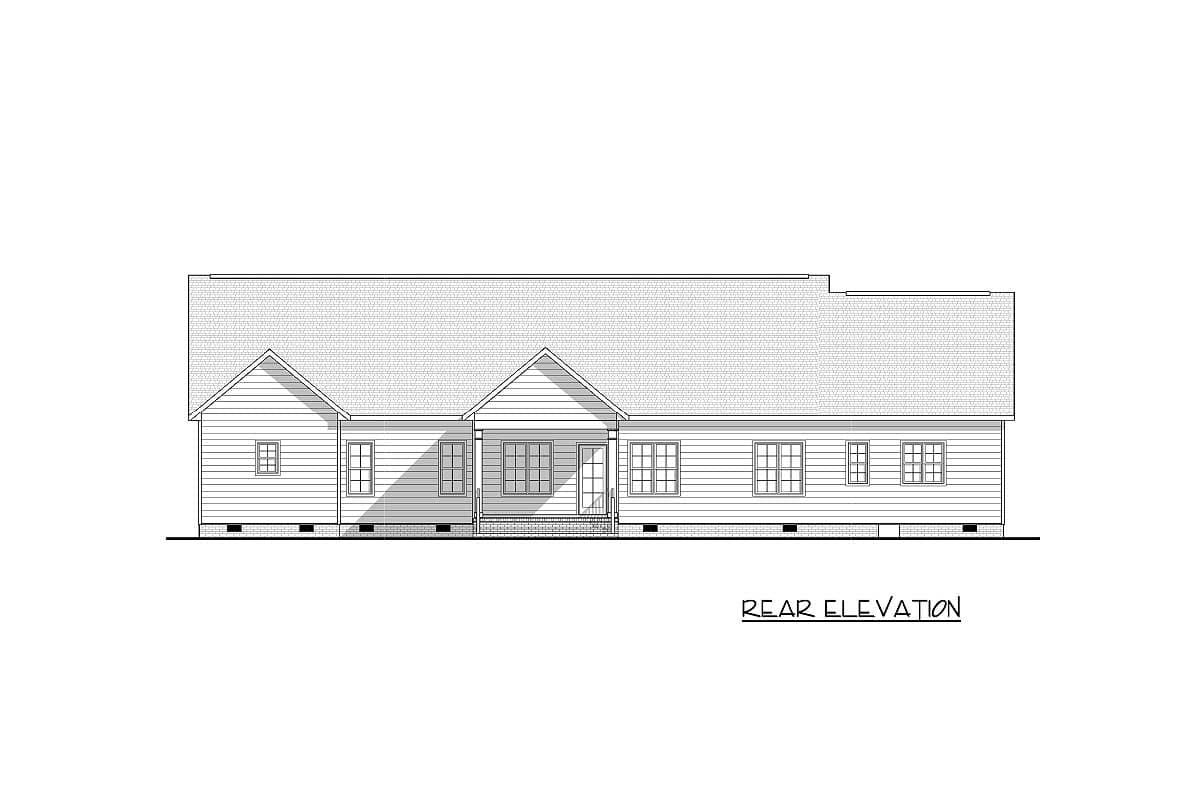

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

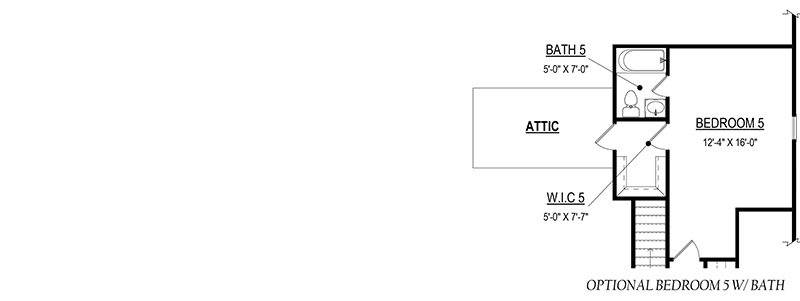

Optional Second Level Layout

Pinit white
One-Level Craftsman House Plan with Split Bedrooms - 83604CRW floor plan - Optional Second Level Layout

Plan details



One-Level Craftsman House Plan with Split Bedrooms

  • 3,470

    Heated s.f.

  • 4 - 5

    Beds

  • 4 +

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,245
  • 5 Sets $1,295
  • CAD $1,845
  • View all purchase option online

About This Plan

  • Horizontal siding and stone accents lie beneath a cross-gable roof, where deep overhangs are supported by large brackets. The 2-car garage juts out past the borders of the primarily rectangular design.
  • A long, front porch welcomes you home, and french doors open to a roomy foyer, with the formal dining to the right and a study to the left.
  • The great room's equally steep sloping sides meet in the middle to form a beautiful cathedral ceiling with a warm fireplace centered beneath. The open layout connects the great room with the kitchen, which features a large island with bar top seating and an attached dining area for casual meals.
  • Enjoy outdoor grilling or dining on the covered lanai, or slip through the butler's pantry to access the formal dining room.
  • The luxurious owner's bedroom is privately situated on the left side of the home, and boasts an elegant tray ceiling, sitting nook, and a pocket door which gives way to the ensuite. The bathroom includes a large walk-in closet, freestanding tub, shower enclosure, toilet room, and two vanities.
  • Three secondary bedrooms can be found on the opposite side of the home: two of which share a Jack-and-Jill bathroom, and the other with its own full bath.

Floor Plans

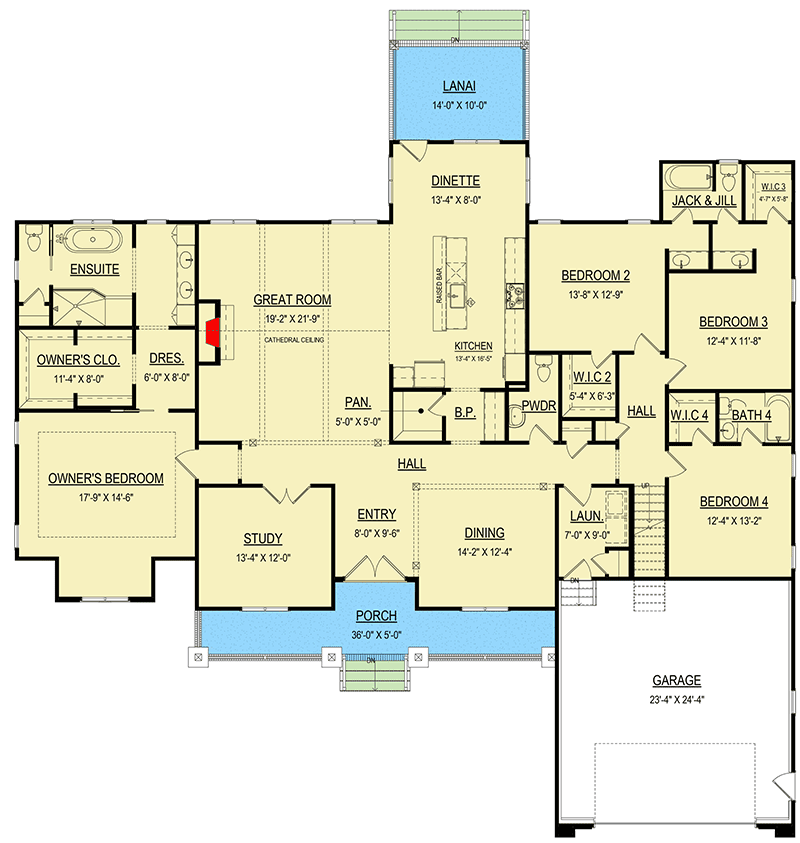

  • Main Level

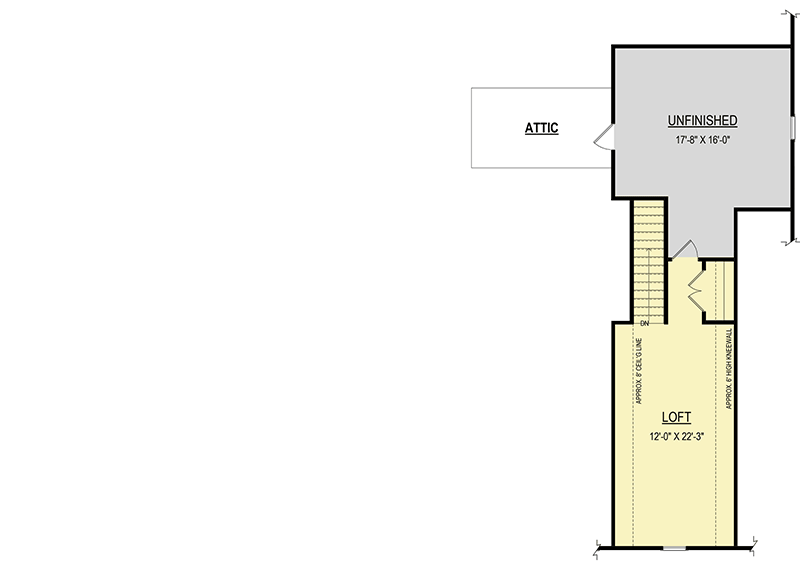

  • Second Level

  • Optional Second Level Layout

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,470 sq. ft.
  • 1st Floor: 3,091 sq. ft.
  • 2nd Floor: 379 sq. ft.
  • Lanai: 134 sq. ft.
  • Porch, Combined: 196 sq. ft.
  • Bonus: 329 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 78' 0"
  • Depth: 69' 8"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 597 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
