Plan 64483SC One-level Craftsman House Plan with Walk-out Lower Level

One-level Craftsman House Plan with Walk-out Lower Level

Plan 64483SC

  • 3,893

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Deep, overhanging eaves are supported by wooden brackets on this one-level, Craftsman house plan, complete with a blend of siding materials adding visual interest to the front elevation.
  • The shared living space is in the center of the home and extends outdoors onto a partially covered deck. Two offices on the main level provide plenty of quiet space to get work done at home.
  • The secluded master bedroom boasts a lavish, attached bath with access to the laundry room, and a spacious walk-in closet. Three family bedrooms are located on the opposite side of the home; two share a Jack-and-Jill bath, and one includes a full bath.
  • Additional living space on the lower level can be enjoyed by all, including a large recreation room, theatre, and two bedrooms.
  • The 3-car garage protrudes from the front of the home, and opens into a mudroom with a powder bath and dog room with a shower for your furry friends.

This plan includes the following details:

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

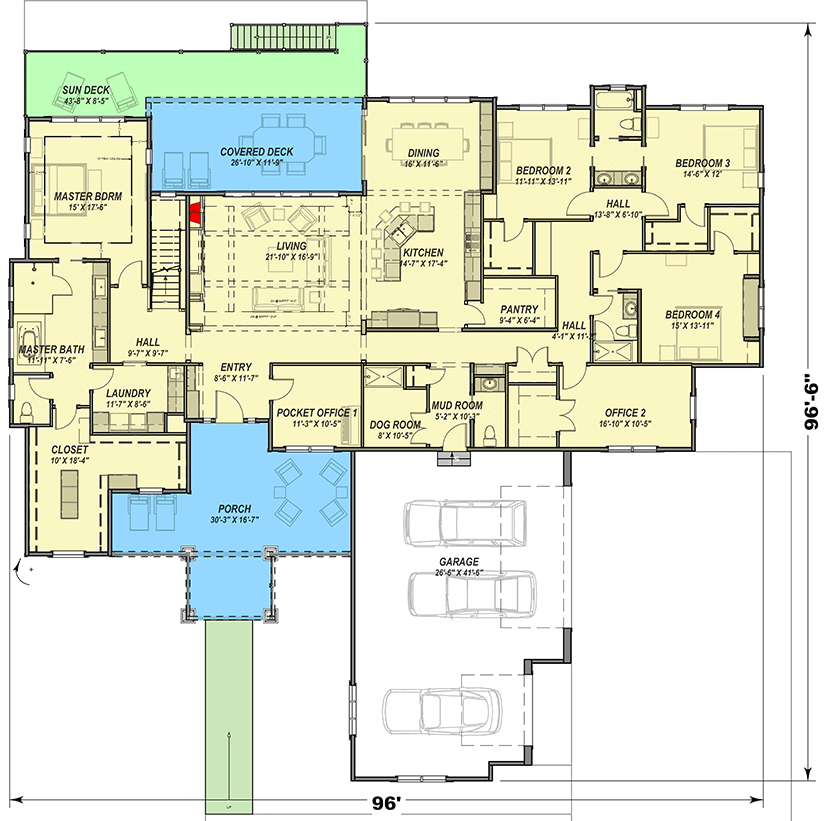

One-level Craftsman House Plan with Walk-out Lower Level - 64483SC floor plan - Main Level

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

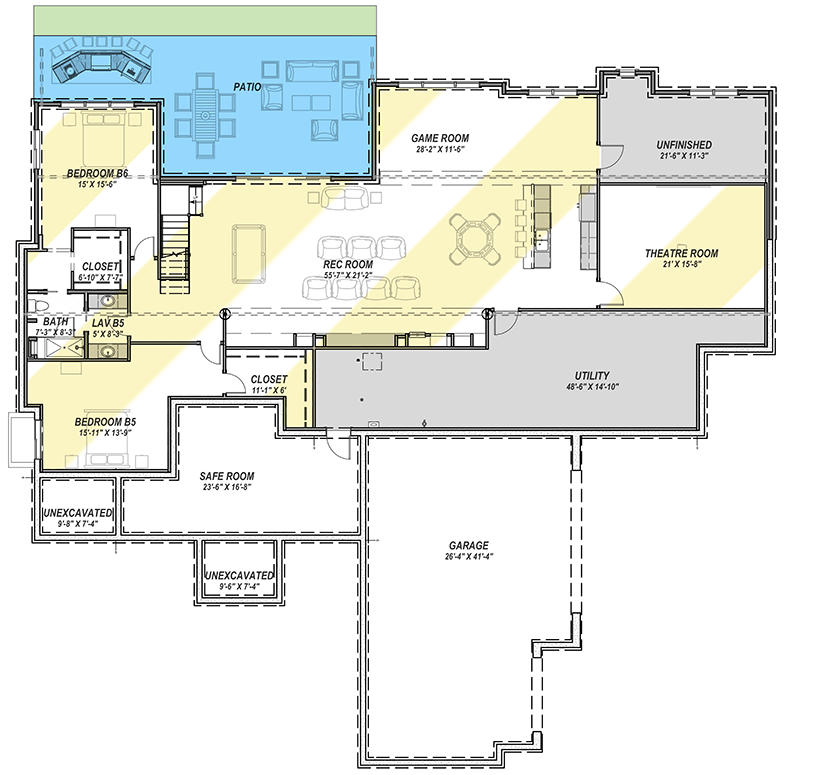

One-level Craftsman House Plan with Walk-out Lower Level - 64483SC floor plan - Optional Lower Level

Plan details

One-level Craftsman House Plan with Walk-out Lower Level

  • 3,893

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,395
  • PDF - Unlimited Build $1,695
  • CAD - Single-Build $1,895
  • CAD - Unlimited Build $2,395
  • View all purchase option online

About This Plan

  • Deep, overhanging eaves are supported by wooden brackets on this one-level, Craftsman house plan, complete with a blend of siding materials adding visual interest to the front elevation.
  • The shared living space is in the center of the home and extends outdoors onto a partially covered deck. Two offices on the main level provide plenty of quiet space to get work done at home.
  • The secluded master bedroom boasts a lavish, attached bath with access to the laundry room, and a spacious walk-in closet. Three family bedrooms are located on the opposite side of the home; two share a Jack-and-Jill bath, and one includes a full bath.
  • Additional living space on the lower level can be enjoyed by all, including a large recreation room, theatre, and two bedrooms.
  • The 3-car garage protrudes from the front of the home, and opens into a mudroom with a powder bath and dog room with a shower for your furry friends.

Floor Plans

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,893 sq. ft.
  • 1st Floor: 3,893 sq. ft.
  • Covered Patio: 478 sq. ft.
  • Deck: 306 sq. ft.
  • Porch, Combined: 320 sq. ft.
  • Basement Unfinished: 746 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement, Crawl, Daylight, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 96' 0"
  • Depth: 96' 6"

Garage

  • Type: Attached
  • Area: 1008 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Stick And Truss
