Plan 36579TX

One-level Hill Country Home with Open Floor Plan

One-level Hill Country Home with Open Floor Plan

Plan 36579TX

  • 2,815

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • This one-level, Hill Country home, clad in stone and stucco, boasts a charming front porch with metal roof accents. The rear-entry garage includes three stalls, and attaches to the back of the home.
  • Clean sightlines into the the study, family room, and eat-in kitchen are provided from the foyer, providing a light-filled space for everyday living. A massive island anchors the living space, and a corner pantry increases dry storage space.
  • Exposed beams above the heart of the home add a rustic touch, and the adjacent back patio includes a grilling station and lounge area for outdoor enjoyment.
  • The secluded master suite offers the utmost privacy, and features a 5-fixture bath with a commode room and walk-in closet.
  • Bedrooms 2 and 3 each provide access to a full bath, and a sizable flex room could serve as a second living space, play room, or home office.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

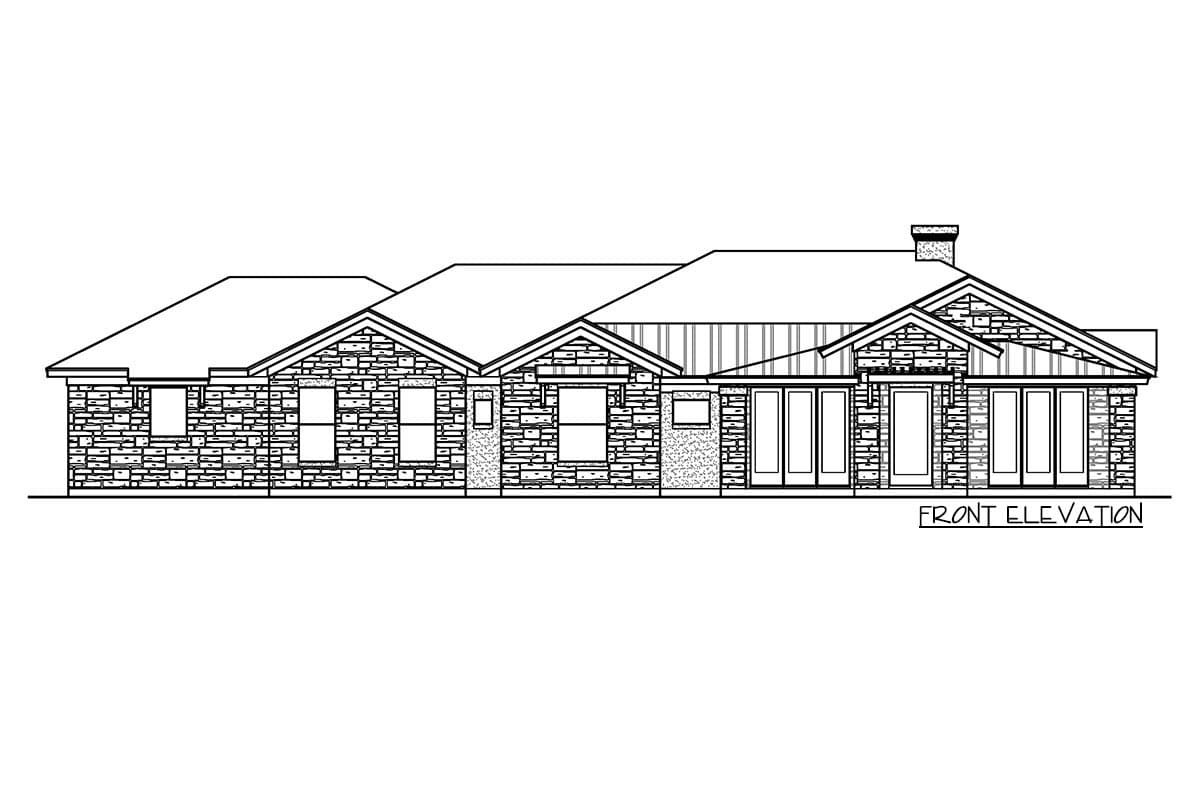

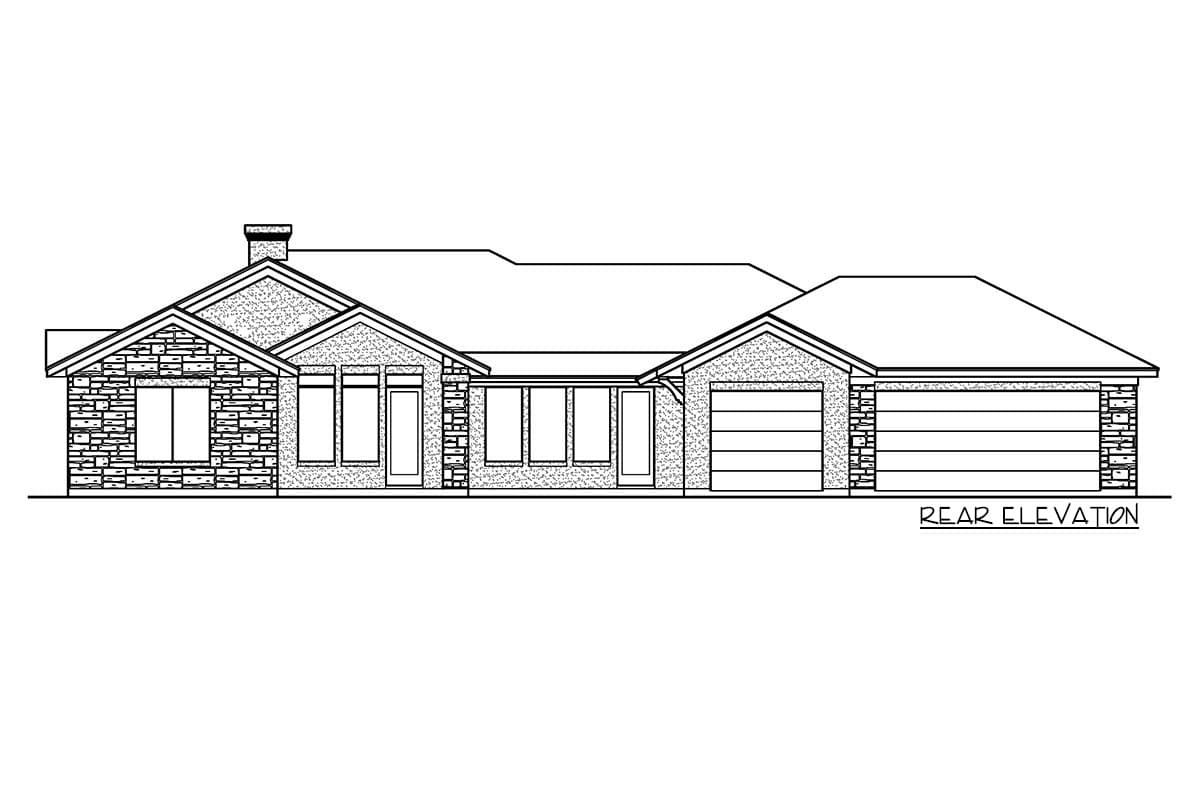

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

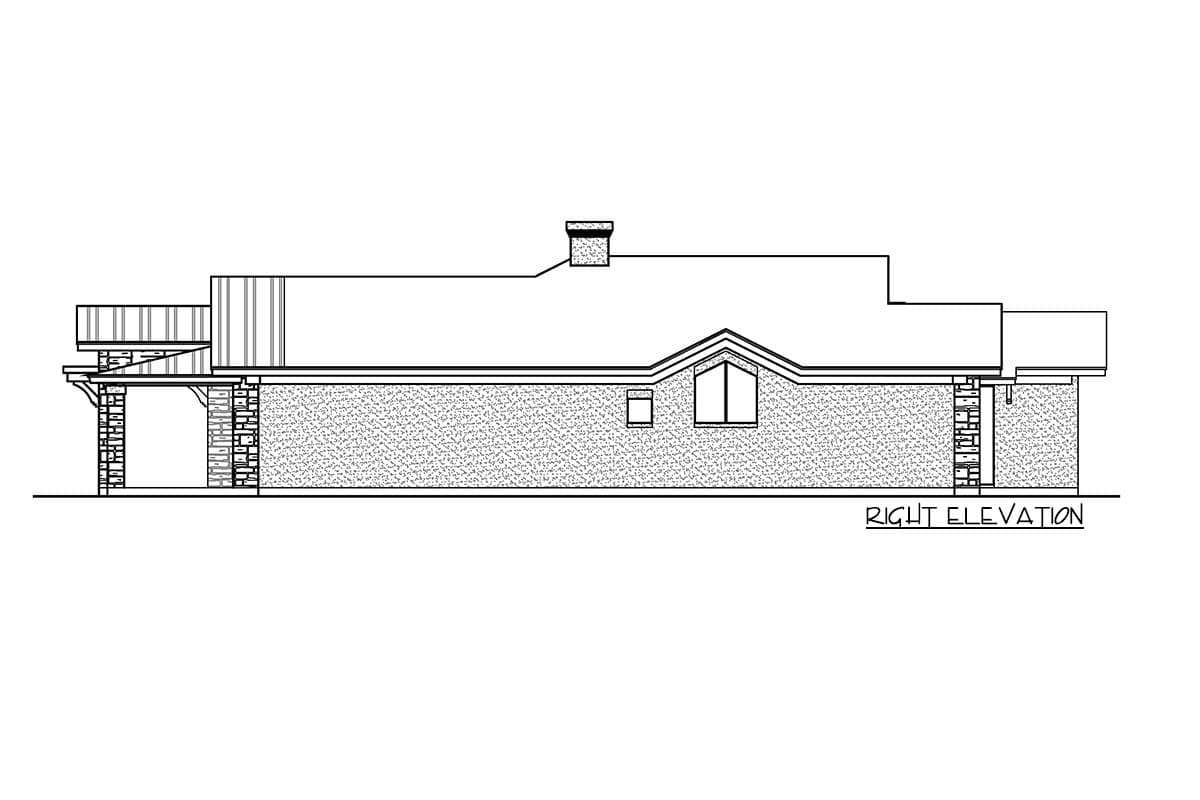

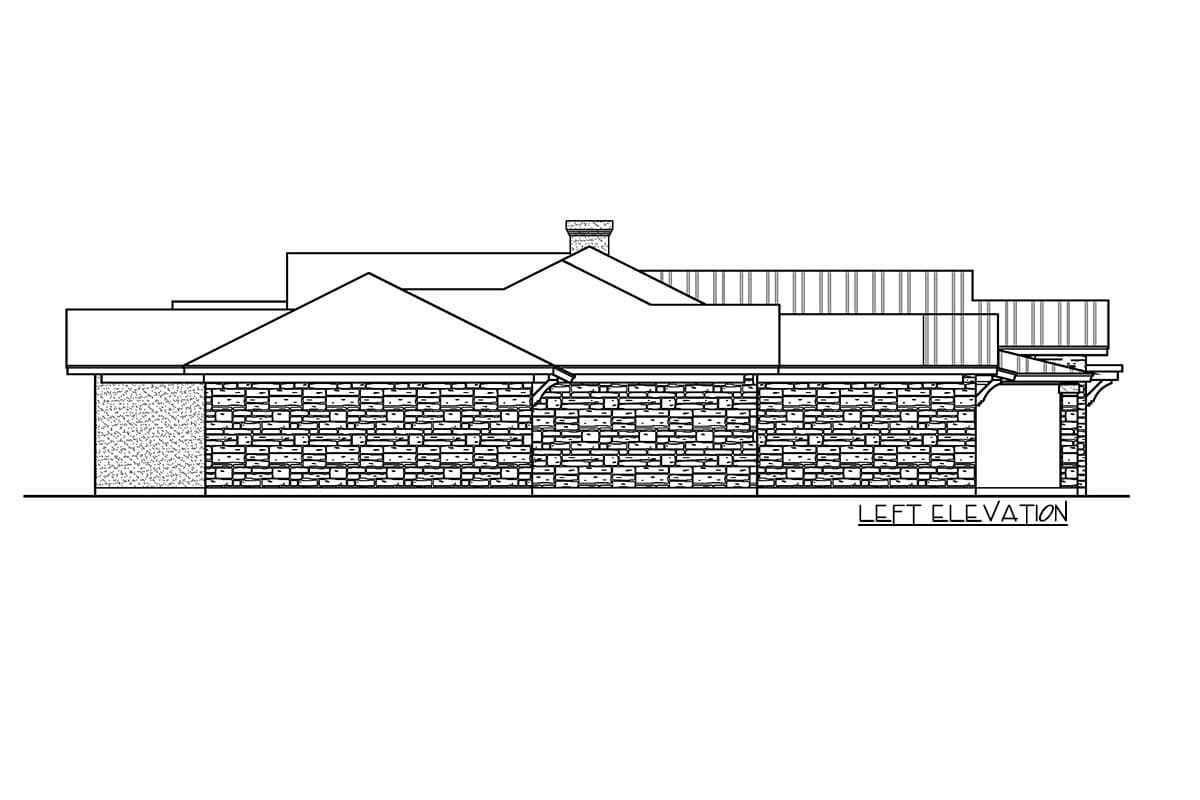

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



One-level Hill Country Home with Open Floor Plan

  • 2,815

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,075
  • 5 Sets $1,275
  • CAD $1,620
  • View all purchase option online

About This Plan

  • This one-level, Hill Country home, clad in stone and stucco, boasts a charming front porch with metal roof accents. The rear-entry garage includes three stalls, and attaches to the back of the home.
  • Clean sightlines into the the study, family room, and eat-in kitchen are provided from the foyer, providing a light-filled space for everyday living. A massive island anchors the living space, and a corner pantry increases dry storage space.
  • Exposed beams above the heart of the home add a rustic touch, and the adjacent back patio includes a grilling station and lounge area for outdoor enjoyment.
  • The secluded master suite offers the utmost privacy, and features a 5-fixture bath with a commode room and walk-in closet.
  • Bedrooms 2 and 3 each provide access to a full bath, and a sizable flex room could serve as a second living space, play room, or home office.

Floor Plans

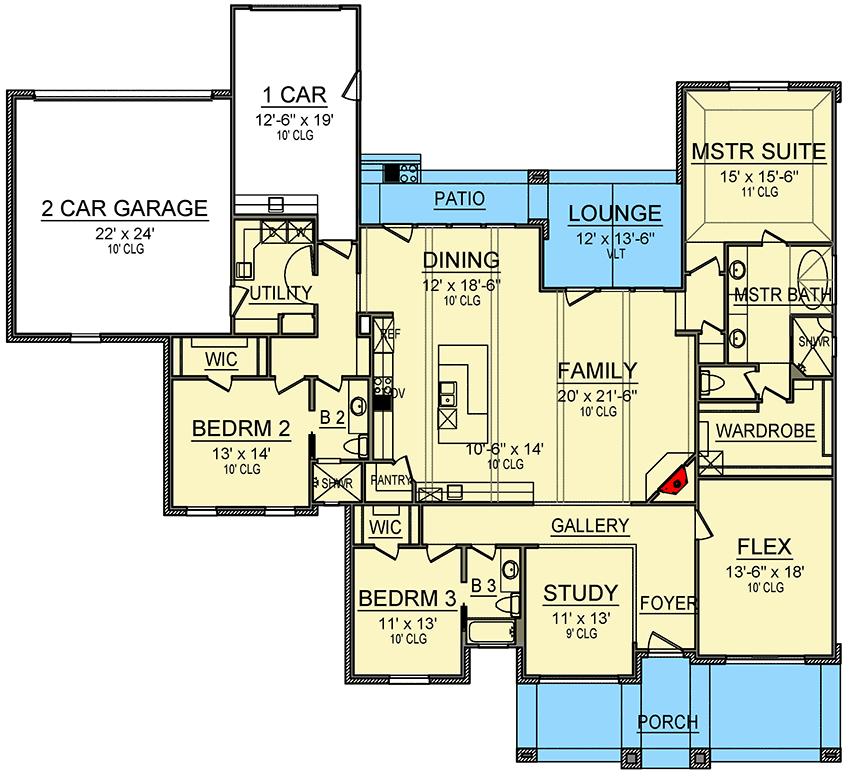

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,815 sq. ft.
  • 1st Floor: 2,815 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 85' 0"
  • Depth: 78' 0"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 766 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
