Plan 82249KA

One-Level House Plan with Private Master Bed and Lanai

Heated S.F.
2,282
Beds
4
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 82249KA

Main Level
Main Level

Plan 82249KA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

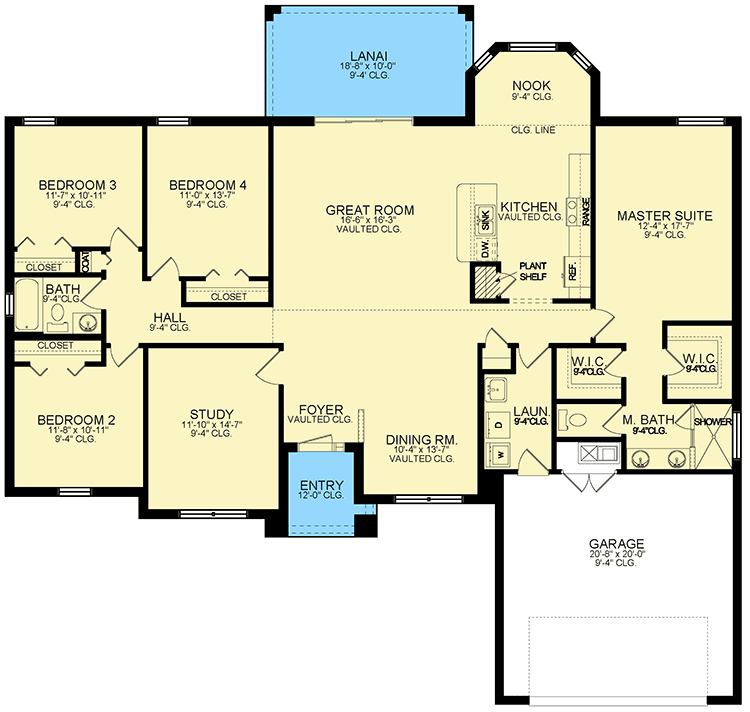

Plan 82249KA: One-Level House Plan with Private Master Bed and Lanai - Floor Plan - Main Level - Florida-Style, Ranch, Southern

Plan Details

  • Two columns, beneath a gabled front porch, provide a stately presence. Stucco and stone accents complete the design.
  • The foyer immediately gives way to the heart of the home, which features an open layout combining the share living spaces. The kitchen sink overlooks the great room, which opens to a covered lanai through sliding glass doors.
  • A bay window breakfast nook offers rearward views, and a study, or office, toward the front of the home lends a quiet space to retreat to for solitude.
  • Your private master suite showcases dual walk-in closets, a large shower enclosure, two sinks, and a commode room.
  • On the left side of the home, three additional bedrooms reside and share a full bathroom.

What's Included

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,282 sq. ft.

1st Floor

2,282 sq. ft.

Porch, Front

56 sq. ft.

Porch, Rear

184 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

66' 0"

Depth

62' 8"

Max Ridge Height

18' 4"

Garage

Type

Attached

Area

458 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Ranch

Southern

Special Features

Bedrooms - Split

Breakfast Nook

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,282 sq. ft.

1st Floor

2,282 sq. ft.

Porch, Front

56 sq. ft.

Porch, Rear

184 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

66' 0"

Depth

62' 8"

Max Ridge Height

18' 4"

Garage

Type

Attached

Area

458 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Ranch

Southern

Special Features

Bedrooms - Split

Breakfast Nook

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
