Plan 22510DR

One-Level House Plan with Residential Elevator to the Basement

Heated S.F.
2,418
Beds
2
Baths
1
Stories
1
Cars
1

Floor Plan

Plan 22510DR

Main Level
Main Level
Lower Level
Lower Level

Plan 22510DR

M-F 9am-5pm EST |

1-203-761-8500

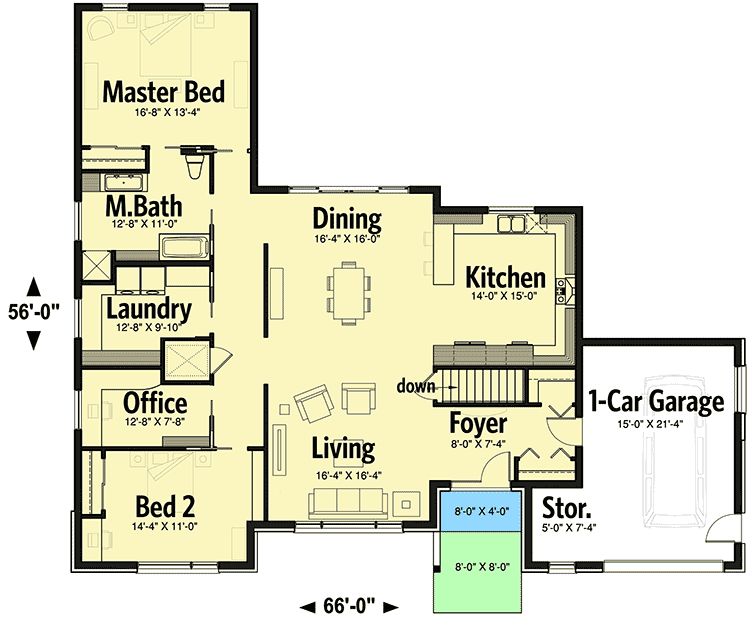

Main Level

Plan 22510DR: One-Level House Plan with Residential Elevator to the Basement - Floor Plan - Main Level - Contemporary, Northwest

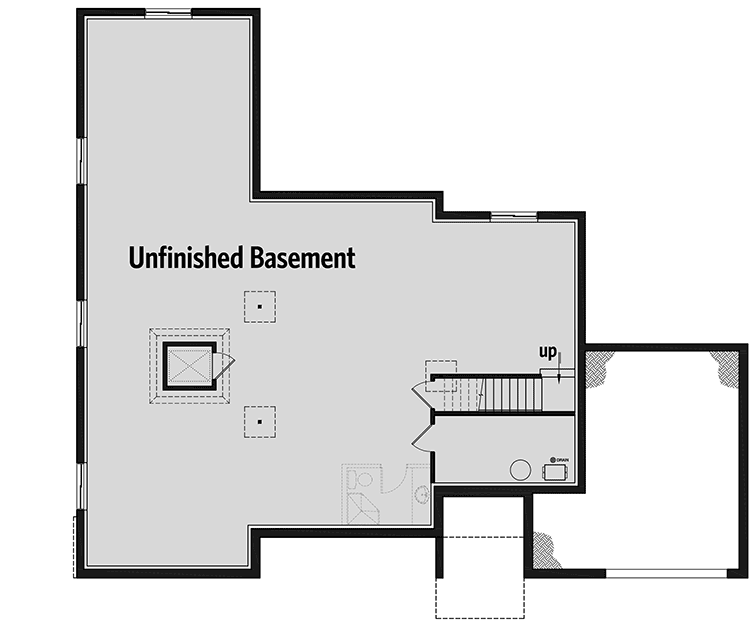

Lower Level

Plan 22510DR: One-Level House Plan with Residential Elevator to the Basement - Floor Plan - Lower Level - Contemporary, Northwest

Plan Details

The left side of the home gives you two bedrooms with a shared bath, an over-sized laundry room and an office.
The main portion of the home is open concept and combines the functions of the living room, dining room and kitchen into a great entertaining space.
Finish the basement later if you need to expand. There's even accommodations for a residential elevator to ease getting down there.

What's Included

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,418 sq. ft.

1st Floor

2,418 sq. ft.

Basement Unfinished

2,012 sq. ft.

Porch, Front

102 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

56' 0"

Max Ridge Height

23' 7"

Garage

Type

Attached

Area

406 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Elevator

Home Office

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Home Office
