Plan 340072STR
One-level Mediterranean Home Plan for Indoor Outdoor Living
Heated S.F.
2,907
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 340072STR

Main Level
slide image 0

Plan 340072STR

1-800-854-7852

1-262-521-4596

Main Level

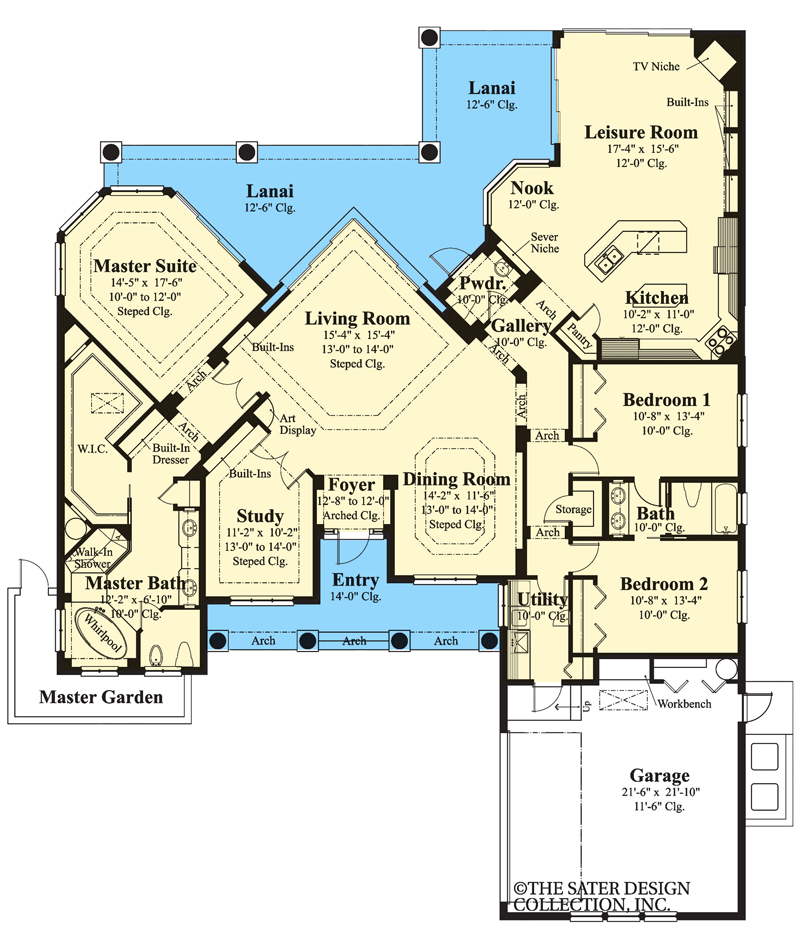

floor plan image Main Level
Plan Details

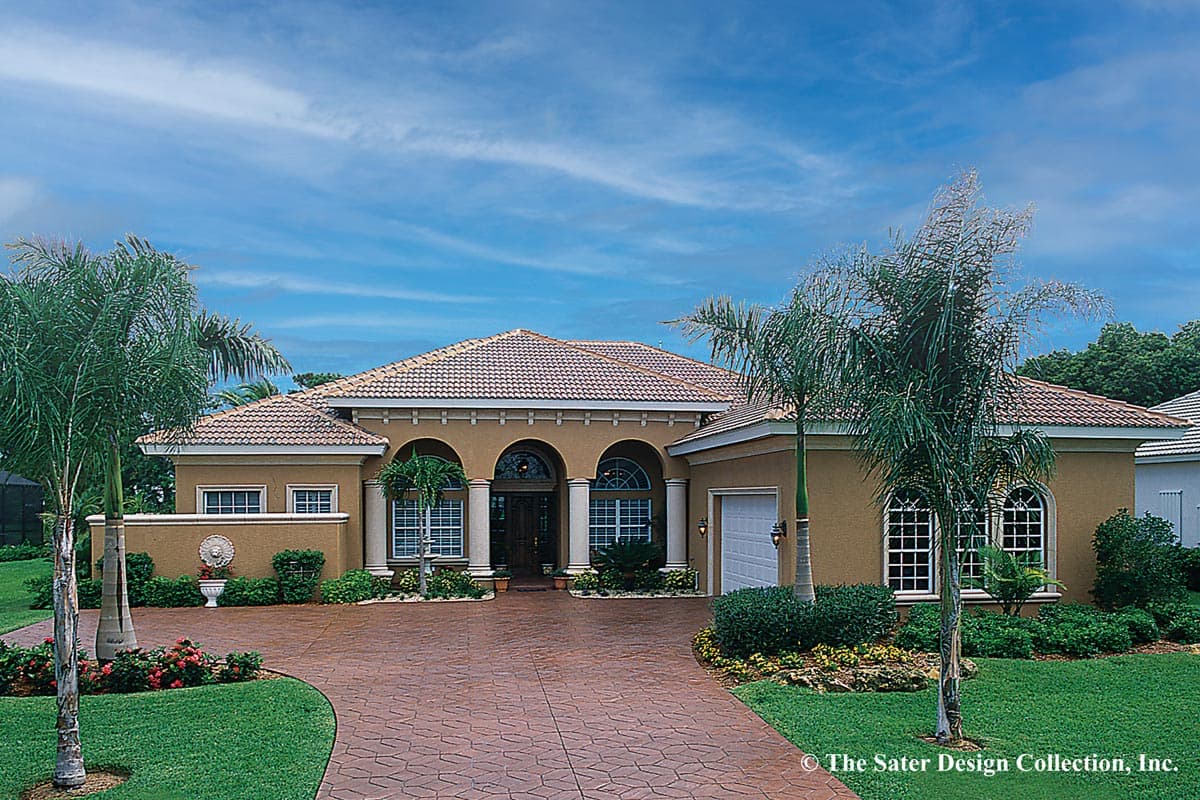

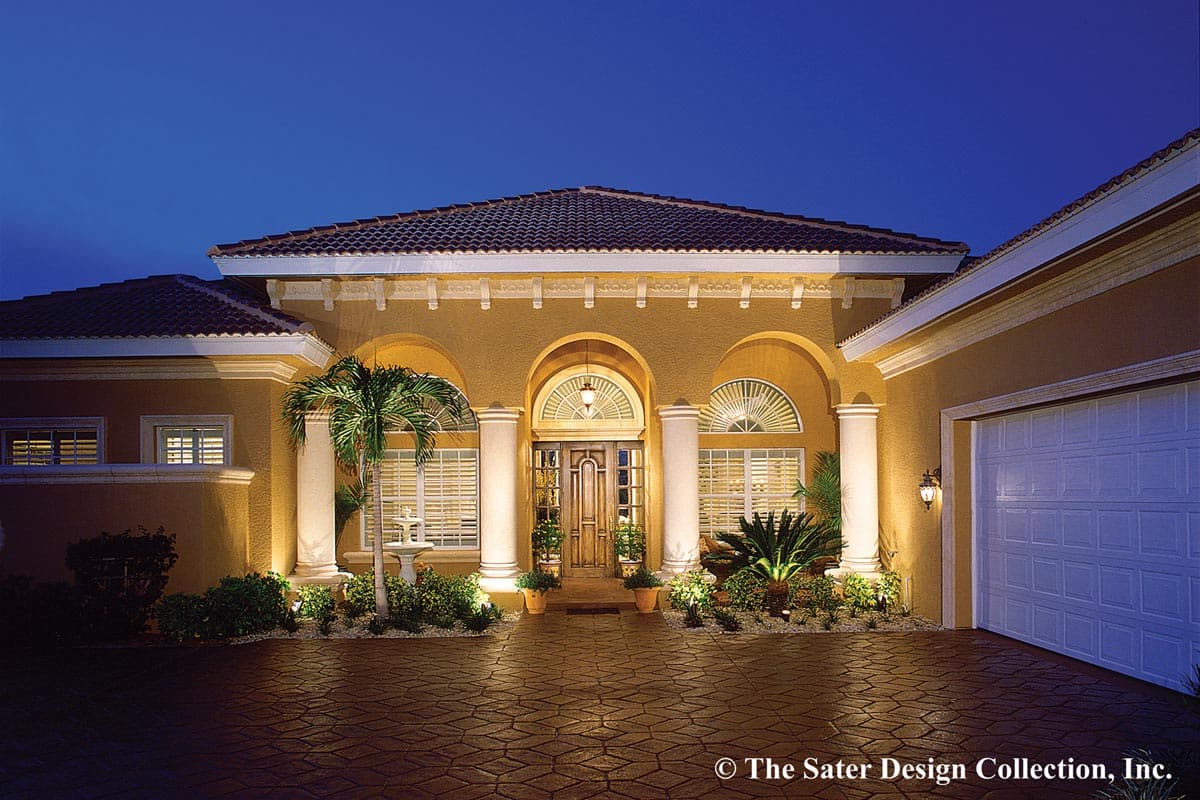

  • This one-level Mediterranean home plan uniquely blends a triple arched entry with a stucco and banded detail to give it a Southern, traditional feel.

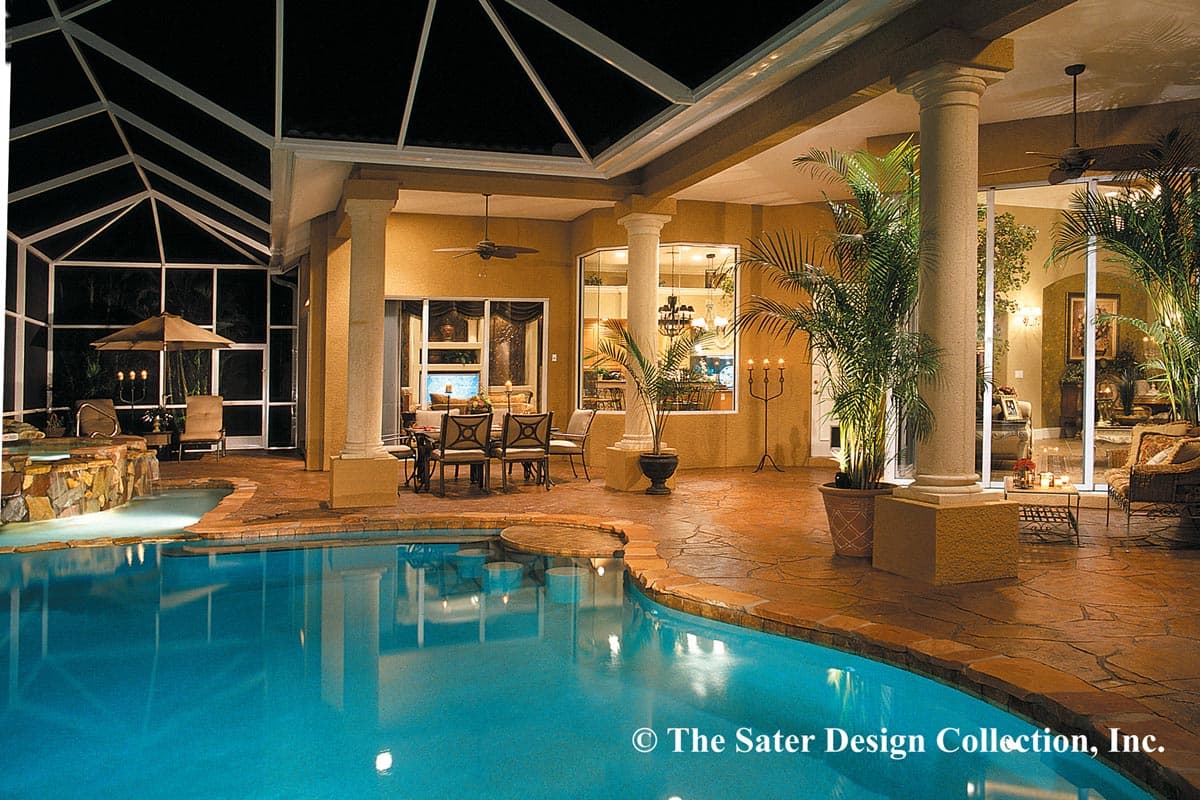

  • Inside the home, the open floor plan allows the formal spaces to feel grand while allowing the outdoors in. Corner pocket sliding glass doors at the living room open completely and let the lanai become part of the home.
  • The thoughtful living spaces are warm and intimate. An angled counter, center island, and sophisticated appliances in the kitchen will please the most discerning cook.
  • The dining and formal living room offer an opulent setting for entertaining. A deep coffer embraces fine art and furniture in the dining room, while builtin bookshelves add a special touch to the living room.
  • To ensure privacy, the master retreat is tucked away from the main living spaces and secondary bedrooms. Sliding glass doors to the lanai, a private garden, generous walk-in wardrobe, and a luxurious bath pamper and rejuvenate.
What's Included
  • Cover Sheet, Index
  • Wall Sections & Notes
  • Typical Detail & Notes
  • Foundation Plan
  • Floor Plans
  • Reflected Ceiling Plan showing ceiling heights and treatments
  • Floor Framing Plan (basement, crawlspace or 2-story homes only)
  • Birds Eye Roof Plan
  • All Elevations
  • Building Section & Details
  • Interior Elevations (Details may vary based on the design)
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,907 sq. ft.

1st Floor

2,907 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 0"

Depth

84' 0"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

600 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Architectural Style

Coastal

Plan Collections

Square Footage Breakdown

Total Heated Area

2,907 sq. ft.

1st Floor

2,907 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 0"

Depth

84' 0"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

600 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Plan Collections
