Plan 36619TX
One-Level Mediterranean House Plan with Large Game Room - 4592 Sq Ft
Heated S.F.
4,592
Beds
3-4
Baths
4.5
Stories
1
Cars
7
Plan Details

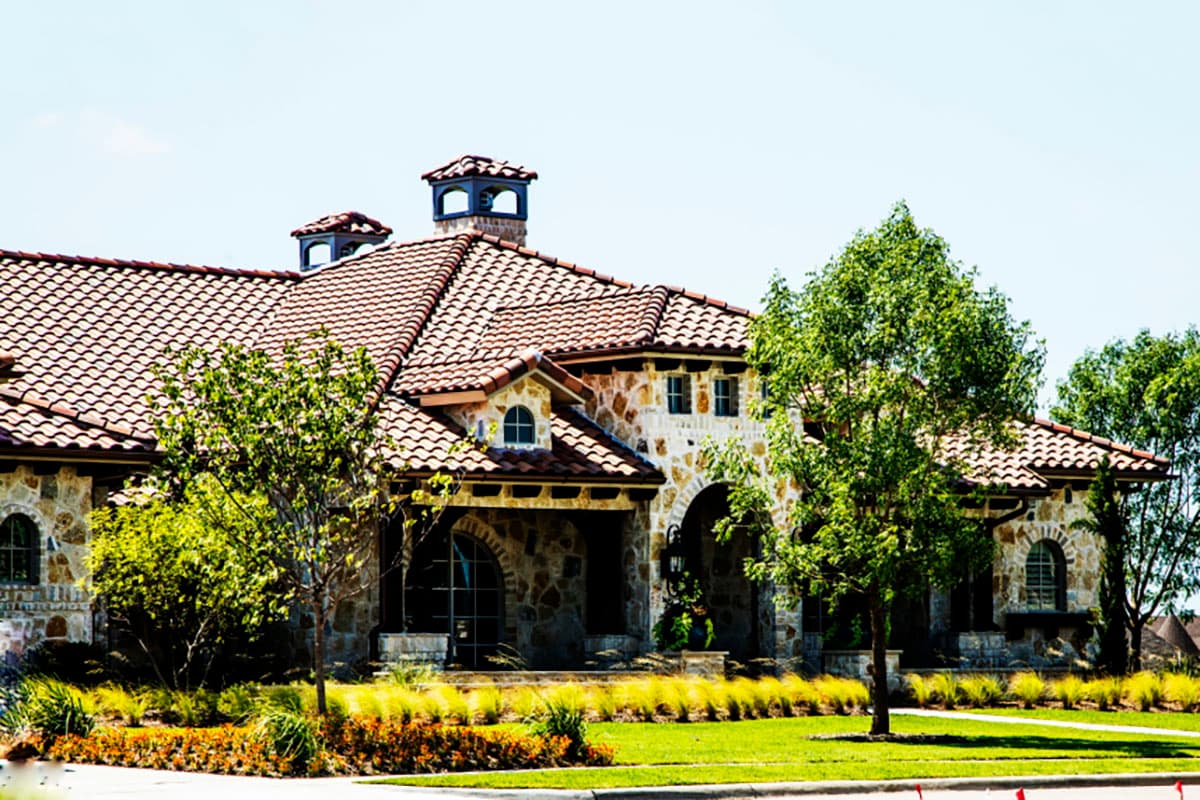

  • The dreamy exterior of this one-level, Mediterranean house plan boasts a clay tile roof and stone exterior, along with arched windows and entryways for the utmost character and curb appeal.
  • The car enthusiast will love the 6-car garage attached to the rear of the home, with a single bay attached to the home by way of a portico, creating a courtyard in the center.
  • A formal dining room and private study flank the foyer upon entering, while the heart of the home is located in the center of the floor plan and extends onto a large outdoor living space.
  • The vaulted ceiling with exposed beams adds a nice touch above the combined family room and kitchen, where a large island anchors the living space. The cook in the home will delight in the outdoor kitchen during grilling season.
  • Family and friends will all enjoy the spacious game room, which includes a fireplace and wet bar.
  • Tucked away for privacy, discover the master bedroom, which features a deluxe bathroom with 5 fixtures and a large wardrobe. A second bedroom suite is ideal for in-laws or guests, and offers a private entrance from the side porch, coffee bar, and spacious bath with a laundry closet.
What's Included
  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

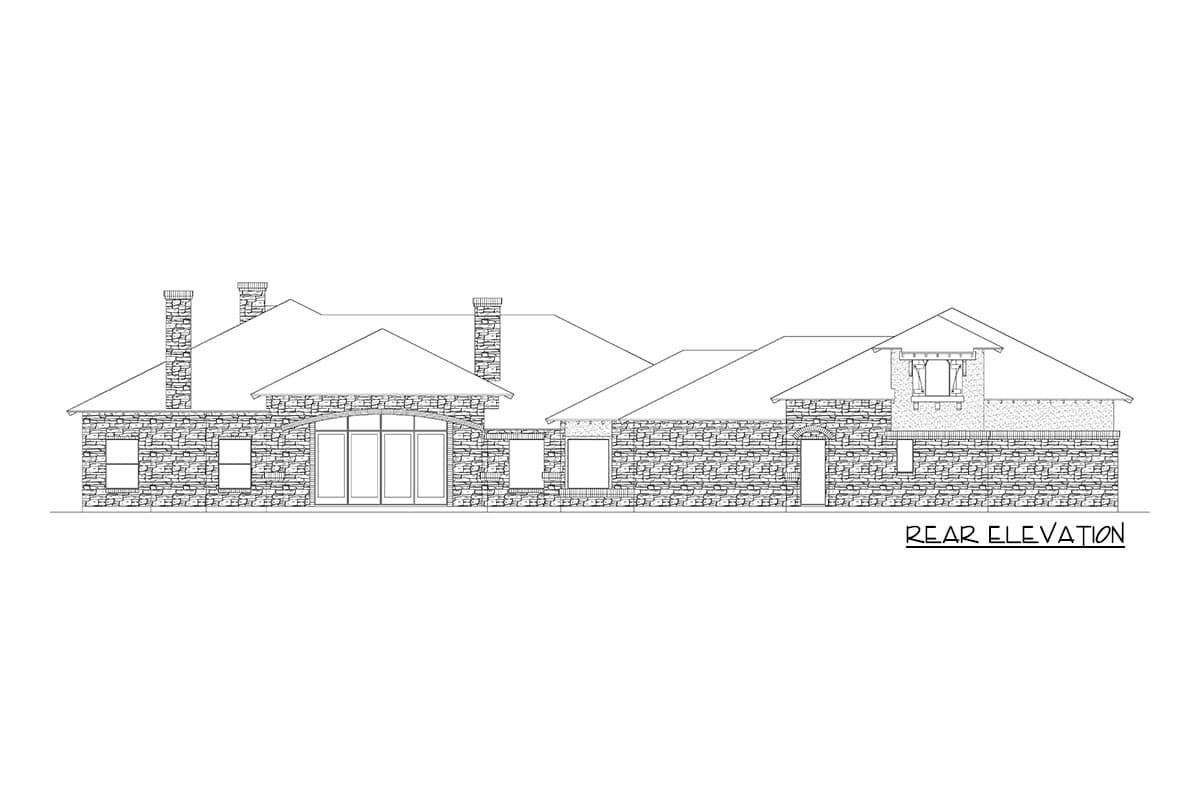

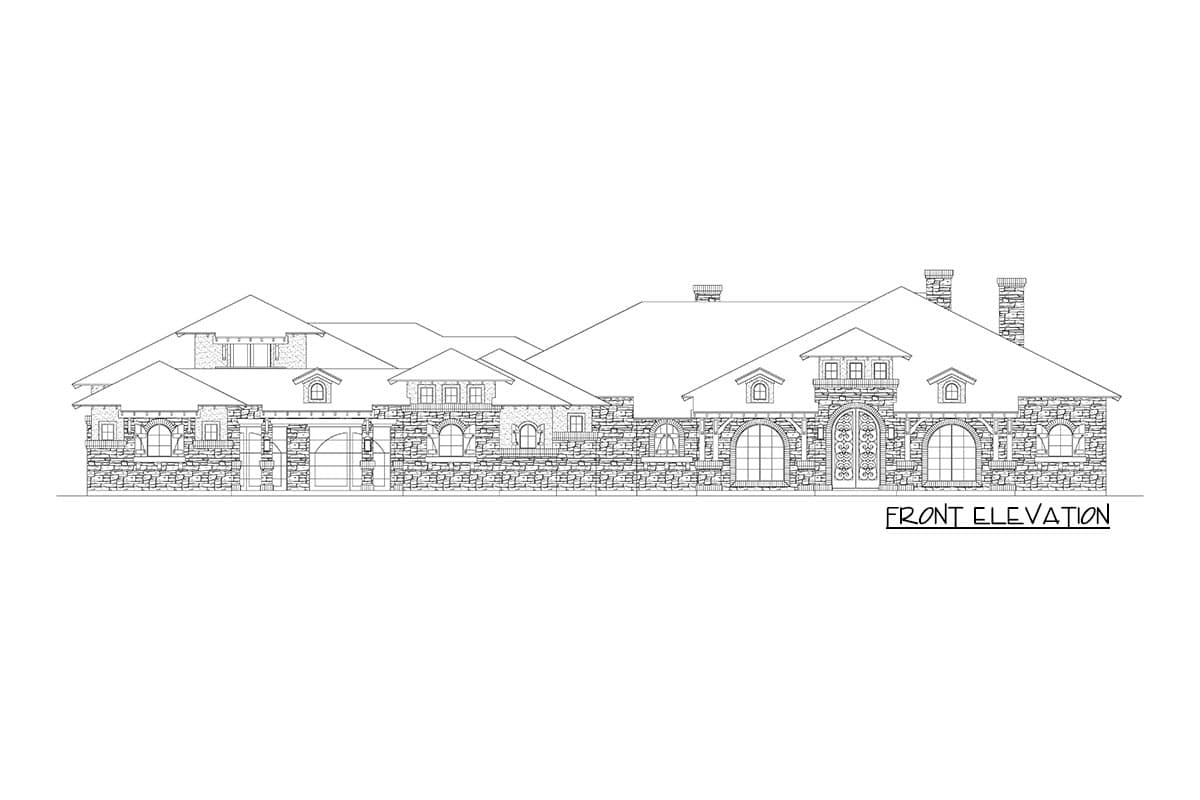

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

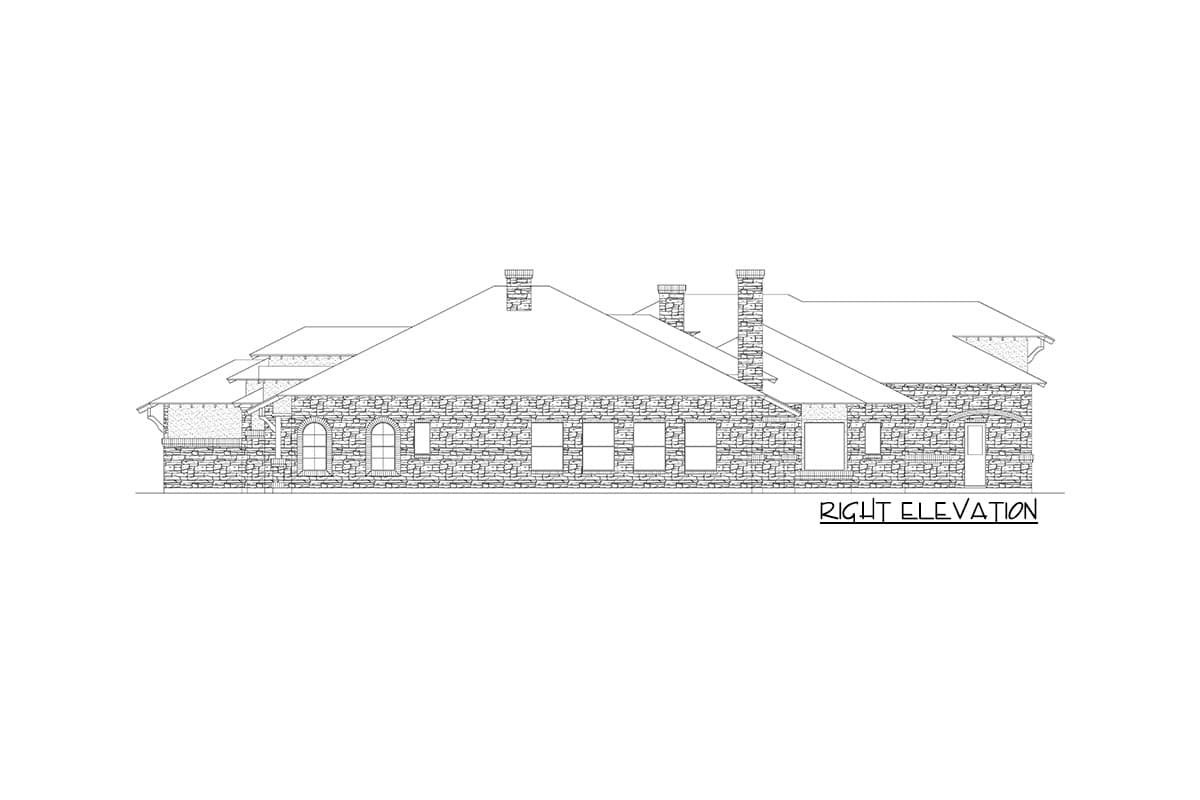

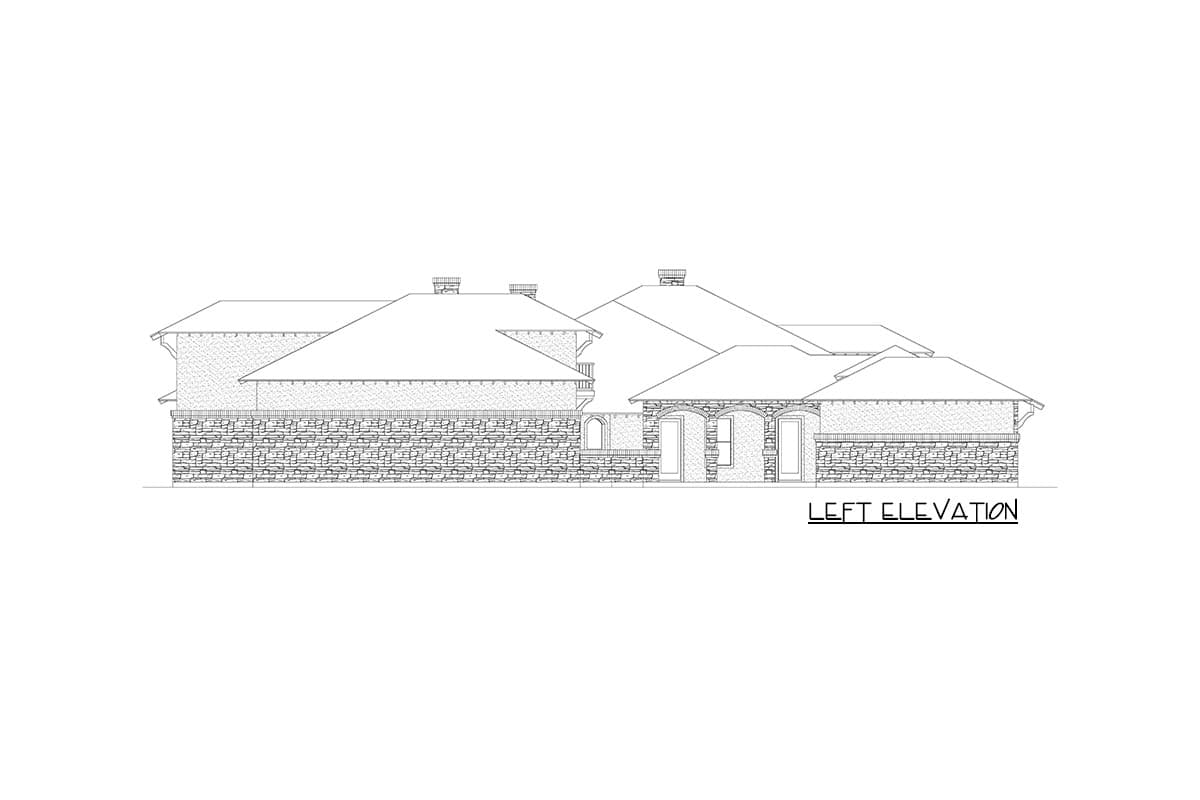

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Level Mediterranean House Plan with Large Game Room - 4592 Sq Ft

  • 4,592

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 7

    Car garage

Floor Plan

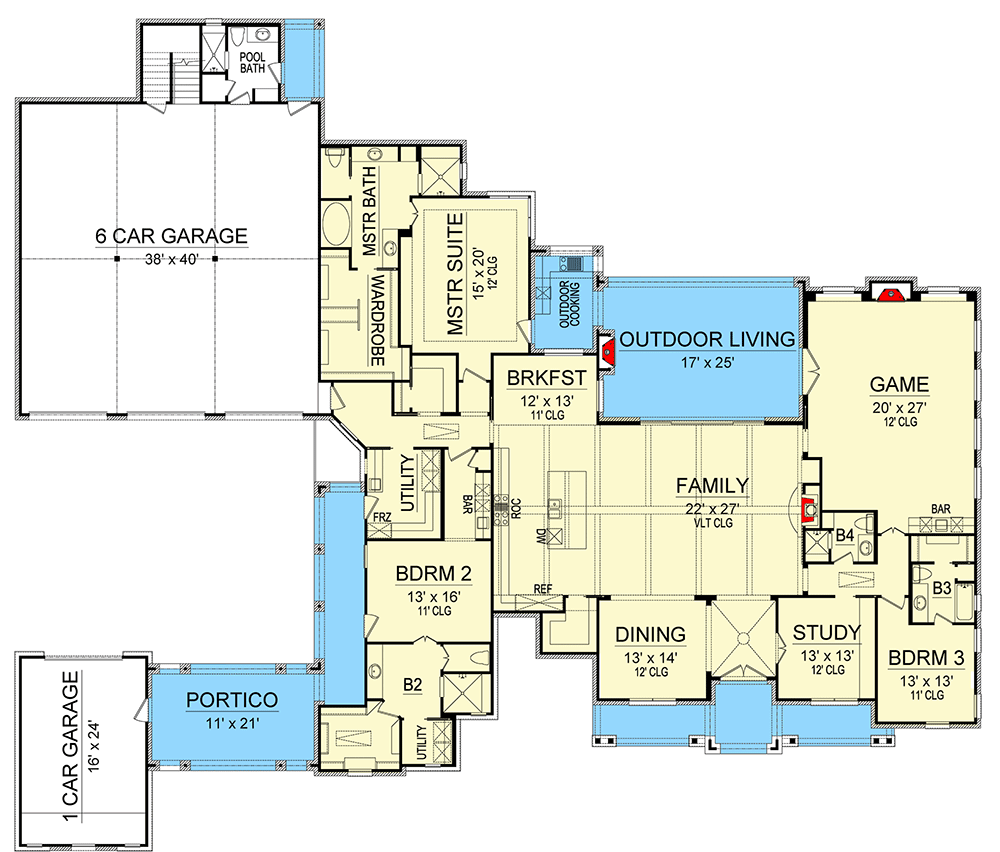

  • First Floor

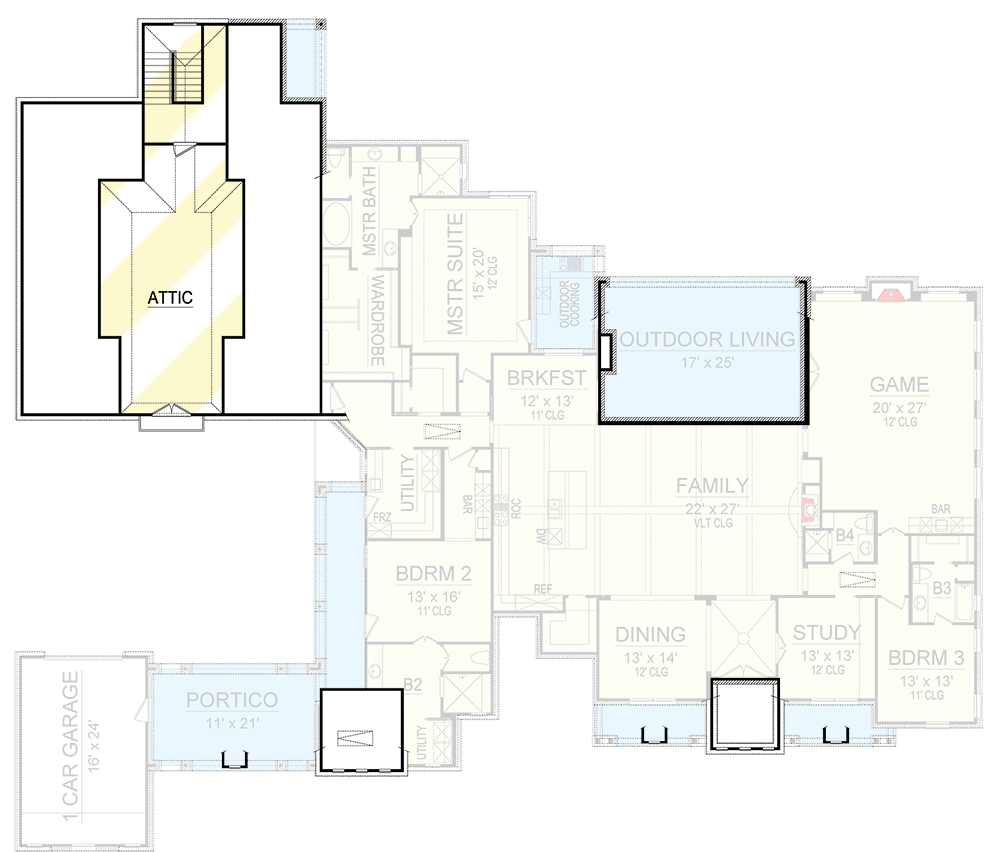

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 4,592 sq. ft.
  • 1st Floor: 4,592 sq. ft.

Dimensions

  • Width: 125' 0"
  • Depth: 108' 0"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 2140 sq. ft.
  • Count: 7 Cars
  • Entry Location: Rear, Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
