One-level Modern Beach House Plan with Split Bedrooms

Plan 24124BG

  • 3,909

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 1

    Stories

  • 3

    Cars

  • This one-level, modern beach house encourages outdoor living with multiple access points to the spacious covered lanai, complete with a fireplace and grilling station.
  • The common living space in the center of the home separates the master suite from the secondary bedrooms for the utmost privacy, and a quiet study lends a space to retreat to when needed.
  • A fireplace warms the great room, which opens to the kitchen. Two multi-use islands provide ample workspace, and a built-in buffet / bar in the dining room includes a bar sink.
  • The master suite occupies the right side of the home, and features dual walk-in closets, and a sizable bathroom with a freestanding tub and oversized shower.
  • Three additional bedrooms, on the opposite side, each include a full bath and walk-in closet. The laundry room is located just inside from the 3-car garage.
  • NOTE: This plan is not available for purchase in Collier Country, Florida

Plans include the following:

  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan
  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

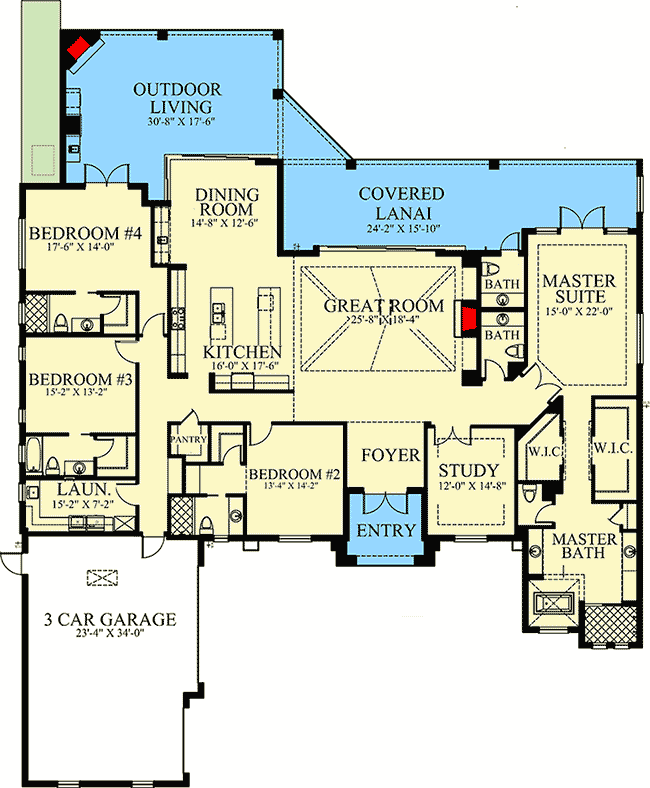

One-level Modern Beach House Plan with Split Bedrooms - 24124BG floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,909 sq. ft.
  • 1st Floor: 3,909 sq. ft.
  • Deck: 1,197 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 84' 10"
  • Depth: 103' 2"
  • Max ridge height: 26' 7"

Garage

  • Type: Attached
  • Area: 826 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

One-level Modern Beach House Plan with Split Bedrooms

  • 3,909

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $3,795
  • CAD - Single-Build $3,995
  • View all purchase option online

About This Plan

  • This one-level, modern beach house encourages outdoor living with multiple access points to the spacious covered lanai, complete with a fireplace and grilling station.
  • The common living space in the center of the home separates the master suite from the secondary bedrooms for the utmost privacy, and a quiet study lends a space to retreat to when needed.
  • A fireplace warms the great room, which opens to the kitchen. Two multi-use islands provide ample workspace, and a built-in buffet / bar in the dining room includes a bar sink.
  • The master suite occupies the right side of the home, and features dual walk-in closets, and a sizable bathroom with a freestanding tub and oversized shower.
  • Three additional bedrooms, on the opposite side, each include a full bath and walk-in closet. The laundry room is located just inside from the 3-car garage.
  • NOTE: This plan is not available for purchase in Collier Country, Florida

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,909 sq. ft.
  • 1st Floor: 3,909 sq. ft.
  • Deck: 1,197 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 84' 10"
  • Depth: 103' 2"
  • Max ridge height: 26' 7"

Garage

  • Type: Attached
  • Area: 826 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
