One-level Rustic Farmhouse with Office and Media Room
Heated S.F.
3,036
Beds
3
Baths
2.5
Stories
1
Cars
3
What's Included
Plan Details
  • Deep overhanging eaves supported by wooden brackets add a rustic appeal to this one-level Farmhouse plan, complete with a stone trim and board and batten accents.
  • The central, open living space flows onto a 25'2" by 20'7" rear patio, perfect for entertaining family and friends. Four seats offer a casual spot to enjoy meals at the kitchen island and a butler's pantry leads into an additional pantry for maximum storage.
  • A home office and media room frame the entryway, while two family bedrooms line the right side of the design and share a Jack-and-Jill bathroom.
  • The master suite offers plenty of serene space for the homeowner and boasts a pass-through closet that connects with the laundry room.
  • The 3-car garage offers an extra-deep bay and a dedicated mechanical / storage room.
What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details

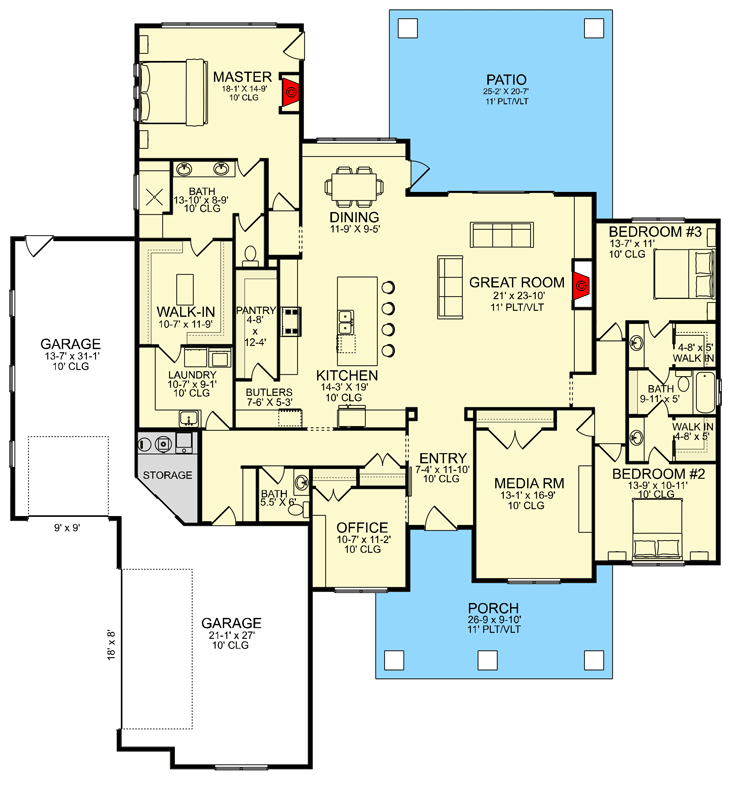

  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

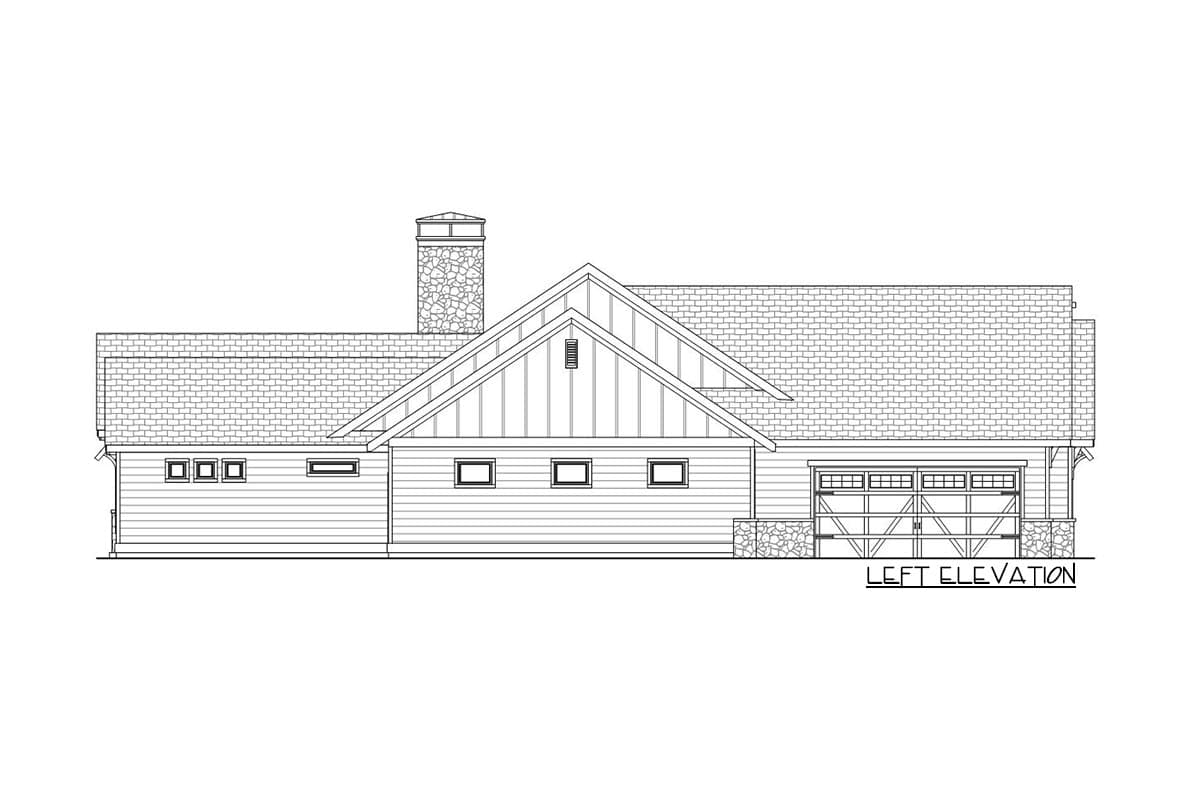

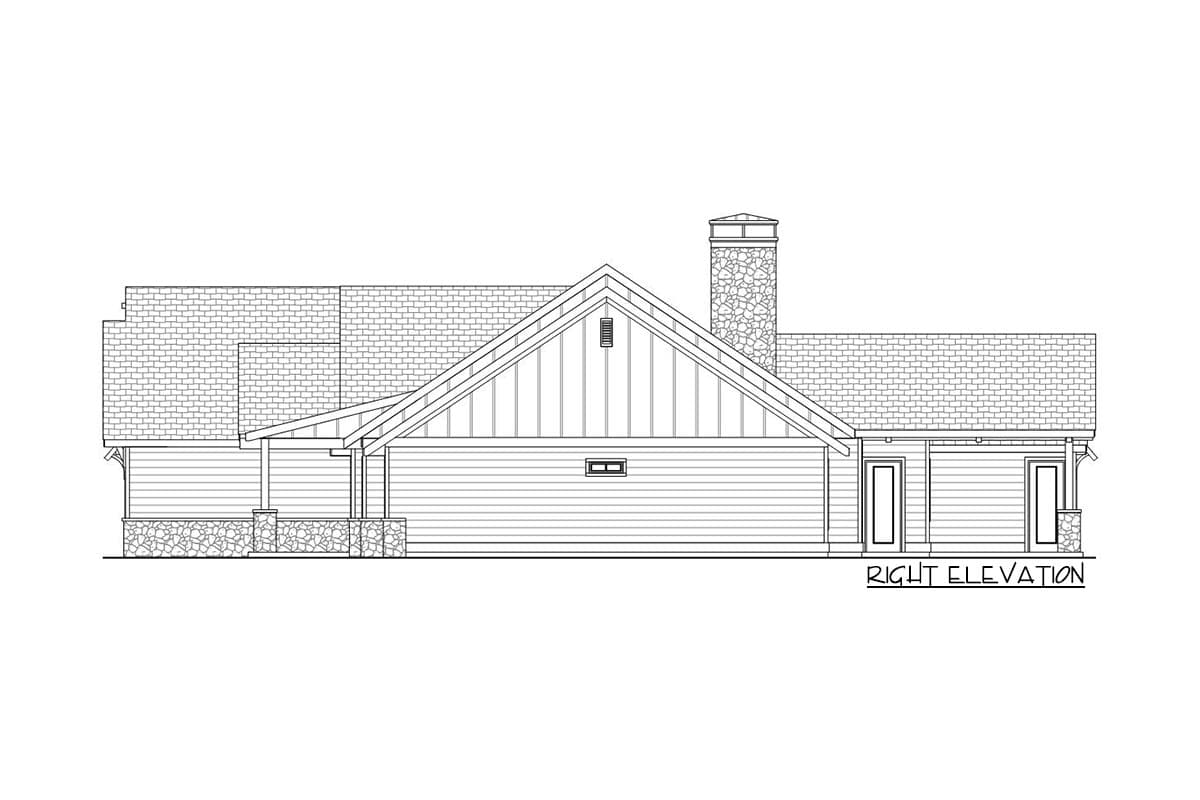

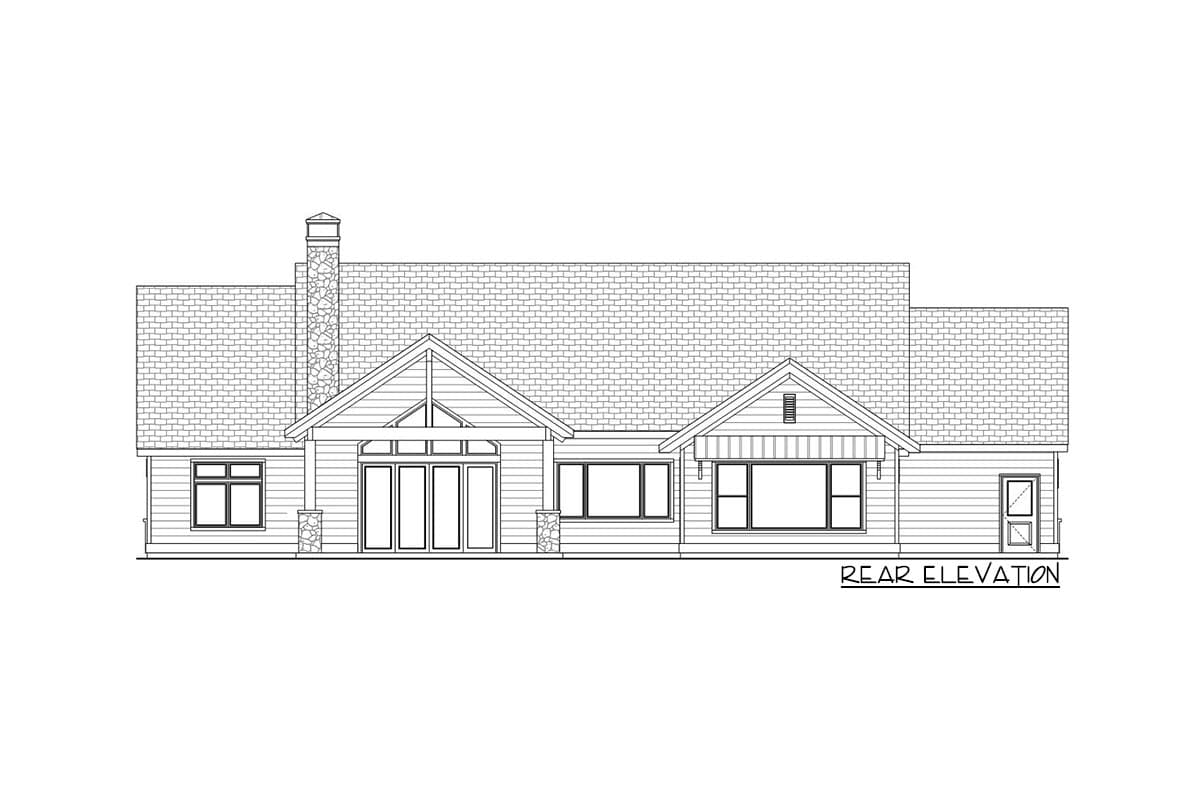

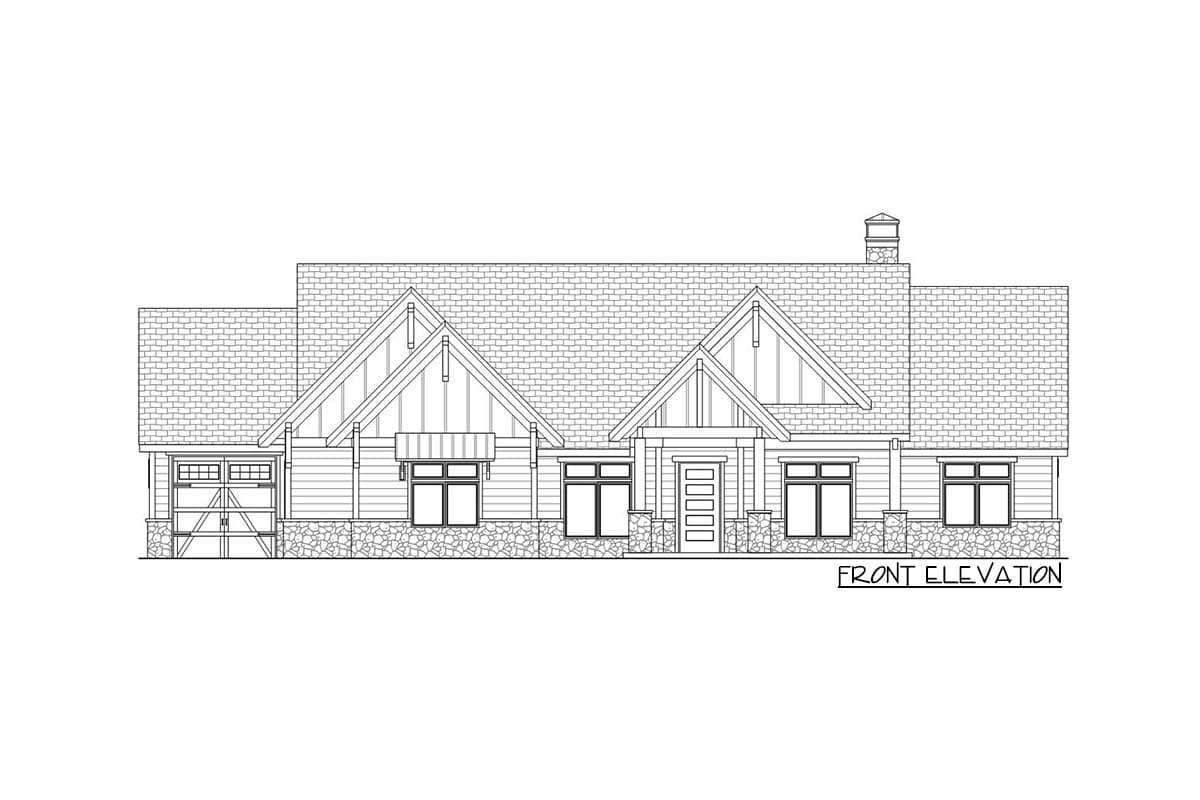

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-level Rustic Farmhouse with Office and Media Room

  • 3,036

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,036 sq. ft.
  • 1st Floor: 3,036 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 84' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1111 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick And Truss
