Plan 82301KA
One-Level Traditional Home Plan with 10-Foot Ceilings
Heated S.F.
4,407
Beds
4
Baths
3.5
Stories
1
Cars
3
What's Included
Plan Details
  • Enjoy the intuitive floor plan and spacious living areas afforded by this one-level Traditional home plan that delivers 4,407 square feet of living space.
  • A music room and office flank the foyer, which leads into the vaulted living room. A grand fireplace centered between two sets of french doors anchors the rear wall.
  • Indulge in creative culinary dishes with this gourmet kitchen that features an island, adjacent dining room, and butler's pantry.
  • The serene master bedroom enjoys a private location set apart from others with access to the back patio, along with a dresser island and stackable washer / dryer in the oversized walk-in closet.
  • Other notable features include a large laundry room, dog hall, and 3-car garage.
What's Included

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Level Traditional Home Plan with 10-Foot Ceilings

  • 4,407

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

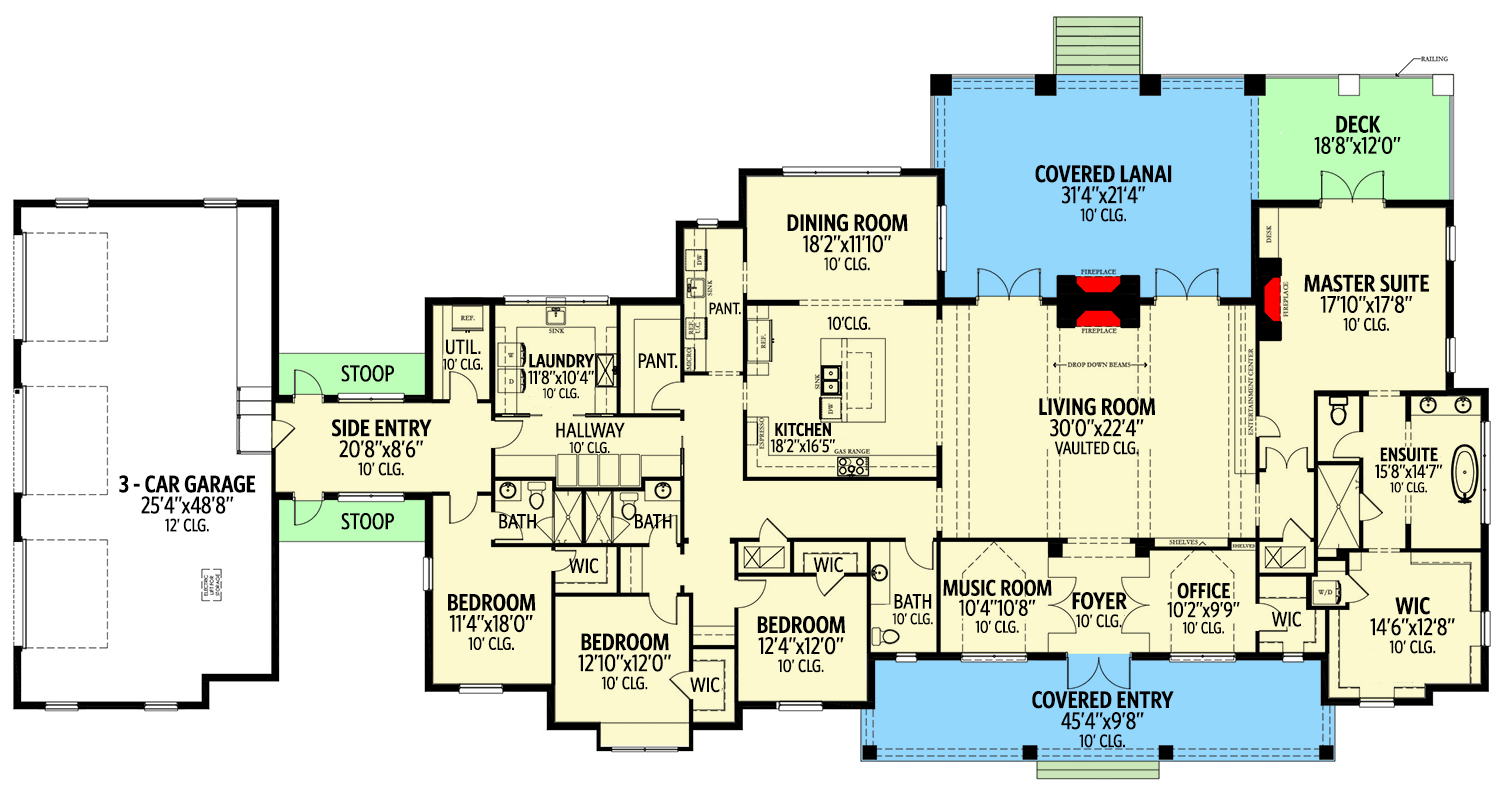

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 4,407 sq. ft.
  • 1st Floor: 4,407 sq. ft.

Dimensions

  • Width: 141' 0"
  • Depth: 65' 8"
  • Max ridge height: 30' 1"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1209 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Roof

  • Primary Pitch: 8 on 12
