One-Level Transitional House Plan with Side-entry Garage
Heated S.F.
2,566
Beds
4
Baths
3.5
Stories
1
Cars
3
What's Included
Plan Details
  • Nested gables grace the front elevation of this one-level transitional house plan that features 4 bedrooms and 3.5 baths.
  • Bring family and friends together in the generous family room that connects with the heart of the home. Oversized windows line the dining area and a covered patio provides an ideal space to lounge outdoors.
  • Resting behind barn doors just off the foyer, discover a quiet study that can be utilized as a home office or den.
  • The bedrooms are clustered along the left side of the design with the rear-facing master bedroom offering access to the covered patio.
  • Extra space in the double garage is perfect for storage and the laundry / mudroom just inside offers a drop zone for personal items.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
  • NOTE: CAD files are not available in Texas, New Mexico, Louisiana, Tennessee or Alabama.
What's Included

  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Level Transitional House Plan with Side-entry Garage

  • 2,566

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

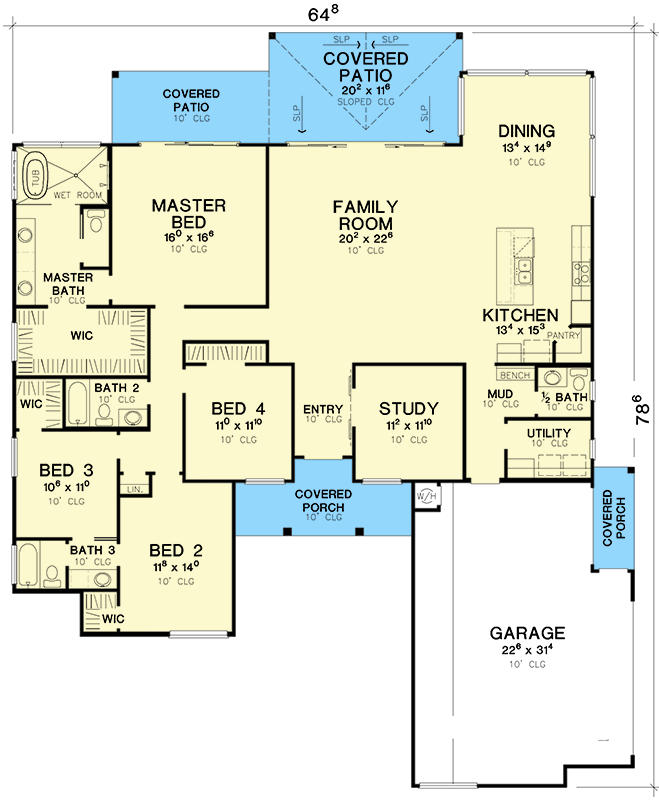

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,566 sq. ft.
  • 1st Floor: 2,566 sq. ft.

Dimensions

  • Width: 64' 8"
  • Depth: 78' 6"
  • Max ridge height: 27' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 682 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
