One-level Tuscan Home Plan with Split-bed Layout
Heated S.F.
2,192
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • This one-level Tuscan home plan presents old-warm charm with columns, arched entryways, and rough hewn stone accents.
  • Inside, a beamed ceiling contributes a sense of spaciousness to the heart of the home, and walls of french doors in the great room and master suite draw the outdoors inside.
  • The study to the left of the foyer showcases stepped ceilings and built-in cabinetry, directly across from the elegant dining room. The well-organized kitchen flows into the breakfast nook and soaks in the natural light.
  • A private foyer in the master wing links the owners' bedroom and dressing space with a sensational bath that boasts a whirlpool tub and a walk-in shower. Plenty of windows brighten this suite, which provides separate access to the veranda.
  • Two additional bedrooms are on the opposite side of the home and share a full bath, near the double garage with dedicated storage space.

What's Included
  • Cover Sheet, Index
  • Wall Sections & Notes
  • Typical Detail & Notes
  • Foundation Plan
  • Floor Plans
  • Reflected Ceiling Plan showing ceiling heights and treatments
  • Floor Framing Plan (basement, crawlspace or 2-story homes only)
  • Birds Eye Roof Plan
  • All Elevations
  • Building Section & Details
  • Interior Elevations (Details may vary based on the design)
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-level Tuscan Home Plan with Split-bed Layout

  • 2,192

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

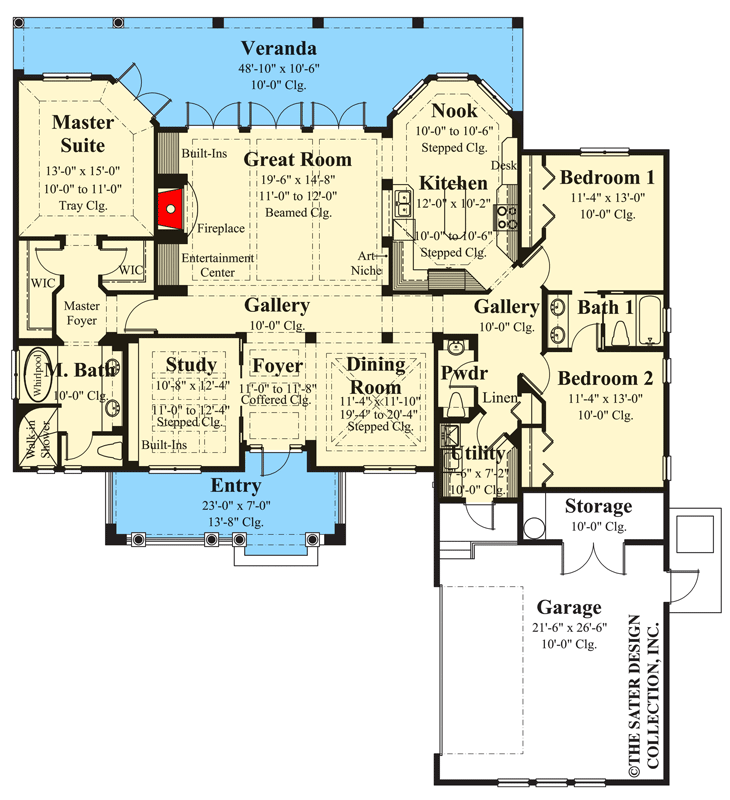

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,192 sq. ft.
  • 1st Floor: 2,192 sq. ft.

Dimensions

  • Width: 62' 10"
  • Depth: 73' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 621 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Stem Wall
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6
