Plan 860021MCD
One-Story Acadian-Style House Plan with Split Bedrooms
Heated S.F.
1,778
Beds
3
Baths
2
Stories
1
Cars
2
Flyer
What's Included
Plan Details
  • This one-story house plan gives homeowners a smart layout provided in a cozy footprint, keeping budget in mind. The charming front elevation completes the design.
  • A hallway, just off the foyer, leads to two bedrooms separated by a full bath. An office nook across the hall offers a great space to pay the bills and keep paperwork organized.
  • The eat-in kitchen and living room are open to one another, and the adjacent covered porch includes a fireplace and grilling station to make the most of warmer seasons.
  • Retreat to the rear-facing, master bedroom, which includes a spacious bathroom with a pass-through closet that provides access to the laundry room.
  • Related Plan: Get an alternate version with house plan 860020MCD or 860079MCD.
What's Included
This set of working drawings has 6 pages as follows:

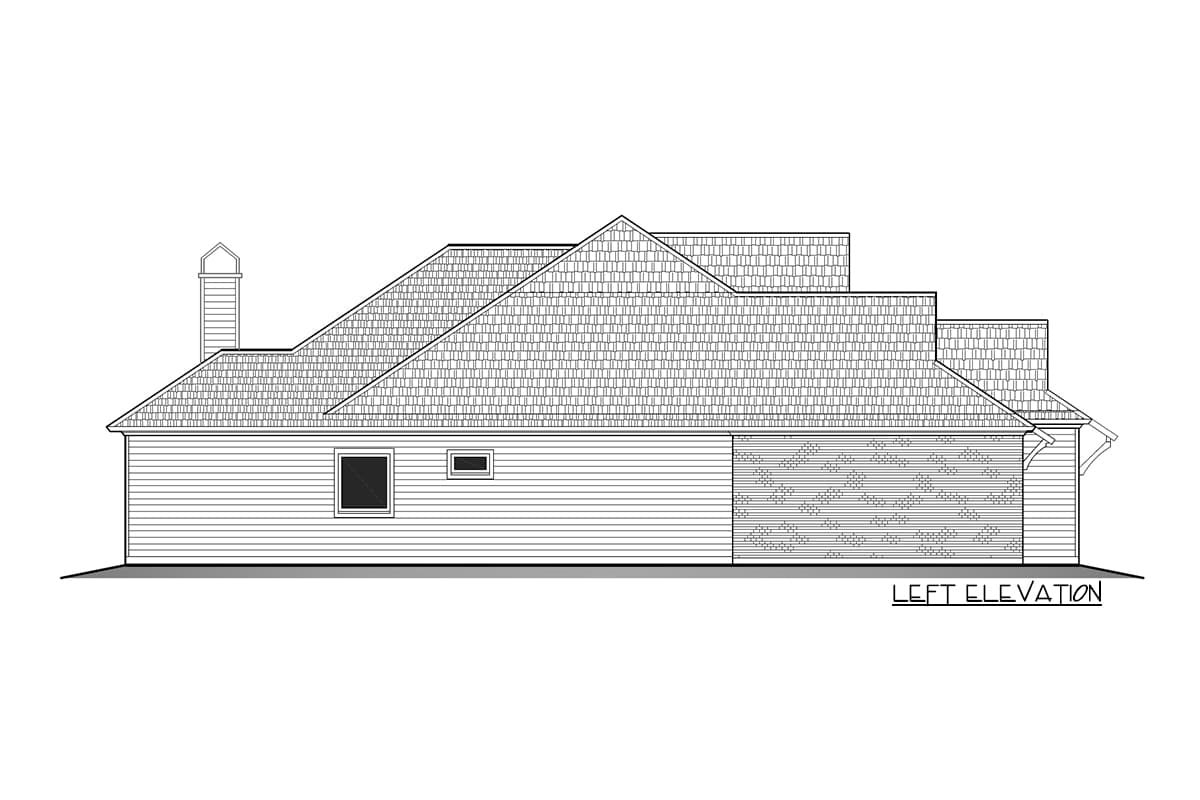

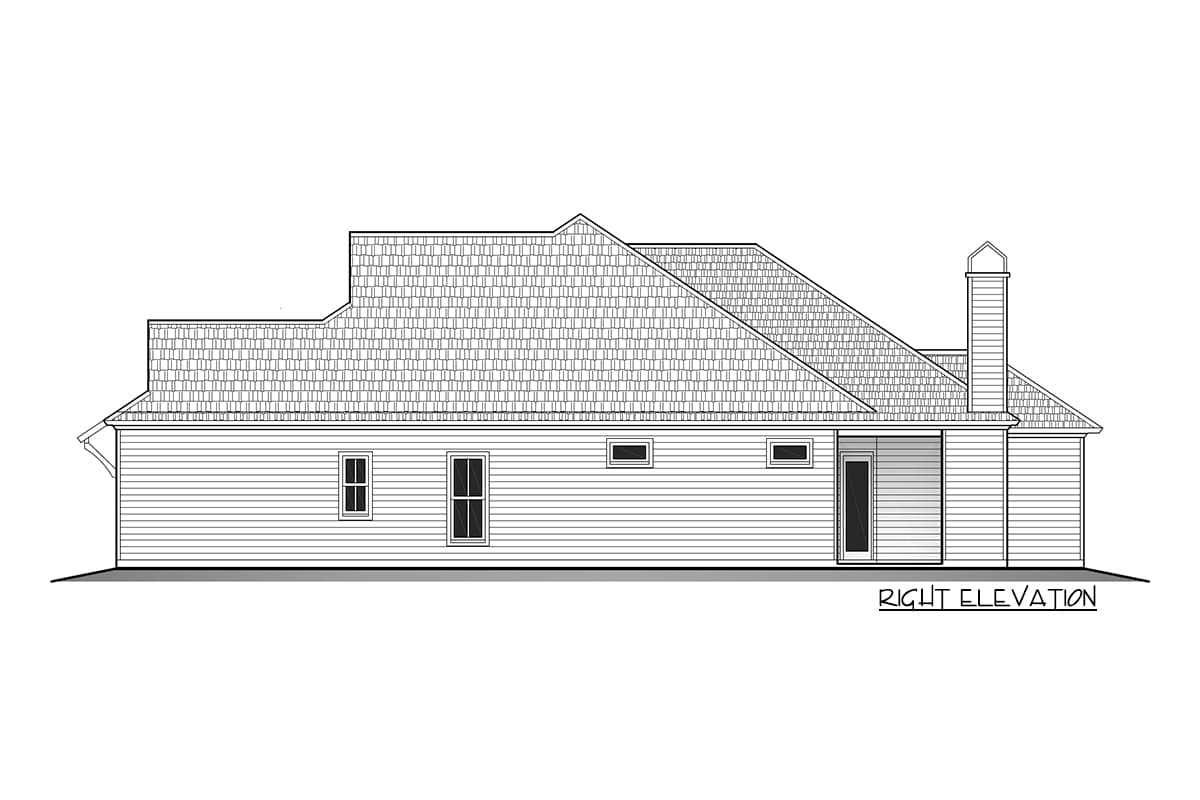

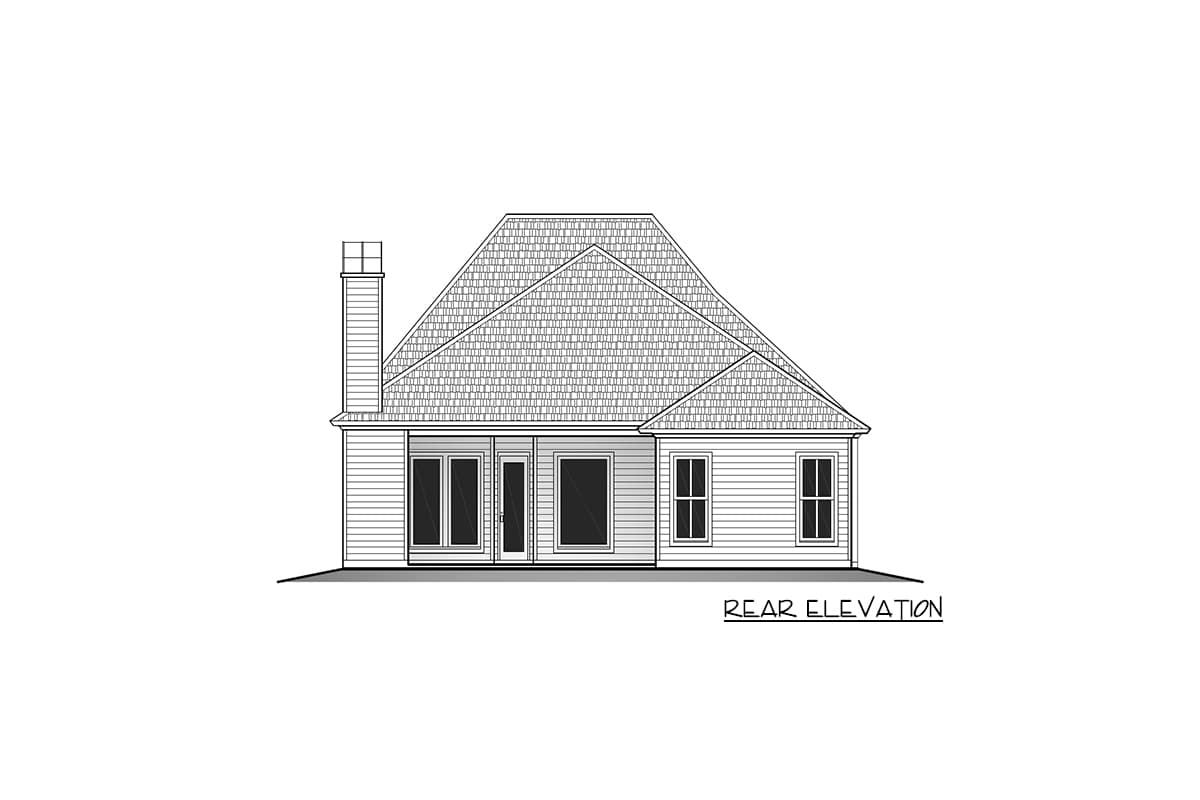

  1. Cover sheet with rendering , roof plan and all four exterior elevations

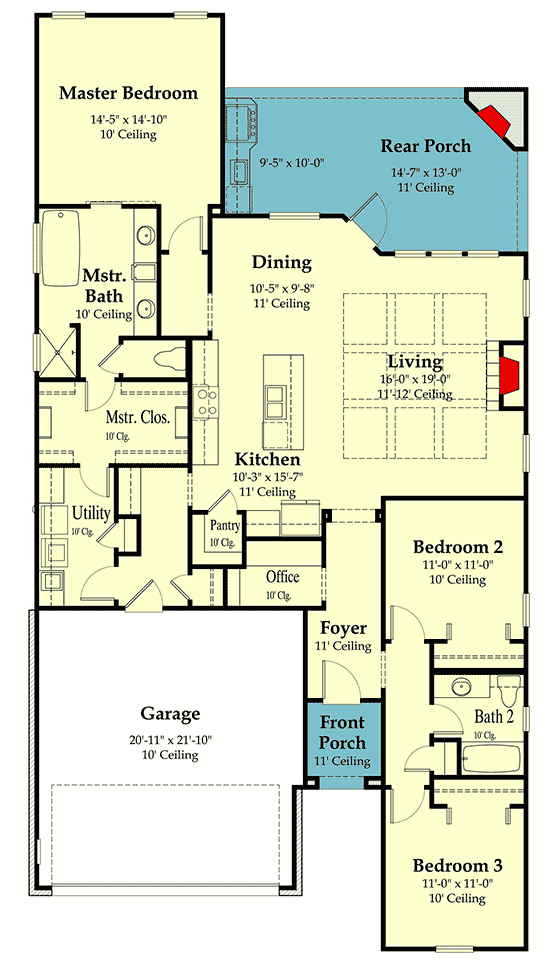

  2. Main floor plan with window schedule, door schedule and room finish schedule
  3. Foundation plan and details
  4. Wall sections
  5. Electrical plan
  6. General notes

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
