Plan 51861HZ

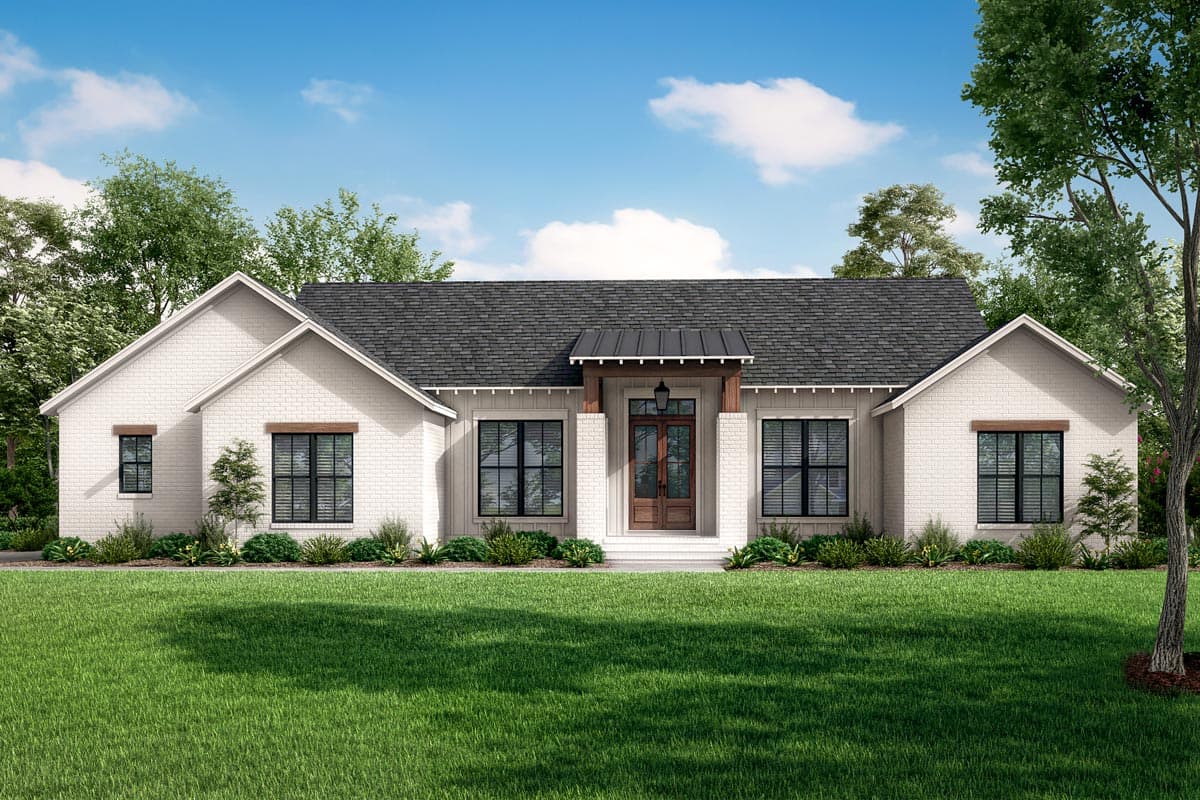

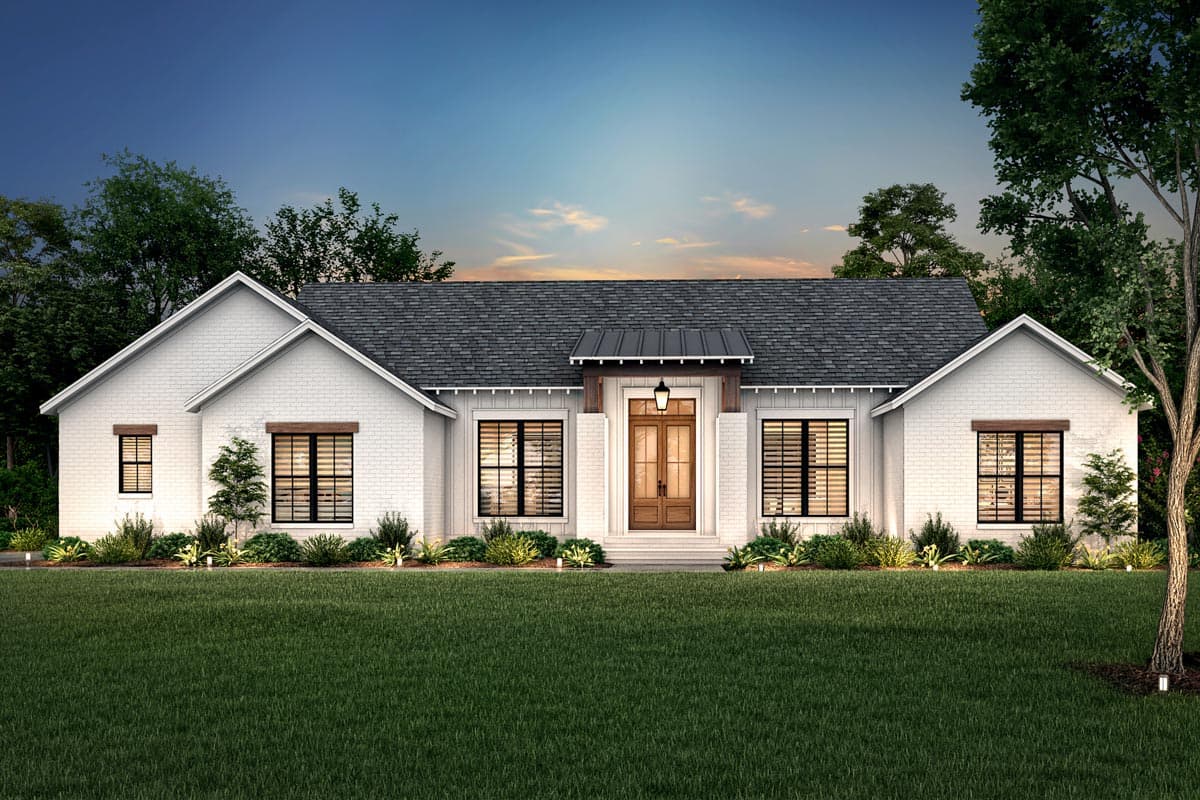

One-story Contemporary Texas Ranch Home Plan with 3 Beds

Heated S.F.
1,998
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 51861HZ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 51861HZ

M-F 9am-5pm EST |

1-203-761-8500

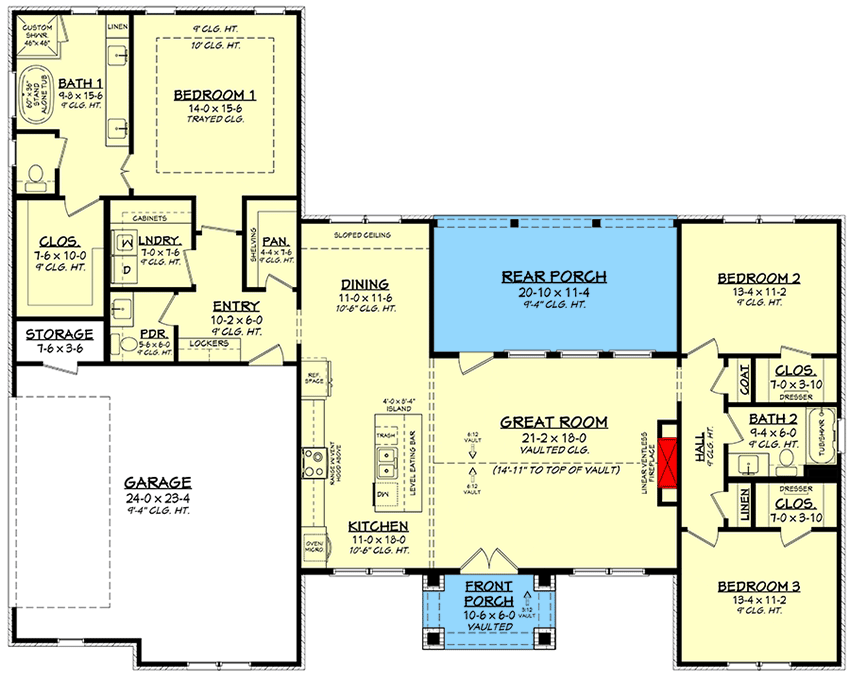

Main Level

Plan 51861HZ: One-story Contemporary Texas Ranch Home Plan with 3 Beds - Floor Plan - Main Level - Country, Hill Country, Ranch

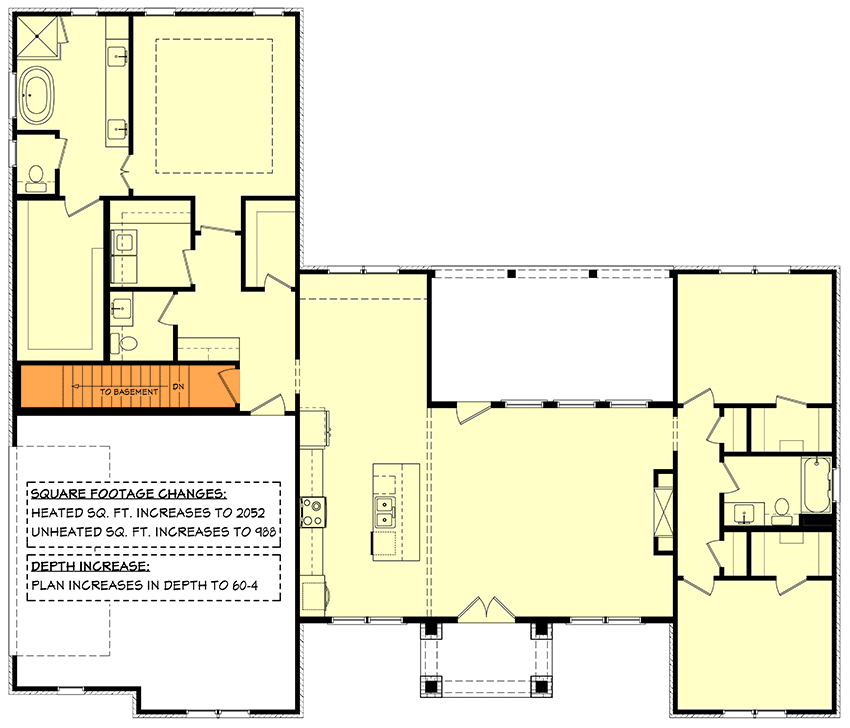

2nd Floor

Plan 51861HZ: One-story Contemporary Texas Ranch Home Plan with 3 Beds - Floor Plan - 2nd Floor - Country, Hill Country, Ranch

Plan Details

  • This contemporary Texas ranch home plan features 3 bedrooms and 2.5 baths, all with gracious closets and bathrooms in a privacy-respecting split bedroom layout.
  • The great room offers a vaulted ceiling and large windows that open onto the rear porch. It's proximity to the kitchen, which is equipped with a large island and walk-in pantry, makes this plan ideal for entertaining or just relaxing with the family.
  • Entertain out back on the rear porch, accessible from the vaulted great room.
  • Enter the home off the 2-car side-entry garage and find a convenient bench and lockers to help control clutter.

What's Included

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

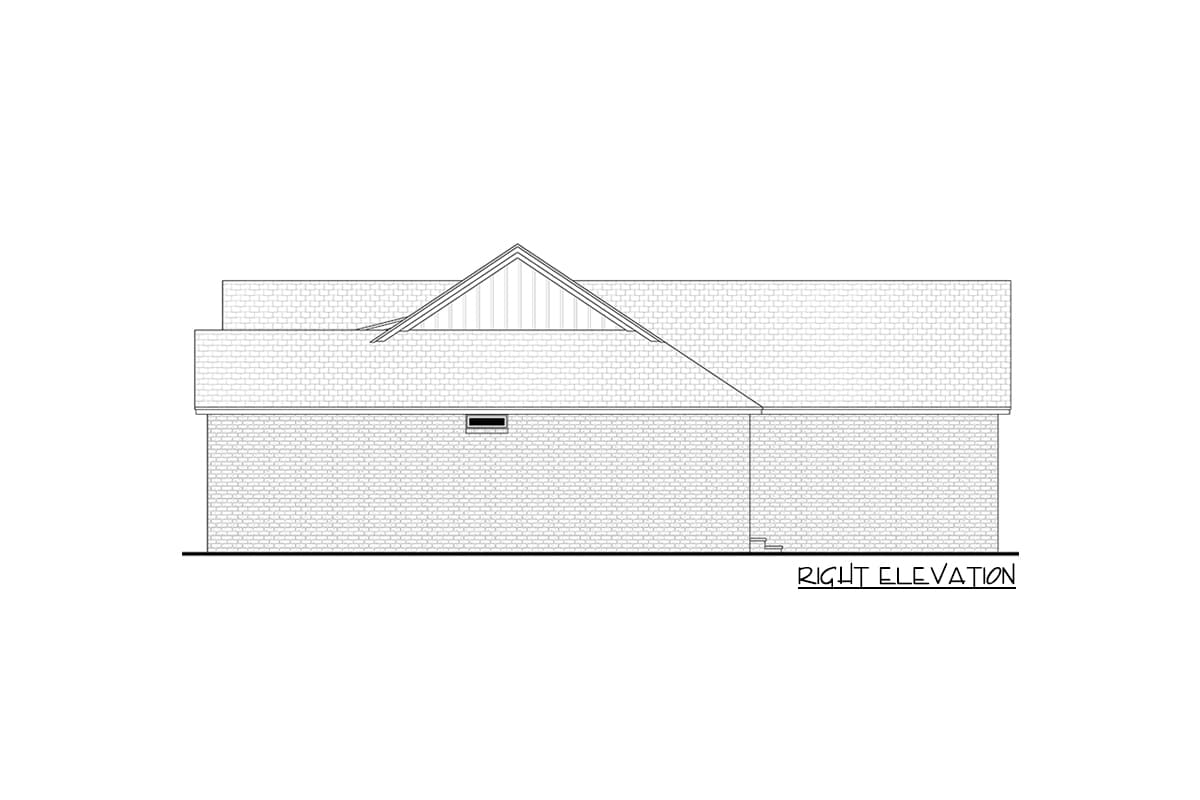

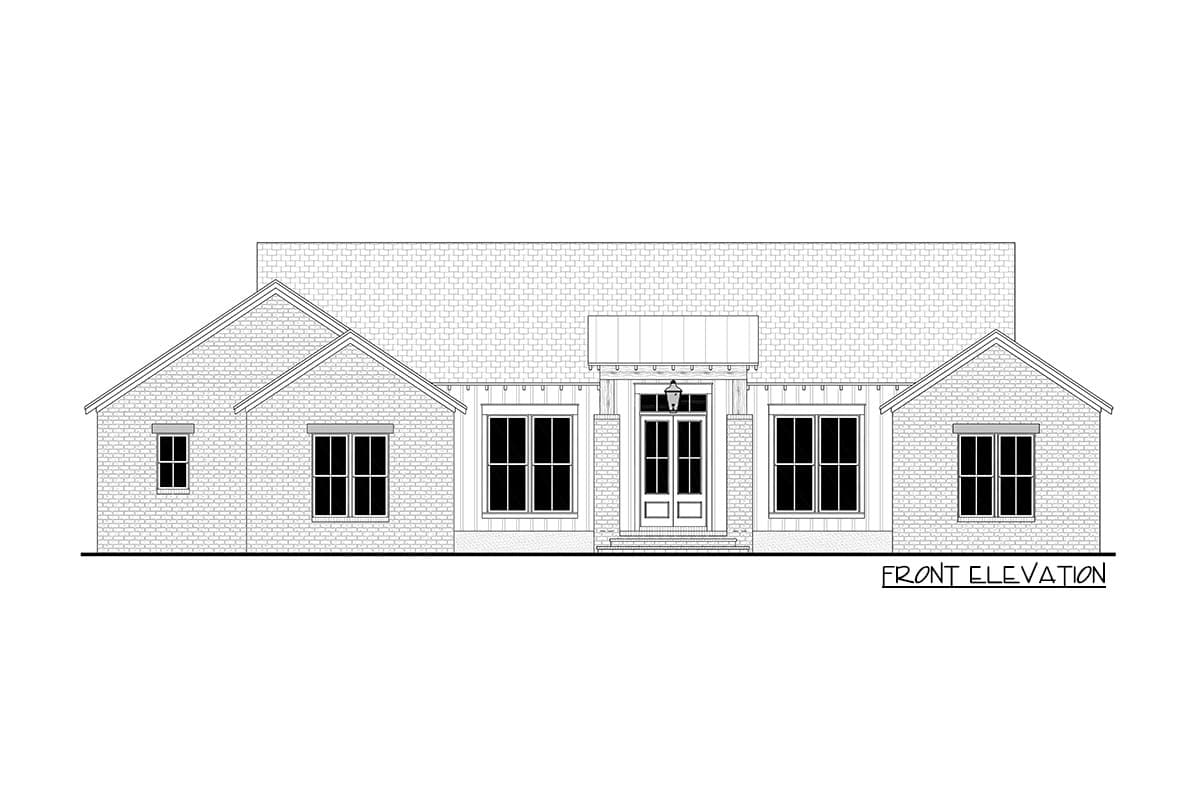

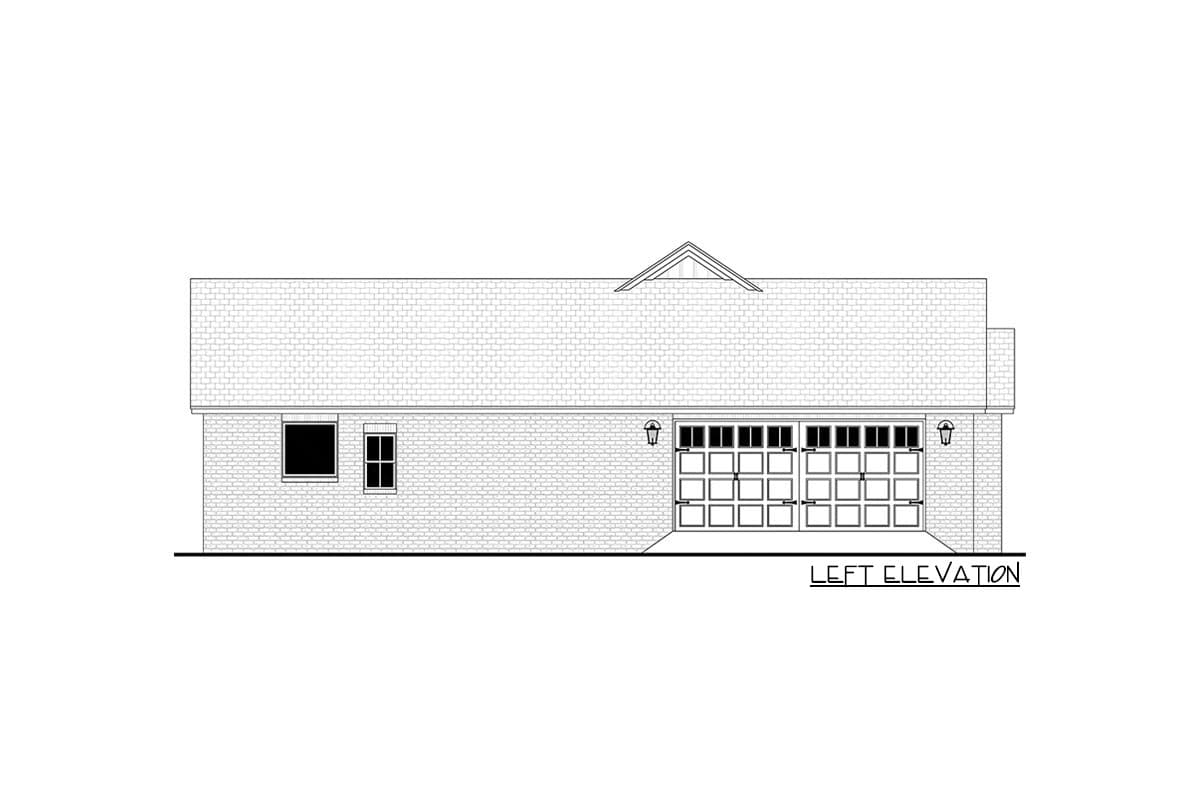

Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Misc notes and details
Page 7  Roof plan and span charts with additional details
Page 8  Cross Section & kitchen cabinet views
Page 9  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,998 sq. ft.

1st Floor

1,998 sq. ft.

Porch, Front

63 sq. ft.

Porch, Rear

236 sq. ft.

Porch, Combined

299 sq. ft.

Storage

30 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 10"

Depth

56' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

606 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Country

Hill Country

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,998 sq. ft.

1st Floor

1,998 sq. ft.

Porch, Front

63 sq. ft.

Porch, Rear

236 sq. ft.

Porch, Combined

299 sq. ft.

Storage

30 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 10"

Depth

56' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

606 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Country

Hill Country

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
