Plan 62745DJ

One-Story Craftsman House Plan with Angled Footprint - 2167 Sq Ft

Name: Plan 62745DJ: One-Story Craftsman House Plan with Angled Footprint - 2167 Sq Ft
Brand: Architectural Designs
SKU: 62745DJ
Price: 1599.0 USD
Availability: InStock

Heated S.F.

2,167

Beds

Baths

2.5

Stories

Cars

Tour

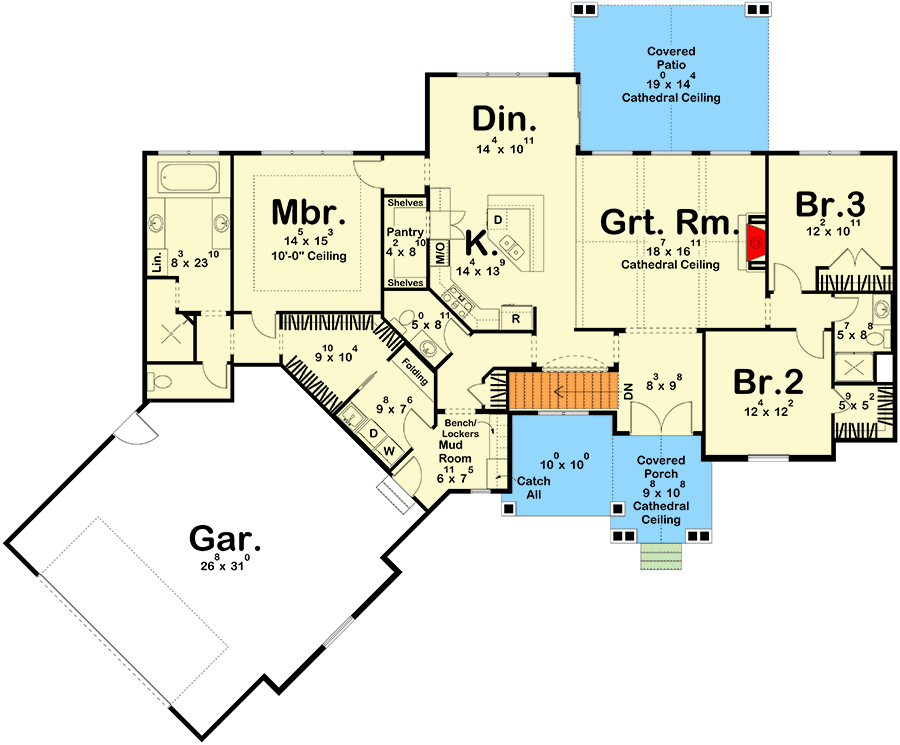

Floor Plan

Main Level

Plan Details

This 3-bed one-story Craftsman house plan offers you one-story living with classic Craftsman styling and an angled footprint.
Double doors within a deep covered front porch open to the great room residing beneath a cathedral ceiling with wood beams and showcasing a fireplace with thinset stone veneer.
This home plans kitchen and dining area openly interact with the great room for easy entertaining. The kitchen features a large island work area and a roomy walk-in pantry. Entertaining options are expanded by the adjacent dining area, which accesses to a rear patio.
Just off the kitchen, a mud room with built-in bench and lockers accesses the home's angled 2-car garage.
The master suite has access to a well-appointed bath area that includes dual sinks, soaking tub, walk-in shower, compartmented toilet and a roomy walk-in closet that has access to the laundry room.
On the opposite side of the home, two secondary bedrooms share a hall bath and bedroom 2 includes a walk-in closet.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section (if applicable)
Cabinets Elevations (if applicable)

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
