Plan 68757VR One-story Craftsman House Plan with Vaulted Family Room on a Basement

2,440 4 3.5 1 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

One-story Craftsman House Plan with Vaulted Family Room on a Basement

Plan 68757VR

  • 2,440

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Rustic detailing enhances the exterior of this exciting Craftsman house plan.
  • Columns are used instead of walls, giving the home a huge expanse of wonderful sightlines.
  • The stunning vaulted and beamed ceiling of the family room carries out onto the rear porch too.
  • The split bedroom layout works well giving the master suite its privacy.
  • Homeowners get pampered with tray ceilings in both the bedroom and the large sitting room that opens to the rear porch.
  • Even the master bathroom is vaulted and there's a window seat in the huge walk-in closet.
  • Related Plan: Get a slab or crawlspace with house plan 68405VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

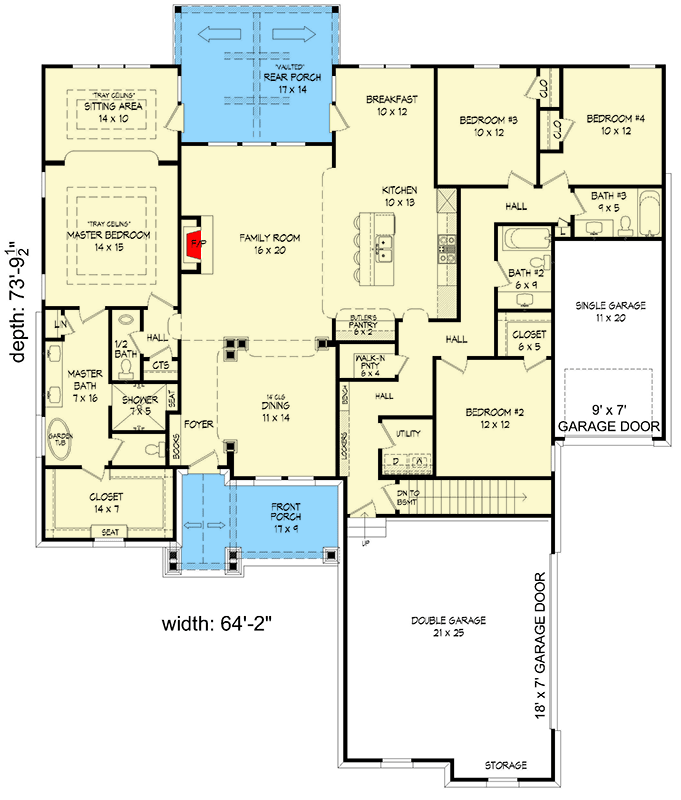

One-story Craftsman House Plan with Vaulted Family Room on a Basement - 68757VR floor plan - Main Level

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
One-story Craftsman House Plan with Vaulted Family Room on a Basement - 68757VR floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,440 sq. ft.
  • 1st Floor: 2,440 sq. ft.
  • Porch, Combined: 381 sq. ft.
  • Basement Unfinished: 2,512 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 64' 2"
  • Depth: 73' 10"
  • Max ridge height: 20' 6"

Garage

  • Type: Attached
  • Area: 808 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

One-story Craftsman House Plan with Vaulted Family Room on a Basement

  • 2,440

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 2,440 sq. ft.
  • 1st Floor: 2,440 sq. ft.

Dimensions

  • Width: 64' 2"
  • Depth: 73' 10"
  • Max ridge height: 20' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 808 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
