Plan 264030KMD
One-Story Duplex House Plan with 2 Bed 2 Bath Units - 1159 Sq Ft
Heated S.F.
2,318
Units
2
Width
62' 4"
Depth
47'
What's Included
Plan Details

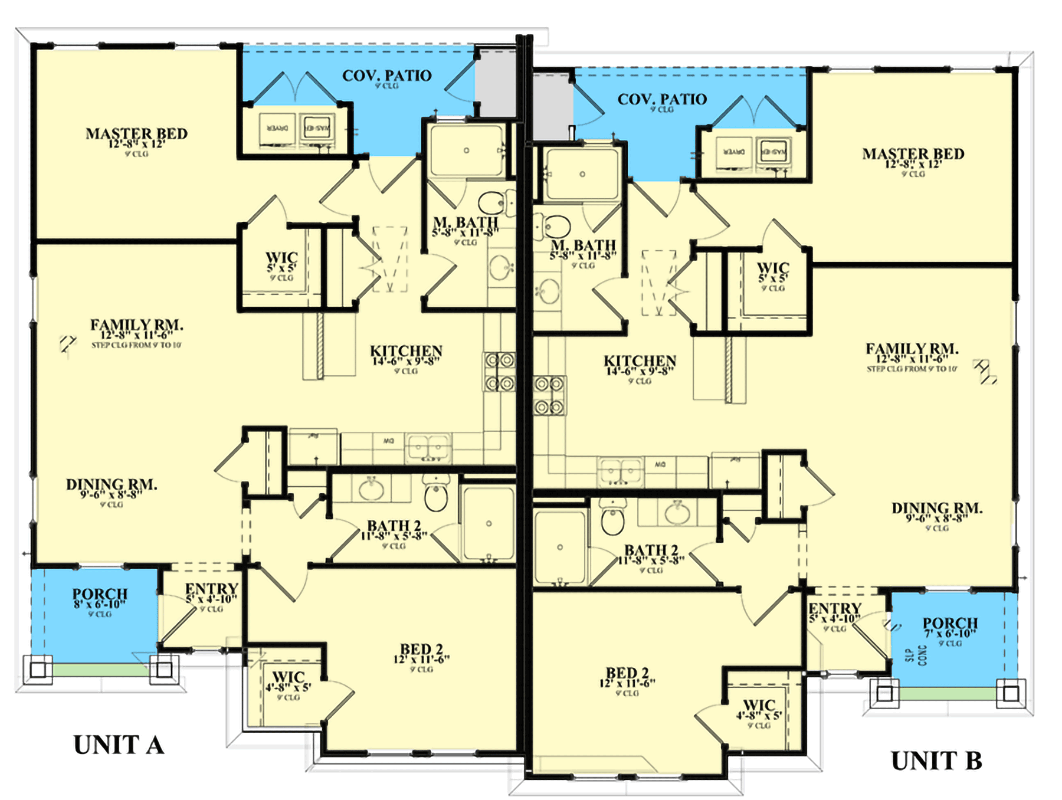

  • This duplex house plan gives you matching 2 bed, 2 bath units each with 1,159 square feet of heated living space.
  • The center of the home is open concept with the family room having a 9' to 10' step ceiling open to the dining room and the kitchen.
  • A split layout has the master bedroom in back and Bed 2 in front.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes.
  • Our website offers a vast collection of multi-family house plans, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get larger units with duplex house plan 264031KMD (1,388 sq. ft. units).
Unit A
1,159 Sq. Ft.
1159 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
None
31' 2" w 47' d 19' 10" h
Unit B
1,159 Sq. Ft.
2318 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
None
31' 2" w 47' d 19' 10" h
What's Included

  • Foundation Plan: Includes the complete foundation with dimensions, plumbing locations for slabs and reference details for foundation construction.  Also includes any specific construction notes or requirements to ensure proper installation. Does not include Structural Engineering stamp due to regional specification and requirements per local conditions. Typically, structural requirements can be obtained by local lumber supplier for little or no cost.

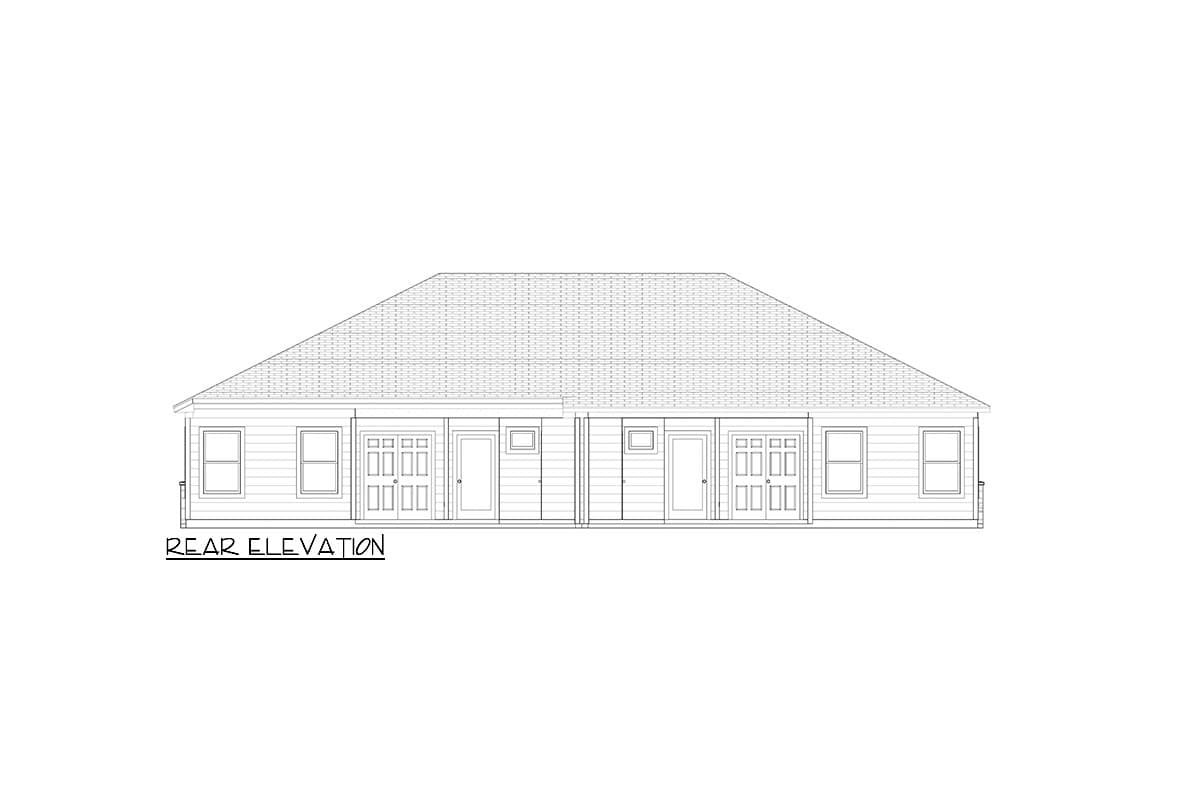

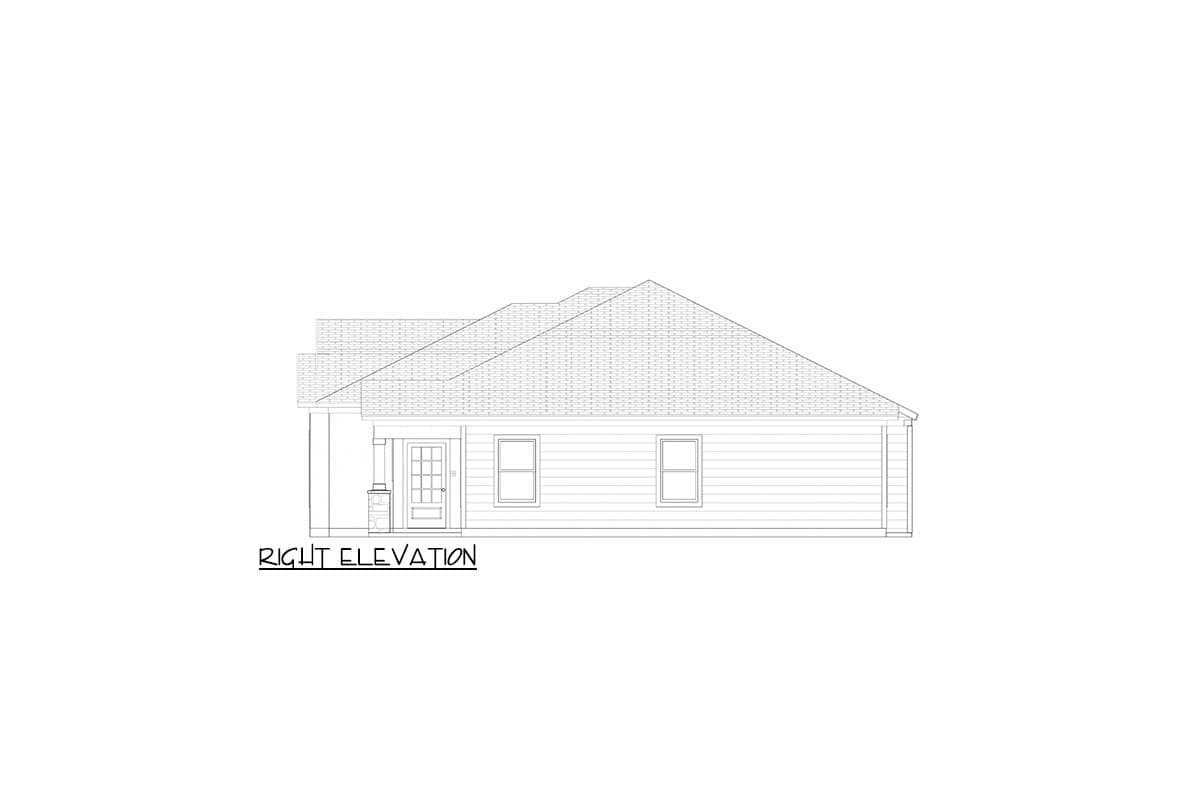

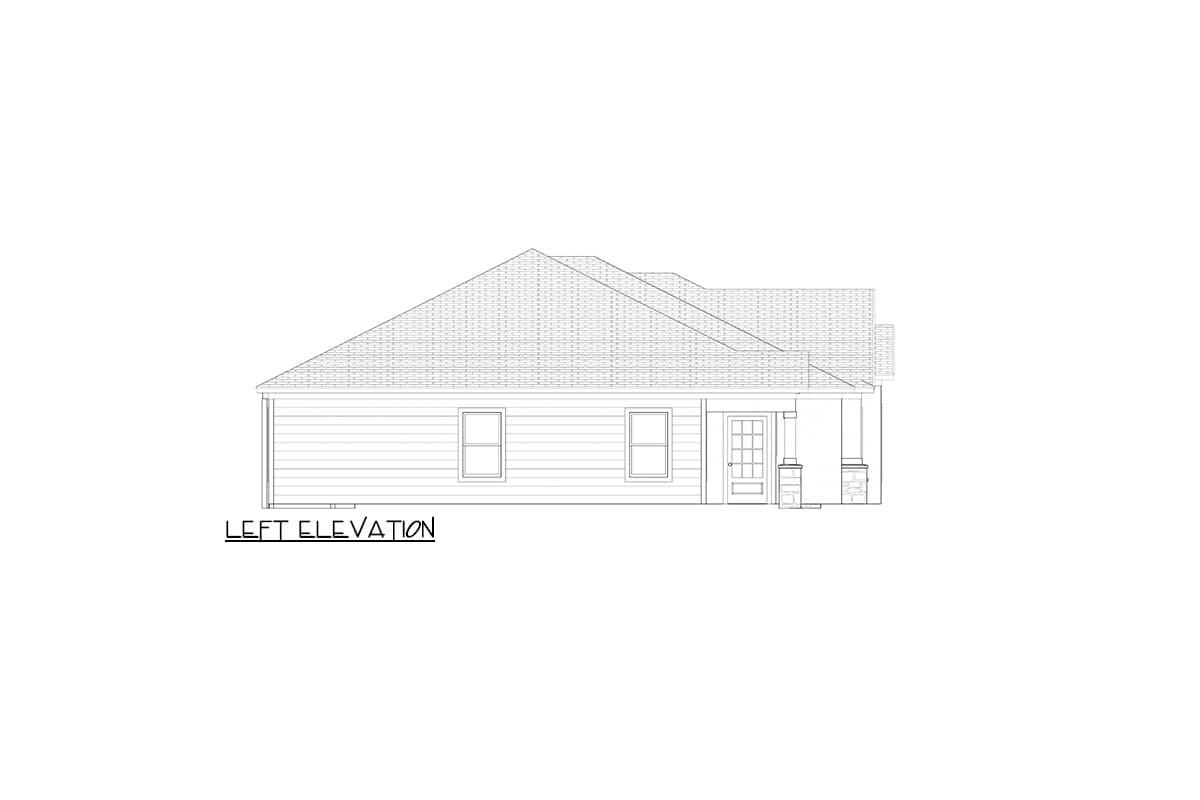

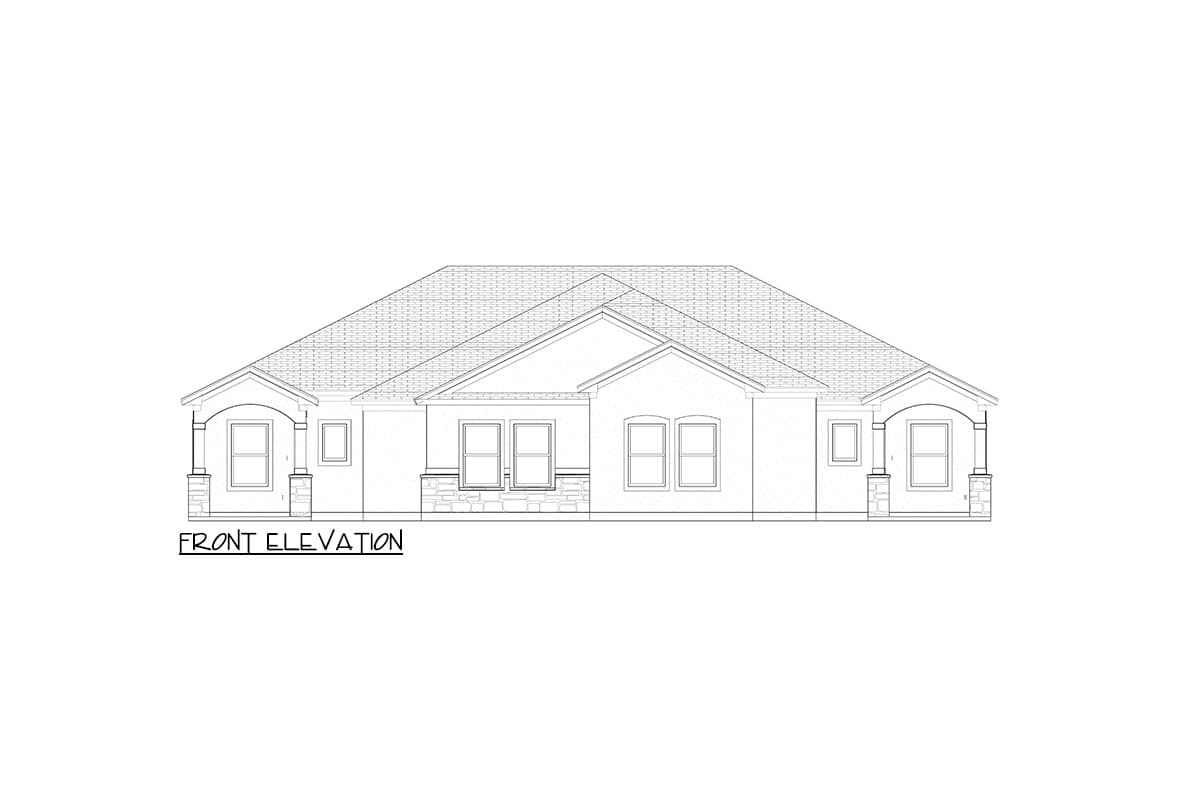

  • Elevations: Exterior views from all four directions that includes dimensions, height dimensions including finished floor to highest point of the structure.  Also includes all special construction notes, finishes and applicable elements that need extra detail to convey the design intent to construct in the field correctly.
  • Floor Plan(s): Complete with dimensions of wall locations, windows, doors, cabinetry, and special construction elements. Notes including standard and special conditions tailored for the tradesmen in mind. We strive to give your contractor more dimensions than they need.
  • Roof Plan: Complete with overhang dimensions, plate heights which remove the guesswork of how the roof is properly constructed.  Also includes roof pitches, notes for special conditions, roof square footage which is a big help estimating roof materials and reducing job site waste.
  • Details: All relevant details including Cornice (eave) which are designed directly from each plan "we do not reuse details with each plan." we also include applicable enlarged details which need even more magnification in order to properly explain the design intent.
  • Interior Elevations: Inside views of the structure, including cabinetry, electrical and any applicable special construction that needs that extra level of detail.
  • Sections: Also known as a cut through the entire structure.  This explains in further detail how the structure is built and properly braced to ensure a safe home. Our practice also includes complete dimensions, notes, and any required special attention needed.
  • Electrical Plan: Complete with layout and location of lights, switches and plugs.  When we include wall plugs, we go beyond the code standards, which gives you more walls to choose to plug up your appliance.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
