One-Story Exclusive New American House Plan
Heated S.F.
2,284
Beds
3
Baths
2 - 3
Stories
1
Cars
2

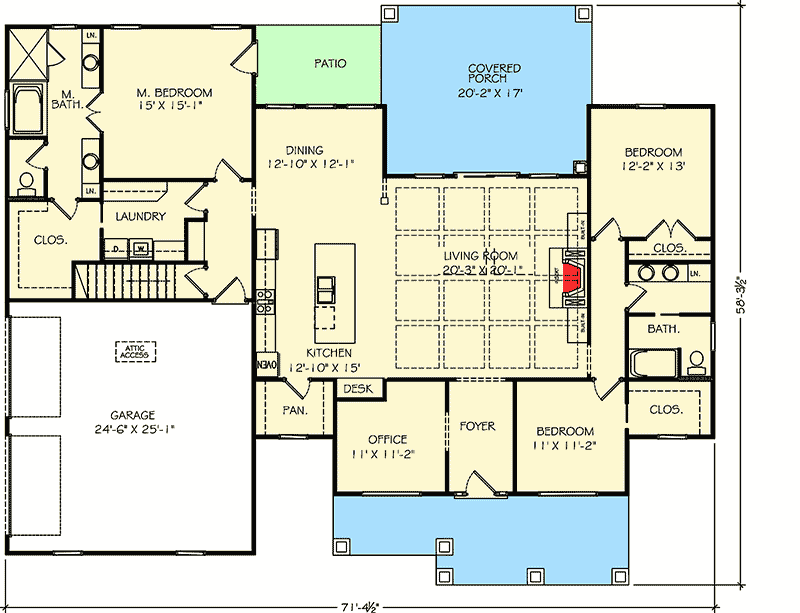

Floor Plan

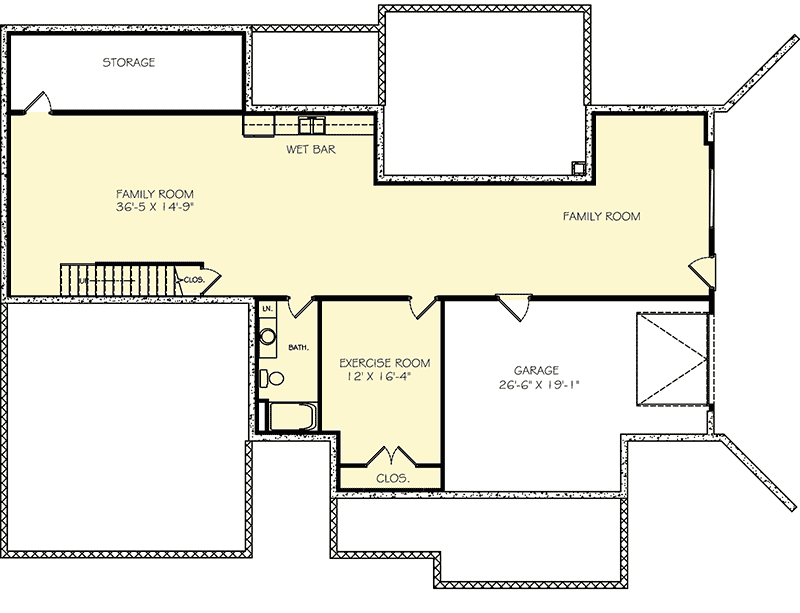

Optional Finished Lower Level
Reverse Floor Plan
One-Story Exclusive New American House Plan - 77615FB floor plan - Optional Finished Lower Level
Plan Details
  • Get a bonus optional finished lower level with this exclusive one-story New American house plan, adding 2,136 square feet to the total living area.
  • The main floor takes center stage though with its gorgeous coffered ceiling in the huge living room.
  • An open floor plan unites the kitchen and dining area with the living room so you get wonderful views from each room.
  • Step out onto the patio right from the master suite which is separated from the family bedrooms.
  • Have your very own exercise room in the finished lower level so you can skip the gym.
What's Included

  • CS - cover sheet
  • A1 - Foundation plan
  • A1.1 - main floor dimension plan
  • A2.0 - elevation views
  • A2.1 - elevation views
  • A3.0 - section view and enlarged detail
  • A3.1 - enlarged details
  • A3.2 - typical details
  • A3.3 - typical details
  • E1.0 - electrical layout both basement and main floor

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Story Exclusive New American House Plan

  • 2,284

    Heated s.f.

  • 3

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Optional Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,284 sq. ft.
  • 1st Floor: 2,284 sq. ft.

Dimensions

  • Width: 71' 5"
  • Depth: 58' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3

Garage

  • Type: Drive Under, Attached
  • Area: 636 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss
