Plan 72328DA One-story Home Plan with Two Separate Garages and Vaulted Interior Spaces

2,383 2 2 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

One-story Home Plan with Two Separate Garages and Vaulted Interior Spaces

Plan 72328DA

  • 2,383

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • A welcoming exterior and grand centered vaulted porch greet you to this one-story Craftsman house plan. Each side of the home's entrance is flanked by garage bay wings. The left garage bay can hold two cars, has two 10’ by 8’ doors and is 916 square feet. On the other side of the home is the smaller 500 square foot garage with a 10’ by 8’ door. Both garages are separated from the home by breezeways that let in an abundance of natural light through the skylights.
  • A vaulted entry porch is complimented by a grandiose vaulted entryway. Walking through the country-style doors you come into the vaulted dining room and kitchen. Furthering the grand nature of this home, the great room is lined with large and equally abundant windows making this a perfect home for a view lot.
  • There are two bedrooms with the main vaulted owner's suite dominating the right side of the home. The suite features a generously sized walk-in closet and bathroom that includes a separate tub and shower as well as a private toilet room and exterior access.
  • The left side of the home hosts the second vaulted bedroom that also features a spacious walk-in closet. Sharing this space is the second bathroom and utility room. The vaulted mud room separates the rest of the home from the garage space.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

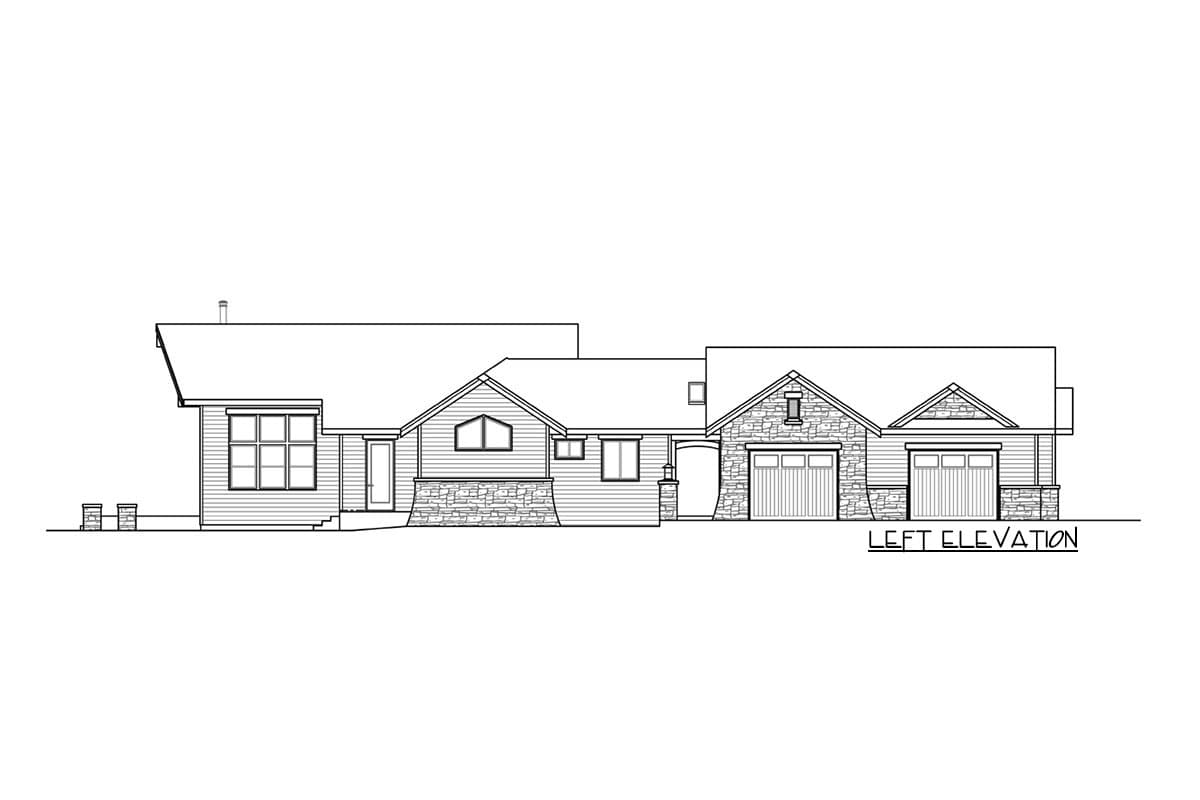

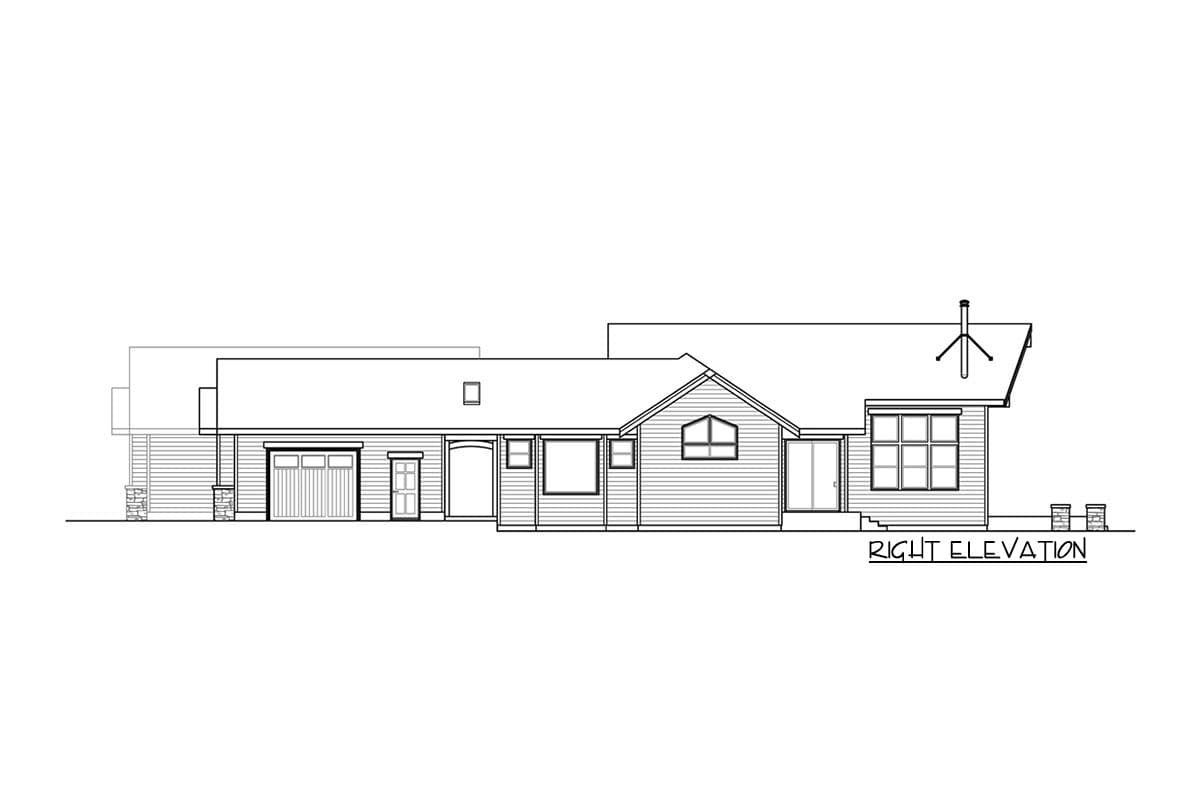

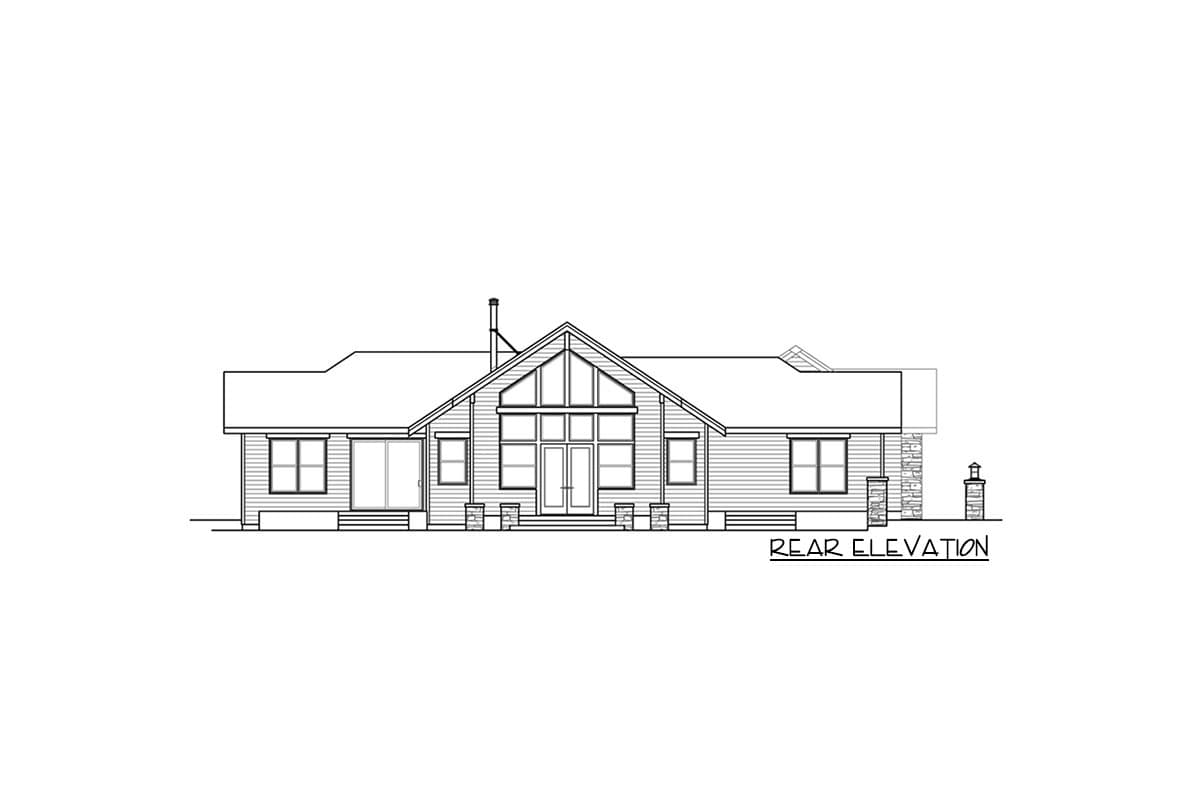

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

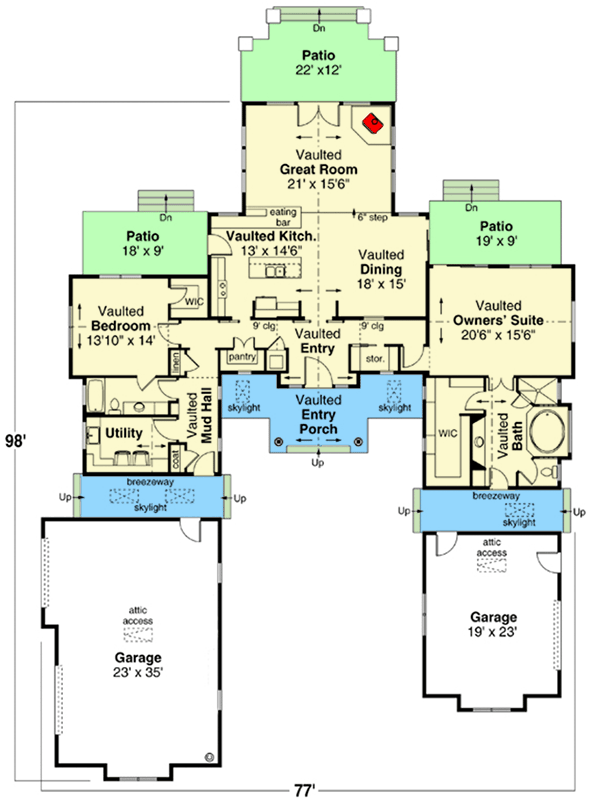

One-story Home Plan with Two Separate Garages and Vaulted Interior Spaces - 72328DA floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,383 sq. ft.
  • 1st Floor: 2,383 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 77' 0"
  • Depth: 98' 0"
  • Max ridge height: 22' 7"

Garage

  • Type: Attached
  • Area: 1416 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

One-story Home Plan with Two Separate Garages and Vaulted Interior Spaces

  • 2,383

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $745
  • PDF Light $975
  • 5 Sets + PDF $1,194
  • PDF - Single-Build $1,955
  • CAD - Single-Build $2,095
  • CAD - Unlimited Build $2,345
  • View all purchase option online

About This Plan

  • A welcoming exterior and grand centered vaulted porch greet you to this one-story Craftsman house plan. Each side of the home's entrance is flanked by garage bay wings. The left garage bay can hold two cars, has two 10’ by 8’ doors and is 916 square feet. On the other side of the home is the smaller 500 square foot garage with a 10’ by 8’ door. Both garages are separated from the home by breezeways that let in an abundance of natural light through the skylights.
  • A vaulted entry porch is complimented by a grandiose vaulted entryway. Walking through the country-style doors you come into the vaulted dining room and kitchen. Furthering the grand nature of this home, the great room is lined with large and equally abundant windows making this a perfect home for a view lot.
  • There are two bedrooms with the main vaulted owner's suite dominating the right side of the home. The suite features a generously sized walk-in closet and bathroom that includes a separate tub and shower as well as a private toilet room and exterior access.
  • The left side of the home hosts the second vaulted bedroom that also features a spacious walk-in closet. Sharing this space is the second bathroom and utility room. The vaulted mud room separates the rest of the home from the garage space.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,383 sq. ft.
  • 1st Floor: 2,383 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 77' 0"
  • Depth: 98' 0"
  • Max ridge height: 22' 7"

Garage

  • Type: Attached
  • Area: 1416 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss
