Plan 11714HZ

One Story House Plan with 3 Exteriors

Heated S.F.
1,600
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 11714HZ

Main Level
Main Level

Plan 11714HZ

M-F 9am-5pm EST |

1-203-761-8500

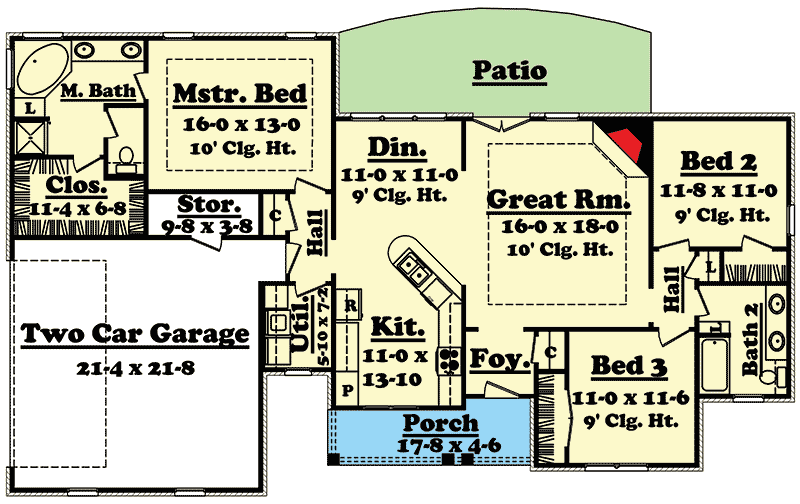

Main Level

Plan 11714HZ: One Story House Plan with 3 Exteriors - Floor Plan - Main Level - Ranch, Southern, Traditional

Plan Details

  • This great open floor plan has much to offer and comes in three exterior options.
  • The beautiful trayed ceiling and cozy gas logs make the great room a favorite place to relax in.
  • The kitchen offers a raised bar and island peninsula for entertaining.
  • The master suite offers all the amenities that one would want, including a large whirlpool tub, seperate shower, enclosed toilet, dual sinks, and a large walk in closet. The second bath is oversized and has dual sinks.
  • This home plan has everything a family could ask for.
  • Related Plans: For an alternate exterior, see these house plans - 11715HZ and 11716HZ.

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

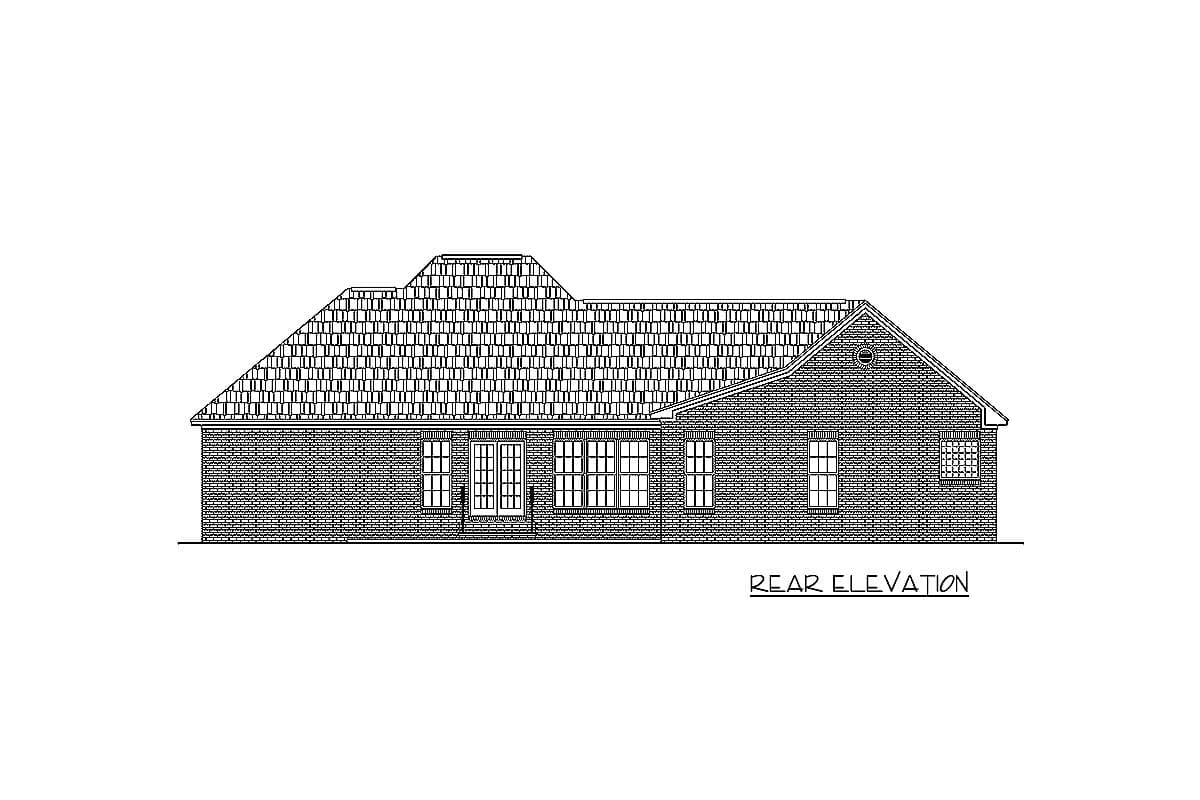

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,600 sq. ft.

1st Floor

1,600 sq. ft.

Porch, Front

86 sq. ft.

Storage

39 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

68' 0"

Depth

39' 8"

Max Ridge Height

22' 6"

Garage

Type

Attached

Area

489 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

USDA Approved

Square Footage Breakdown

Total Heated Area

1,600 sq. ft.

1st Floor

1,600 sq. ft.

Porch, Front

86 sq. ft.

Storage

39 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

68' 0"

Depth

39' 8"

Max Ridge Height

22' 6"

Garage

Type

Attached

Area

489 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

USDA Approved
