One-Story House Plan with a Hill Country Vibe

Plan 420006WNT

  • 2,242

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • A courtyard-entry 2-car garage (a 2-car side-entry garage is an option) welcomes you to this one-story ranch home plan with front porch and decorative gable above. Stone accents give it a hill country .
  • An open floor plan gives you a combined kitchen and great room space with almost 30' from wall to wall. 10' ceilings help create an open feel and there's the option to vault the ceiling which would create an even greater sense of space.
  • French doors off the entry take you to your home office.
  • The kitchen has an island with a sink in it. You'll appreciate having the extra work space, as well as room for casual seating. And the pantry gives you great storage.
  • Enjoy the fresh air on your  back porch accessible off the dining room.
  • The bedrooms are in a split layout maximizing your privacy. The rooms on the right share a bath while the master suite has a generously-sized bathroom and access to the back through sliding doors.
  • Come in from the garage and walk through the laundry/mud room and go straight to the kitchen. This arrangement makes unloading groceries a breeze.

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.
This plan set does NOT include;
  • Architectural or Engineering Stamp
  • Site Plan (Available as an upgrade option)
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations)Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations)Typically provided by your Plumbing subcontractor
  • Energy Calculations (Property specific energy efficiency calculations)Typically provided by local Energy Consultant

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

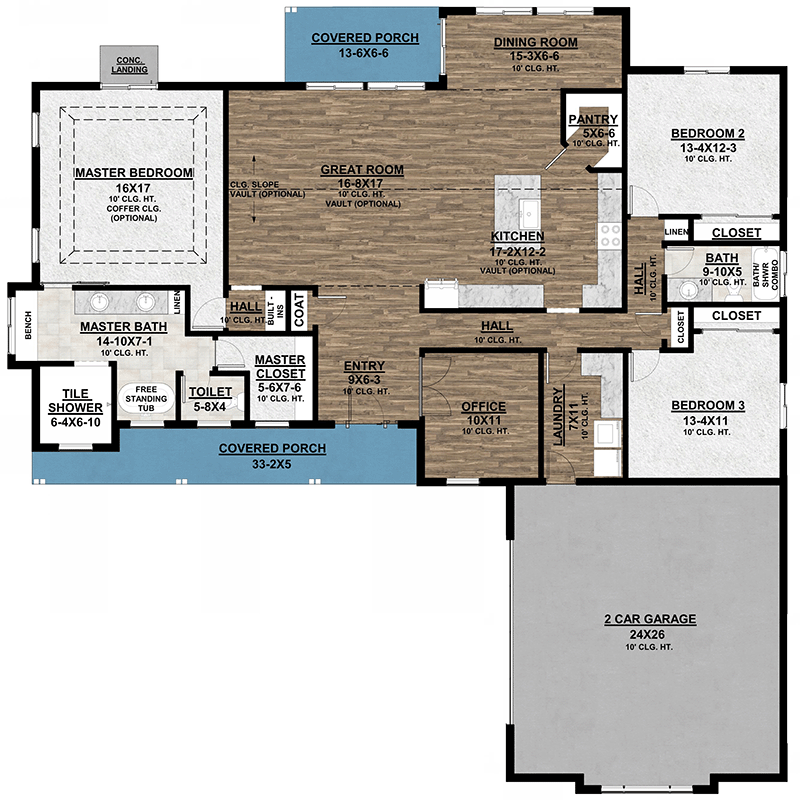

One-Story House Plan with a Hill Country Vibe - 420006WNT floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,242 sq. ft.
  • 1st Floor: 2,242 sq. ft.
  • Porch, Rear: 86 sq. ft.
  • Porch, Front: 146 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Daylight, Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 1"
  • Depth: 67' 8"
  • Max ridge height: 17' 7"

Garage

  • Type: Attached
  • Area: 630 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

One-Story House Plan with a Hill Country Vibe

  • 2,242

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets $1,445
  • 5 Sets + PDF $1,645
  • PDF - Unlimited Build $1,695
  • CAD Unlimited + PDF $2,195
  • View all purchase option online

About This Plan

  • A courtyard-entry 2-car garage (a 2-car side-entry garage is an option) welcomes you to this one-story ranch home plan with front porch and decorative gable above. Stone accents give it a hill country .
  • An open floor plan gives you a combined kitchen and great room space with almost 30' from wall to wall. 10' ceilings help create an open feel and there's the option to vault the ceiling which would create an even greater sense of space.
  • French doors off the entry take you to your home office.
  • The kitchen has an island with a sink in it. You'll appreciate having the extra work space, as well as room for casual seating. And the pantry gives you great storage.
  • Enjoy the fresh air on your  back porch accessible off the dining room.
  • The bedrooms are in a split layout maximizing your privacy. The rooms on the right share a bath while the master suite has a generously-sized bathroom and access to the back through sliding doors.
  • Come in from the garage and walk through the laundry/mud room and go straight to the kitchen. This arrangement makes unloading groceries a breeze.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,242 sq. ft.
  • 1st Floor: 2,242 sq. ft.
  • Porch, Rear: 86 sq. ft.
  • Porch, Front: 146 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Daylight, Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 1"
  • Depth: 67' 8"
  • Max ridge height: 17' 7"

Garage

  • Type: Attached
  • Area: 630 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
Plan 420006WNT
View this and more for this plan by visiting www.architechtecturaldesigns.com/420006WNT
|
