Plan 39073ST
One-Story House Plan with Complimentary Lower Level for Expansion
Heated S.F.
2,796
Beds
2-4
Baths
2 - 3
Stories
1
Cars
3
What's Included
Plan Details

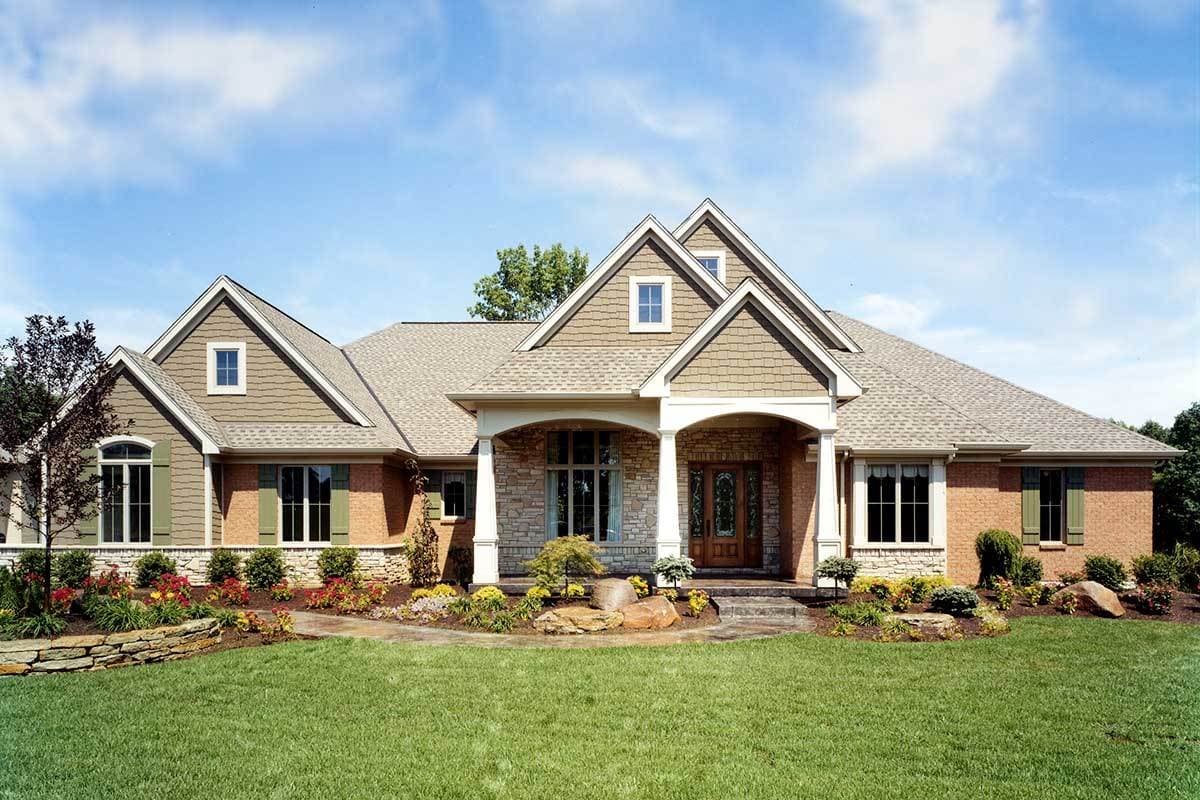

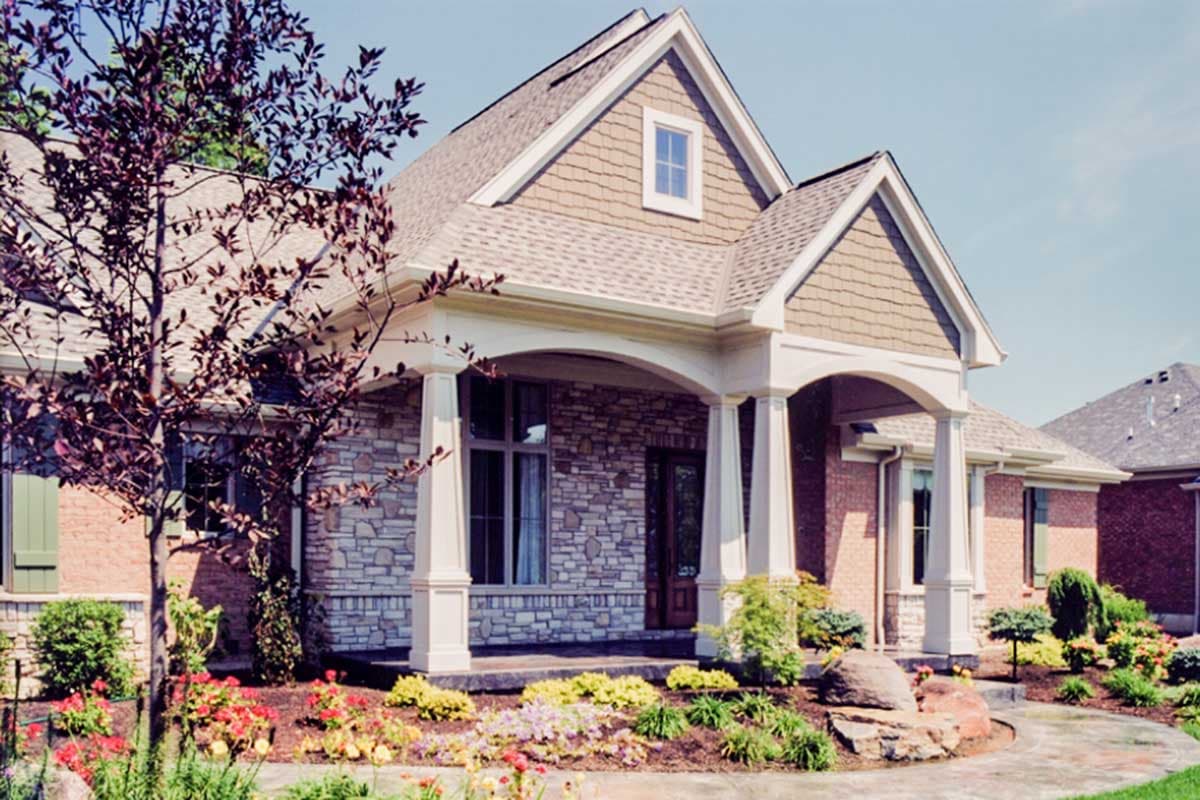

  • A brick, stone and shakes fa'ade with covered porch and multiple gables make this beautiful one level home plan a perfect choice for the discriminating buyer.
  • A large informal great room, breakfast area and kitchen, with island and bar seating, create a comfortable and inviting atmosphere.
  • Columns separate the great room from the foyer while 12' high ceilings top the great room, breakfast area, kitchen, dining room and master bedroom.

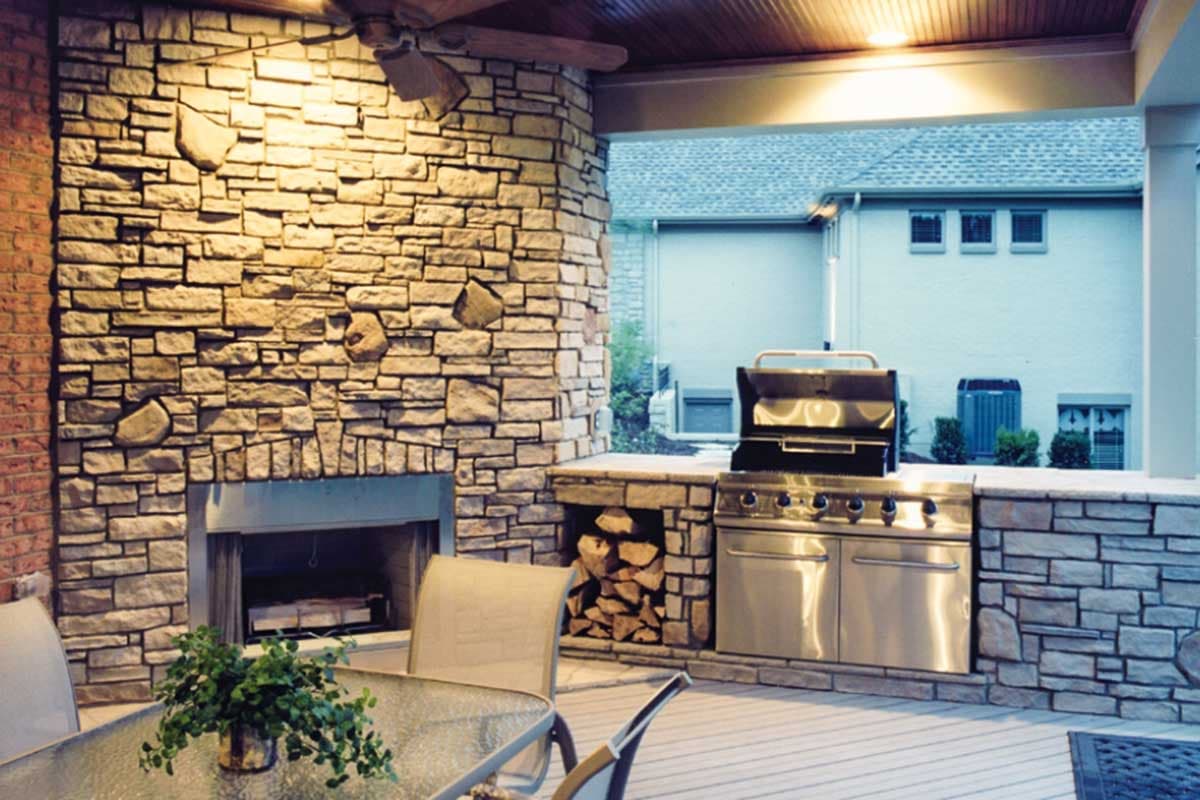

  • Formal dining is available for special occasion dining and a covered deck with fireplace and built in grill area offers expanded space for fun times.
  • Angled stairs lead to a lower level where a large party room offers a bar, billiards area, rec. room and media room. Additional bedrooms are available for the occasional overnight guest or family members.
  • Related Plans: Get more room with house plan 39192ST (5,068 sq. ft.). See these smaller related versions: 39068ST (2,619 sq. ft.) and 39151ST (2,246 sq. ft.).
What's Included
  • General notes and specifications

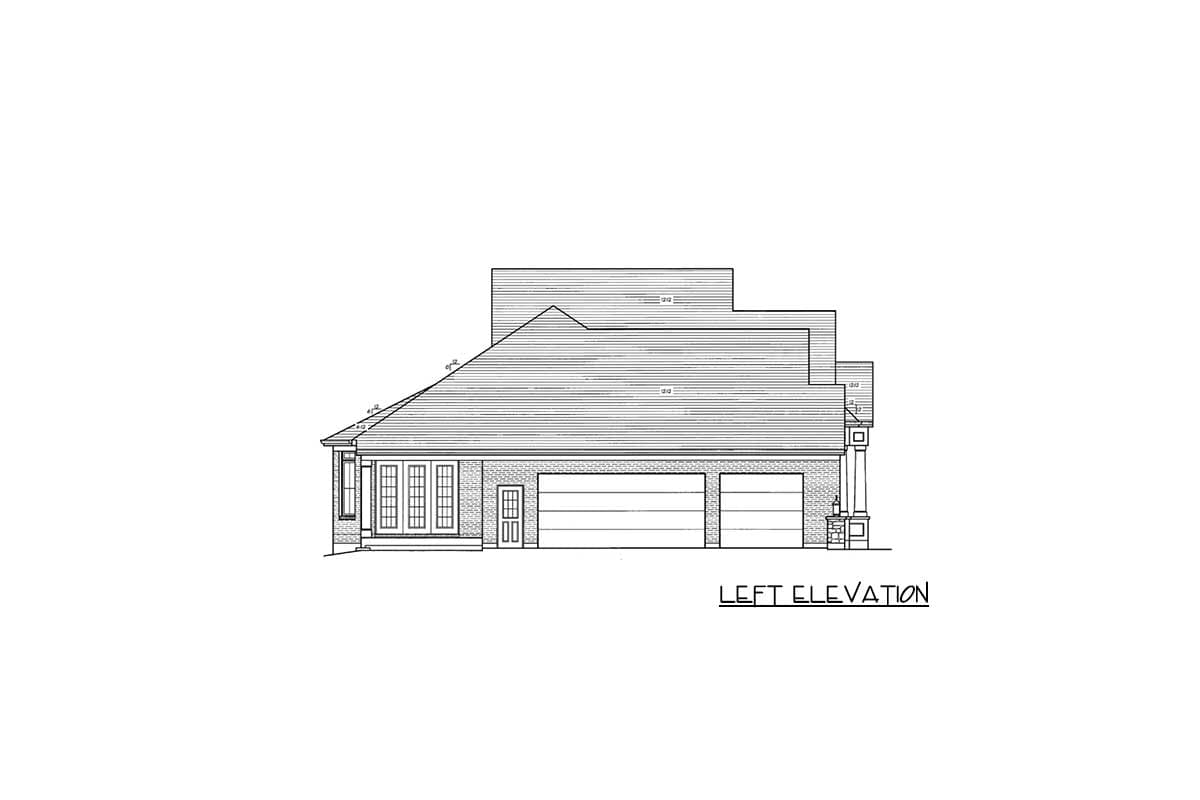

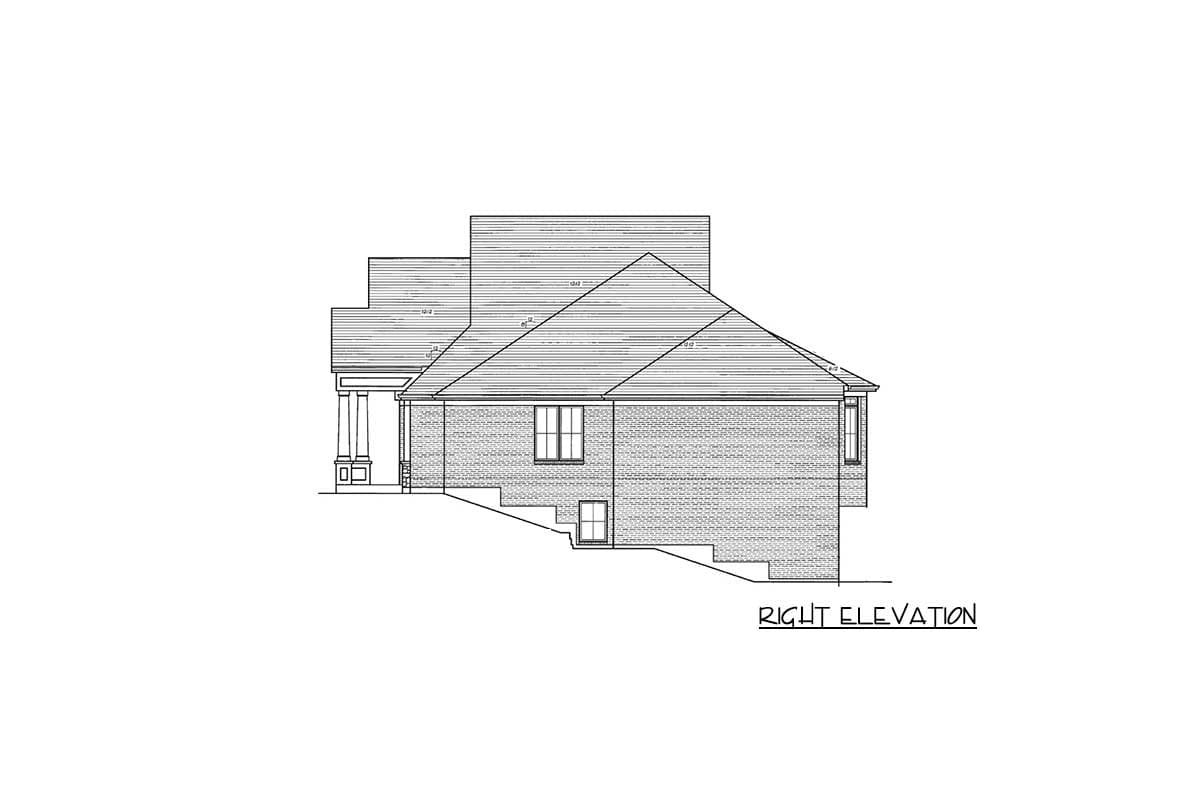

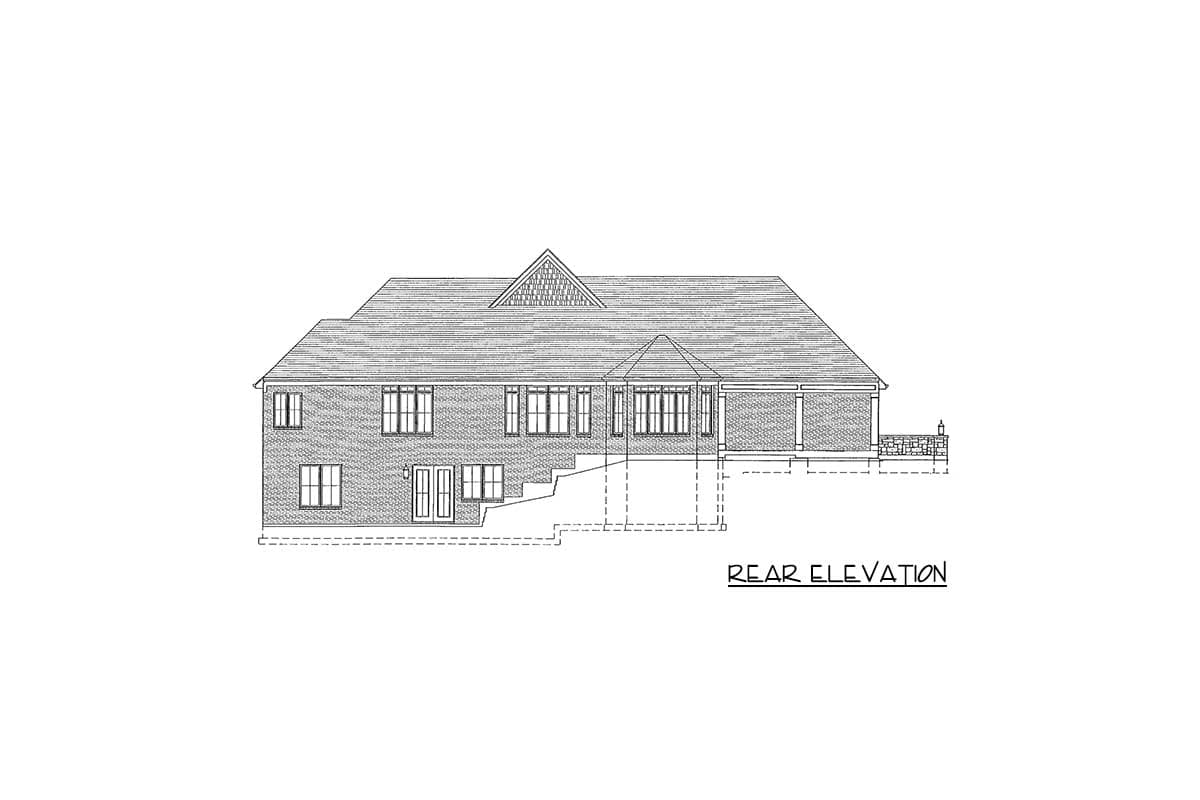

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Story House Plan with Complimentary Lower Level for Expansion

  • 2,796

    Heated s.f.

  • 2-4

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 3

    Car garage

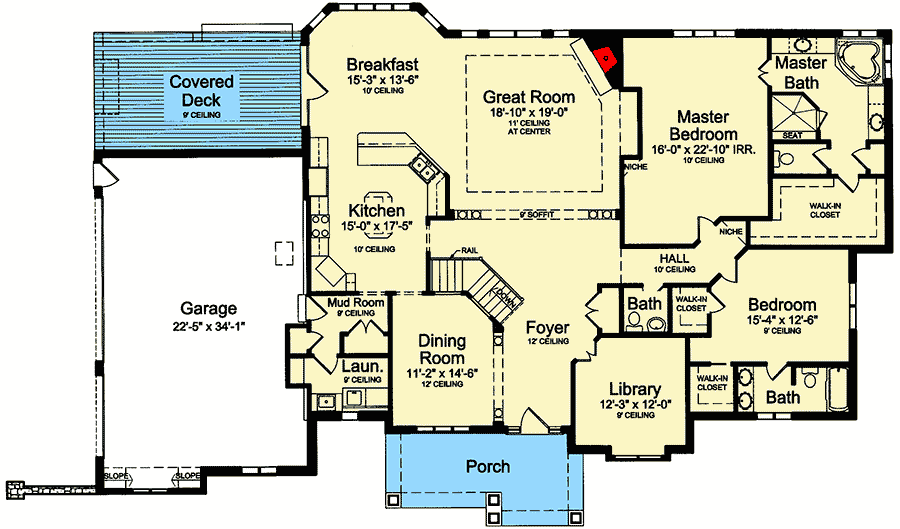

Floor Plan

  • Main Level

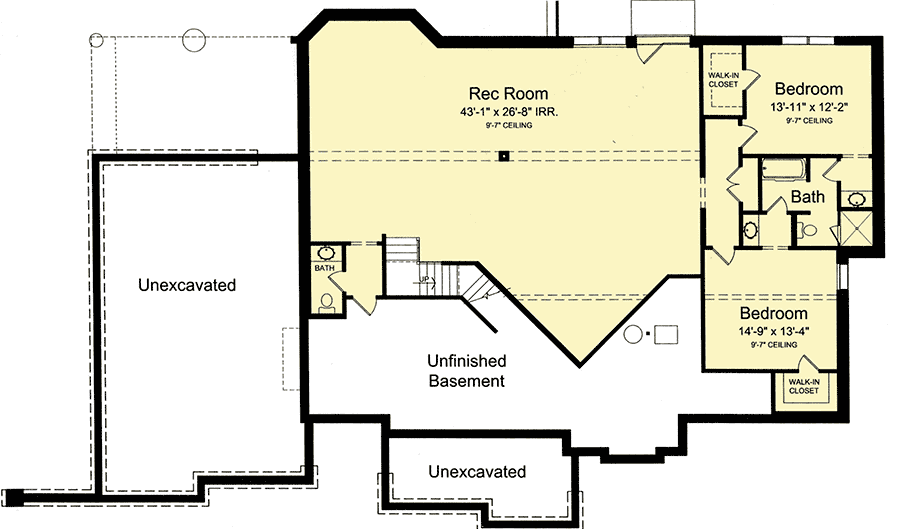

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 2,796 sq. ft.
  • 1st Floor: 2,796 sq. ft.

Dimensions

  • Width: 87' 4"
  • Depth: 57' 4"
  • Max ridge height: 29' 11"

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3

Garage

  • Type: Attached
  • Area: 767 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
