One-Story House Plan with Covered Outdoor Living in Back
Heated S.F.
3,323
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • Enjoy one-level living with this 2-bed house plan with a covered entry porch supported by two Craftsman columns.
  • The center portion of the home is open concept with every room in back having access to the covered outdoor living room. The C-shaped kitchen has a large island with double sink and dishwasher on one side and room for seating on the other.
  • The master suite has a large walk-in closet and a walk-in shower with room for two. Across the home the guest suite has its own bath.
  • A private office is located off the foyer.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.
What's Included
  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)

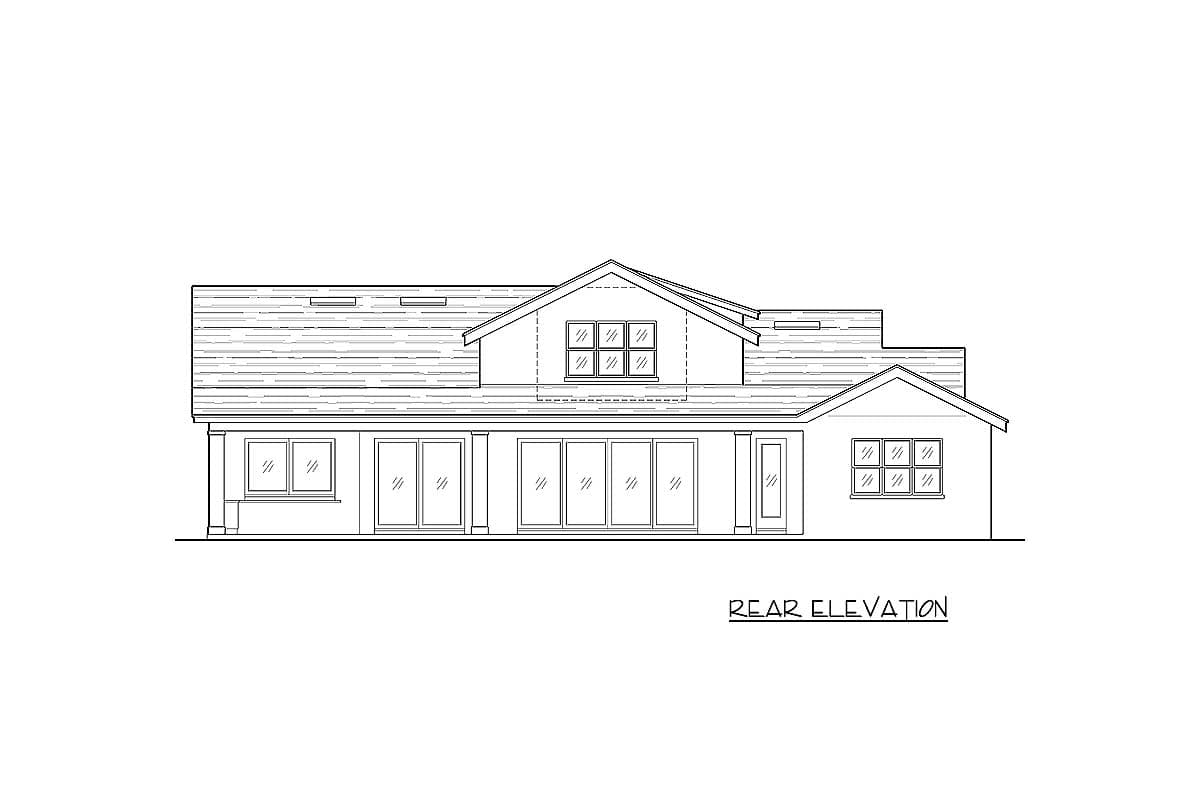

  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Story House Plan with Covered Outdoor Living in Back

  • 3,323

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

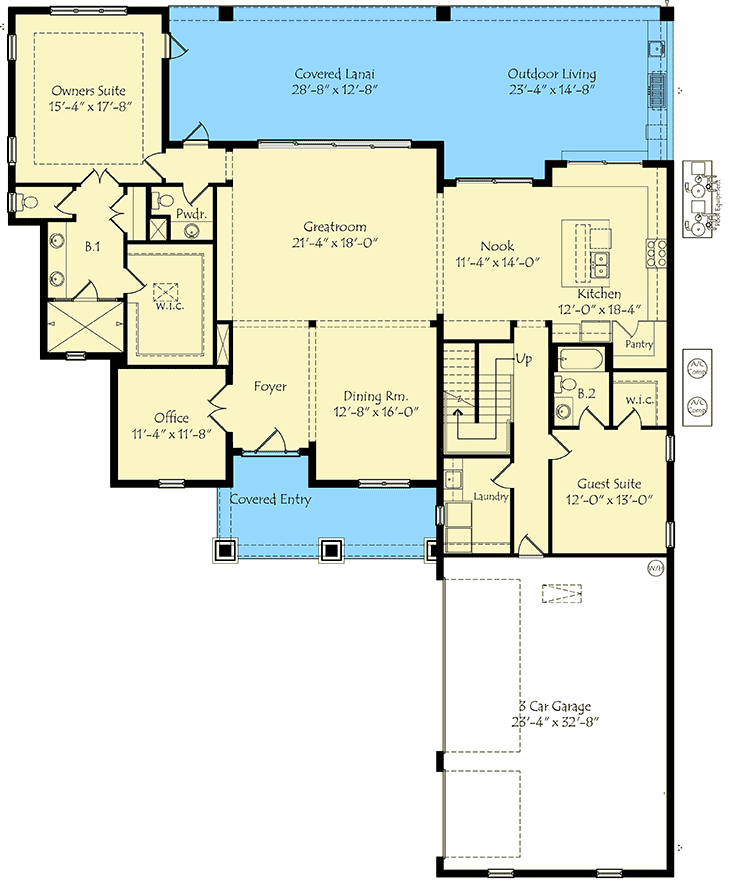

  • Main Level

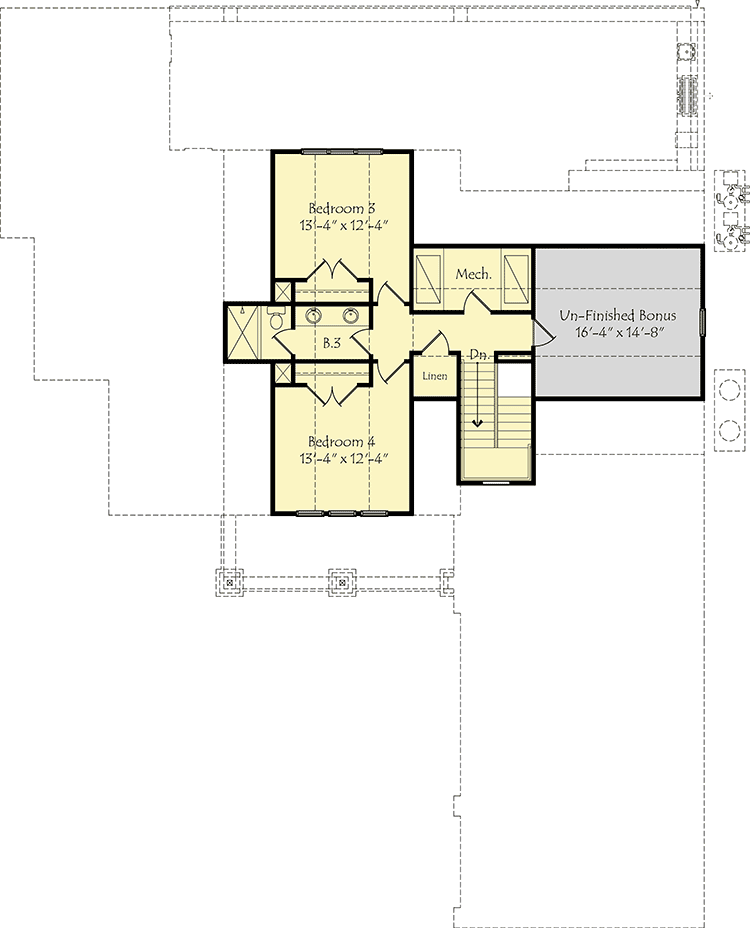

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,323 sq. ft.
  • 1st Floor: 2,625 sq. ft.
  • 2nd Floor: 698 sq. ft.

Dimensions

  • Width: 69' 4"
  • Depth: 90' 8"
  • Max ridge height: 24' 11"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 822 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Truss
