Plan 62439DJ One-Story Mediterranean House Plan with Split Bedroom Layout

2,165 3 2 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

One-Story Mediterranean House Plan with Split Bedroom Layout

Plan 62439DJ

  • 2,165

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • A tasteful blend of textures enhances the classic Mediterranean styling of this 2,165 sq. ft., 1-story house plan.

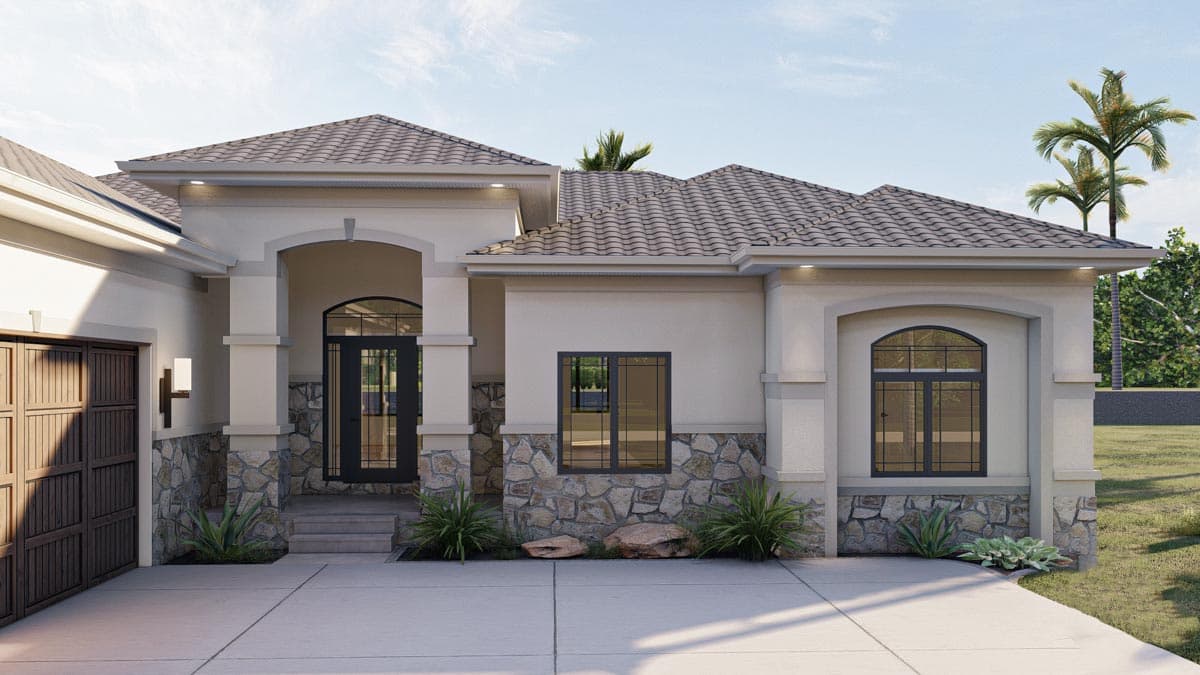

  • Columns flank the covered front porch, where upon entrance, guests are treated to expansive views into the great room, with its corner fireplace and trio of windows to the rear.
  • Just off the great room, the kitchen and breakfast area lie open for unimpeded entertaining.

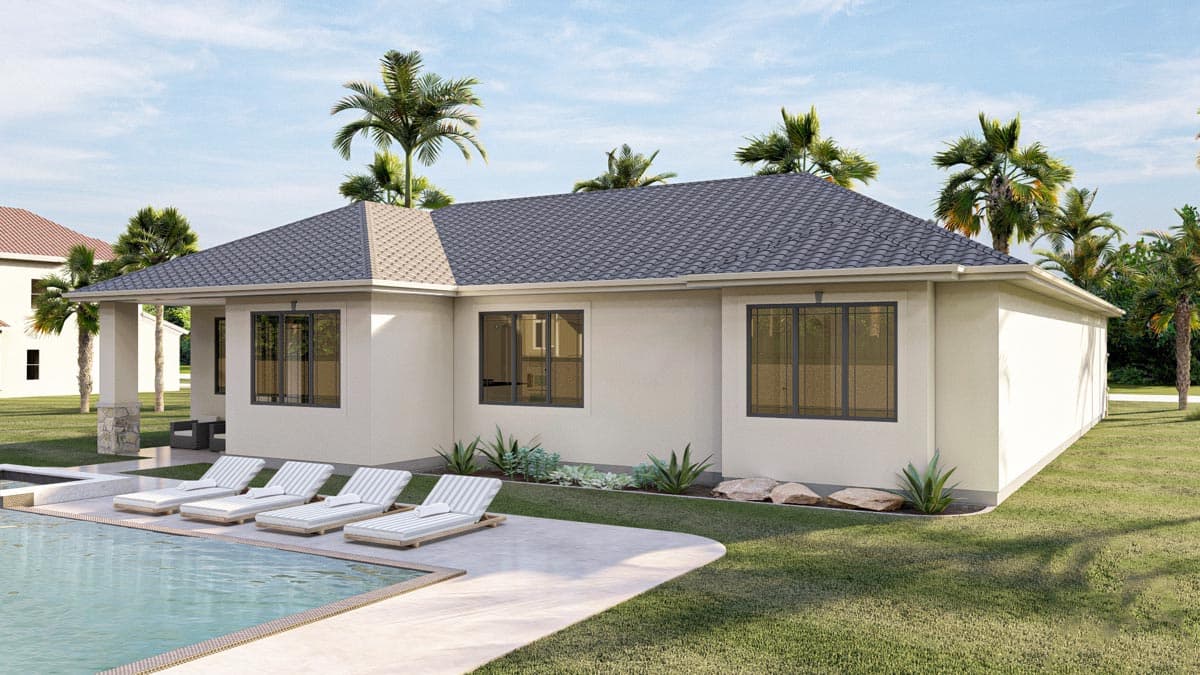

  • The kitchen features a sizeable island work area and pantry, while the sunny breakfast area accesses a rear deck.
  • An alcove off of the reception area conceals the entrance to the master suite, where the bedroom is flooded with light from three large windows to the rear.
  • The bath area includes his-and-her vanities, soaking tub, shower, compartmented toilet and roomy walk-in closet.
  • Bedrooms 2 and 3 reside on the opposite side of the home and share a hall bath.

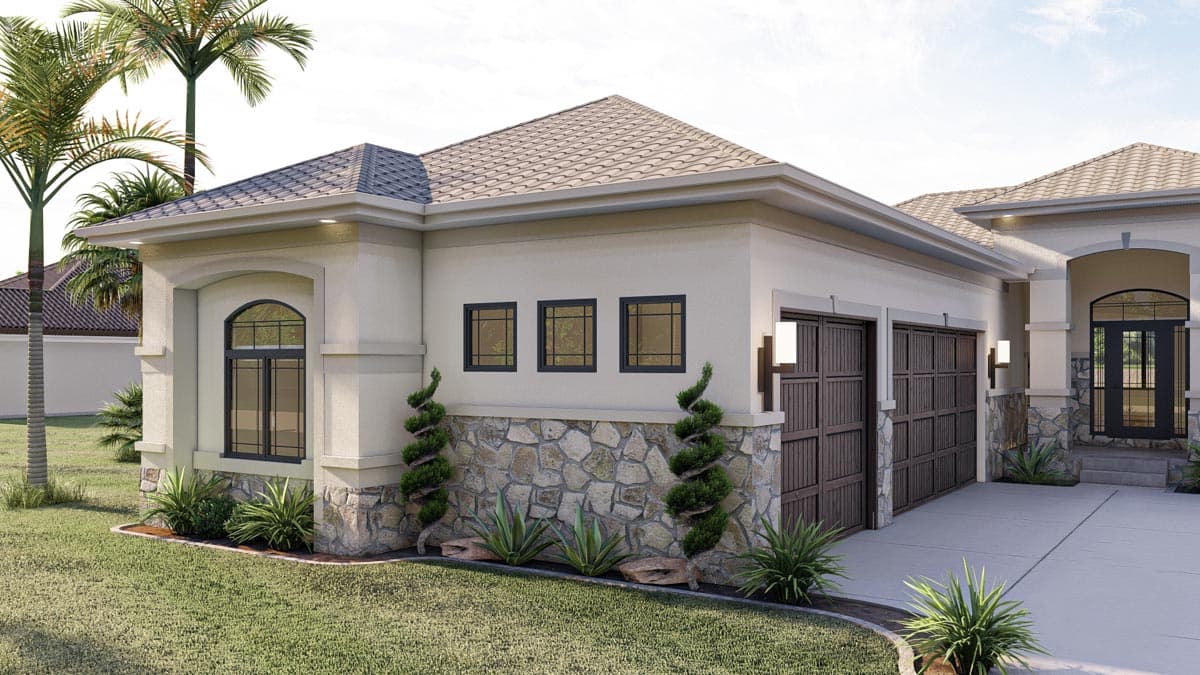

  • A laundry room/mud room, complete with sink, built-in bench, and coat closet, intercepts foot traffic from the home's deep, interior side-load, 3-car garage.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

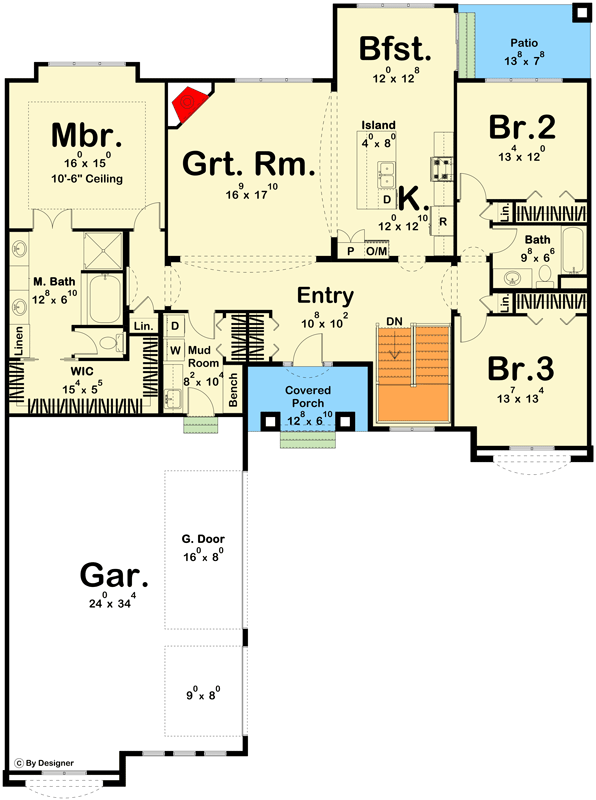

One-Story Mediterranean House Plan with Split Bedroom Layout - 62439DJ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,165 sq. ft.
  • 1st Floor: 2,165 sq. ft.
  • Porch, Rear: 105 sq. ft.
  • Porch, Front: 85 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 79' 0"
  • Max ridge height: 18' 0"

Garage

  • Type: Attached
  • Area: 877 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

One-Story Mediterranean House Plan with Split Bedroom Layout

  • 2,165

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,400
  • 5 Sets + PDF $1,650
  • PDF - Unlimited Build $1,900
  • CAD + PDF - Single-Build $1,900
  • CAD - Unlimited Build $2,400
  • View all purchase option online

About This Plan

  • A tasteful blend of textures enhances the classic Mediterranean styling of this 2,165 sq. ft., 1-story house plan.
  • Columns flank the covered front porch, where upon entrance, guests are treated to expansive views into the great room, with its corner fireplace and trio of windows to the rear.
  • Just off the great room, the kitchen and breakfast area lie open for unimpeded entertaining.
  • The kitchen features a sizeable island work area and pantry, while the sunny breakfast area accesses a rear deck.
  • An alcove off of the reception area conceals the entrance to the master suite, where the bedroom is flooded with light from three large windows to the rear.
  • The bath area includes his-and-her vanities, soaking tub, shower, compartmented toilet and roomy walk-in closet.
  • Bedrooms 2 and 3 reside on the opposite side of the home and share a hall bath.
  • A laundry room/mud room, complete with sink, built-in bench, and coat closet, intercepts foot traffic from the home's deep, interior side-load, 3-car garage.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,165 sq. ft.
  • 1st Floor: 2,165 sq. ft.
  • Porch, Rear: 105 sq. ft.
  • Porch, Front: 85 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 79' 0"
  • Max ridge height: 18' 0"

Garage

  • Type: Attached
  • Area: 877 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
