One-Story Mid-Century Modern Ranch House Plan With 3 Bedrooms
Heated S.F.
1,685
Beds
3
Baths
2
Stories
1
Cars
4
Tour
What's Included
Plan Details
  • This mid-century modern ranch house plan features a striking façade and a roomy 4-car garage, catering to a homeowners need of ample storage.
  • Upon entering, you'll find an open layout that seamlessly combines the kitchen, dining area, and great room into a vast living space.
  • The kitchen takes center stage, offering top-notch appliances and a breakfast bar island, ideal for cooking and entertaining. The dining area provides a warm setting for family meals, while the great room, complete with a stone fireplace, ensures relaxation and comfort.
  • The master bedroom is a luxurious private retreat, boasting a roomy design with an en-suite bathroom and an walk-in closet.
  • Additionally, two more bedrooms with walk-in closets provide plenty of storage. These bedrooms share a well-appointed hall bathroom, and a conveniently located laundry room nearby ensures hassle-free chores.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

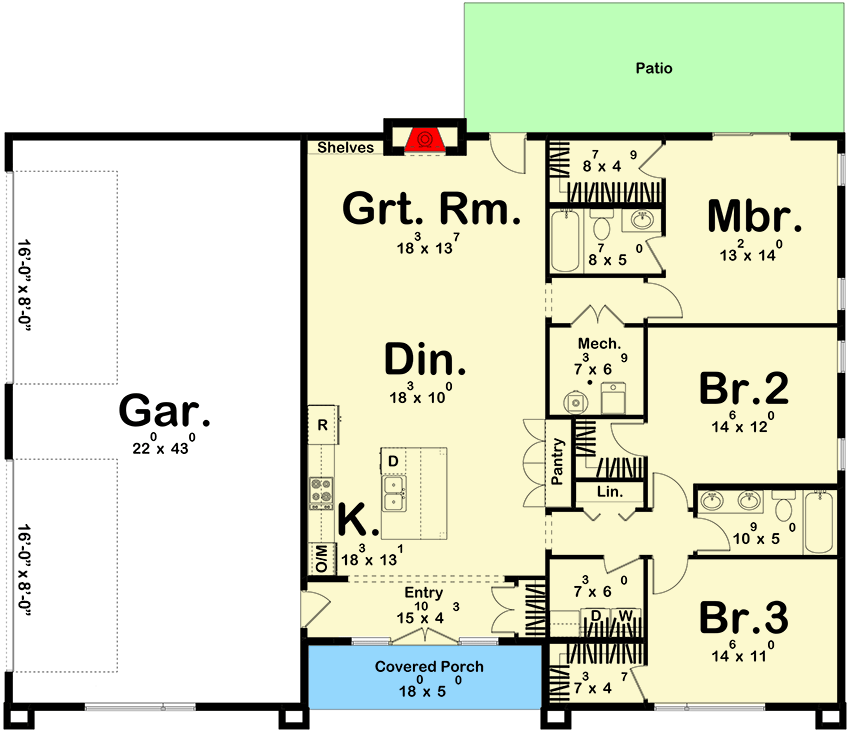

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
