Plan 51896HZ
One-story New American House Plan with Direct Laundry Access from Main Suite
Heated S.F.
2,234
Beds
3
Baths
2.5
Stories
1
Cars
2
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

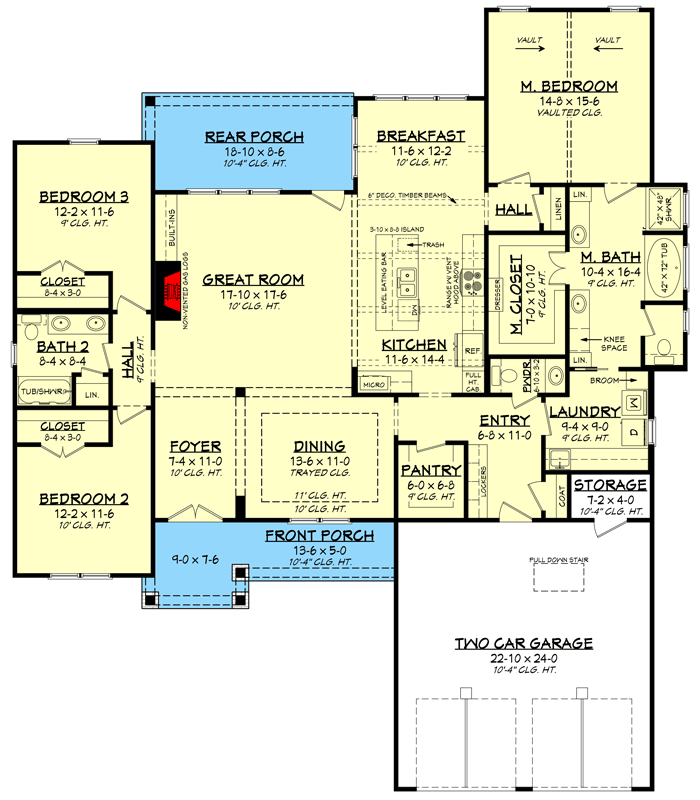

One-story New American House Plan with Direct Laundry Access from Main Suite - 51896HZ floor plan - Main Level
Basement Stair Location
Reverse Floor Plan

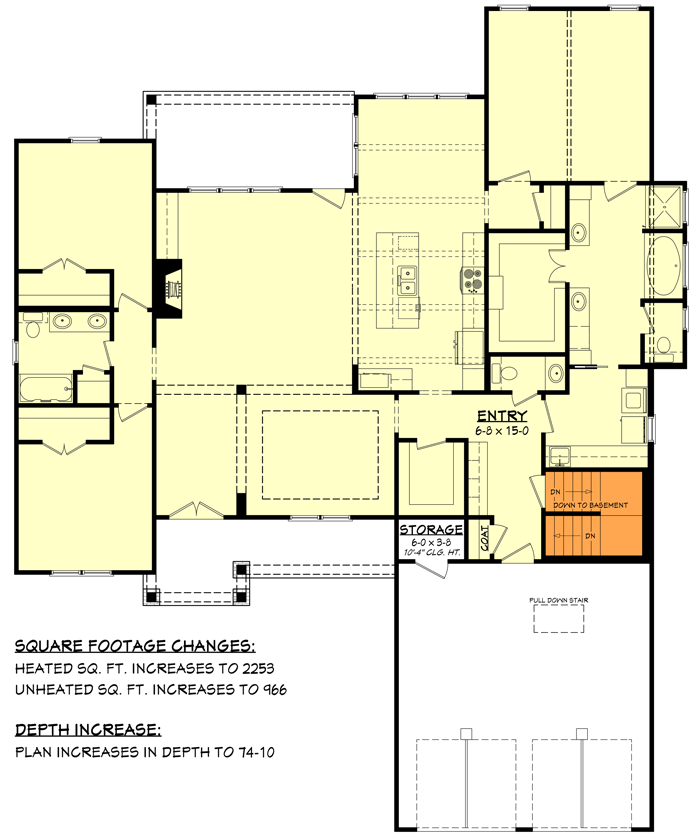

One-story New American House Plan with Direct Laundry Access from Main Suite - 51896HZ floor plan - Basement Stair Location
Plan Details
  • Enjoy one-story living in this beautiful New American house plan. It wraps its 3 bedrooms in a board and batten exterior with a shed dormer and a vaulted covered entry giving it great curb appeal.
  • French doors open to foyer which has views to the great room ahead and is open to the dining room to the right. A door on the back wall takes you to the 8'6" deep rear porch and a fireplace serves as a focal point on the left wall.
  • The kitchen features a large island with an oversized pantry near the garage and family entry making unloading groceries a breeze.
  • The main suite offers vaulted ceilings, a private bath with dual sinks and knee space, and a large walk-in closet with built-in dresser. You'll appreciate doing the laundry which is accessible from the bathroom through a pocket door. Across the home, two bedrooms share a bath.
What's Included
This house plan set gives you the following:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Roof plan and span charts with additional notes
Page 7  Cross Section & kitchen cabinet views
Page 8  Electrical plans
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
