Plan 818091JSS
One-Story Transitional House Plan with Split Bed Layout - 1713 Sq Ft
Heated S.F.
1,713
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Enjoy the comforts afforded by one-level living in this 1713 square foot Transitional House Plan.
  • The central living area separates the master suite from the secondary bedrooms and expands onto a 20'5" by 10' back porch for outdoor fun.
  • Enjoy 10' ceilings in the family room three large windows framing the rear views, the island kitchen and the dining area.
  • The master suite has a five-fixture bath which includes a 2-person shower and a roomy walk-in closet. Bedrooms 2 and 3 share a full bathroom across the hallway, and a mudroom just inside from the 2-car garage offers built-in lockers to help organize personal items.
  • Related Plans: Get an alternate exterior with house plans 818032JSS, 818004JSS and 818091JSS.
What's Included
  • Foundation plan
  • Detailed floorplans
  • Roof plan

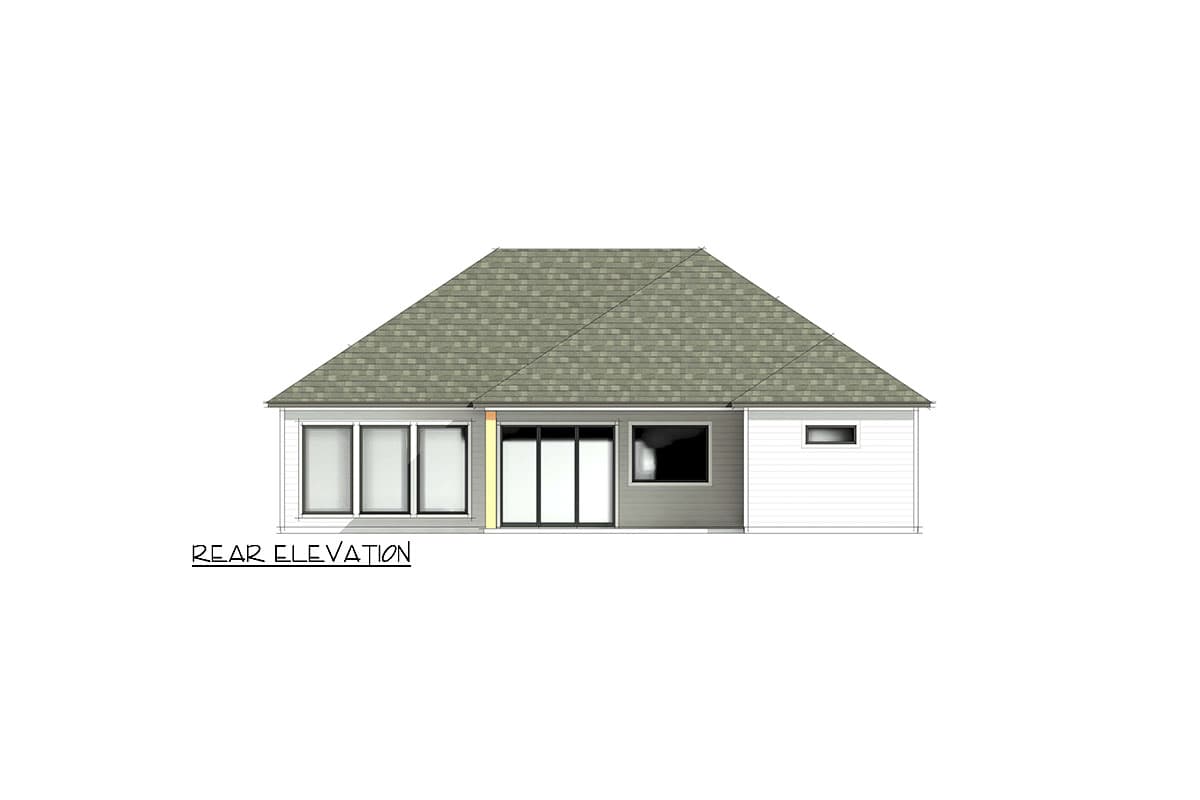

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Story Transitional House Plan with Split Bed Layout - 1713 Sq Ft

  • 1,713

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

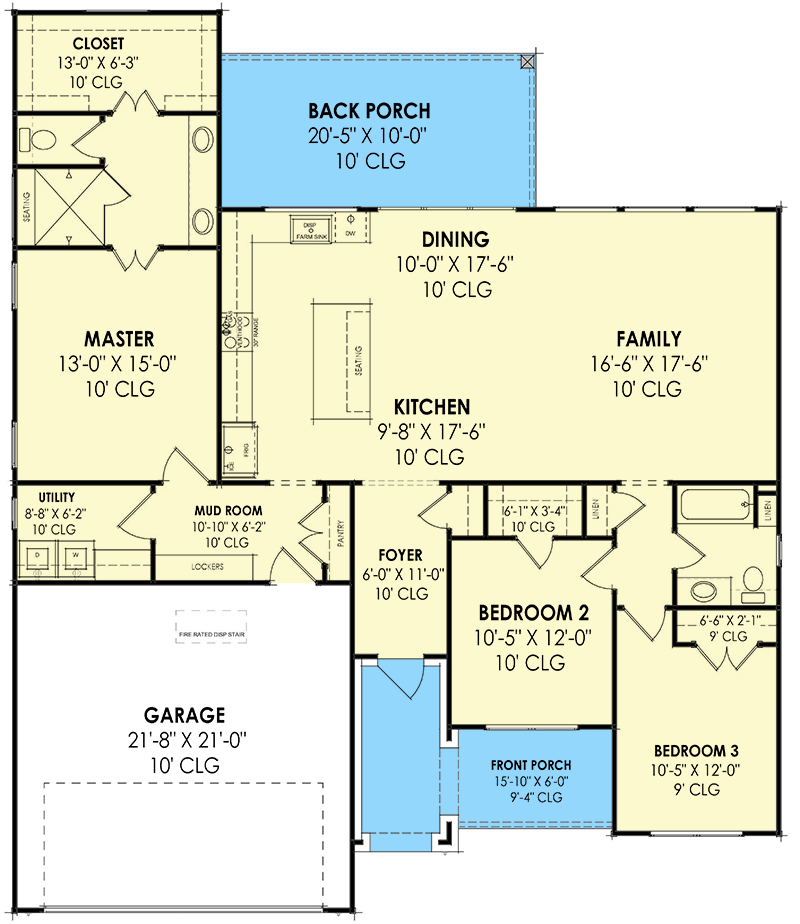

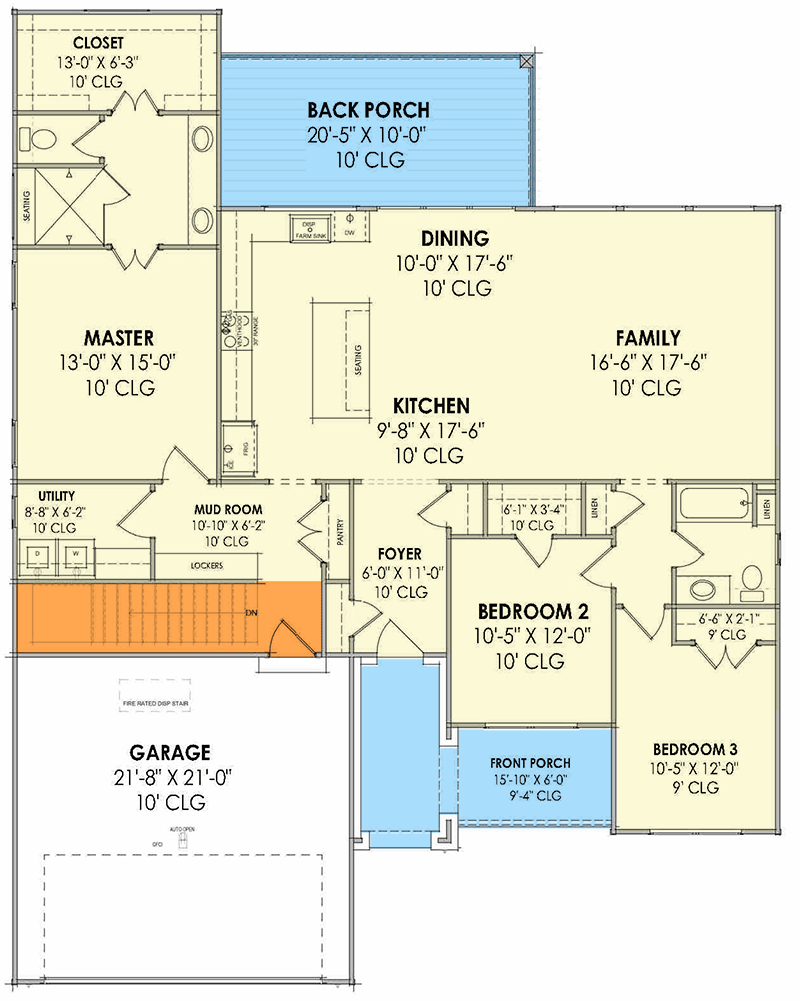

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,713 sq. ft.
  • 1st Floor: 1,713 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 58' 8"
  • Max ridge height: 21' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 472 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 1.5 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
