Plan 66179WE

Open and Spacious

Heated S.F.
4,105
Beds
4
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 66179WE

Main Level
Main Level
2nd Floor
2nd Floor

Plan 66179WE

M-F 9am-5pm EST |

1-203-761-8500

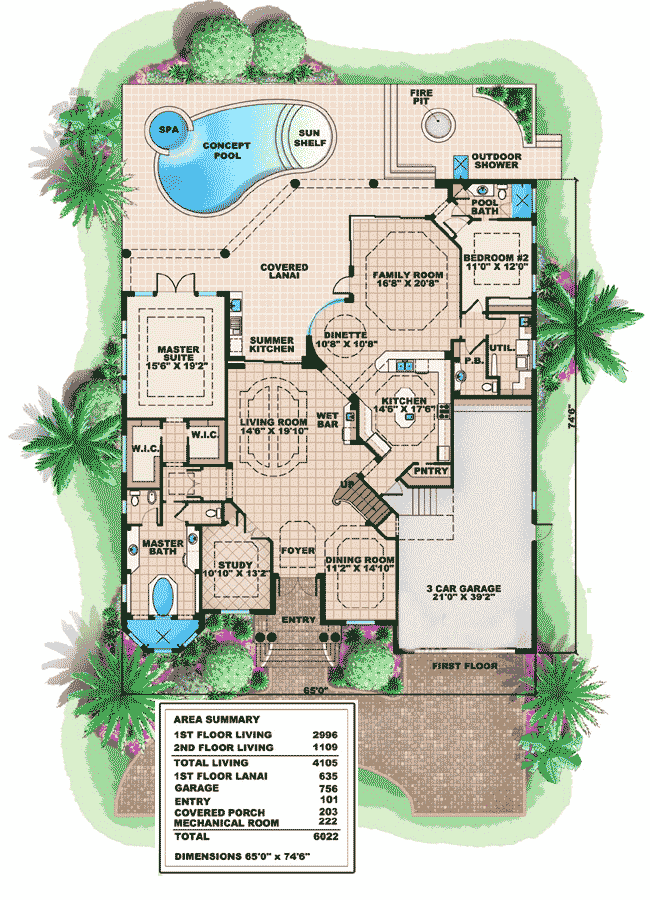

Main Level

Plan 66179WE: Open and Spacious - Floor Plan - Main Level - Mediterranean

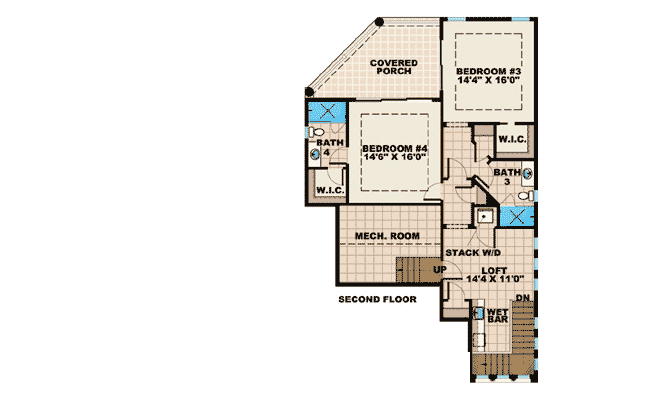

2nd Floor

Plan 66179WE: Open and Spacious - Floor Plan - 2nd Floor - Mediterranean

Plan Details

  • An open and spacious floor plan is the heart of this Mediterranean style home plan. The pleasing rooflines, intricate stone trim and double columned front entry work to create a warm and inviting feeling.
  • From the foyer, the open floor plan allows beautiful views throughout the home. With their central location, wet bar and ornate coffered ceilings, the dining room and living room are perfect for a day of leisure or a night of entertaining.
  • Under the archway and through the double doors leads you into the master suite where your private sanctuary begins with a generous bedroom and views of the pool beyond. Continuing into a spacious bath, a central whirlpool tub, wraparound shower and an abundance of natural light complete your private sanctuary.
  • Entering the kitchen you'll find a large central island, ample counter space and a full pantry. A cozy dinette boasts a panoramic view. The family room flaunts dazzling views of the pool and large connecting sliding glass doors, which can be opened to the covered lanai to create a dramatic, unified space between the interior and exterior. A bedroom, utility room and powder bath complete this versatile first floor.
  • Retreating up the charming staircase, the second floor opens up to a friendly loft and wet bar that is showered in natural light. The sizable bedrooms finish the second floor featuring walk-in closets, private baths and access to the covered balcony overlooking the pool below.
  • The outdoor entertaining area is complete with summer kitchen, pool bath, and sunken fire pit.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,105 sq. ft.

1st Floor

2,996 sq. ft.

2nd Floor

1,109 sq. ft.

Lanai

635 sq. ft.

Entry

101 sq. ft.

Balcony / Veranda

203 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

65' 0"

Depth

74' 6"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

756 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Mediterranean

Special Features

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - 1st Floor

Walk-in Pantry

Wet Bar

Square Footage Breakdown

Total Heated Area

4,105 sq. ft.

1st Floor

2,996 sq. ft.

2nd Floor

1,109 sq. ft.

Lanai

635 sq. ft.

Entry

101 sq. ft.

Balcony / Veranda

203 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

65' 0"

Depth

74' 6"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

756 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Mediterranean

Special Features

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - 1st Floor

Walk-in Pantry

Wet Bar
