Plan 66187WE

Open Feel and Balance of Space

5,408 4 4.5 1-2 3
Pageloader

Open Feel and Balance of Space

Plan 66187WE

  • 5,408

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • Double French doors provide sweeping views of the pool and outside entertainment area. The open and easy flow between formal living and dining rooms is separated and defined only by columns and detailed coffered ceilings.
  • Discreetly hidden from the formal area, the kitchen embraces the family room and serves as the hub of the home plan. The kitchen boasts a large island along with plenty of seating at the counter and a large walk-in pantry.
  • Large pocketing sliding glass doors open the family room to the outdoor entertainment area, creating a wonderful space for family and friends. A study with private entry is located directly off of the kitchen and family room.
  • Three bedrooms and two bathrooms are secluded in their own wing. The master suite is a serene retreat with separate private sitting area, wonderful views and double French doors leading to the covered lanai. The opulent master bathroom features a double entry shower and an oversized tub beneath the graceful coffered ceiling. Two large walk-in closets and separate vanities complete the retreat experience.
  • The second floor is the perfect area for having fun, with a large game room, private bathroom and wet bar.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


Floor Plan

Plan details



Open Feel and Balance of Space

  • 5,408

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,980
  • 8 Sets $2,090
  • Reproducible Set $2,200
  • PDF - single-use $2,200
  • CAD $2,200
  • View all purchase option online

About This Plan

  • Double French doors provide sweeping views of the pool and outside entertainment area. The open and easy flow between formal living and dining rooms is separated and defined only by columns and detailed coffered ceilings.
  • Discreetly hidden from the formal area, the kitchen embraces the family room and serves as the hub of the home plan. The kitchen boasts a large island along with plenty of seating at the counter and a large walk-in pantry.
  • Large pocketing sliding glass doors open the family room to the outdoor entertainment area, creating a wonderful space for family and friends. A study with private entry is located directly off of the kitchen and family room.
  • Three bedrooms and two bathrooms are secluded in their own wing. The master suite is a serene retreat with separate private sitting area, wonderful views and double French doors leading to the covered lanai. The opulent master bathroom features a double entry shower and an oversized tub beneath the graceful coffered ceiling. Two large walk-in closets and separate vanities complete the retreat experience.
  • The second floor is the perfect area for having fun, with a large game room, private bathroom and wet bar.

Floor Plans

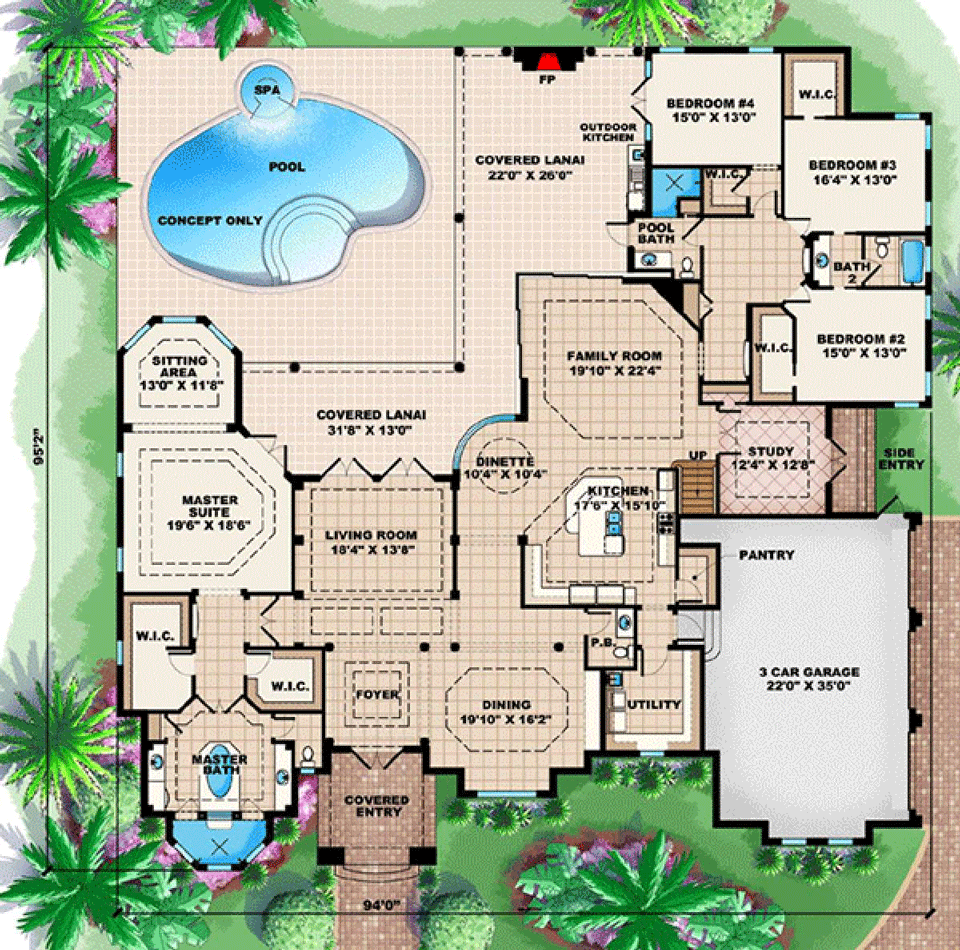

  • Main Level

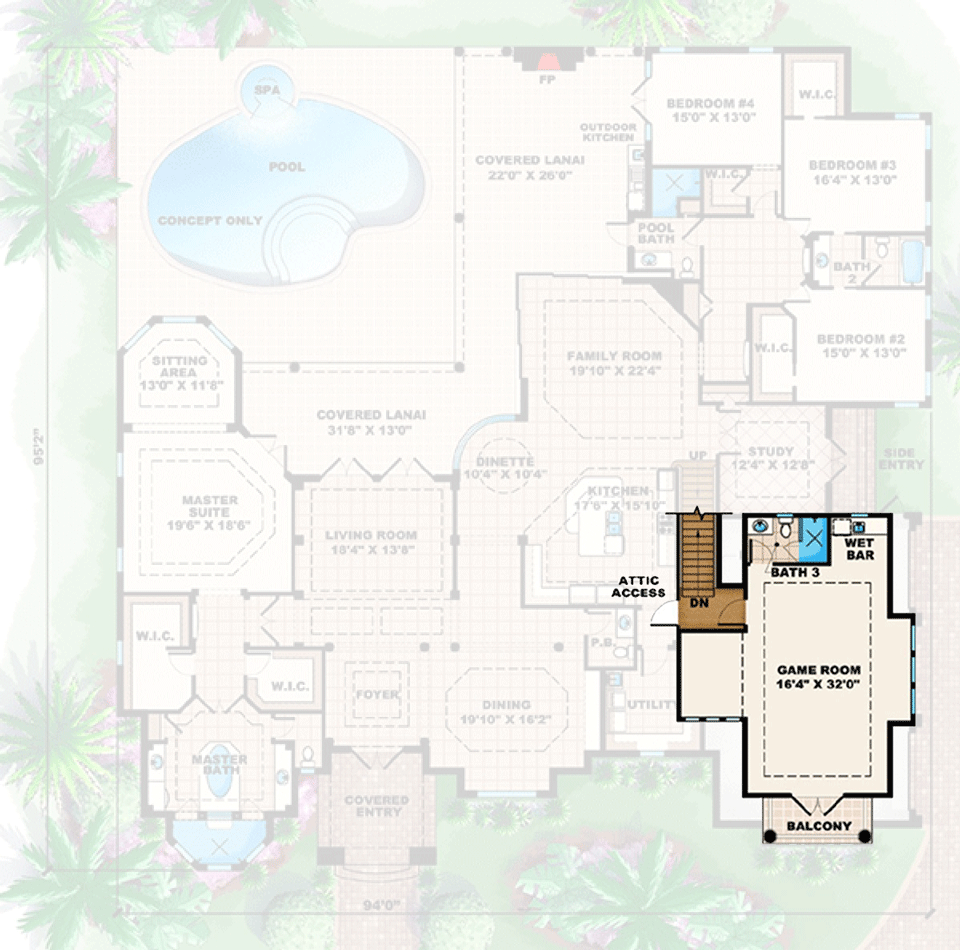

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,408 sq. ft.
  • 1st Floor: 4,683 sq. ft.
  • 2nd Floor: 725 sq. ft.
  • Lanai: 1,002 sq. ft.
  • Entry: 218 sq. ft.
  • Balcony / Veranda: 67 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 92' 0"
  • Depth: 95' 2"
  • Max ridge height: 30' 4"

Garage

  • Type: Attached
  • Area: 923 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
