Plan 62489DJ

Open Floor Plan

Name: Plan 62489DJ: Open Floor Plan
Brand: Architectural Designs
SKU: 62489DJ
Price: 1799.0 USD
Availability: InStock

Heated S.F.

2,610

Beds

Baths

2.5

Stories

Cars

Floor Plan

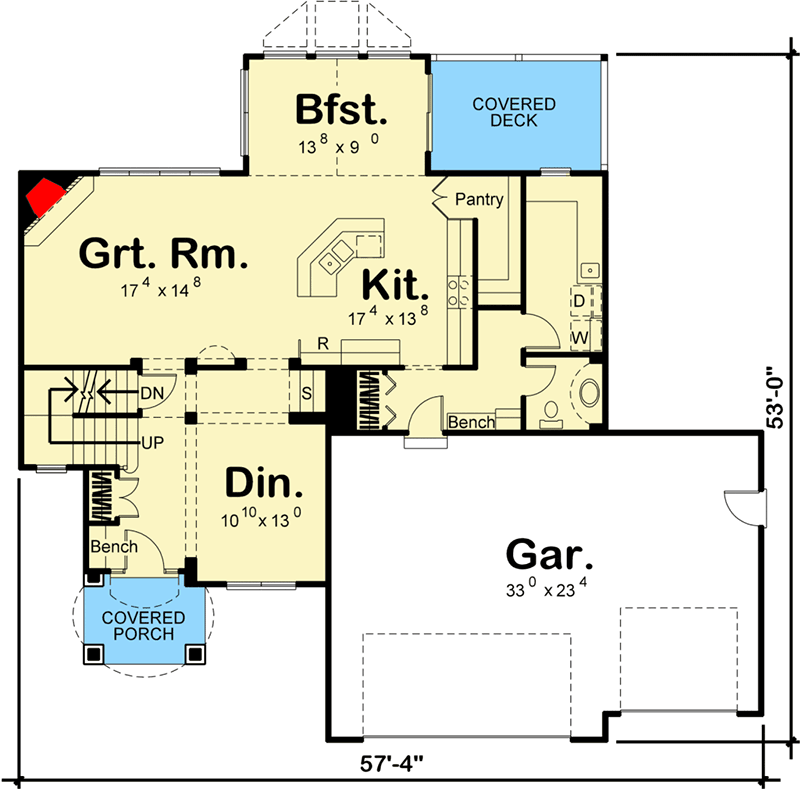

Only columns separate the formal dining room from the foyer, with views extending all the way through to the big informal area in the rear.
From the kitchen island, you can see everything going on in the breakfast nook and great room with its cozy fireplace.
The walk-in pantry is huge and a sit-down bench has been thoughtfully placed as you enter the home from the garage.

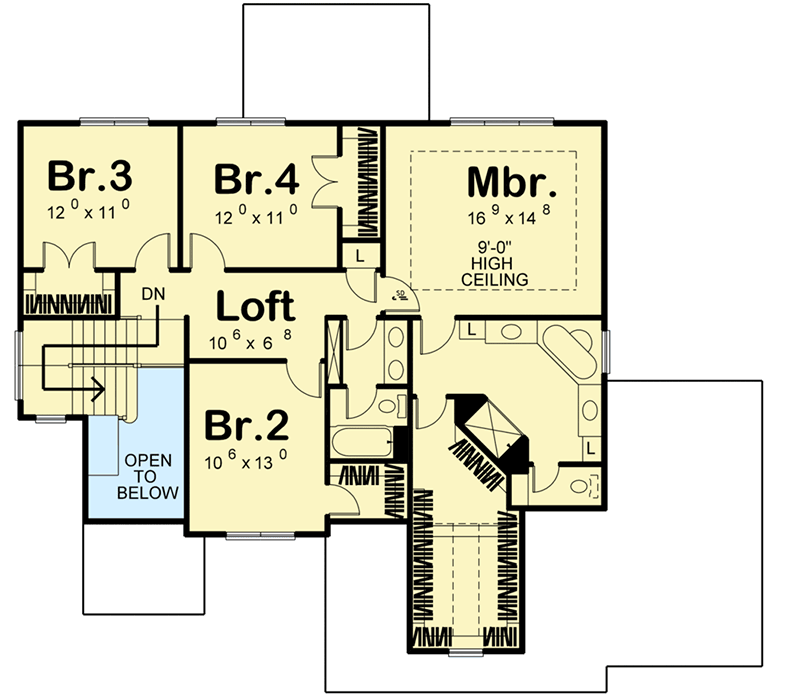

Upstairs, three bedrooms share the hall loft and bathroom while the master suite enjoys a private bathroom and large walk-in closet.

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section (if applicable)
Cabinets Elevations (if applicable)

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
