Open Floor Plan Contemporary

Plan 737019LVL

This plan plants 3 trees

1,624
Heated s.f.
3
Beds
2.5
Baths
2
Stories
2
Cars

For those who love Contemporary homes, the design of this modern house plan will be especially appealing.
The home comes with the option for a 4 car garage.
Inside, the two-story foyer leads back to the spacious great room area that is all open concept.
You can seat six people at the large island where the sink faces the whol great room.
A pocket home office is tucked away off the great room.
Three bedrooms upstairs include the large master suite with its private bathroom and walk-in closet.

This house plan includes the following:

Cover sheet

Foundation plan

Floor plans

Roof framing plan

Building section and typical wall sections

Elevations

General construction details

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

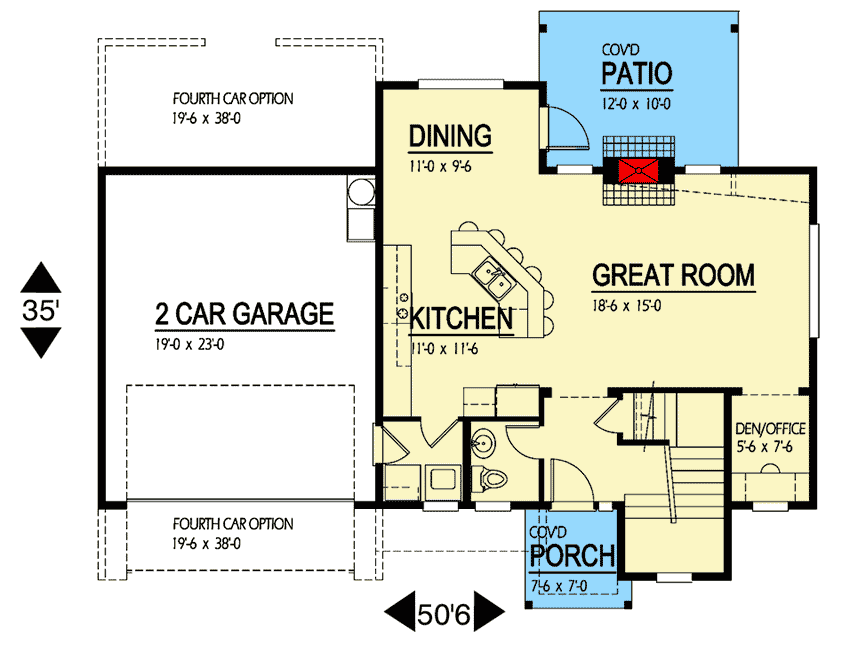

Open Floor Plan Contemporary - 737019LVL floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

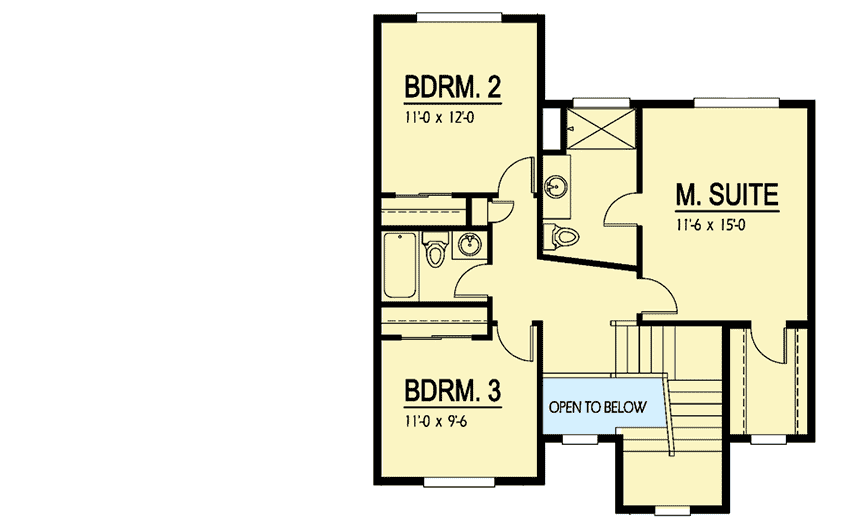

Open Floor Plan Contemporary - 737019LVL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,624 sq. ft.
1st Floor: 856 sq. ft.
2nd Floor: 768 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2
Half bathrooms: 1

Foundation Type

Standard Foundations: Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 50' 6"
Depth: 41' 0"
Max ridge height: 24' 3"

Garage

Type: Attached
Area: 468 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 3.5 on 12

Framing Type: Truss

Architectural Style

Special features
