Plan 36366TX
Open Floor Plan Plus In-Law Suite
Heated S.F.
4,251
Beds
5
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details
  • This luxury two-story house plan is the perfect addition to any neighborhood.
  • Upon entering the home, guest are welcomed into an open space plan that includes a spacious dining room adorned by gorgeous columns.
  • The family room is spacious and features 20' ceilings and a cozy, centrally-located fireplace.
  • The open design of this home plan allows for full view of the large breakfast area and kitchen.
  • There is ample counter space in the kitchen plus a central island, walk-in pantry and a small butlery connecting to the dining room.
  • Privately located on the second level, the family can enjoy game rooms, and a great view of the family room below.
  • An optional walk-over can be added in this area for increased walking space around the second level.
  • Tucked away on the right is the spacious master bedroom which features a private balcony, master bathroom, and large wardrobe with plenty of space for couples.
  • Guest or inlaws can enjoy a private den, guest suite with balcony and private bath, all located over the garage with a private entrance.
What's Included
  • Cover sheet
  • Foundation Plan
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Open Floor Plan Plus In-Law Suite

  • 4,251

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

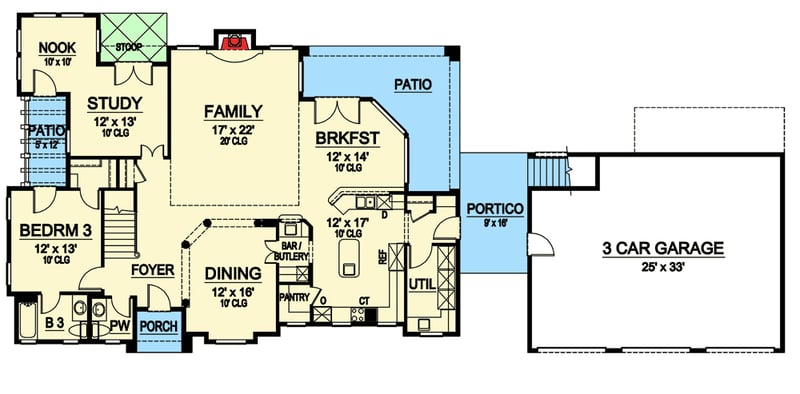

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,251 sq. ft.
  • 1st Floor: 1,965 sq. ft.
  • 2nd Floor: 2,286 sq. ft.

Dimensions

  • Width: 45' 0"
  • Depth: 103' 0"
  • Max ridge height: 31' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 861 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
