Plan 22459DR
Open Layout Northwest House Plan
Heated S.F.
1,944
Beds
4
Baths
2
Stories
2
Cars
1
Videos
What's Included
Plan Details
  • A handsome metal roof and outdoor balcony over the one car garage brighten up this Northwest house plan.
  • The open layout inside makes for wonderful sight lines that expand the feeling of spaciousness.
  • A pergola and outdoor terrace are easily reached through sliding glass doors or a french door.

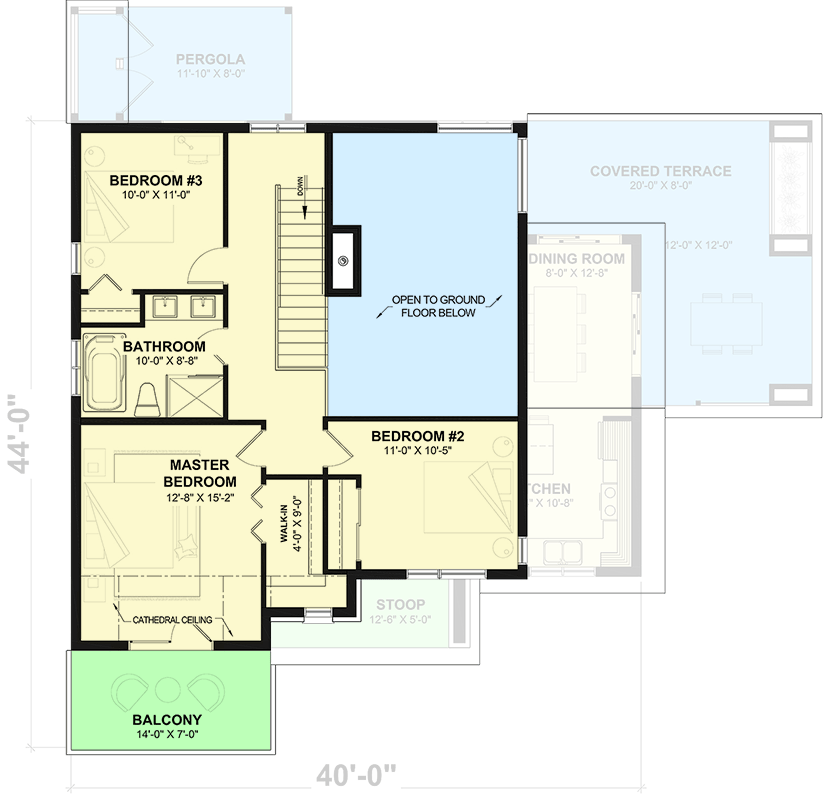

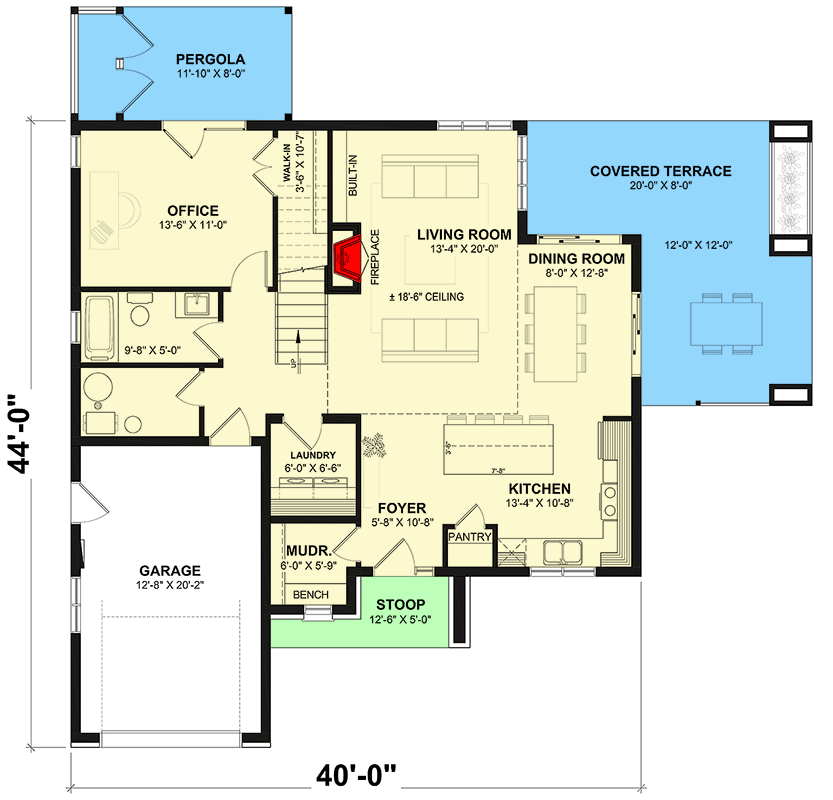

  • There's one bedroom on the first floor and three more upstairs.
  • Bedroom 2 has the front-facing balcony all to itself.
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Open Layout Northwest House Plan

  • 1,944

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 2

    Floors

  • 1

    Car garage

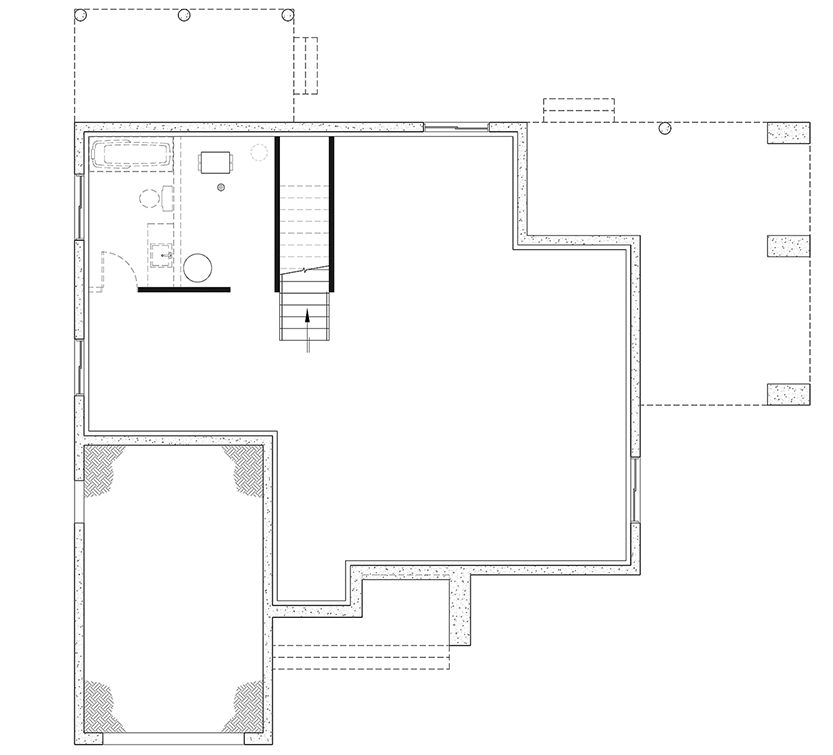

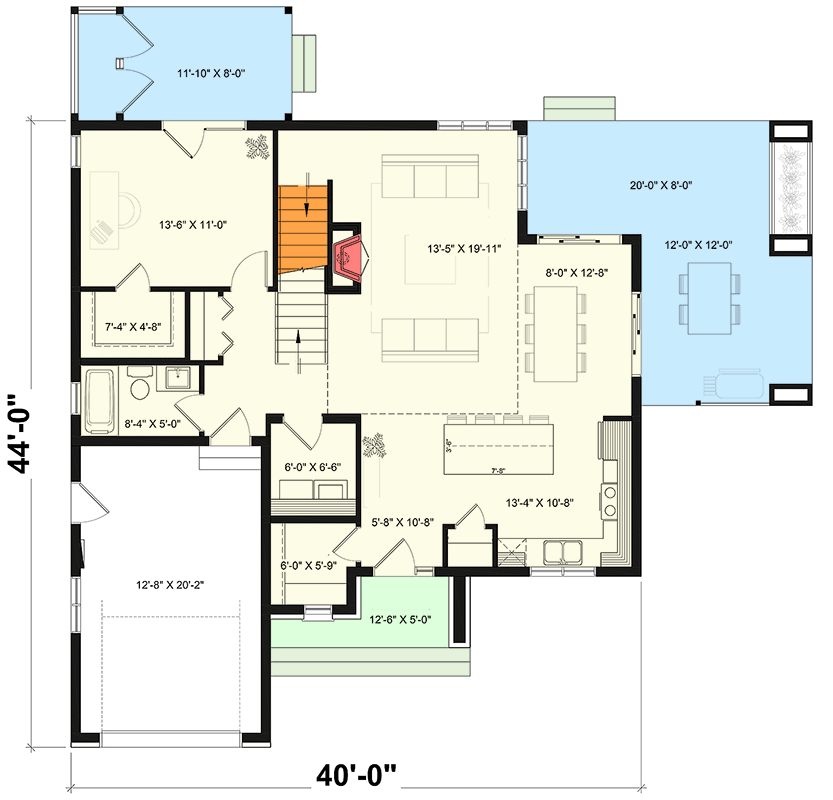

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,944 sq. ft.
  • 1st Floor: 1,113 sq. ft.
  • 2nd Floor: 831 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 44' 0"
  • Max ridge height: 28' 1"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 290 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
