Plan 80908PM

Open Layout Prairie Style House Plan

Heated S.F.
1,552
Beds
3
Baths
1
Stories
2

Floor Plan

Plan 80908PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 80908PM

M-F 9am-5pm EST |

1-203-761-8500

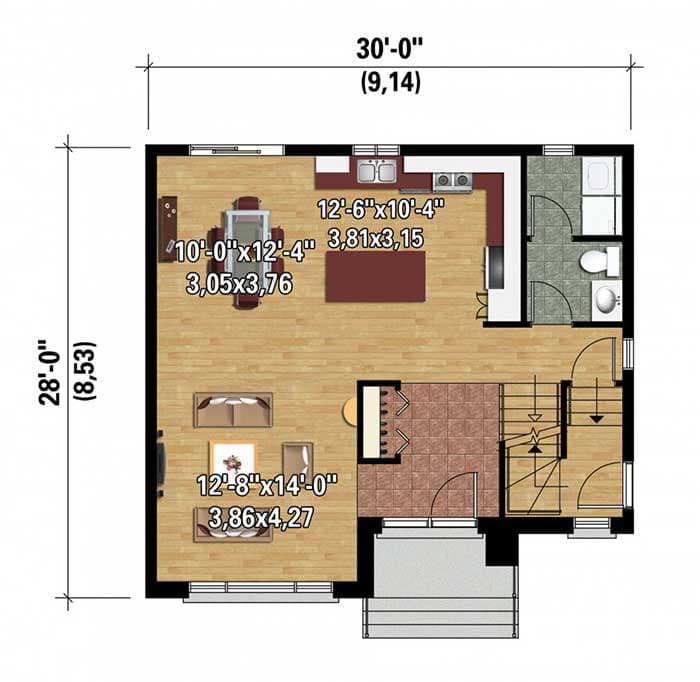

Main Level

Plan 80908PM: Open Layout Prairie Style House Plan - Floor Plan - Main Level - Northwest, Prairie

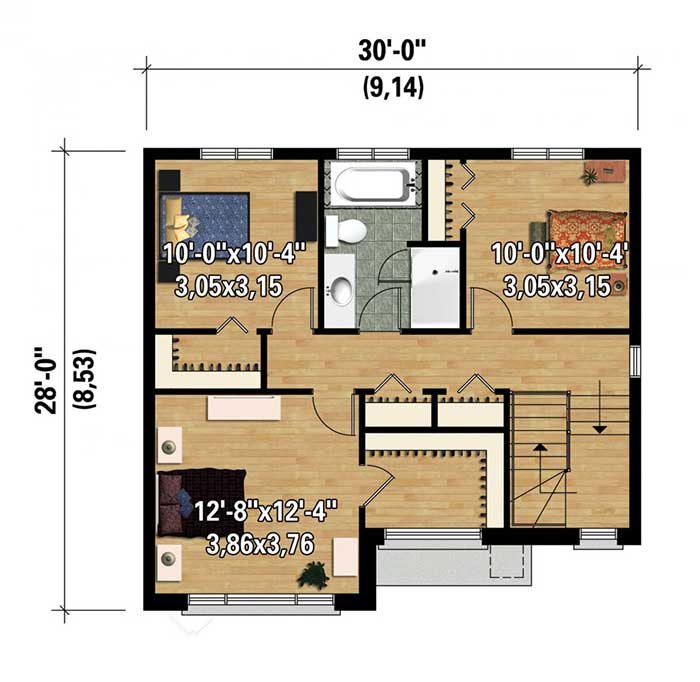

2nd Floor

Plan 80908PM: Open Layout Prairie Style House Plan - Floor Plan - 2nd Floor - Northwest, Prairie

Plan Details

  • This two-story Prairie style house plan uses a combination of bright, stucco and siding to complete its good looks.

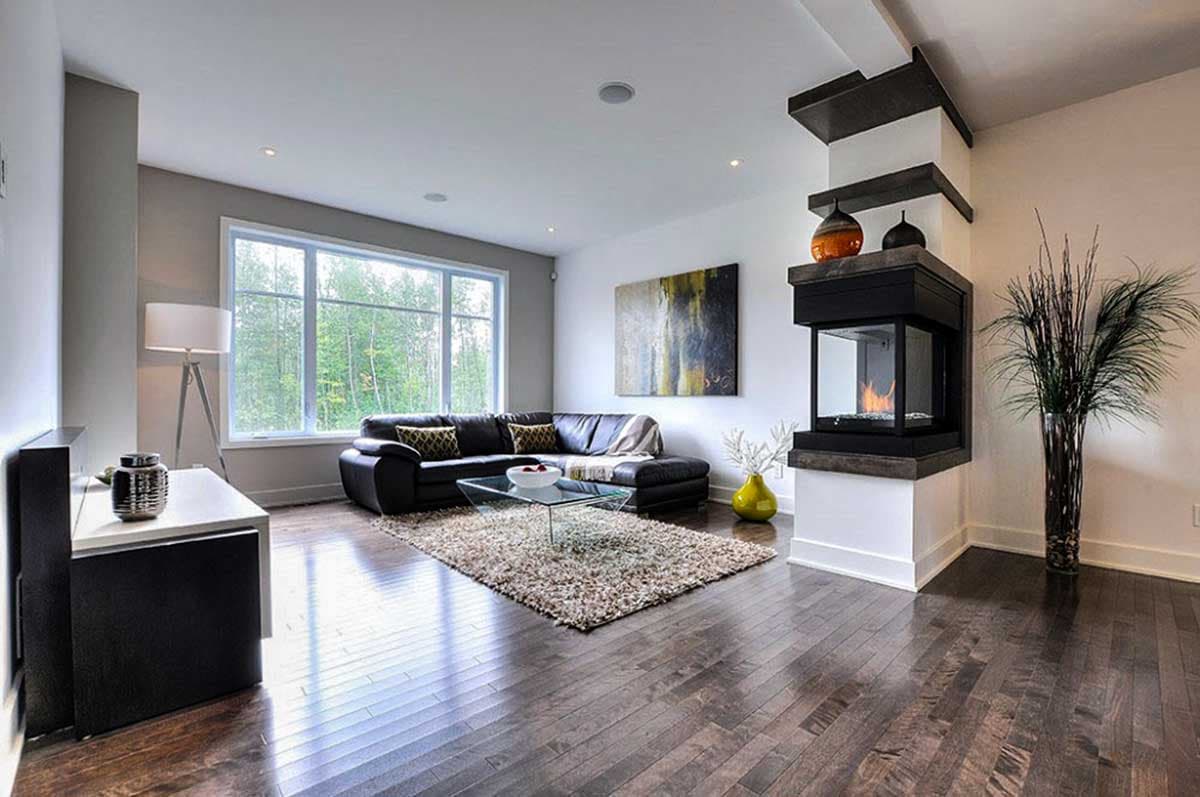

  • The highly-sought after open layout is in full view once you step into the foyer.
  • There's an abundance of counter space in the kitchen with an island to add even more.

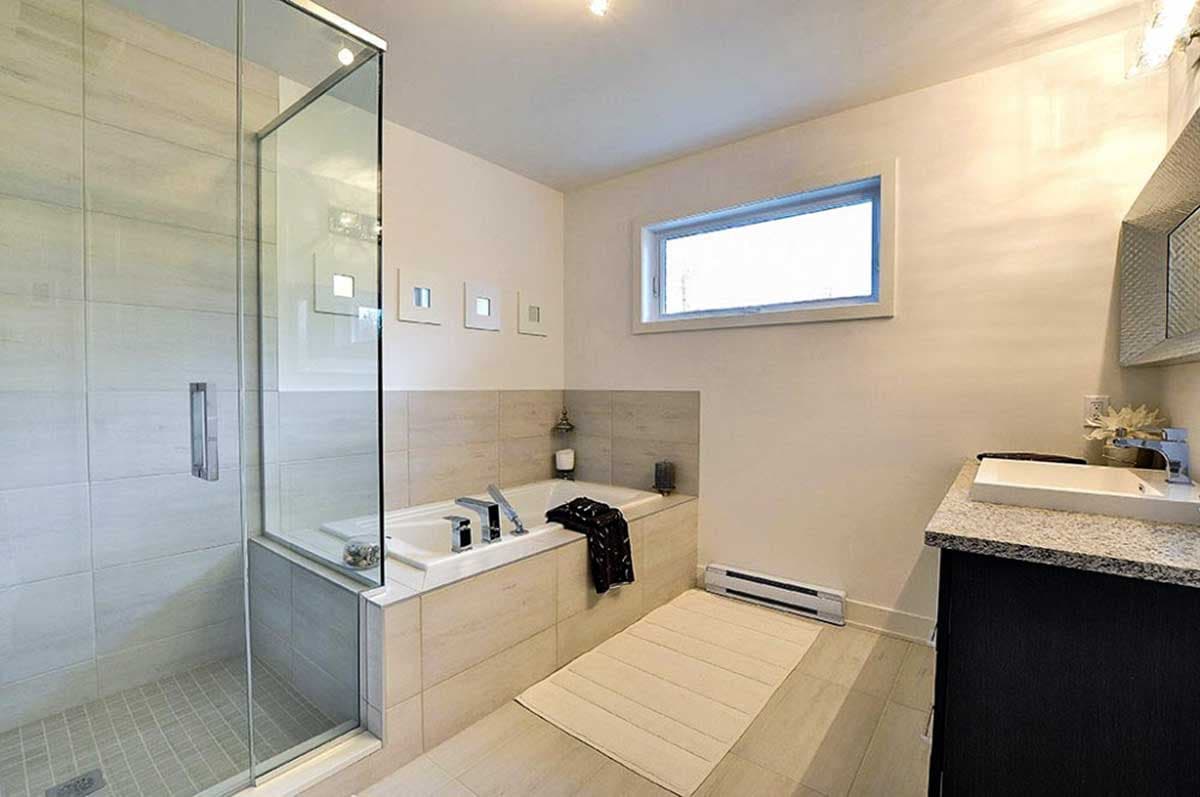

  • Two of the three bedrooms on the second floor have walk-in closets and they all share a large hall bathroom with both a tub and a shower.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,552 sq. ft.

1st Floor

776 sq. ft.

2nd Floor

776 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

28' 0"

Max Ridge Height

28' 0"

Roof Details

Framing Type

Truss

Architectural Style

Northwest

Prairie

Special Features

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Photo Gallery
