Plan 23163JD

Open Layout with Master on Main

Heated S.F.
3,890
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 23163JD

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 23163JD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

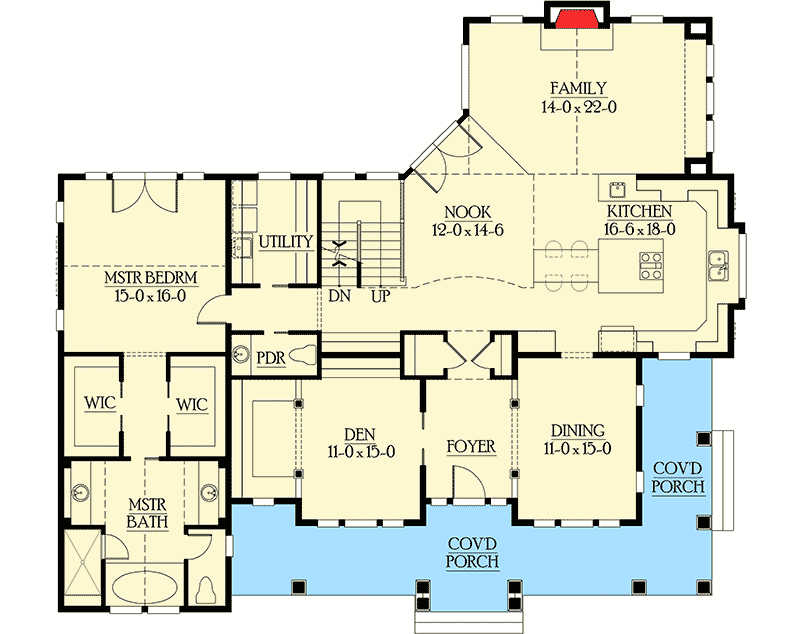

Plan 23163JD: Open Layout with Master on Main - Floor Plan - Main Level - Country, Craftsman, Northwest

2nd Floor

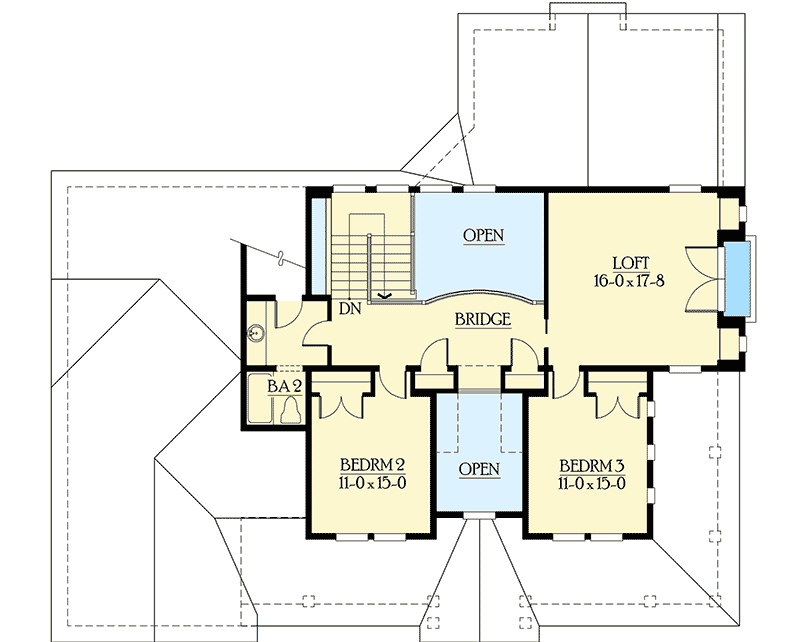

Plan 23163JD: Open Layout with Master on Main - Floor Plan - 2nd Floor - Country, Craftsman, Northwest

Lower Level

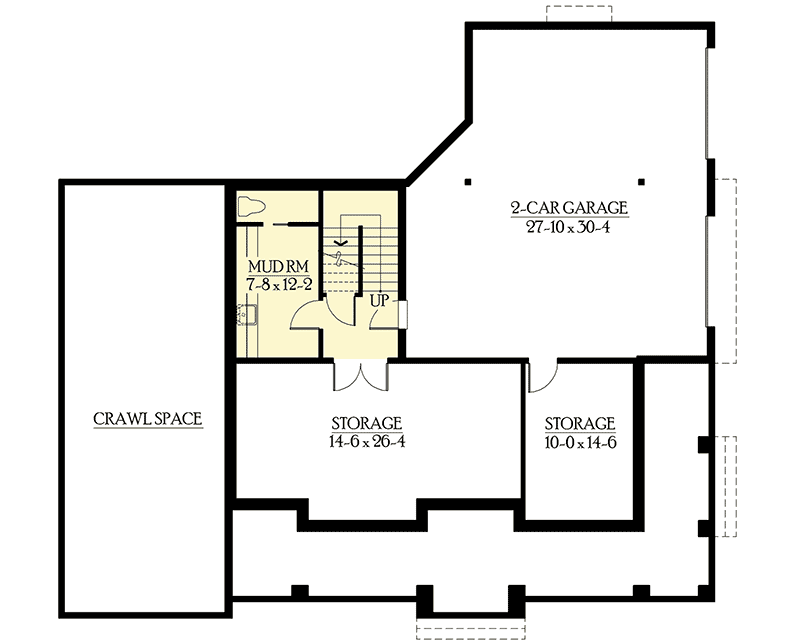

Plan 23163JD: Open Layout with Master on Main - Floor Plan - Lower Level - Country, Craftsman, Northwest

Plan Details

  • Wood shakes and a wide footprint complement this Craftsman style home plan.
  • Pocket doors close off the den for privacy and quiet and a computer nook is tucked on the side.
  • The informal living area in the back of the home is all open layout to take full advantage of the views.
  • A massive island in the kitchen gives you extra counter space and a place to eat informally.
  • The very special vaulted master suite is on the main floor with its two walk-in closets and a vaulted bathroom.
  • The remaining bedrooms are on the second floor along with a big, comfortable loft.
  • Additional fees apply when building this house plan in the State of Washington. Contact us for more information.
  • Related Plan: See house plan 2370JD (3,315 sq. ft.) for a second floor master bedroom.





What's Included

  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

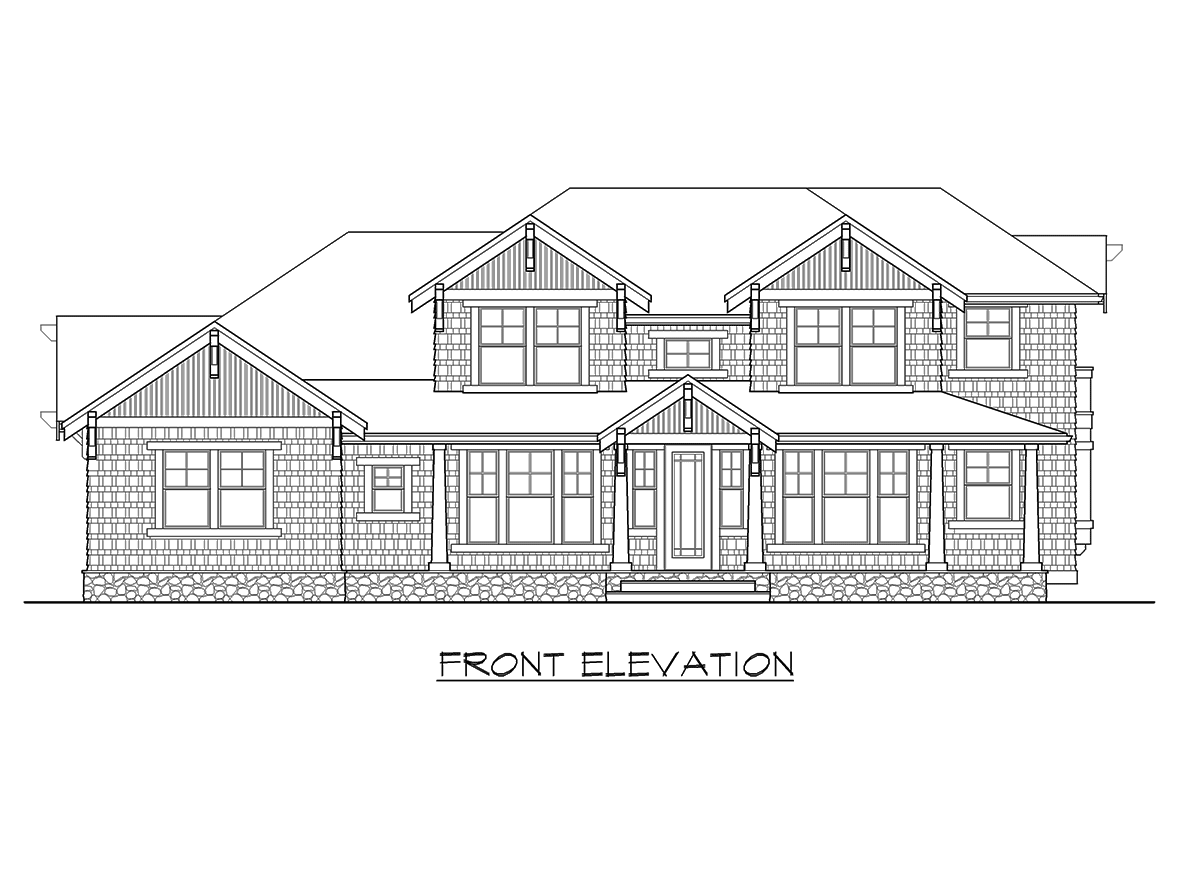

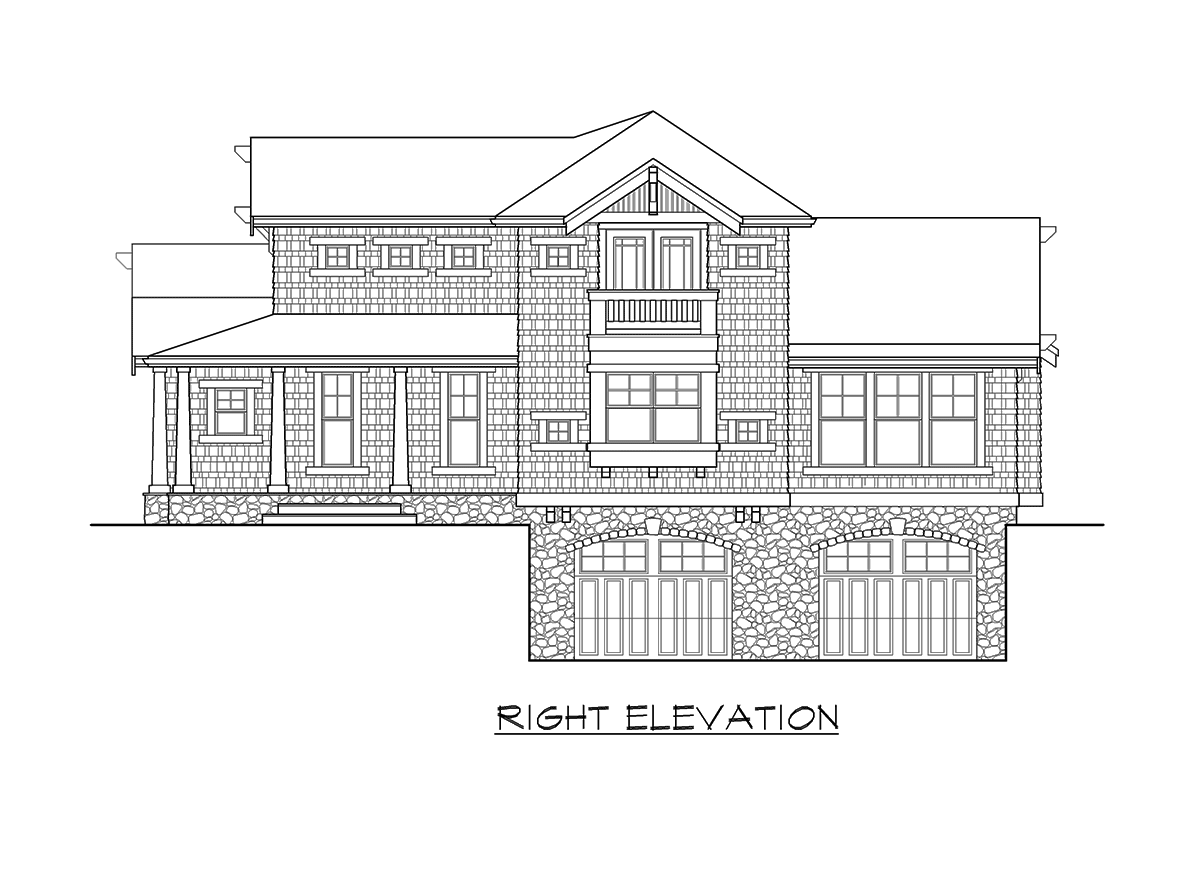

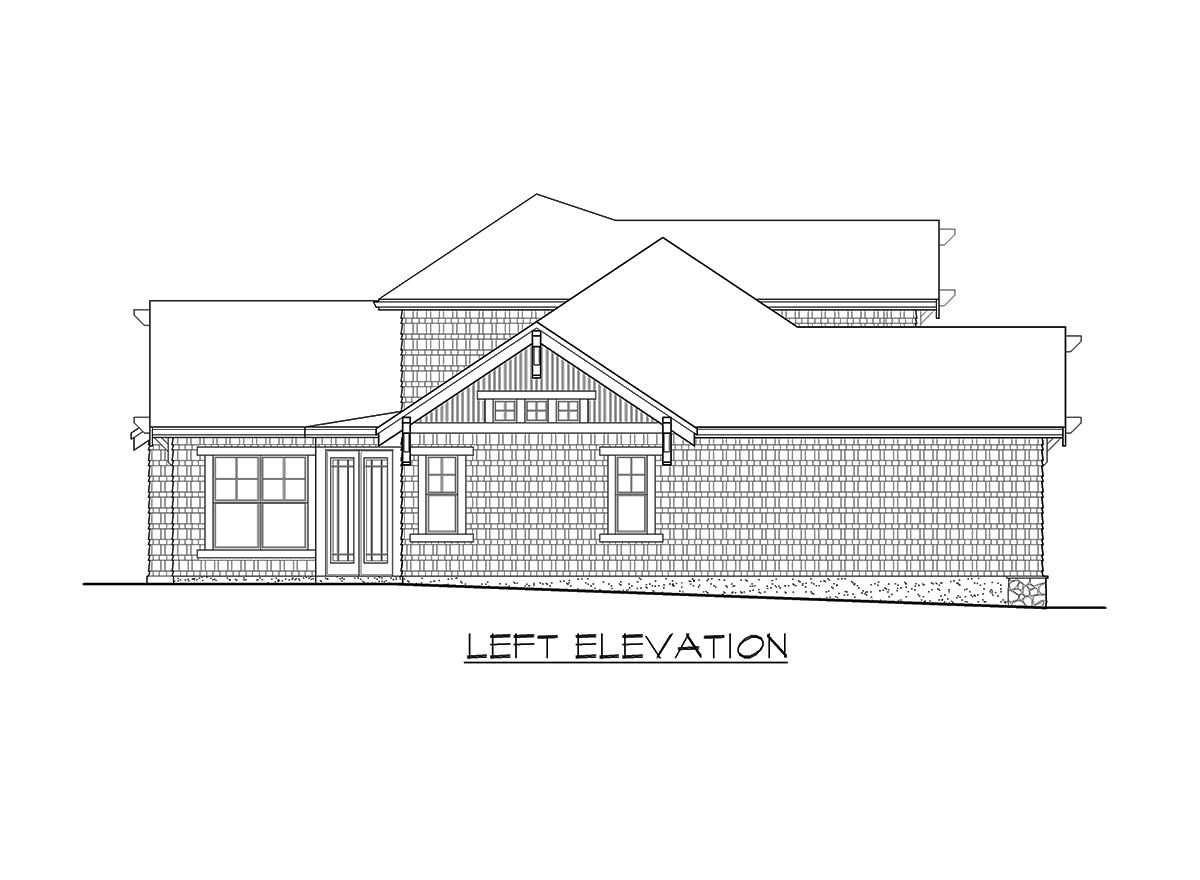

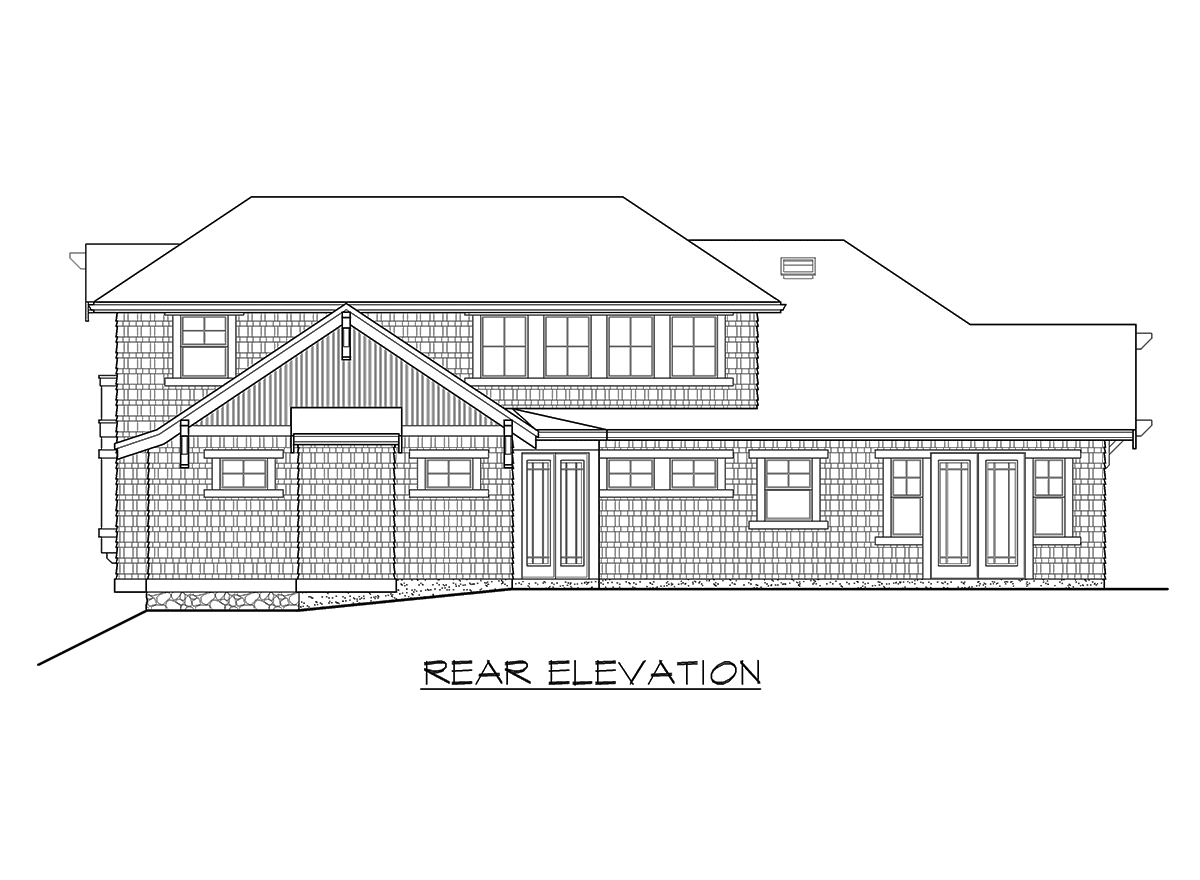

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
View Sample Plan

What's Not Included

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,890 sq. ft.

Lower Level

655 sq. ft.

1st Floor

2,350 sq. ft.

2nd Floor

885 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

55' 0"

Max Ridge Height

24' 3"

Garage

Type

Drive Under

Area

830 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Northwest

Special Features

Breakfast Nook

Den

Loft

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,890 sq. ft.

Lower Level

655 sq. ft.

1st Floor

2,350 sq. ft.

2nd Floor

885 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

55' 0"

Max Ridge Height

24' 3"

Garage

Type

Drive Under

Area

830 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Northwest

Special Features

Breakfast Nook

Den

Loft

Master Suite - 1st Floor

Plan Collections

Photo Gallery
