Plan 57006HA
Open Living
Heated S.F.
1,000
Beds
3
Baths
1
Stories
1
Plan Details
  • The foyer features a handy coat closet and is open to the good sized great room.
  • Straight ahead the L-shaped kitchen/dining room provide easy access outdoors via a well placed patio door.
  • Master bedroom includes double closets and private access to the full bath. Two additional bedrooms (one with walk-in closet) access the bath through a hall.
  • Bath includes a convenient closeted laundry area.
What's Included
  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Open Living

  • 1,000

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

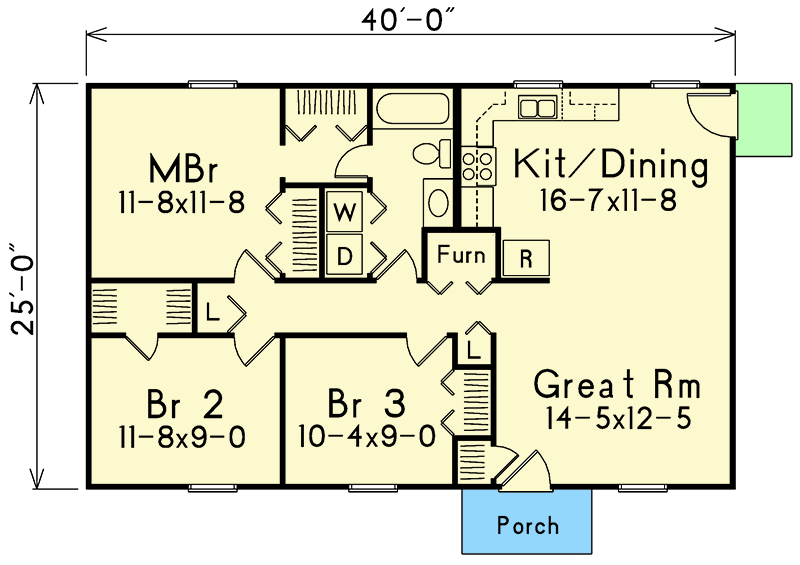

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,000 sq. ft.
  • 1st Floor: 1,000 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 25' 0"
  • Max ridge height: 14' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
