Plan 42597DB

Option-Filled Budget-Friendly Craftsman House Plan

Heated S.F.
1,540
Beds
3 - 4
Baths
2.5
Stories
2
Cars
1

Floor Plan

Plan 42597DB

Main Level
Main Level
Second Level
Second Level
Optional Kitchen Layout
Optional Kitchen Layout
Optional 4th Bedroom Layout
Optional 4th Bedroom Layout

Plan 42597DB

M-F 9am-5pm EST |

1-203-761-8500

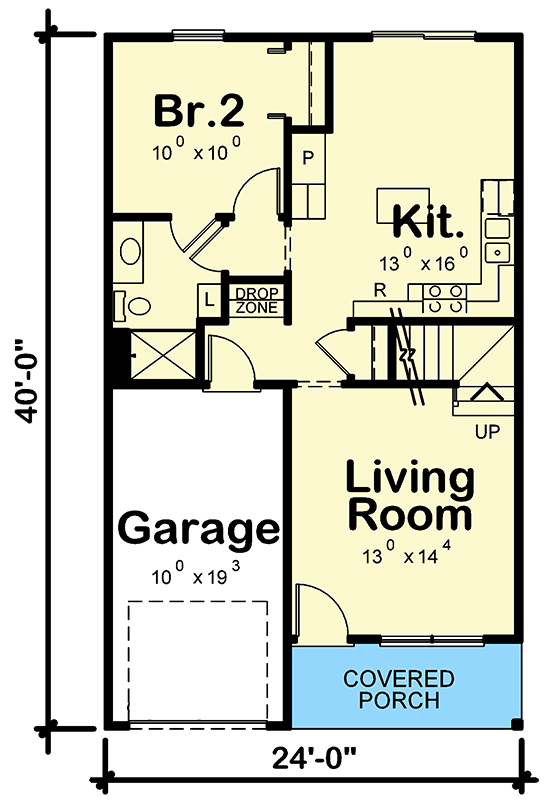

Main Level

Plan 42597DB: Option-Filled Budget-Friendly Craftsman House Plan - Floor Plan - Main Level - Craftsman, Northwest

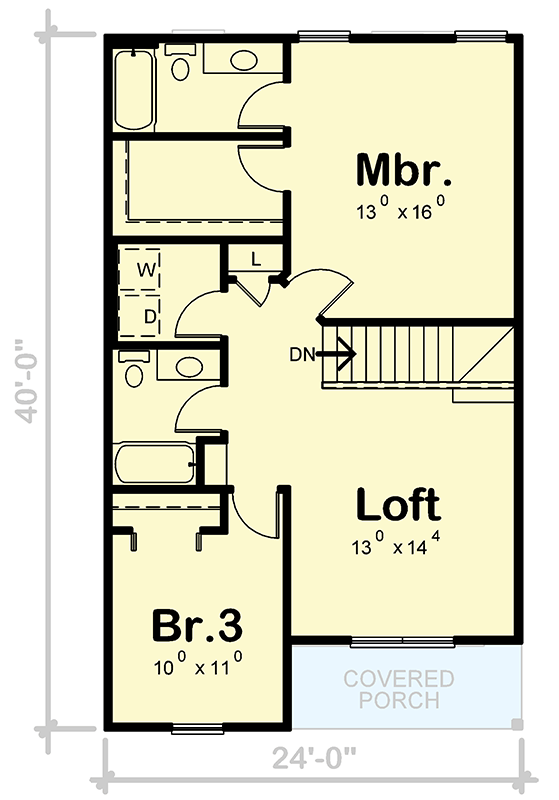

Second Level

Plan 42597DB: Option-Filled Budget-Friendly Craftsman House Plan - Floor Plan - Second Level - Craftsman, Northwest

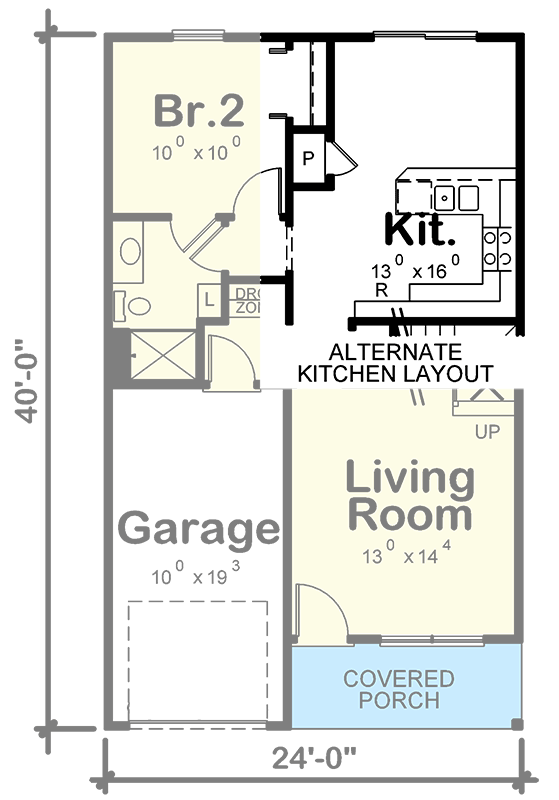

Optional Kitchen Layout

Plan 42597DB: Option-Filled Budget-Friendly Craftsman House Plan - Floor Plan - Optional Kitchen Layout - Craftsman, Northwest

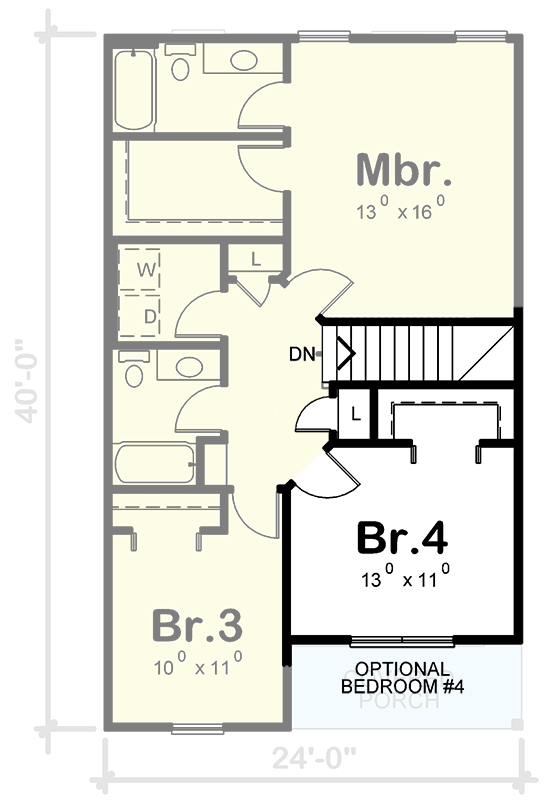

Optional 4th Bedroom Layout

Plan 42597DB: Option-Filled Budget-Friendly Craftsman House Plan - Floor Plan - Optional 4th Bedroom Layout - Craftsman, Northwest

Plan Details

  • This 2-story Craftsman house plan has a modest-sized and simple footprint making it a more affordable than a larger, more complicated home.
  • The plan comes with two different kitchen layouts for you to choose from.
  • The master suite and laundry are located upstairs. The loft can be converted to an extra bedroom if needed.
  • Related Plans: Get alternate exteriors with house plans 42598DB and 42599DB.

What's Included

  • General Notes

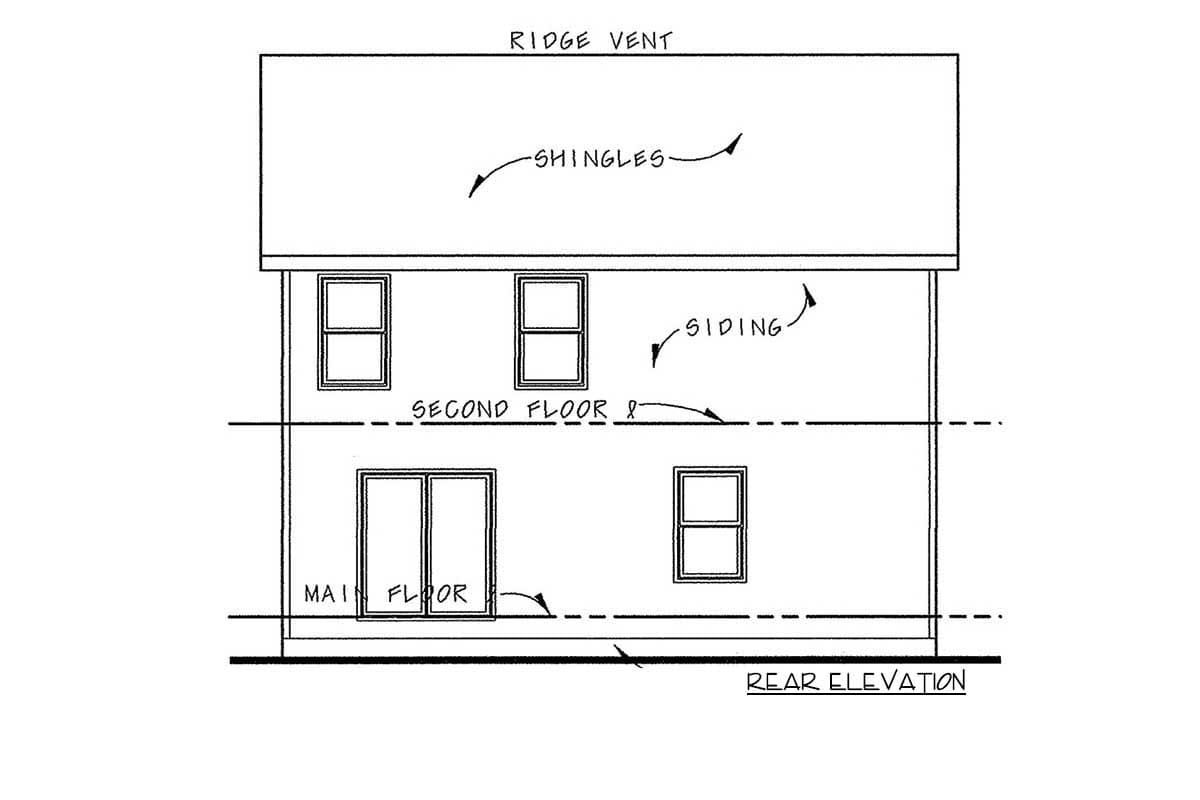

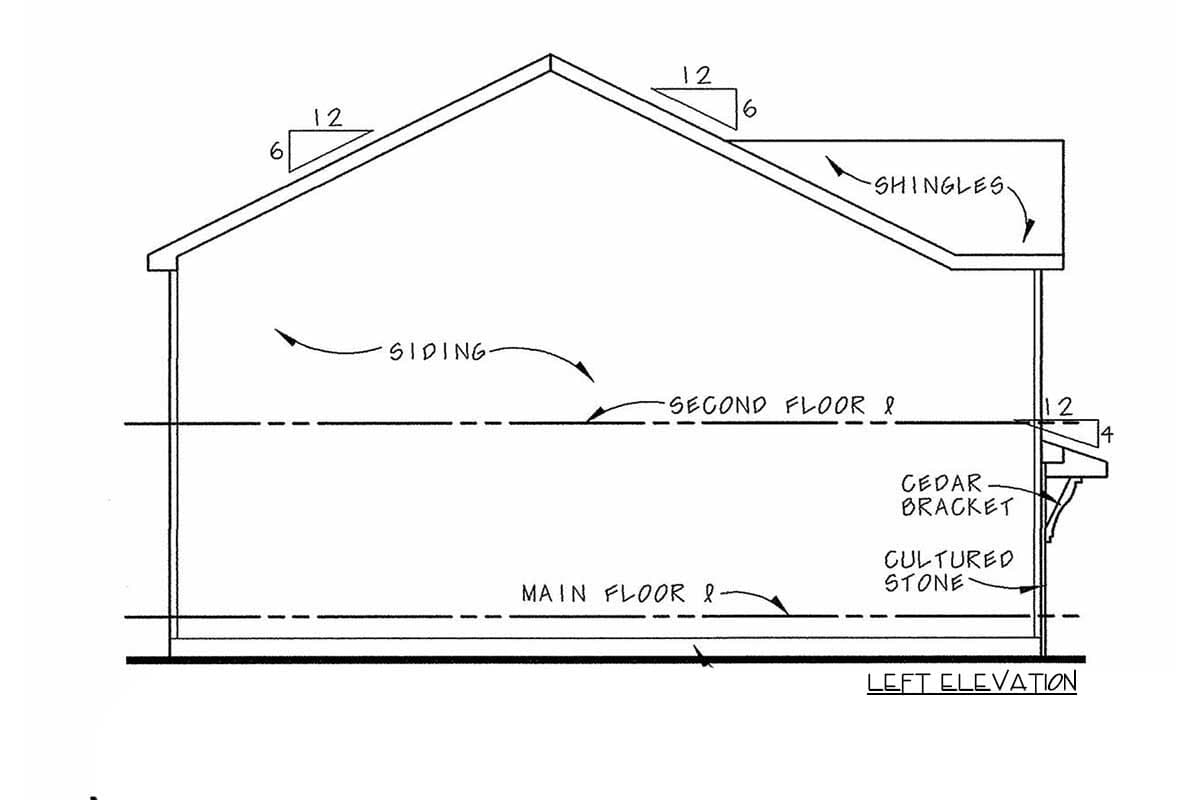

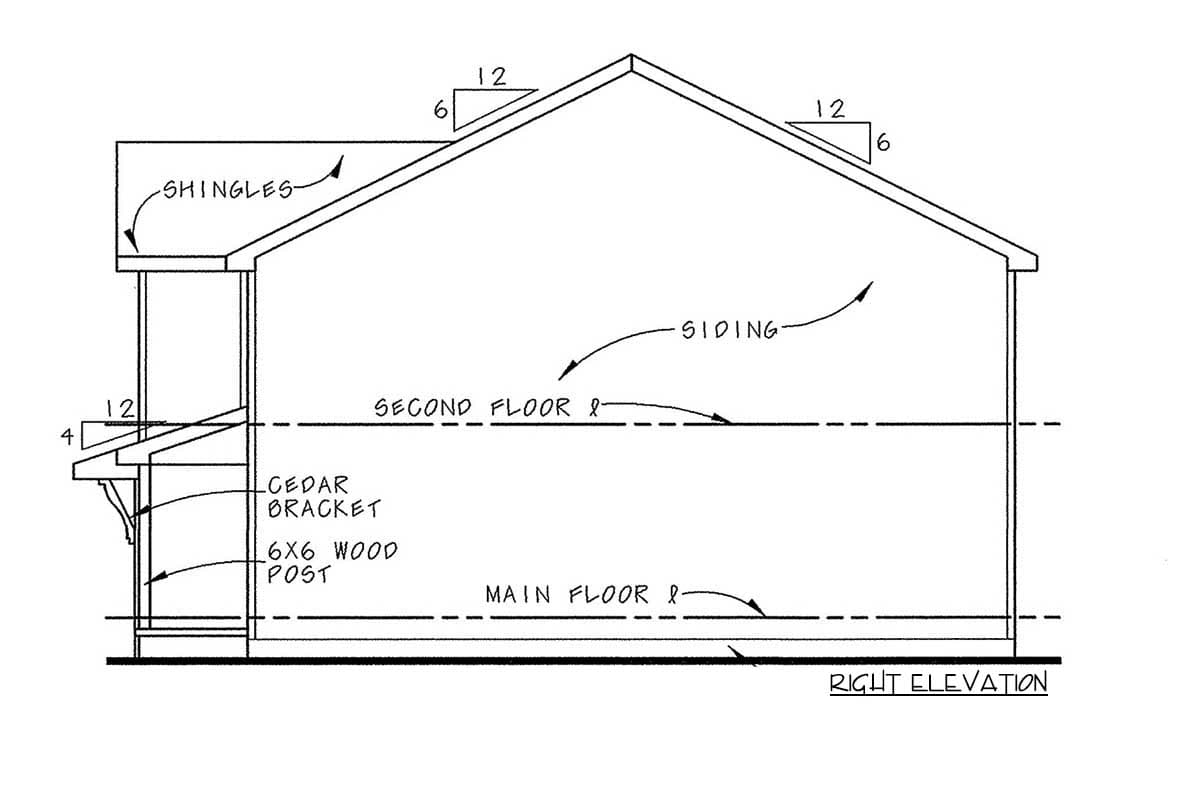

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,540 sq. ft.

1st Floor

688 sq. ft.

2nd Floor

852 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

40' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

205 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

5 on 12

Architectural Style

Craftsman

Northwest

Special Features

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Square Footage Breakdown

Total Heated Area

1,540 sq. ft.

1st Floor

688 sq. ft.

2nd Floor

852 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

40' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

205 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

5 on 12

Architectural Style

Craftsman

Northwest

Special Features

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom
