Plan 42042MJ

Opulent Mediterranean House Plan

4,532 5 5 1 4
Pageloader

Opulent Mediterranean House Plan

Plan 42042MJ

  • 4,532

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 1

    Stories

  • 4

    Cars

  • A great big entry porch with arches leads you right into this opulent Mediterranean house plan.
  • The open layout blends the foyer, dining room and living room into one large space with tray ceilings to add visual appeal.
  • A two-way fireplace warms both the breakfast nook and the grand living room.
  • The kitchen shares views with the nook and spacious gathering room, giving your family a wonderful place to hang out.
  • The covered patio in back has an outdoor fireplace, a grilling station and a huge shaded area for relaxation.
  • Located in the back of the house, the game room with wet bar keeps noise away from the rest of the house.
  • But the best room in the house belongs to the luxurious master suite with its bayed sitting area, tray ceiling and fabulous master bathroom.
  • Four more family bedrooms are all on the opposite side of the home.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Exterior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

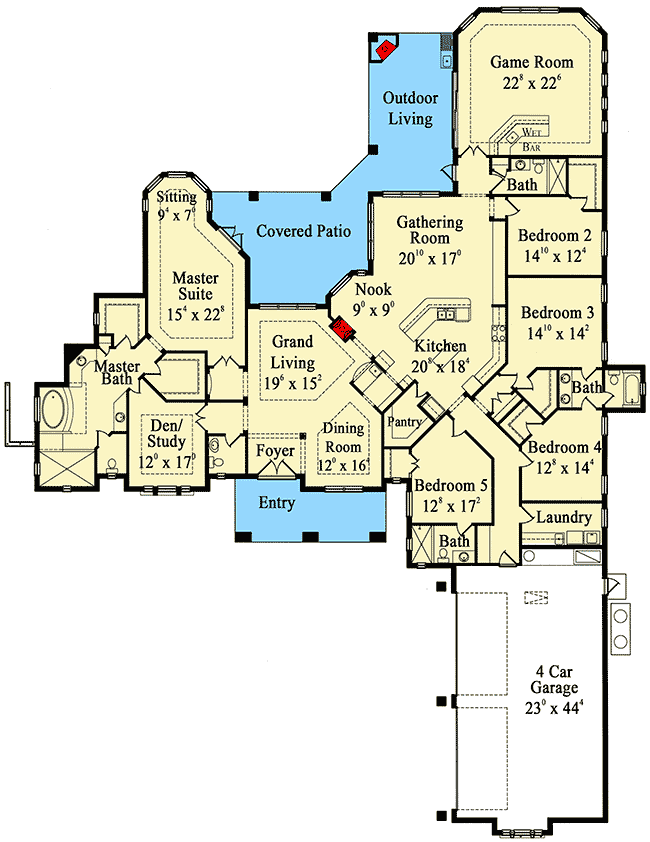

Floor Plan

Plan details



Opulent Mediterranean House Plan

  • 4,532

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • 5 Sets $1,020
  • Reproducible Set $1,295
  • PDF - single-use $1,295
  • CAD $2,495
  • View all purchase option online

About This Plan

  • A great big entry porch with arches leads you right into this opulent Mediterranean house plan.
  • The open layout blends the foyer, dining room and living room into one large space with tray ceilings to add visual appeal.
  • A two-way fireplace warms both the breakfast nook and the grand living room.
  • The kitchen shares views with the nook and spacious gathering room, giving your family a wonderful place to hang out.
  • The covered patio in back has an outdoor fireplace, a grilling station and a huge shaded area for relaxation.
  • Located in the back of the house, the game room with wet bar keeps noise away from the rest of the house.
  • But the best room in the house belongs to the luxurious master suite with its bayed sitting area, tray ceiling and fabulous master bathroom.
  • Four more family bedrooms are all on the opposite side of the home.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,532 sq. ft.
  • 1st Floor: 4,532 sq. ft.
  • Entry: 209 sq. ft.
  • Covered Patio: 680 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 95' 3"
  • Depth: 130' 0"
  • Max ridge height: 21' 9"

Garage

  • Type: Attached
  • Area: 1034 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

  • European
  • Florida
  • Mediterranean
  • Spanish

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • MBR Sitting Area
  • Media-Game-Home Theater
  • PDF
  • Split Bedrooms

Plan Collections

  • Luxury
  • Photo Gallery
