Plan 42057MJ

Outstanding Mediterranean Home Plan

Heated S.F.
4,024
Beds
4
Baths
5
Stories
2
Cars
3

Floor Plan

Plan 42057MJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42057MJ

M-F 9am-5pm EST |

1-203-761-8500

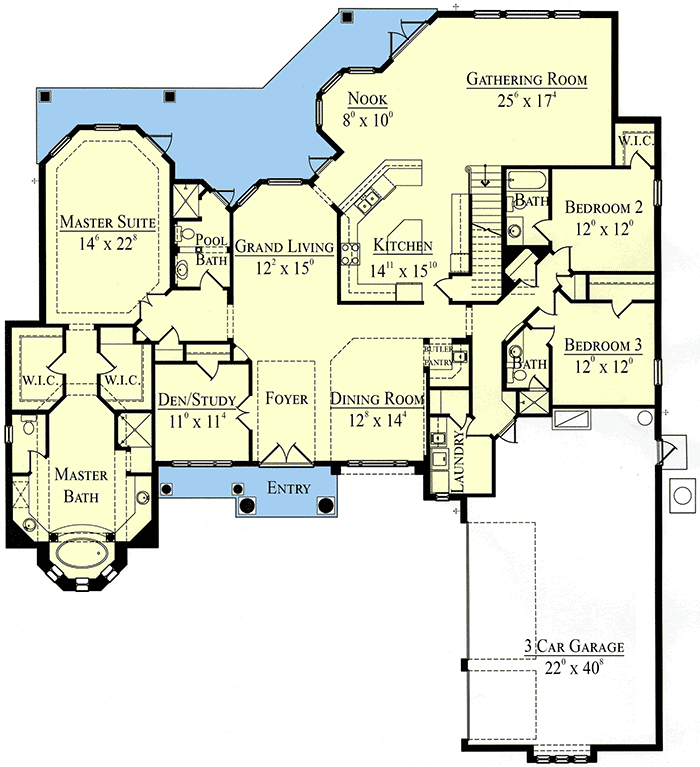

Main Level

Plan 42057MJ: Outstanding Mediterranean Home Plan - Floor Plan - Main Level - Florida-Style, Mediterranean, Spanish

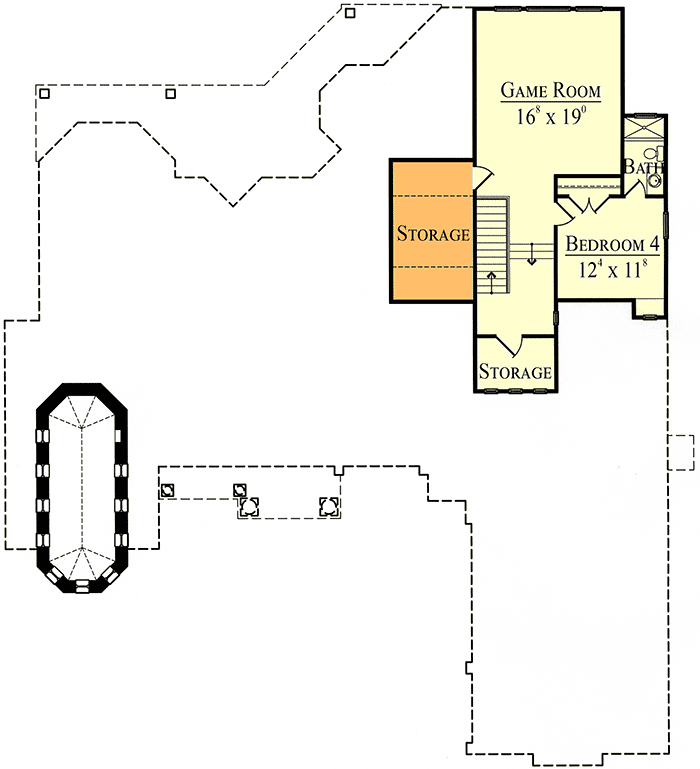

2nd Floor

Plan 42057MJ: Outstanding Mediterranean Home Plan - Floor Plan - 2nd Floor - Florida-Style, Mediterranean, Spanish

Plan Details

  • Elegant arched windows and a tile hip roof give this Mediterranean home plan a commanding presence.
  • Main floor ceilings are 10' high and up and the open floor plan further opens the home up.
  • The gourmet kitchen has sweeping views of the bayed breakfast nook and informal gathering room.
  • A butler's pantry aids in entertaining.
  • The magnificent master suite is off by itself on the left wing of the home with a door to the rear covered patio.
  • Luxuriate in the huge master bath that would rival any spa.
  • Two family bedrooms are on the opposite side of the home with the fourth bedroom on the second floor by itself.
  • This home has plenty of storage and an added bonus is the big game room.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,024 sq. ft.

1st Floor

3,298 sq. ft.

2nd Floor

726 sq. ft.

Entry

121 sq. ft.

Covered Patio

372 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

76' 4"

Depth

86' 2"

Max Ridge Height

29' 9"

Garage

Type

Attached

Area

877 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

12'

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Spanish

Special Features

Bedrooms - Split

Breakfast Nook

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Luxury

Photo Gallery

Square Footage Breakdown

Total Heated Area

4,024 sq. ft.

1st Floor

3,298 sq. ft.

2nd Floor

726 sq. ft.

Entry

121 sq. ft.

Covered Patio

372 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

76' 4"

Depth

86' 2"

Max Ridge Height

29' 9"

Garage

Type

Attached

Area

877 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

12'

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Spanish

Special Features

Bedrooms - Split

Breakfast Nook

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Luxury

Photo Gallery
