Plan 666194RAF

Over 5,200 Square Foot Modern Ranch Plan with Ample Outdoor Living

Heated S.F.
5,230
Beds
4
Baths
4.5
Stories
1
Cars
4

Floor Plan

Plan 666194RAF

Main Level
Main Level

Plan 666194RAF

M-F 9am-5pm EST |

1-203-761-8500

Main Level

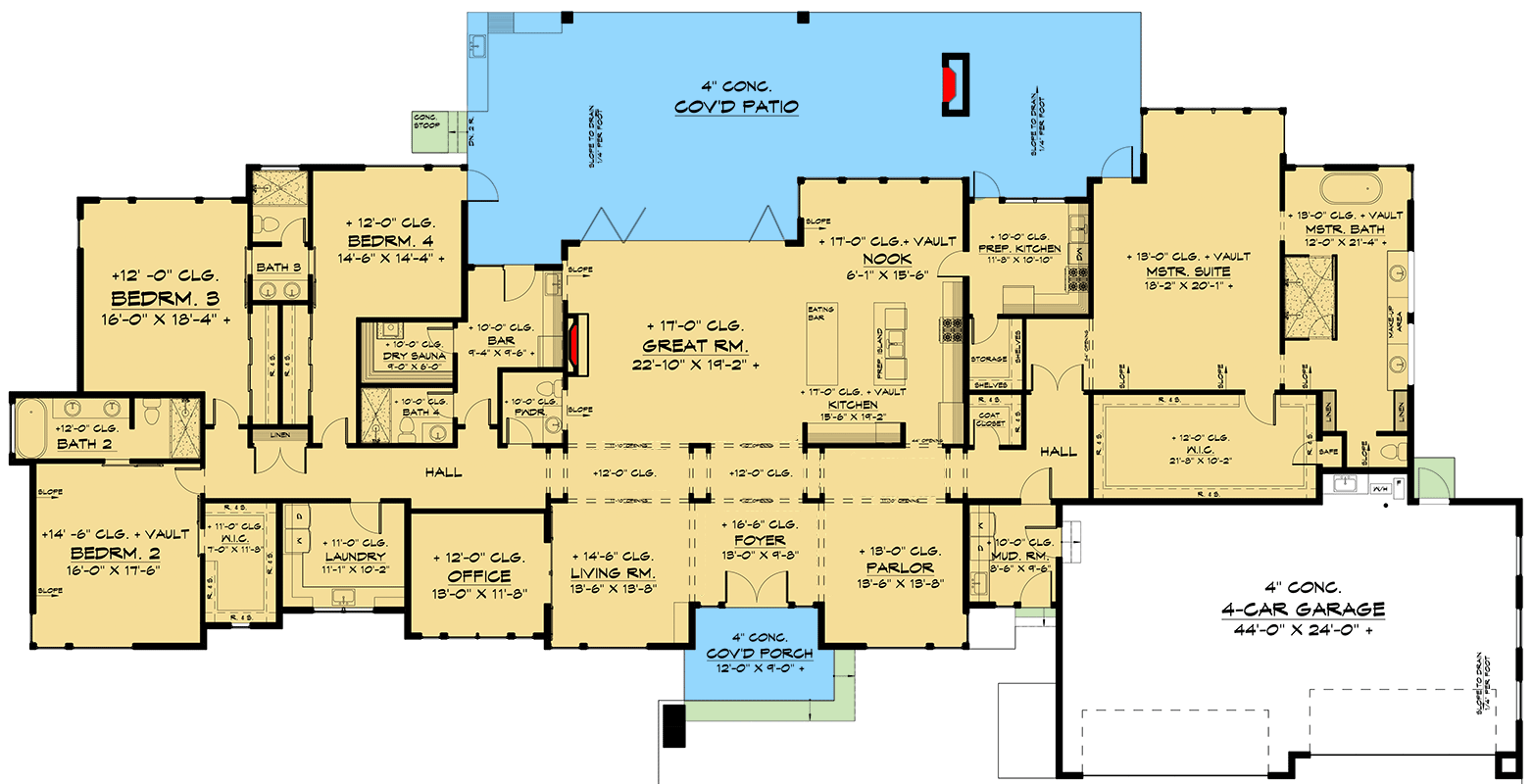

Plan 666194RAF: Over 5,200 Square Foot Modern Ranch Plan with Ample Outdoor Living - Floor Plan - Main Level - Mid Century Modern, Modern, Northwest, Prairie, Ranch

Plan Details

  • Full of curb appeal, this Modern Ranch plan was designed with entertaining in mind due to its large central living space that seamlessly connects onto a covered patio through an accordion-style glass door.
  • The double-island kitchen is a chef's dream, while the adjacent prep kitchen hosts a second range, sink, and dishwasher, along with access to the grilling porch.
  • A formal living room and parlor sit on either side of the foyer, providing additional space to socialize, and a home office considers the work-at-home resident.
  • Quietly tucked behind the 4-car garage, discover the master suite which features a sitting nook, freestanding tub in the ensuite, and a generous walk-in closet.
  • The remaining three bedroom suites are clustered along the left wing, next to a laundry room with ample storage and a utility sink.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

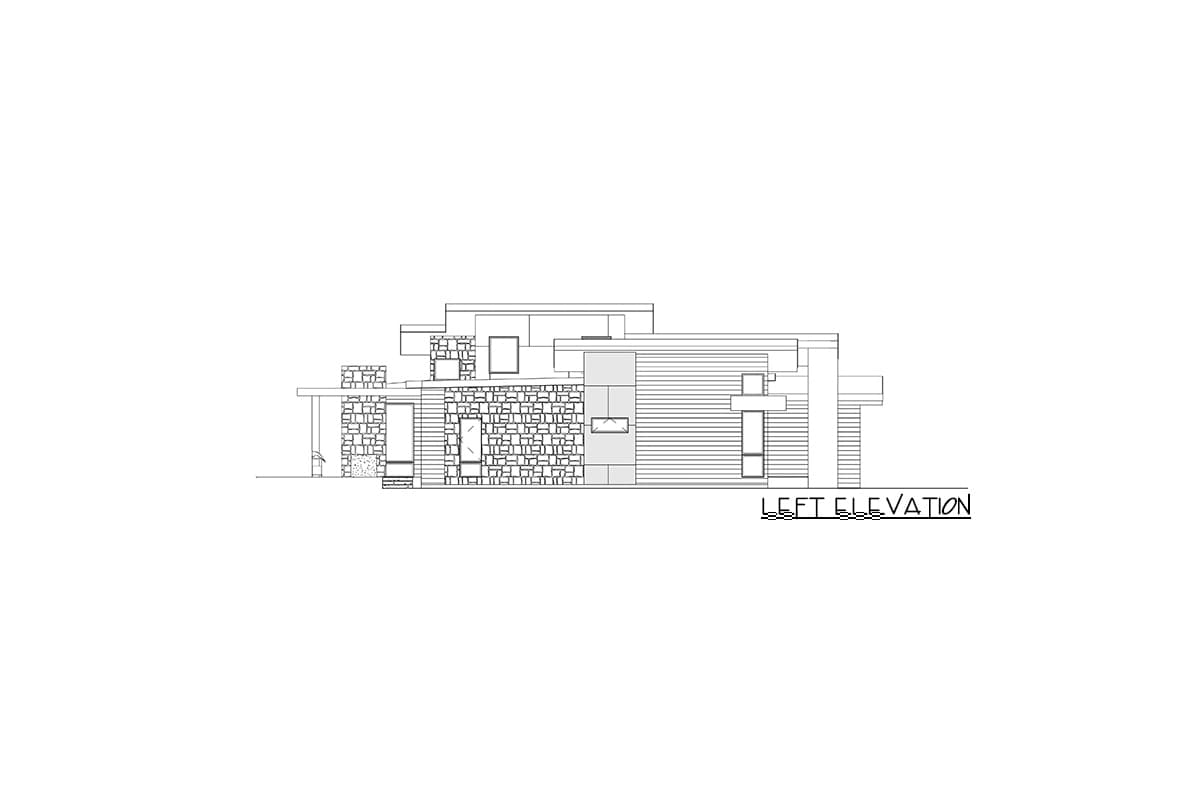

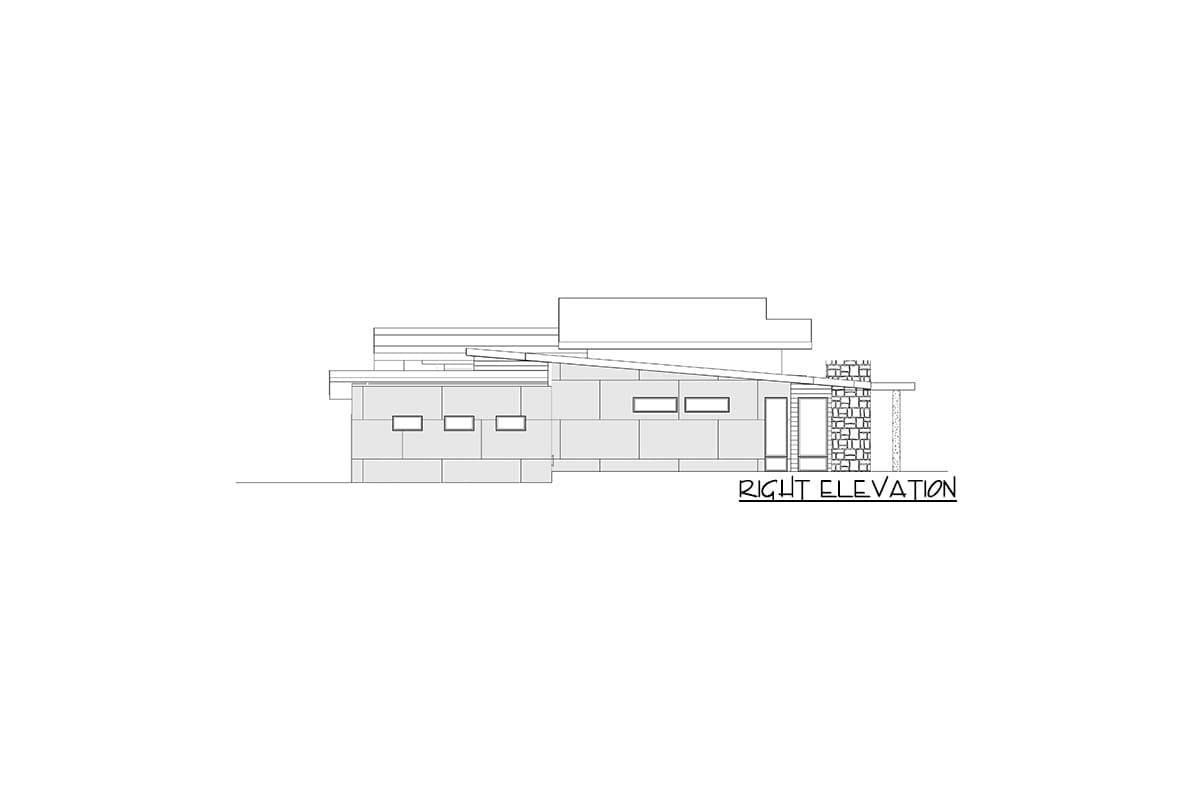

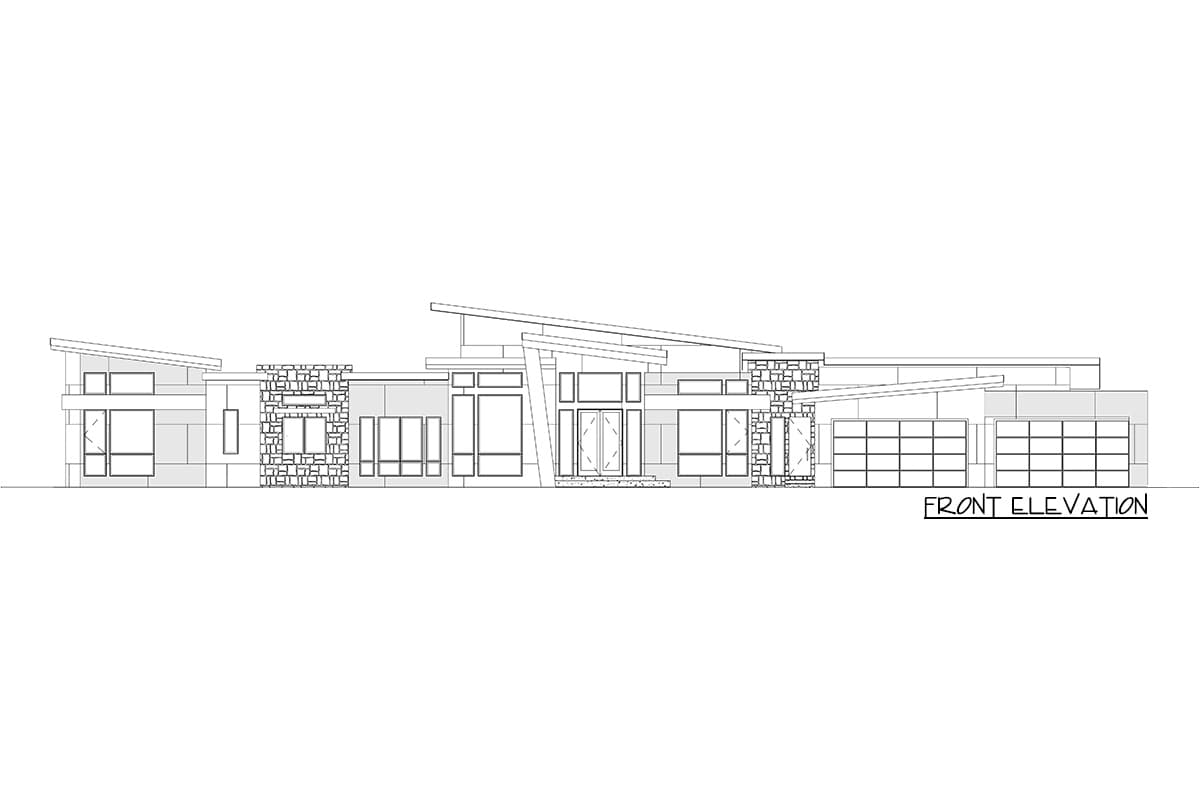

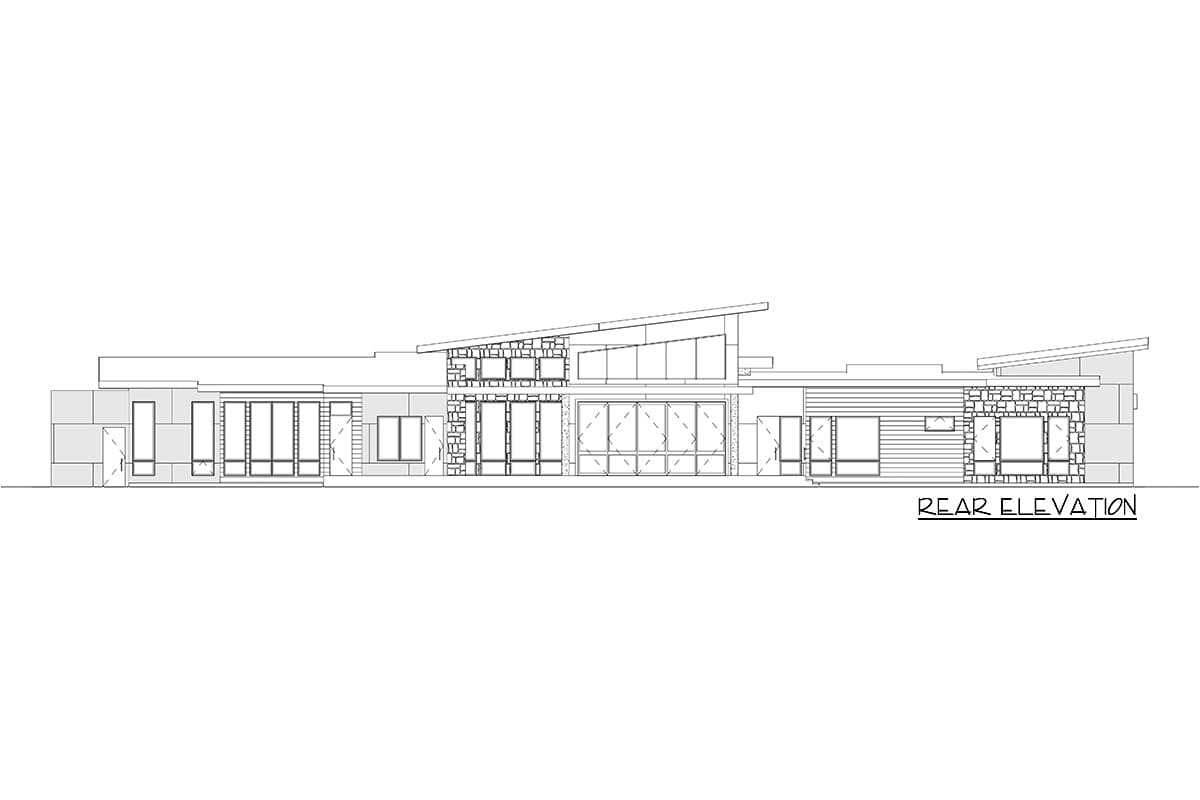

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,230 sq. ft.

1st Floor

5,230 sq. ft.

Porch, Front

123 sq. ft.

Covered Patio

1,281 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

146' 3"

Depth

64' 10"

Max Ridge Height

24' 11"

Garage

Type

Attached

Area

1175 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

1.5 on 12

Secondary Pitch

1 on 12

Framing Type

Truss

Architectural Style

Mid Century Modern

Modern

Northwest

Prairie

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Two Kitchen Islands

Walk-in Pantry

Wet Bar

Plan Collections

Home Office
