Plan 11743HZ
Packed with Features
Heated S.F.
1,900
Beds
3-4
Baths
2 - 3
Stories
1-2
Cars
2
What's Included
Plan Details
  • This beautiful Acadian house plan is packed with features such as an open floor plan, special ceiling treatments and a corner fireplace in the large great room.
  • A front-facing formal dining room is placed near the kitchen for convenience.
  • The luxurious master suite boasts two walk-in closets, a tray ceiling and dual sinks.
  • The great room has a gas fireplace with raised ceilings and views to rear and kitchen.
  • The spacious kitchen offers an island for cooking preparations, built in pantry and plenty of cabinets for storage.
  • Related Plan: For an alternate version with a side-entry garage, see house plan 11744HZ.
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details

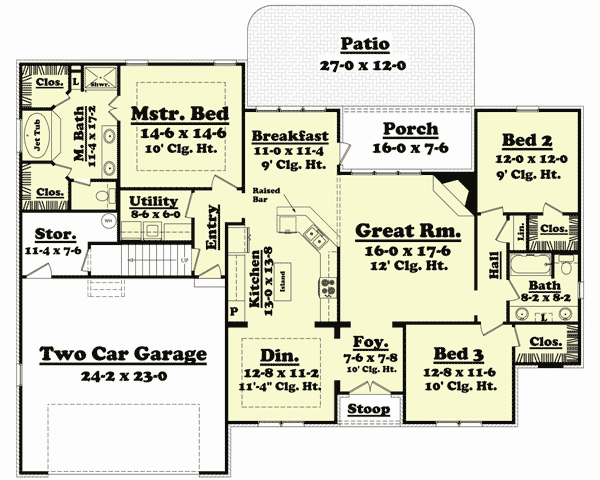

  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

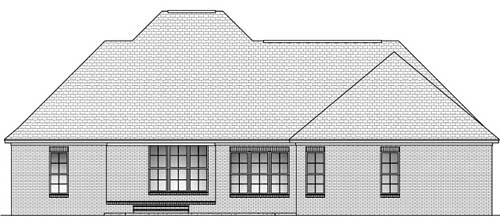

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Packed with Features

  • 1,900

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 1,900 sq. ft.
  • 1st Floor: 1,900 sq. ft.

Dimensions

  • Width: 66' 10"
  • Depth: 49' 0"
  • Max ridge height: 26' 5"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Garage

  • Type: Attached
  • Area: 572 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick
