Plan 66164WE Palatial Elegance

7,441 4 5.5+ 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Palatial Elegance

Plan 66164WE

  • 7,441

    Heated s.f.

  • 4

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • This stunning home plan has a sense of palatial elegance as soon as you step in. An entertainer's delight with the appealing atmosphere, varying throughout with a variety of intricate details and ceiling designs.
  • There is a definite flowing indoor and outdoor relationship with the vast deck downstairs and the enticing sun deck upstairs. A true split level plan with an incredible master suite and bath encompassing an entire wing.
  • Related Plans: See these related house plans: 66021WE, 66191WE.

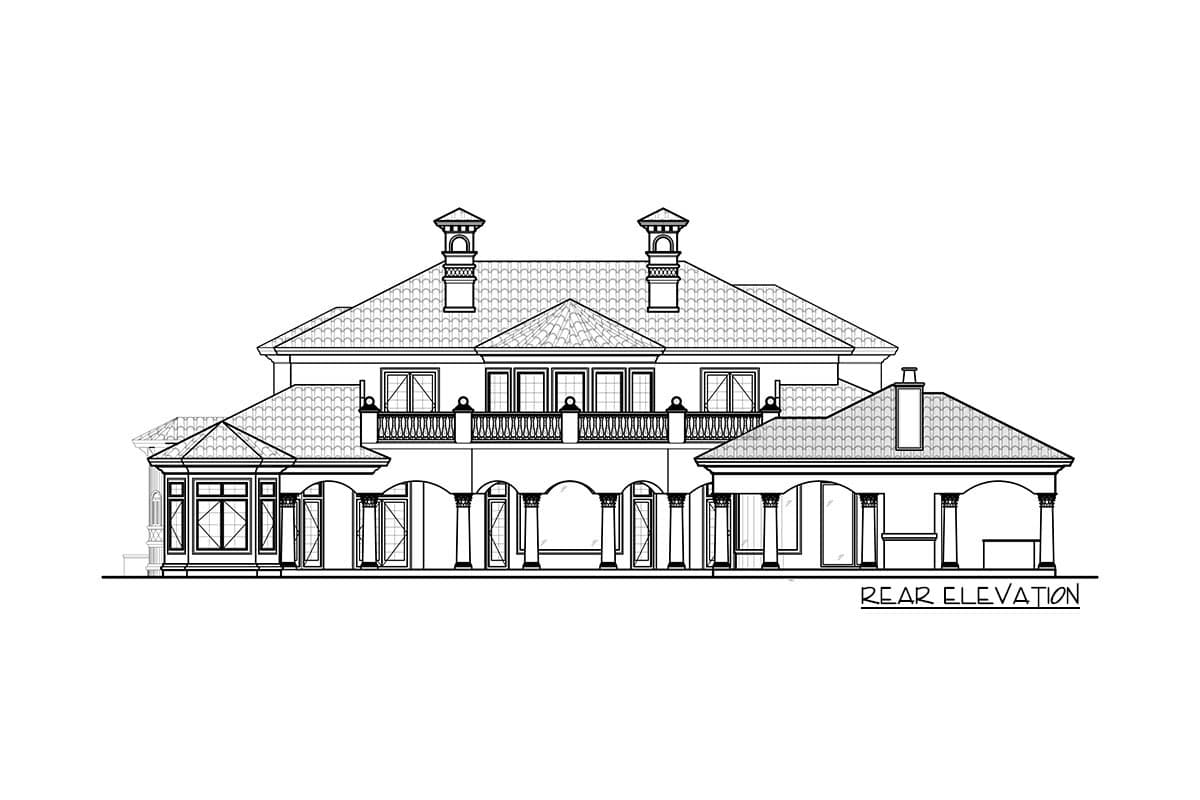

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

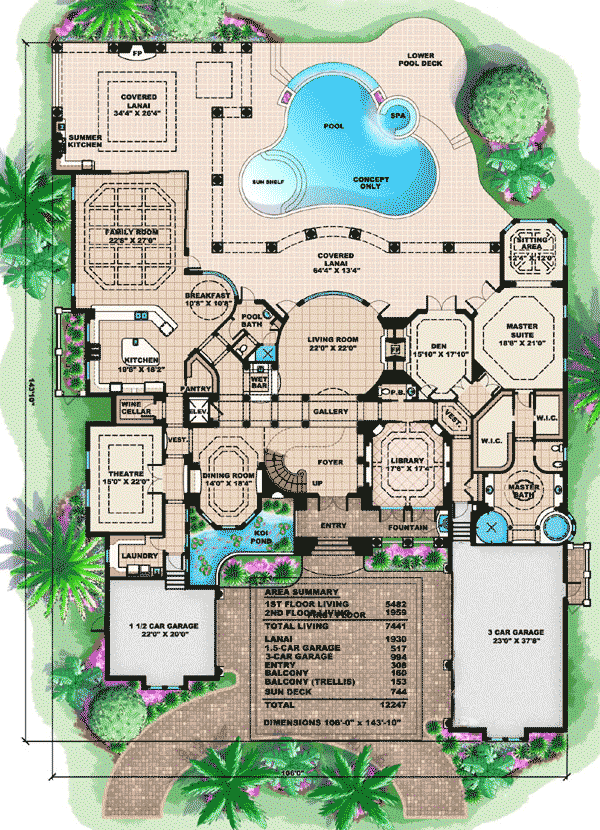

Palatial Elegance - 66164WE floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

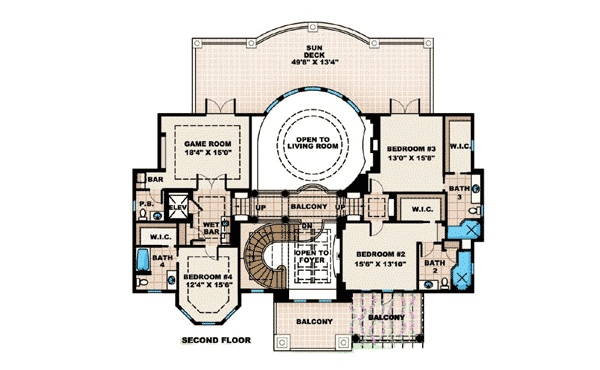

Palatial Elegance - 66164WE floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 7,441 sq. ft.
  • 1st Floor: 5,482 sq. ft.
  • 2nd Floor: 1,959 sq. ft.
  • Deck: 744 sq. ft.
  • Entry: 308 sq. ft.
  • Balcony / Veranda: 313 sq. ft.
  • Lanai: 1,930 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 106' 0"
  • Depth: 143' 10"
  • Max ridge height: 36' 3"

Garage

  • Type: Attached
  • Area: 1511 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

Room Details Ceiling Type Width Depth Height
Master Bedroom Coffered 13' 0"
Living Room Coffered 27' 2"
Master Bath Vaulted 11' 0"
Dining Room Coffered 13' 10"
Family Room Coffered 14' 0"
Den Coffered 13' 0"
Entry Flat 13' 10"
All Bedrooms Flat 10' 0"
Library Coffered 13' 10"
Gallery Coffered 10' 4"
Dinette Coffered 13' 0"
Foyer Vaulted 25' 2"
Kitchen Flat 12' 0"
Lanai Coffered 10' 10"
Media Room Coffered 12' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Palatial Elegance

  • 7,441

    Heated s.f.

  • 4

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • Reproducible Set $6,500
  • PDF - Single-Build $6,500
  • CAD - Single-Build $6,500
  • View all purchase option online

About This Plan

  • This stunning home plan has a sense of palatial elegance as soon as you step in. An entertainer's delight with the appealing atmosphere, varying throughout with a variety of intricate details and ceiling designs.
  • There is a definite flowing indoor and outdoor relationship with the vast deck downstairs and the enticing sun deck upstairs. A true split level plan with an incredible master suite and bath encompassing an entire wing.
  • Related Plans: See these related house plans: 66021WE, 66191WE.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,441 sq. ft.
  • 1st Floor: 5,482 sq. ft.
  • 2nd Floor: 1,959 sq. ft.
  • Deck: 744 sq. ft.
  • Entry: 308 sq. ft.
  • Balcony / Veranda: 313 sq. ft.
  • Lanai: 1,930 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 106' 0"
  • Depth: 143' 10"
  • Max ridge height: 36' 3"

Garage

  • Type: Attached
  • Area: 1511 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
