Palatial French Country

Plan 9544RW

  • 7,615

    Heated s.f.

  • 3-4

    Beds

  • 4.5+

    Baths

  • 1-2

    Stories

  • 6

    Cars

  • This palatial French Country home plan is a dream come true designed with every luxury in mind.

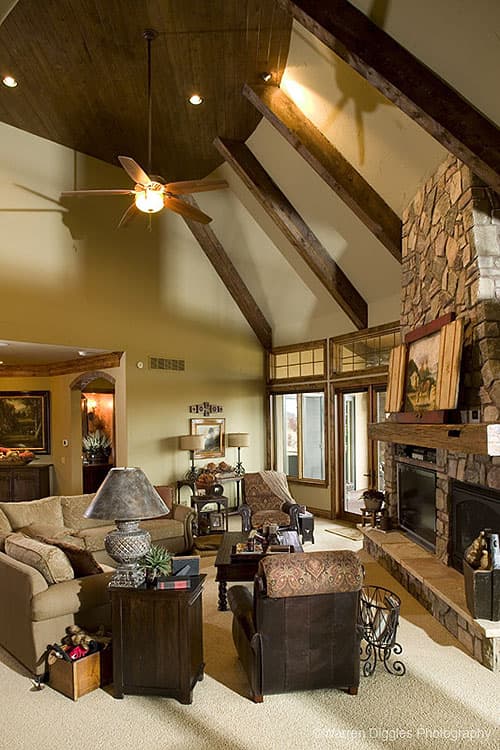

  • The beamed ceilings and transom windows in the vaulted great room will take your breath away.

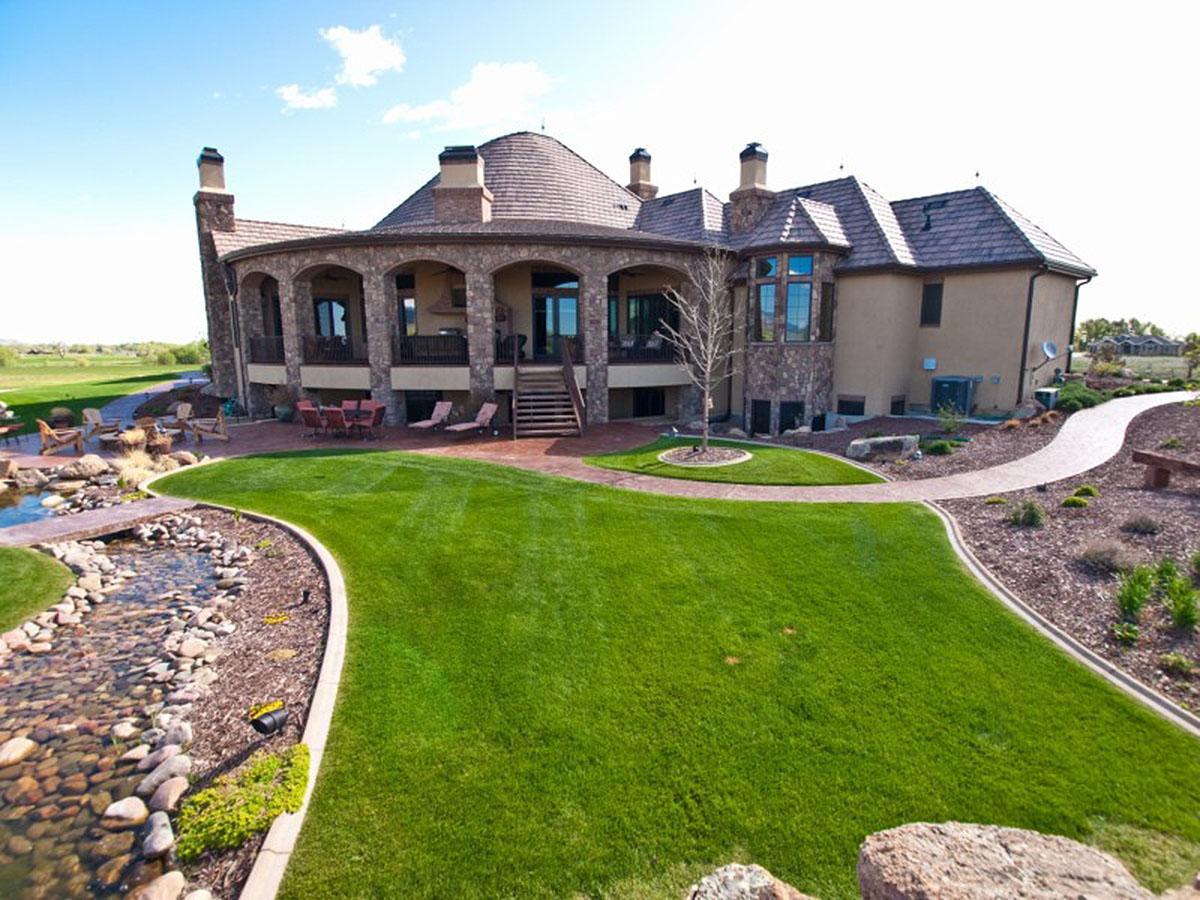

  • Two sets of double doors lead to the spacious covered rear porch, all the better to enjoy your view lot.
  • A romantic fireplace and tray ceilings enhance the luxurious master suite.
  • The spa bath focuses on a jetted tub set in a bay and two enormous walk-in closets get the benefit of a private laundry.
  • Use the spiral stairs off the foyer to climb to the second floor library with its balcony.
  • Every amenity has been thought of in the lower level entertainment center where you will find extra bedrooms, a home theater, billiards room and your own exercise room.

  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan

What is NOT included:

  • Architectural or Engineering stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

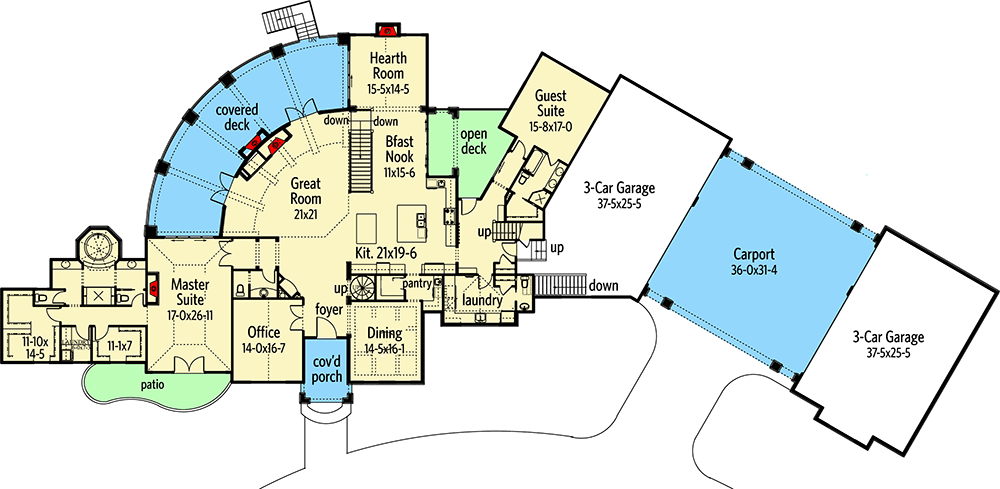

Palatial French Country - 9544RW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

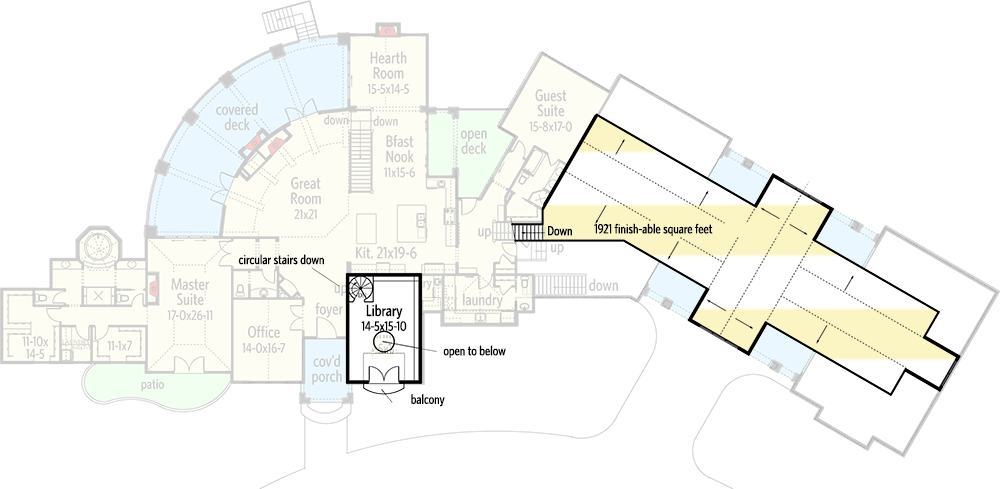

Palatial French Country - 9544RW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

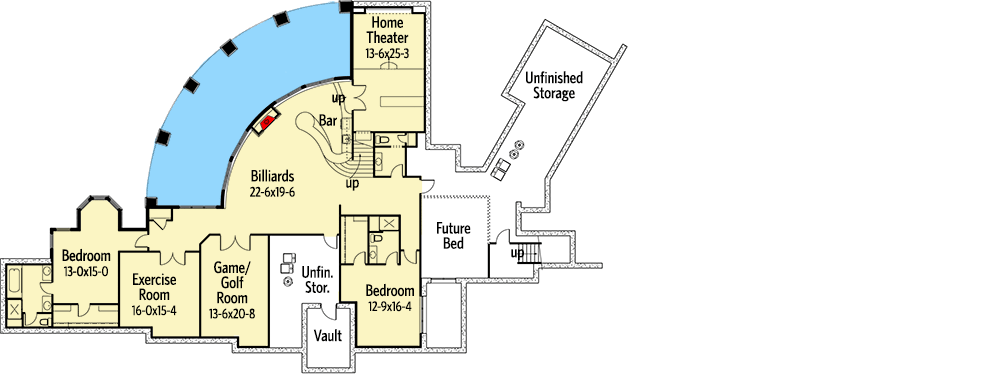

Palatial French Country - 9544RW floor plan - Lower Level

Plan details

Palatial French Country

  • 7,615

    Heated s.f.

  • 3 - 4

    Beds

  • 6

    Baths

  • 1-2

    Floors

  • 6

    Car garage

Buy This Plan
  • PDF - Single-Build $4,600
  • CAD - Single-Build $5,850
  • View all purchase option online

About This Plan

  • This palatial French Country home plan is a dream come true designed with every luxury in mind.
  • The beamed ceilings and transom windows in the vaulted great room will take your breath away.
  • Two sets of double doors lead to the spacious covered rear porch, all the better to enjoy your view lot.
  • A romantic fireplace and tray ceilings enhance the luxurious master suite.
  • The spa bath focuses on a jetted tub set in a bay and two enormous walk-in closets get the benefit of a private laundry.
  • Use the spiral stairs off the foyer to climb to the second floor library with its balcony.
  • Every amenity has been thought of in the lower level entertainment center where you will find extra bedrooms, a home theater, billiards room and your own exercise room.

Floor Plans

  • Main Level

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,615 sq. ft.
  • Lower Level: 2,935 sq. ft.
  • 1st Floor: 4,340 sq. ft.
  • 2nd Floor: 340 sq. ft.
  • Porch, Combined: 1,400 sq. ft.
  • Bonus: 1,921 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 201' 6"
  • Depth: 87' 0"
  • Max ridge height: 35' 4"

Garage

  • Type: Attached
  • Area: 2144 sq. ft.
  • Count: 6 Cars
  • Entry Location: Side, Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 12' 0" First Floor / 10' 0" Second Floor / 7' 0"

Roof

  • Primary Pitch: 14 on 12
  • Framing Type: Truss
