Passive Solar Option Contemporary

Plan 21982DR

  • 1,587

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Stories

  • Abundant windows and an entirely open main area on the main floor are exciting features in this 3 bedroom contemporary house plan. Enjoy unobstructed views across the home.
  • A great kitchen features a rommy island with lunch counter seating a roomy 8'x3' walk-in pantry.
  • All the bedrooms are on the lower level as is the laundry.
  • The bathroom features a combo shower / bath in 5'x5' area. Passive solar gain is possible with the windowed corner facing south.
  • Related Plan: Get an alternate bedroom arrangement with house plan 21983DR.
  • NOTE: Allow up to 15 business days for delivery.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

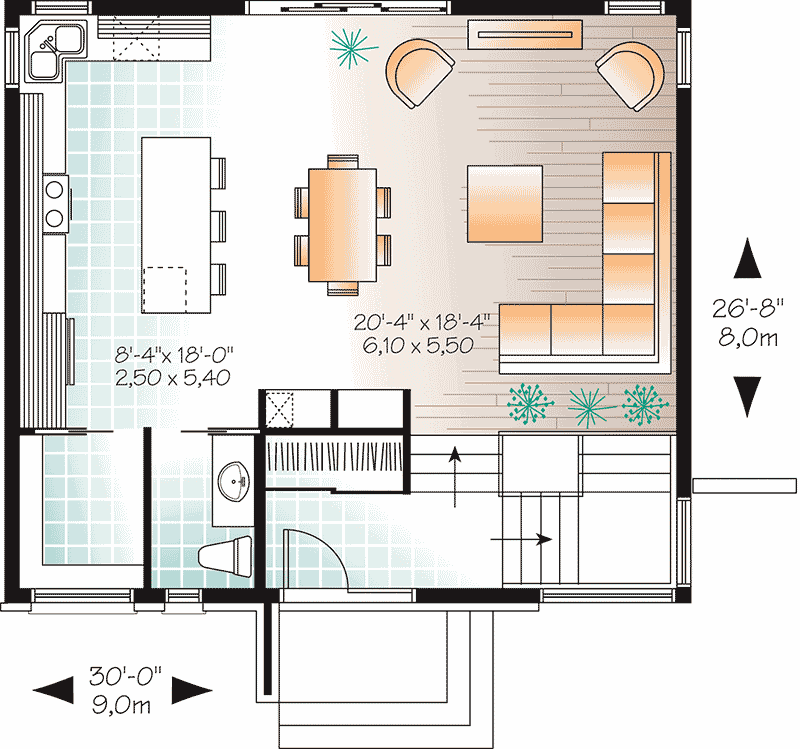

Passive Solar Option Contemporary - 21982DR floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

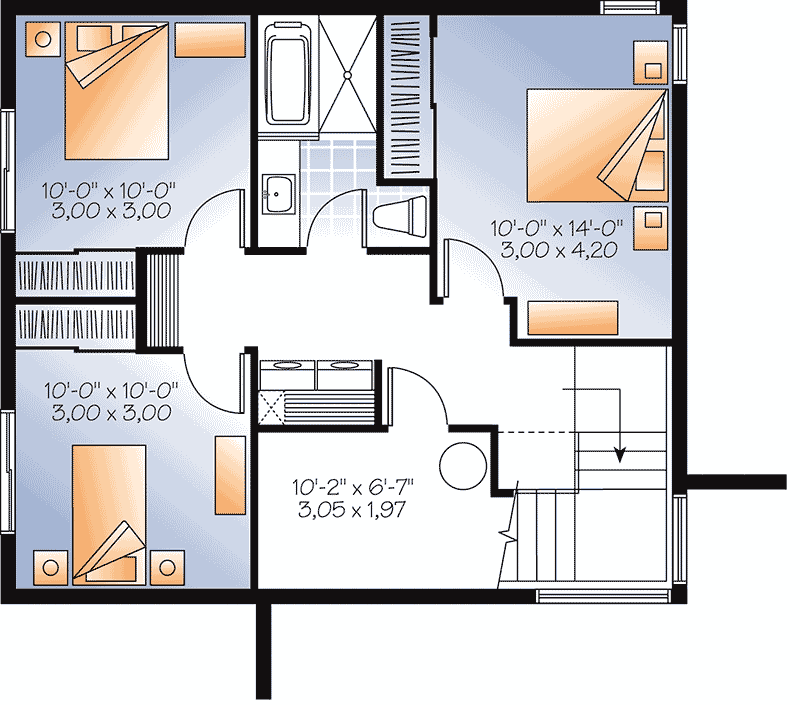

Passive Solar Option Contemporary - 21982DR floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,587 sq. ft.
  • Lower Level: 789 sq. ft.
  • 1st Floor: 798 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 26' 8"
  • Max ridge height: 18' 9"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Passive Solar Option Contemporary

  • 1,587

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,190
  • 5 Sets + PDF $1,315
  • CAD + PDF - Single-Build $1,800
  • View all purchase option online

About This Plan

  • Abundant windows and an entirely open main area on the main floor are exciting features in this 3 bedroom contemporary house plan. Enjoy unobstructed views across the home.
  • A great kitchen features a rommy island with lunch counter seating a roomy 8'x3' walk-in pantry.
  • All the bedrooms are on the lower level as is the laundry.
  • The bathroom features a combo shower / bath in 5'x5' area. Passive solar gain is possible with the windowed corner facing south.
  • Related Plan: Get an alternate bedroom arrangement with house plan 21983DR.
  • NOTE: Allow up to 15 business days for delivery.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,587 sq. ft.
  • Lower Level: 789 sq. ft.
  • 1st Floor: 798 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 26' 8"
  • Max ridge height: 18' 9"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof

  • Framing Type: Truss
Plan 21982DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/21982DR
|
Need Help? 800-854-7852
|
Plan 21982DR
