Plan 23160JD

Perfect Home for Sloped View Lot

Pageloader

Perfect Home for Sloped View Lot

Plan 23160JD

  • 3,737

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • You'll find vaulted ceilings in every bedroom of this sloping lot house plan. Note the two decks on the second floor - one off the master suite and the other centered in the front.
  • On the main level, a broad front porch with stout columns with stone bases gives you lots of room to enjoy the outdoors.
  • There are two fireplaces - one in the living room and one in the family room flanked by built-ins.
  • The kitchen has an island and walk-in pantry and is open to the bumped-out nook and family room. Note the access to a rear deck.
  • Steps away, the dining room is light-filled with abundant windows. An arched opening adds continuity to the living room.
  • The lower level features a media room and fifth bedroom suite and has direct access to the 3-car tandem garage.
  • There are 2' overhangs on the eaves for this home.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
  •

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

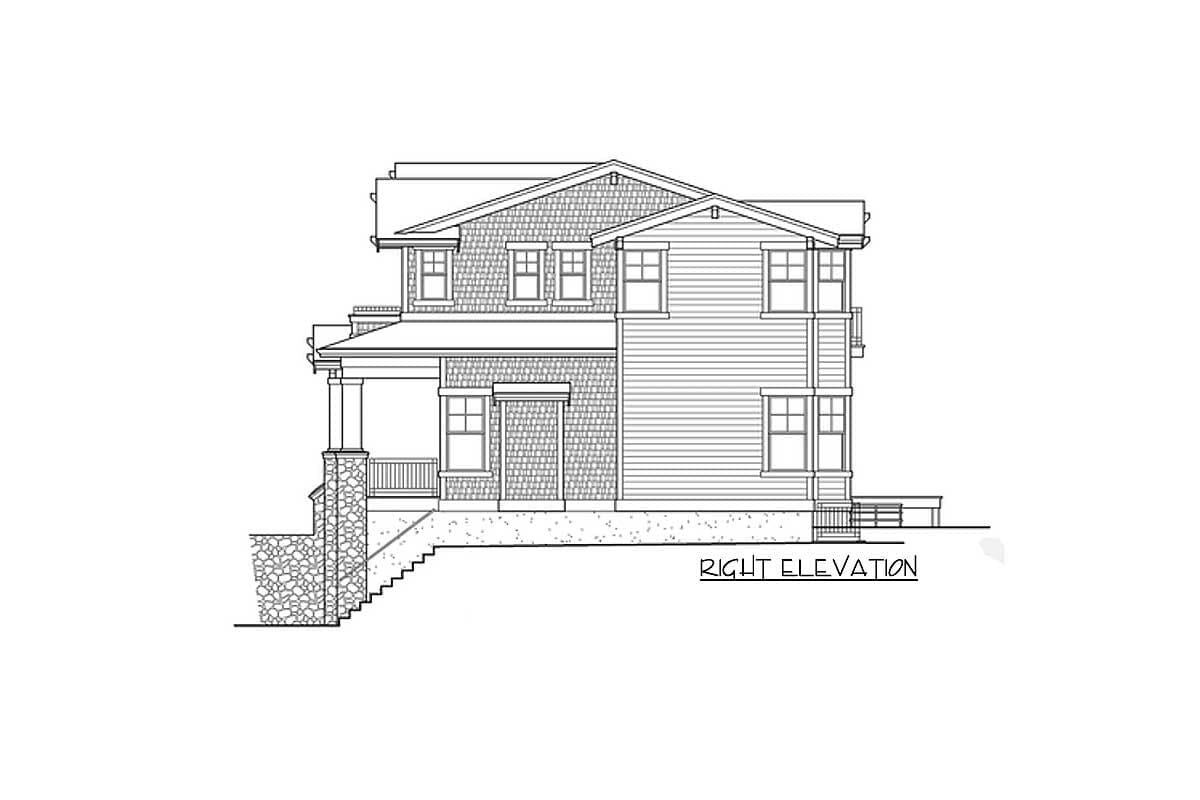

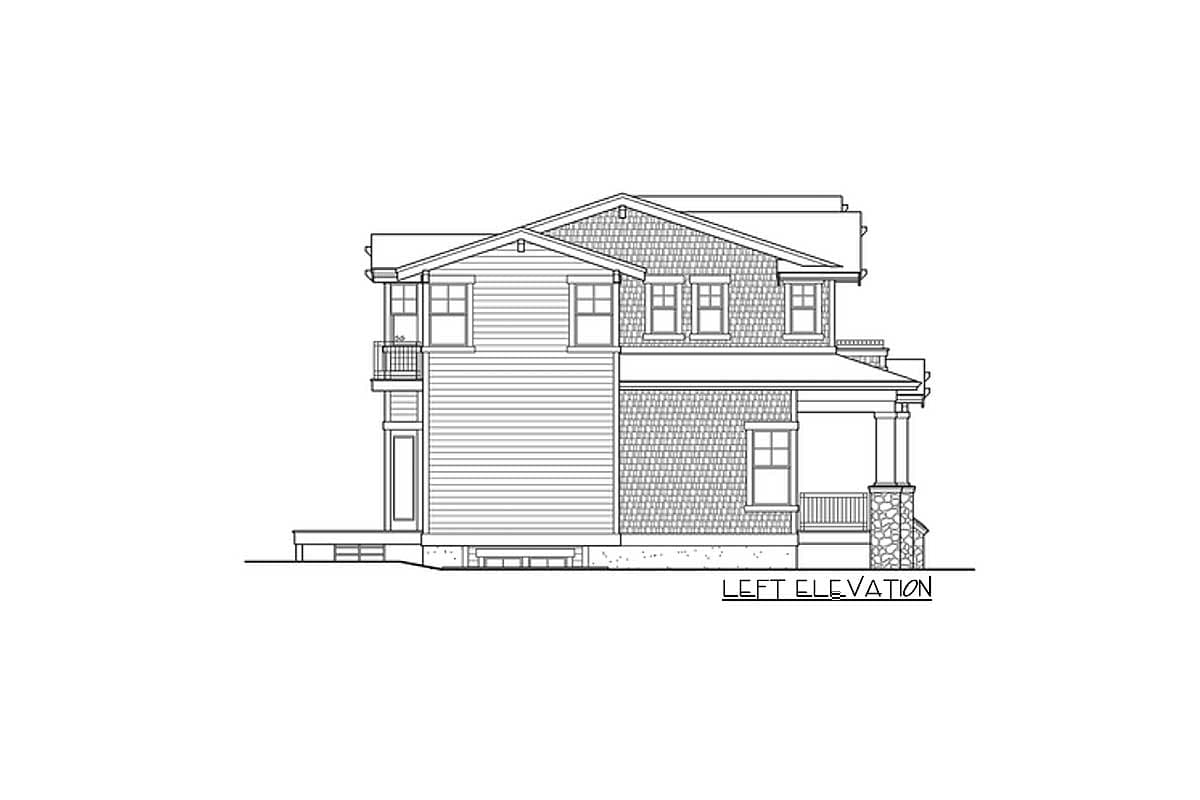

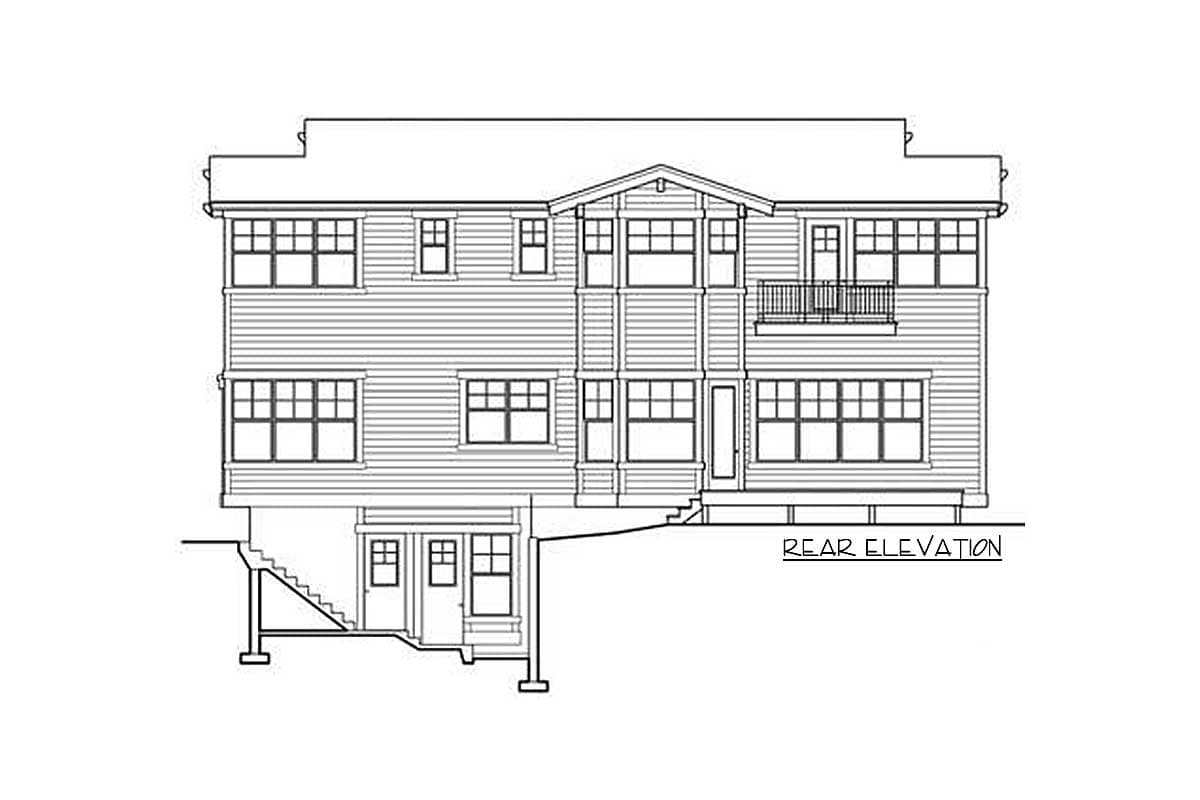

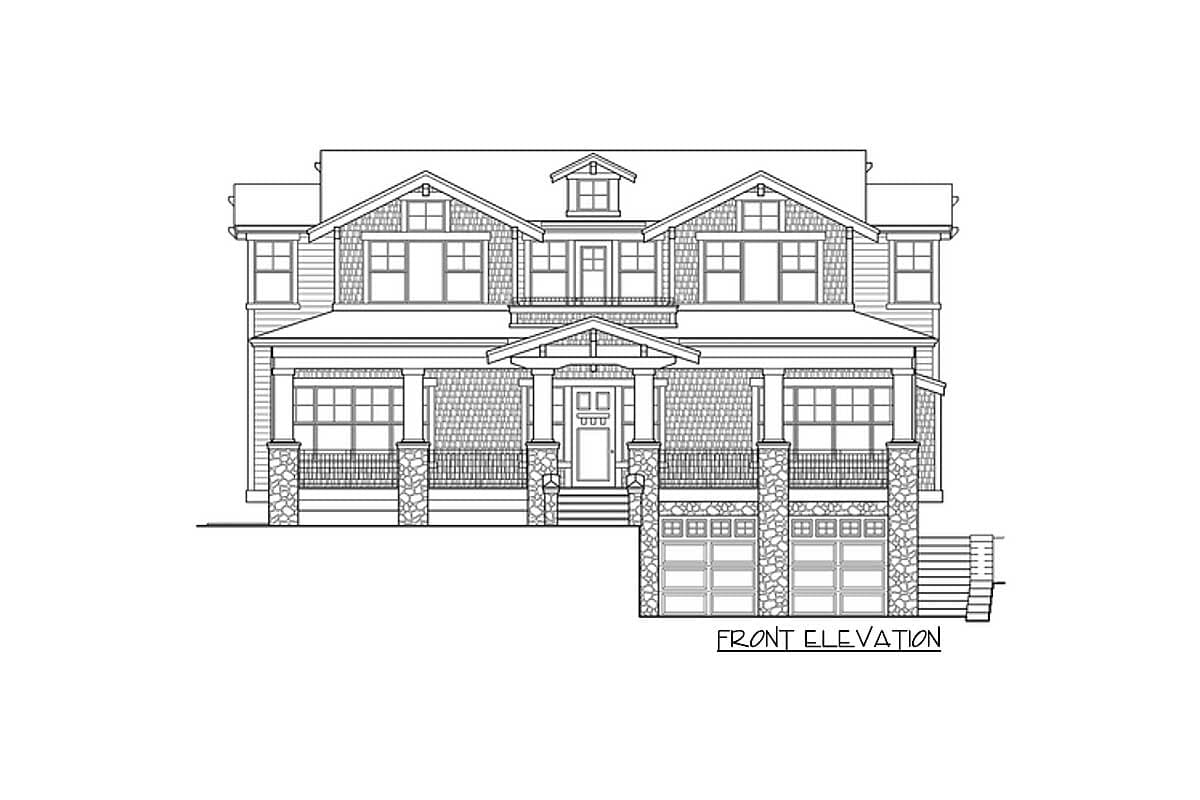

Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Plan details



Perfect Home for Sloped View Lot

  • 3,737

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,650
  • 5 Sets PLUS $1,800
  • CAD - multi-use $2,900
  • View all purchase option online

About This Plan

  • You'll find vaulted ceilings in every bedroom of this sloping lot house plan. Note the two decks on the second floor - one off the master suite and the other centered in the front.
  • On the main level, a broad front porch with stout columns with stone bases gives you lots of room to enjoy the outdoors.
  • There are two fireplaces - one in the living room and one in the family room flanked by built-ins.
  • The kitchen has an island and walk-in pantry and is open to the bumped-out nook and family room. Note the access to a rear deck.
  • Steps away, the dining room is light-filled with abundant windows. An arched opening adds continuity to the living room.
  • The lower level features a media room and fifth bedroom suite and has direct access to the 3-car tandem garage.
  • There are 2' overhangs on the eaves for this home.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
  •

Floor Plans

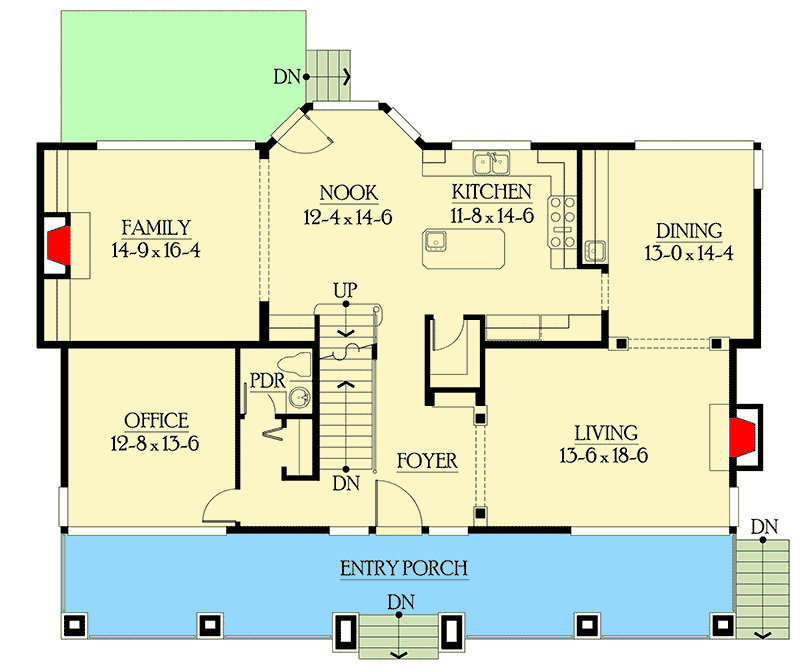

  • Main Level

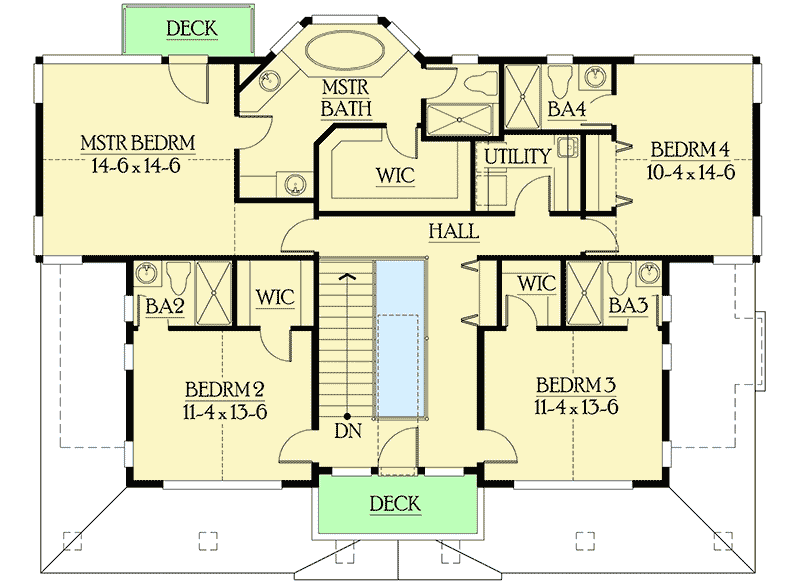

  • 2nd Floor

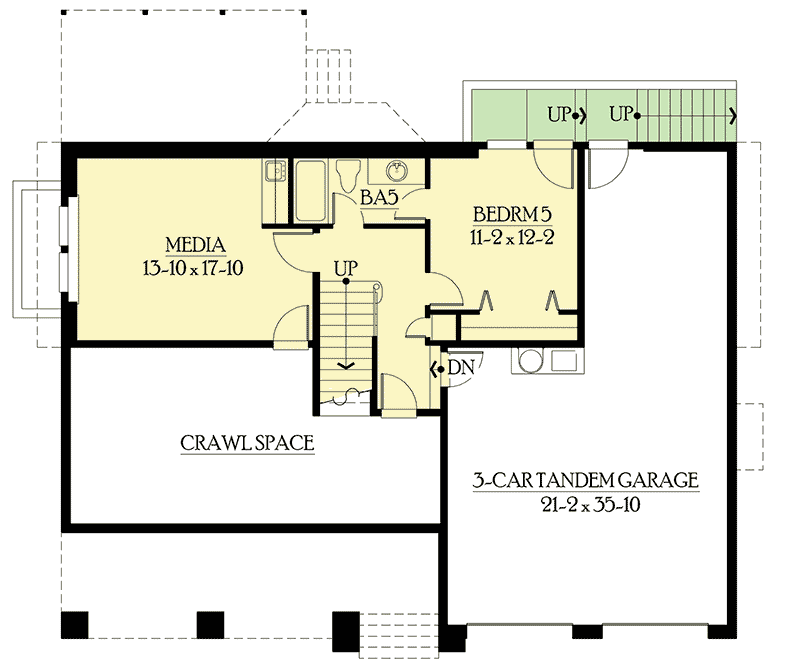

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,737 sq. ft.
  • Lower Level: 684 sq. ft.
  • 1st Floor: 1,588 sq. ft.
  • 2nd Floor: 1,465 sq. ft.
  • Porch, Front: 724 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Combo Basement-Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 42' 0"
  • Max ridge height: 26' 6"

Garage

  • Type: Drive Under
  • Area: 641 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 11' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
