Perfect One Level Mediterranean House Plan

Name: Plan 76022BW: Perfect One Level Mediterranean House Plan
Brand: Architectural Designs
SKU: 76022BW
Price: 2260.0 USD
Availability: InStock

Heated S.F.

2,511

Beds

Baths

Stories

Cars

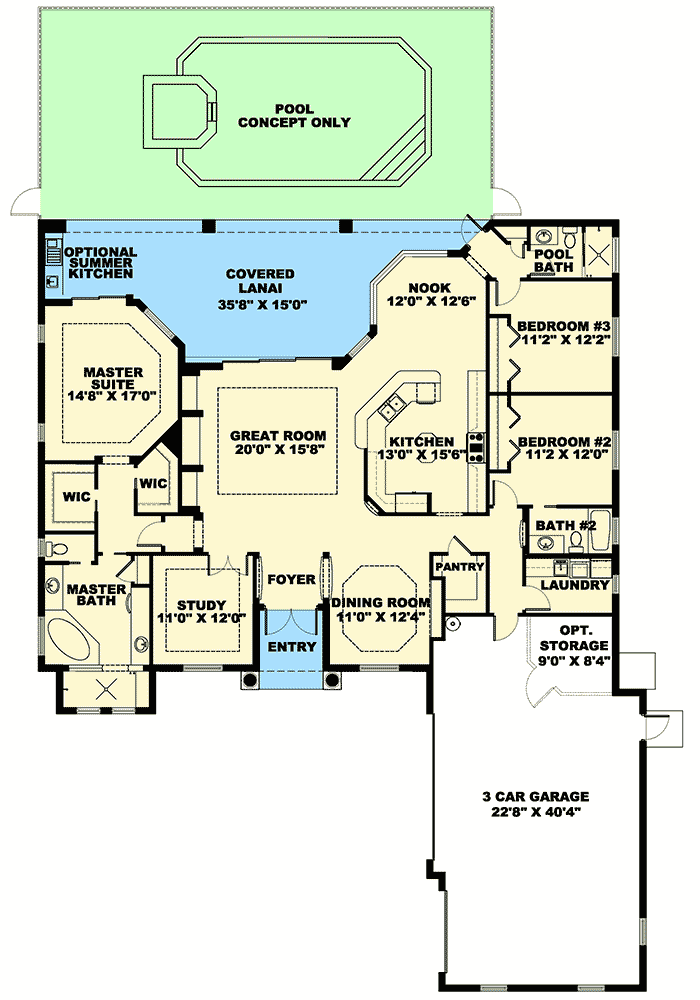

Floor Plan

Main Level

Plan Details

Modest in size, this one level Mediterranean house plan gives you a split bedroom layout, a study and the open floor plan that most families request.
A half wall to the right of the foyer lets you see into the dining room, yet provides separation.
Views go straight back into the giant great room that has an elegant tray ceiling and built-ins.
Sliders take you out to a spacious rear covered lanai where you can have an optional summer kitchen for grilling.
You'll never run out of counter space in the huge kitchen where a peninsula eating bar looks out onto the lanai, nook and great room.
The pool bath in back is conveniently placed so you don't have wet feet going all through the house.
The over-sized three car garage has a spot for an optional storage closet.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Size

Electrical Layouts

Building Section Markers
Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

Floor Joist Size and Spacing
Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
