Plan 60647ND

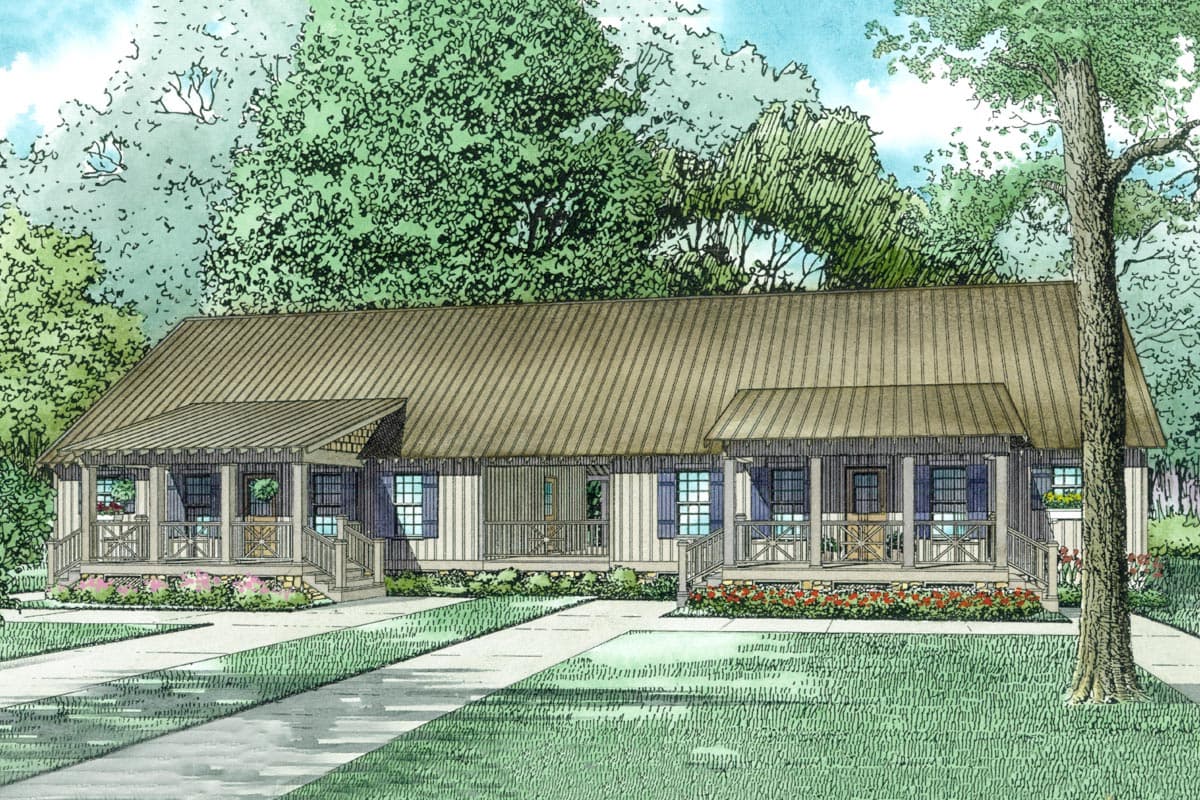

Picturesque Duplex with Matching 1,070 Square Foot Units

Heated S.F.
2,916
Units
2
Width
Depth

Floor Plan

Plan 60647ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 60647ND

M-F 9am-5pm EST |

1-203-761-8500

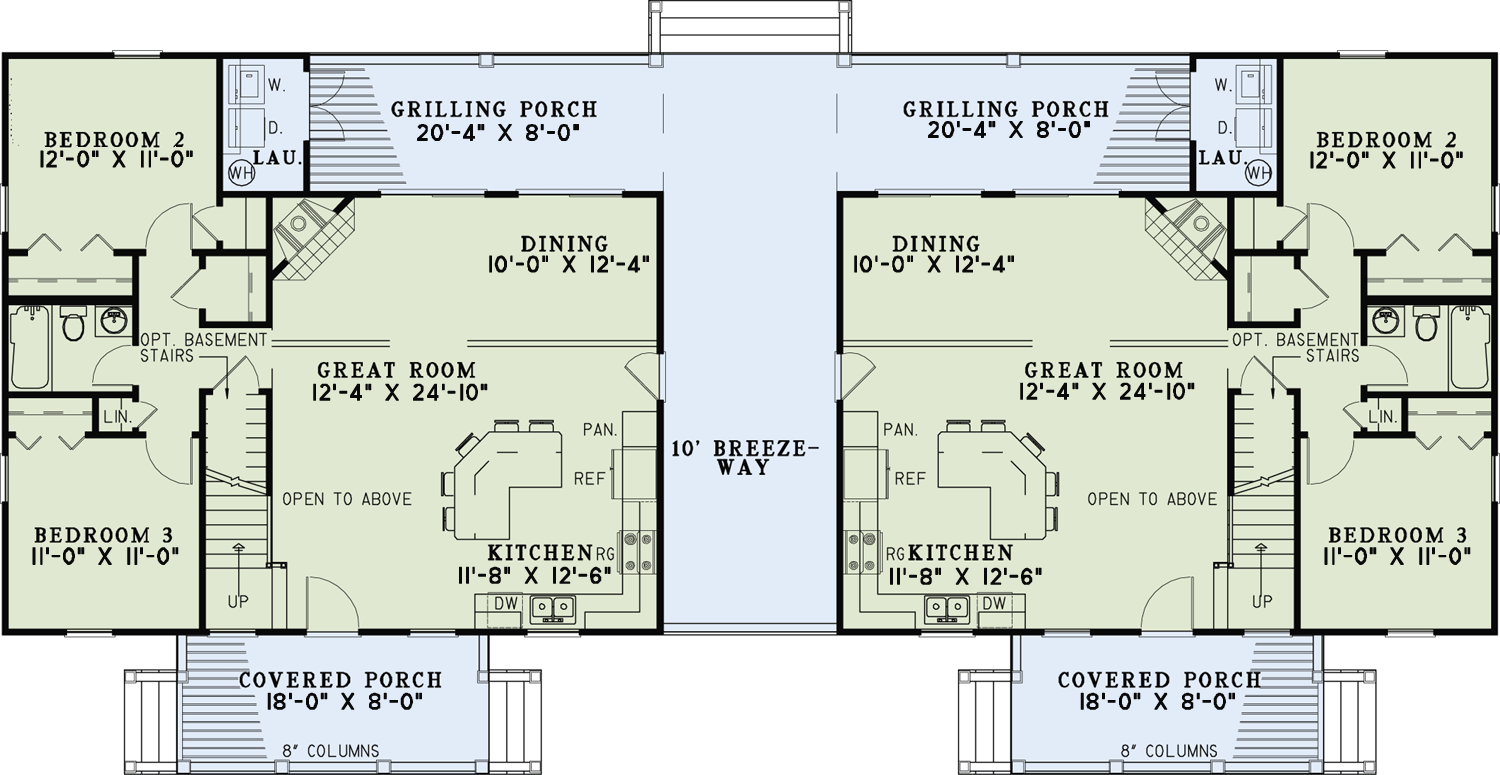

Main Level

Plan 60647ND: Picturesque Duplex with Matching 1,070 Square Foot Units - Floor Plan - Main Level - Country, Southern, Southern Traditional, Traditional

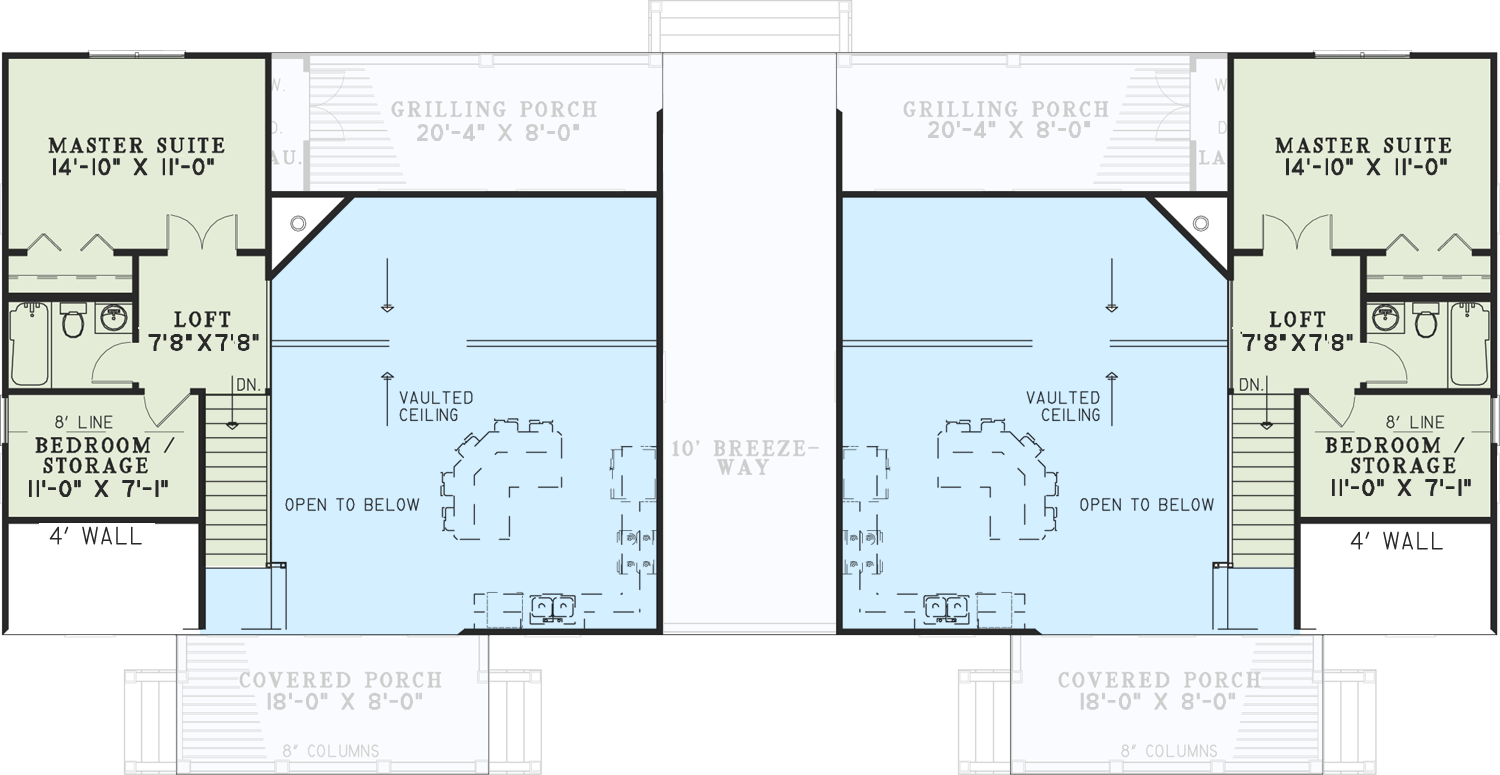

2nd Floor

Plan 60647ND: Picturesque Duplex with Matching 1,070 Square Foot Units - Floor Plan - 2nd Floor - Country, Southern, Southern Traditional, Traditional

Plan Details

  • This multi-family plan is a perfect get away or vacation home.
  • Each unit gives you 3 beds and 1,458 square feet of heated living space (1,070 square feet on the main floor and 388 square feet on the second floor).
  • The large front covered porch leads into the great room with a corner fireplace and a high vaulted ceiling
  • The great room opens to the dining area and kitchen and has access to a rear grilling porch as well.
  • The kitchen has access to the breezeway and offers a wrap-around, eat-at island bar.
  • Two bedrooms and a full bathroom are located downstairs, while upstairs, the master suite and loft overlook the great room.
  • An additional room upstairs could either be a small bedroom or used for storage.
  • Related Plan: Get larger units (1,461 square feet each) with duplex house plan 70830MK.
Unit A
Heated Area
1,458Sq. Ft.
1070 Sq. Ft. 1st
388 Sq. Ft. 2nd
Beds
3 or 4Beds
Baths
2Full Baths
Dimensions
43'width
41' 6"depth
22'height
Unit B
Heated Area
1,458Sq. Ft.
1070 Sq. Ft. 1st
388 Sq. Ft. 2nd
Beds
3 or 4Beds
Baths
2Full Baths
Dimensions
43'width
41' 6"depth
22'height

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

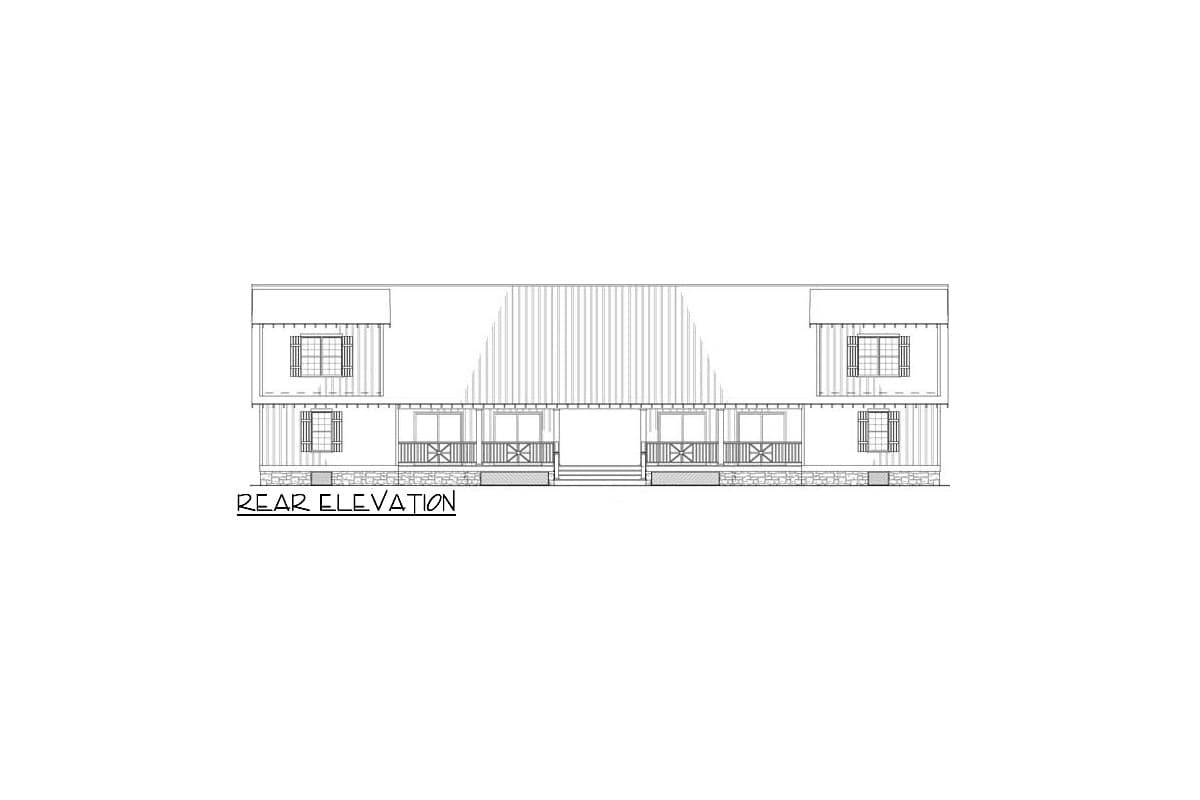

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
