Plan 80888PM

Picturesque Northwest House Plan

Heated S.F.
1,646
Beds
3
Baths
1.5
Stories
2
Cars
1

Floor Plan

Plan 80888PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 80888PM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

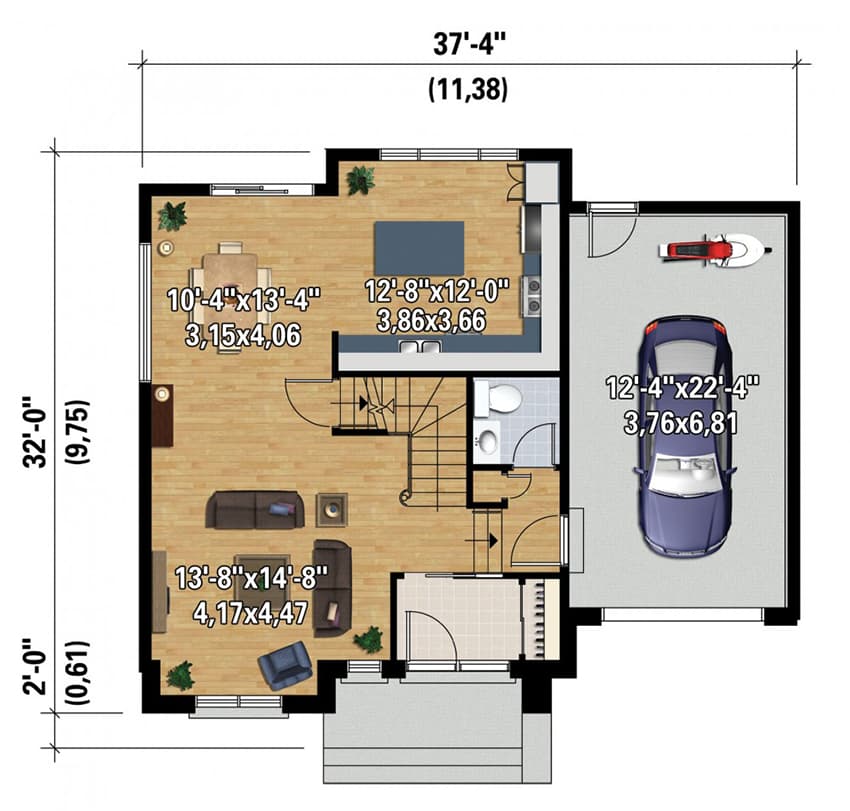

Plan 80888PM: Picturesque Northwest House Plan - Floor Plan - Main Level - Northwest

2nd Floor

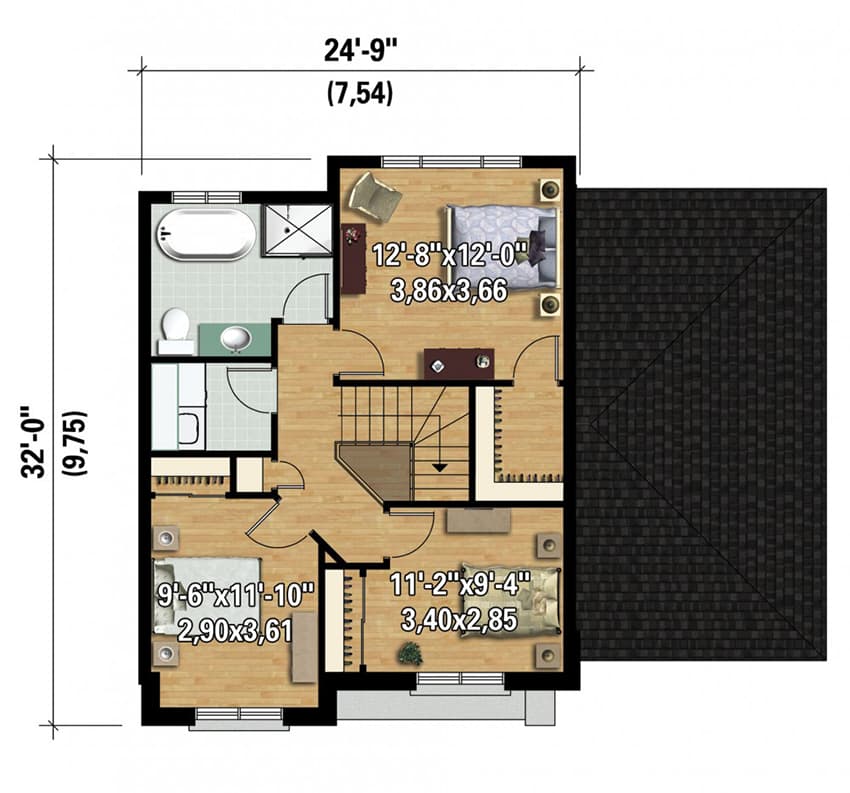

Plan 80888PM: Picturesque Northwest House Plan - Floor Plan - 2nd Floor - Northwest

Plan Details

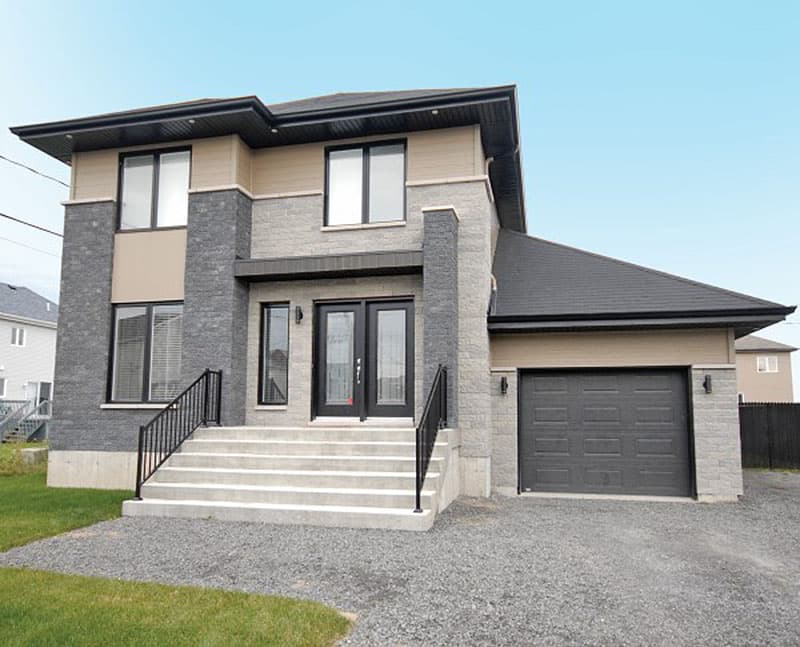

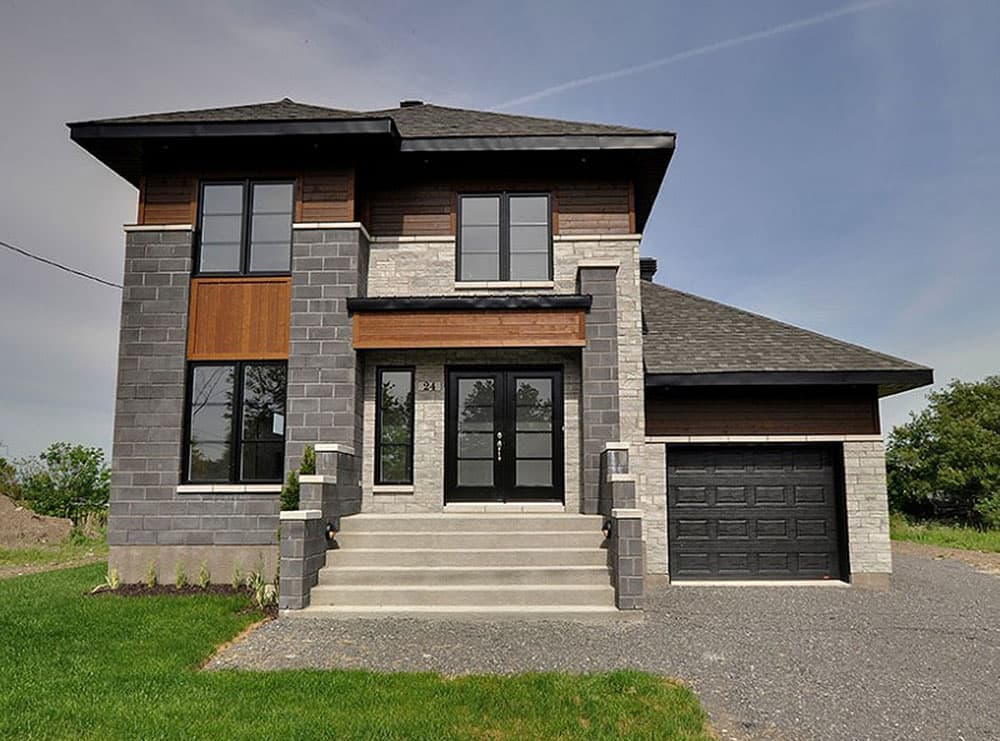

  • A peaked hip roof covers even the one car garage of this Northwest house plan.
  • Using a multitude of different exterior materials heightens the curb appeal.
  • Climb the stairs to the front door where the foyer has pocket doors that open up to reveal the main, open concept living area.
  • Sliding glass doors in the dining room lead out to the back yard.

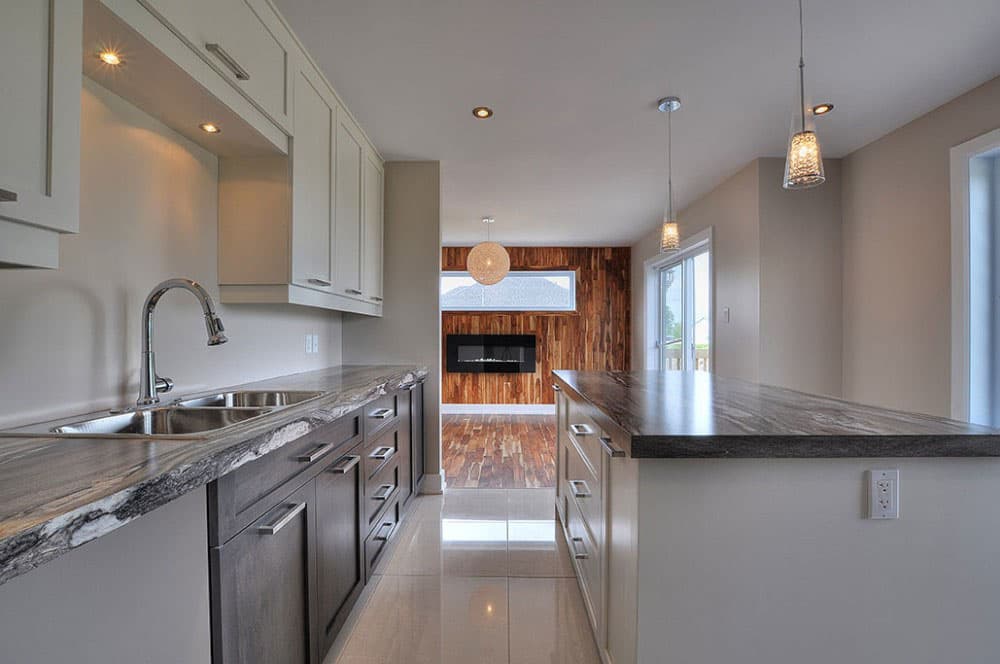

  • An island in the kitchen gives you extra storage and counter space.

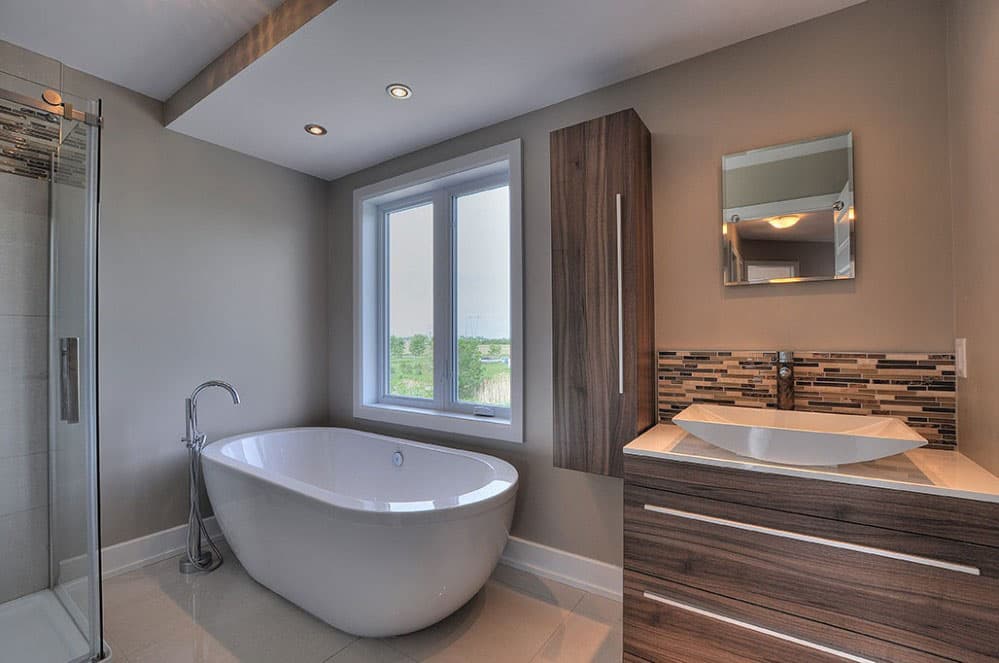

  • Upstairs, there are three bedrooms, a laundry room and a large 4 piece washroom.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,646 sq. ft.

1st Floor

732 sq. ft.

2nd Floor

732 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

37' 0"

Depth

32' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

312 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Northwest

Special Features

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric

Photo Gallery
